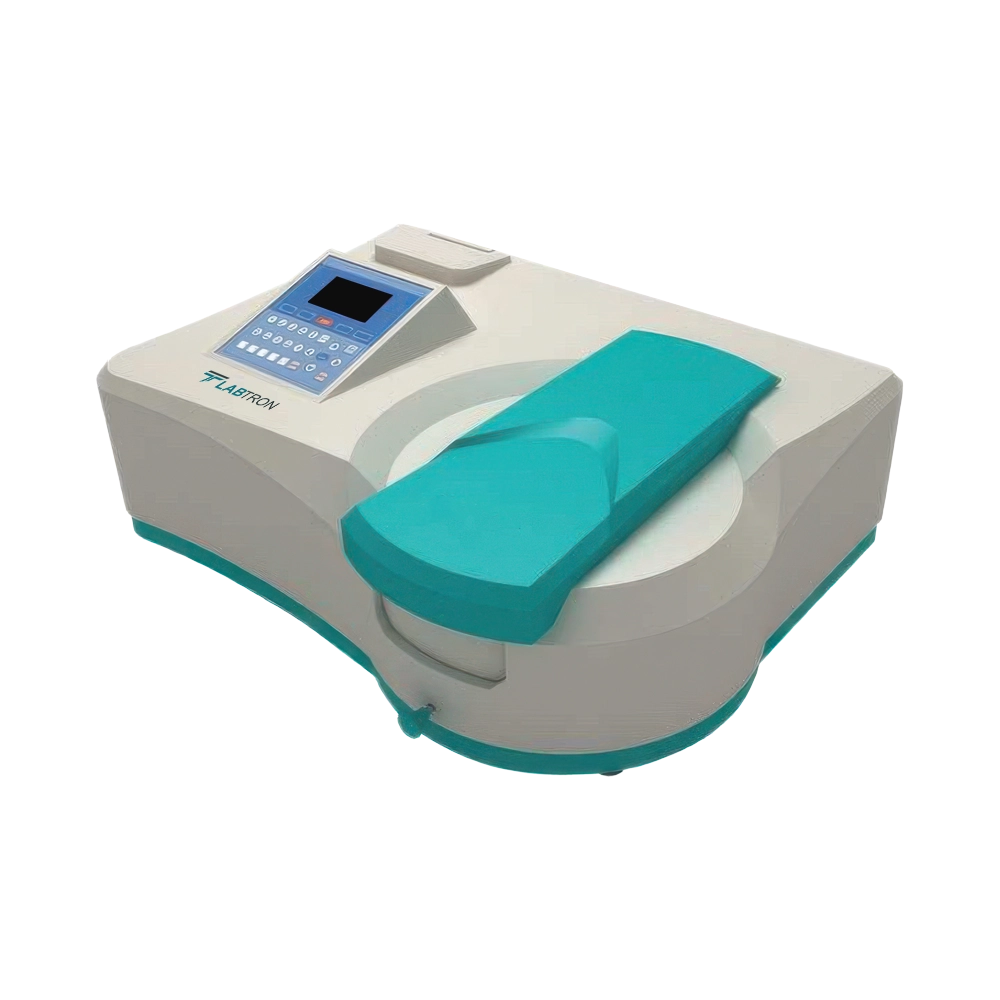

Single Beam UV-Visible Spectrophotometer LUS-C13

Name: Single Beam UV-Visible Spectrophotometer LUS-C13
Brand: Labtron
SKU: LUS-C13
Rating: 4.7 (732 reviews)

Single Beam UV-Visible Spectrophotometer LUS-C13 is designed with a 2 nm spectral bandwidth, ensuring high-resolution optical analysis. It provides a wavelength accuracy of ±0.3 nm, improving measurement reliability across applications. The photometric accuracy of ±0.002 A at 0.5 A enhances consistency in absorbance readings. A 320×240 dot-matrix LCD offers a user-friendly graphical interface for efficient operation. Used in clinical diagnostics, material science, forensic analysis, and microbiological studies.

Request Quote

Wavelength Range	190 to 1100 nm
Spectral Bandwidth	2 nm
Optical System	Single beam / Proportional monitoring (optional), Littrow, 1200 line/mm holographic diffraction grating
Wavelength Tolerance	±0.3 nm (all-optical wavelength), ±0.1 nm at 656.1 nm D₂
Wavelength Resolution	0.1 nm (minimum)
Photometric Range	-0.3 to 3A, 0-200%T, -9999 to 9999C
Photometric Repeatability	±0.001 A @0.5A, ±0.002 A @1A, ±0.15%T (0-100%)
Light Source	Imported halogen tungsten lamp and deuterium lamp
Transmittance Tolerance	±0.002 A @0.5A, ±0.004 A @1A, ±0.3%T (0-100%)
Zero Setting	Auto-tune 100%T and 0%T
Stray Light	Less than or equal to 0.03%T at 220 nm, 340 nm
Stability	±0.0005 A/hr at 500 nm, 0A
Working Mode	T, A, C, E
Display	320×240 graphic LCD
Communication Interface	USB port, Built-in optional printer, Upper software connection via USB
Dimensions	570×460×230 mm
Weight	16 kg

Multi-mode measurement support
High-capacity data storage
Built-in optional micro-thermal printer
USB connectivity for data transfer
Self-diagnostic and calibration recovery
Imported halogen and deuterium lamps

Our Single Beam UV-Vis Spectrophotometer LUS-C13 is designed for food hygiene, drug analysis, and research applications, ensuring quality control, purity assessment, and accurate spectral data measurement.

Accessory	Quantity
Main unit	1 pc
Glass cells (1 cm)	4 pcs
Quartz cells (1 cm)	2 pcs
Dust cover	1 pc
Power cord	1 pc

Download catalog for
Single Beam UV-Visible Spectrophotometer LUS-C13 Catalog

Available Range :

Models of Single Beam UV-Visible Spectrophotometer

Labtron single beam UV-visible spectrophotometers offer a broad range of wavelengths and many choices for spectral bandwidth. They provide quantitative analysis and photometric measurement with user-friendly interfaces. They come with USB connections and a large colorful LCD display. They are flexible since they have several light sources installed. Our single beam spectrophotometers offer high performance, reliability, and accuracy with auto wavelength adjustment and robust construction.

Single Beam UV-Vis Spectrophotometer LUS-A32

Wavelength Range : 190 to 1100 nm
Spectral Bandwidth : 1 nm
Wavelength Setting : Automatic
Optical System : Single Beam, Grating 1200 lines/ mm

Compare Remove

Single Beam UV-Visible Spectrophotometer LUS-A52

Wavelength range : 190 to 1100 nm
Spectral bandwidth : 0.5/1/2/4/5 nm
Wavelength Accuracy : ± 0.1nm @ 656.1 nm, ± 0.3 nm @ all
Wavelength Repeatability : ≤ 0.1 nm

Compare Remove

Single Beam UV-Visible Spectrophotometer LUS-C32

Wavelength Range : 195 to 1020 nm
Spectral Bandwidth : 4 nm
Wavelength Setting : Manual
Optical System : Single Beam, Grating 1200 lines/ mm

Compare Remove

Single Beam UV-Vis Spectrophotometer LUS-A57

Wavelength Range : 190 to 1100 nm
Spectral Bandwidth : 0.5, 1, 2, 4 and 5 nm
Wavelength Setting : Automatic
Optical System : Single Beam, Grating 1200 lines/ mm

Compare Remove

Single Beam UV-Vis Spectrophotometer LUS-A43

Wavelength Range : 190 to 1100 nm
Spectral Bandwidth : 2 nm
Wavelength Setting : Automatic
Optical System : Single Beam, C-T monochromator, Blazed Holographic Grating 1200 lines/ mm
