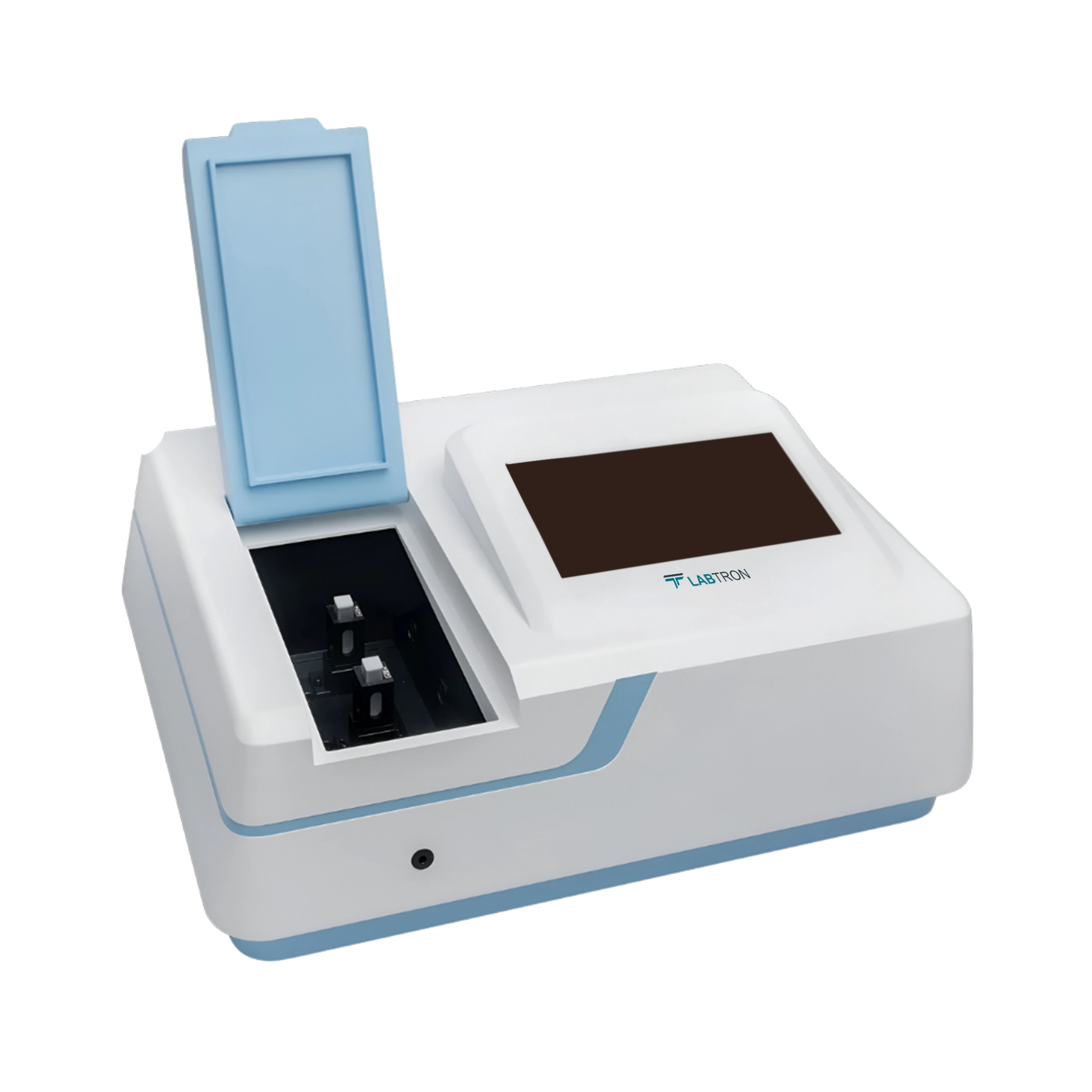

Single Beam UV-Visible Spectrophotometer LUS-A50

Name: Single Beam UV-Visible Spectrophotometer LUS-A50
Brand: Labtron
SKU: LUS-A50
Rating: 5 (880 reviews)

Single Beam UV-Visible Spectrophotometer LUS-A50 offers optical system with 1200 lines/mm grating ensures high-precision spectral analysis. Features automatic wavelength calibration ensuring accuracy while reducing manual effort and errors. Its user-friendly software supports data storage, retrieval, and seamless export of test results. Equipped with long-life tungsten and deuterium lamps that enhances performance and ensure consistent spectral output. The lightweight and compact design optimizes space utilization in laboratories and research facilities.

Request Quote

Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190nm to 1100 nm
Spectral Bandwidth	2 nm
Wavelength Accuracy	± 0.1 nm at 656.1 nm, ± 0.3 nm at all
Wavelength Repeatability	Less than or equal to 0.1 nm
Photometric Accuracy	0.2%T (0 to 100%T), ±0.0024A (0 to 0.5A), ±0.004A (0.5 to 1A)
Photometric Repeatability	Less than or equal to 0.15%T (0 to 100%T), 0.001A (0 to 0.5A), 0.002A (0.5 to 1A)
Photometric Range	0-200%T, -0.3 to 3.4A, 0 to 9999C (0 to 9999F)
Stray Light	Less than or equal to 0.03%T at 220 nm, 360 nm
Stability	±0.0003A/h at 500 nm
Baseline Flatness	±0.001A
Noise	0.0005A at 500 nm
Work Mode	T, A, C, E
Scanning Speed	Hi, Med, Low (Max 3000 nm/min)
Wavelength Setting	Auto
Display	10.1" TFT Colored Capacitive Touch Screen
Light Source	Imported Deuterium & Tungsten lamp
Detector	Imported Silicon Photodiode
Cuvette Holder	10 mm manual 4-cell holder
Output	USB drive, USB host, RS232
Power Supply	AC 220V/50Hz or AC 110V/60Hz
Shipping Size	810mm × 660mm × 390mm
Gross Weight	26 kg

Photometric and quantitative analysis
Spectrum scanning & biomolecule testing
Large 1024M internal memory storage
Multiple accessory options available
USB connectivity for data export
Quick-change lamp replacement system
GLP/GMP compliance with data management

Our Single Beam UV-Visible Spectrophotometer LUS-A50 offers precise absorbance and transmittance analysis across various wavelength range, ideal for laboratory research, pharmaceutical testing, and quality control applications.

10 mm glass cuvette × 4
10 mm quartz cuvette × 2
Power cord
User Manual
PC software

Film Holder (H×W×L)	1mm×10mm×30mm
Cuvette Holder	1cm
Xenon Lamp	A510KU（10V）
Integrating Sphere (L×W×H)	95mm× 101mm× 99mm
Automatic 8-position cell holder	1cm
Automatic 5-position cell holder	1 to 5cm

Download catalog for
Single Beam UV-Visible Spectrophotometer LUS-A50 Catalog

Available Range :

Models of Single Beam UV-Visible Spectrophotometer

Labtron single beam UV-visible spectrophotometers offer a broad range of wavelengths and many choices for spectral bandwidth. They provide quantitative analysis and photometric measurement with user-friendly interfaces. They come with USB connections and a large colorful LCD display. They are flexible since they have several light sources installed. Our single beam spectrophotometers offer high performance, reliability, and accuracy with auto wavelength adjustment and robust construction.
