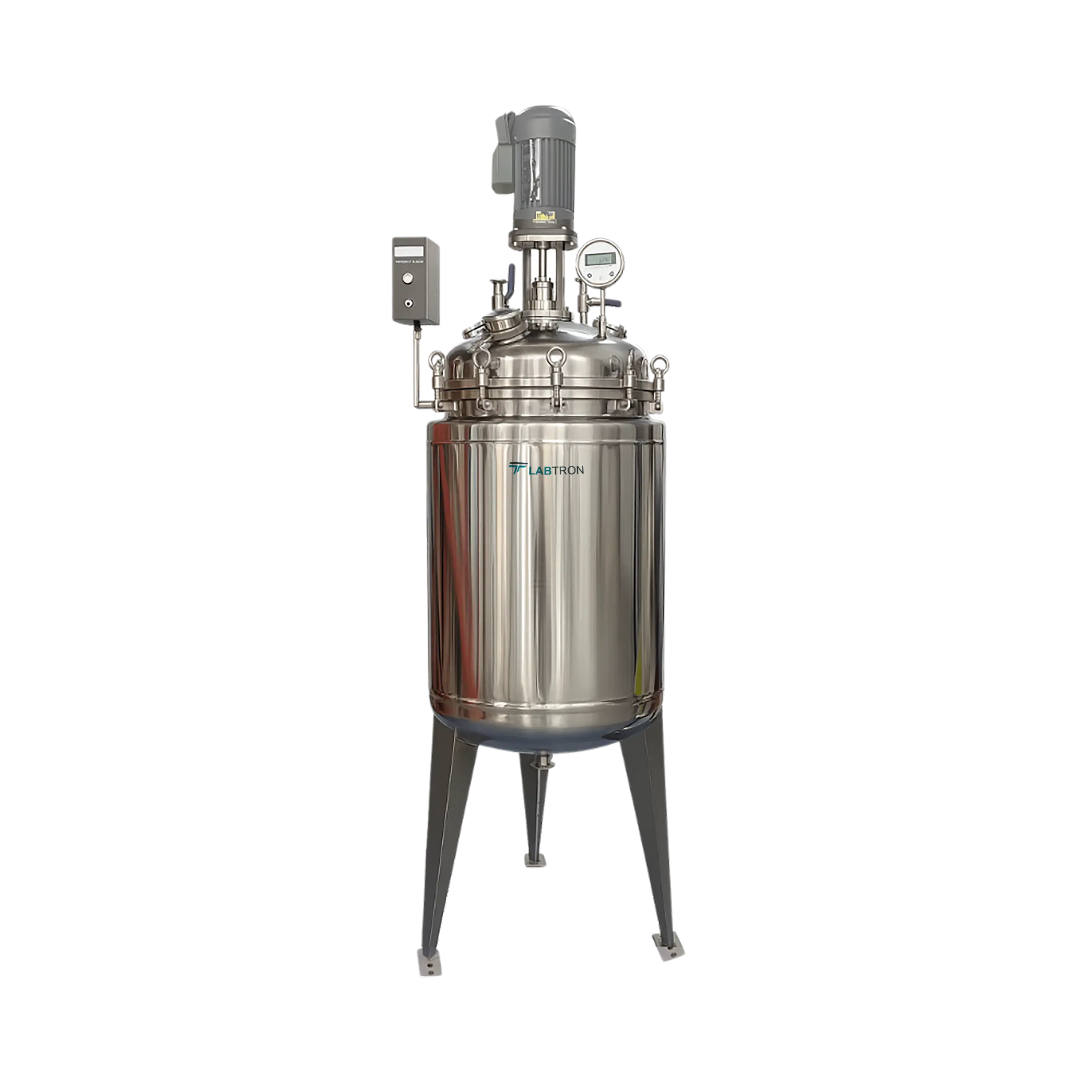

Stainless Steel Reactor LRSS-A10 has a capacity of 200 L and features a jacketed vessel made of sanitary-grade SS304. It supports a temperature range from -80°C to 250°C, enabling safe and efficient low- and high-temperature operations. Its hydraulic lift allows easy handling of the cover and paddle for effortless loading, unloading, and maintenance. The internal tank is electropolished and equipped with durable seals, ensuring hygienic operation and strong chemical resistance.
| Reaction Vessel Capacity | 200 Liters |
| Material | Sanitary Grade Stainless Steel 304 |
| Stirrer Type | Paddle Type, Double Layer |
| Stirrer Material | Sanitary Grade Stainless Steel 304 |
| Stirring Motor Power | 550W |
| Sealing Mode | Mechanical Seal |
| Rotary Speed of Stirrer | 0 to 150 RPM |
| Working Temperature Range | - 80°C to +250°C |
| Ports on Reactor Lid | Stirring port, Air/Liquid inlet port, Temperature probe port, Feeding port, Pressure gauge port, 2× Sight glasses, Spare port |
| Ports on Jacket | Oil/Water circulation inlet and outlet |
| Drain Valve | Discharge valve without a dead end |
| Seals Material | PTFE and Viton |
| Control Cabinet | Digital stirring speed controller with main power switch |
| Power Supply | 220V, 50/60Hz, Single Phase |
| Product Dimension (L × W × H) | 700 × 650 × 2350 mm |
| Packing Dimension (L × W × H) | 760 × 710 × 2500 mm |
| Net Weight | 345 kg |
| Gross Weight | 360 kg |
Hydraulic lift for cover & paddle
Easy discharge & cleaning
Handles high-viscosity fluids
Sanitary 316L with anti-corrosive seals
Electropolished tank
Detachable condenser & collection tanks
Stainless Steel Reactor LRSS-A10 is used for emulsification, homogenization, dispersion, extraction, synthesis, decarboxylation, concentration, and solvent recovery. It is widely applied in pharmaceutical, chemical, food, and laboratory industries for various mixing and processing tasks.
Download catalog for
Stainless Steel Reactor LRSS-A10 Catalog
Available Range :
Stainless Steel Reactor LRSS-A10 : 200 LitersLabtron Stainless Steel Reactor offers efficient mixing, blending, and processing of various substances. They provide uniform homogenization, effective emulsification, and smooth dispersion for a wide range of fluids and pastes. With hygienic designs and durable construction, they ensure safe and reliable operation. These reactors support precise temperature control and easy maintenance. They are ideal for pharmaceutical, chemical, food, and Industrial applications.
