Type II RO Water Purification System LTWP-B20

Type II RO Water Purification System LTWP-B20

Type II RO Water Purification System LTWP-B20 delivers a consistent water output of 120 L/hr and 1.5 to 2 L/min with a pressure barrel, making it suitable for various applications. It features a fully automatic microcomputer control system for convenient operation. The system includes anti-scaling and timed flushing programs to extend the life of the RO membrane. Our Type II RO Water Purification System also shows real-time status indicators such as power, water flow, pump operation, flushing cycles, water shortage, and full tank alerts. Its floor-standing design with both fixed and movable base stands ensures easy installation and mobility.

Type II RO Water Purification System LTWP-B20( SIDE VIEW 1)
Type II RO Water Purification System LTWP-B20 ( SIDE VIEW 2)
Type II RO Water Purification System LTWP-B20 ( SIDE VIEW 3)
Type II RO Water Purification System LTWP-B20 (SIDE VIEW 4)

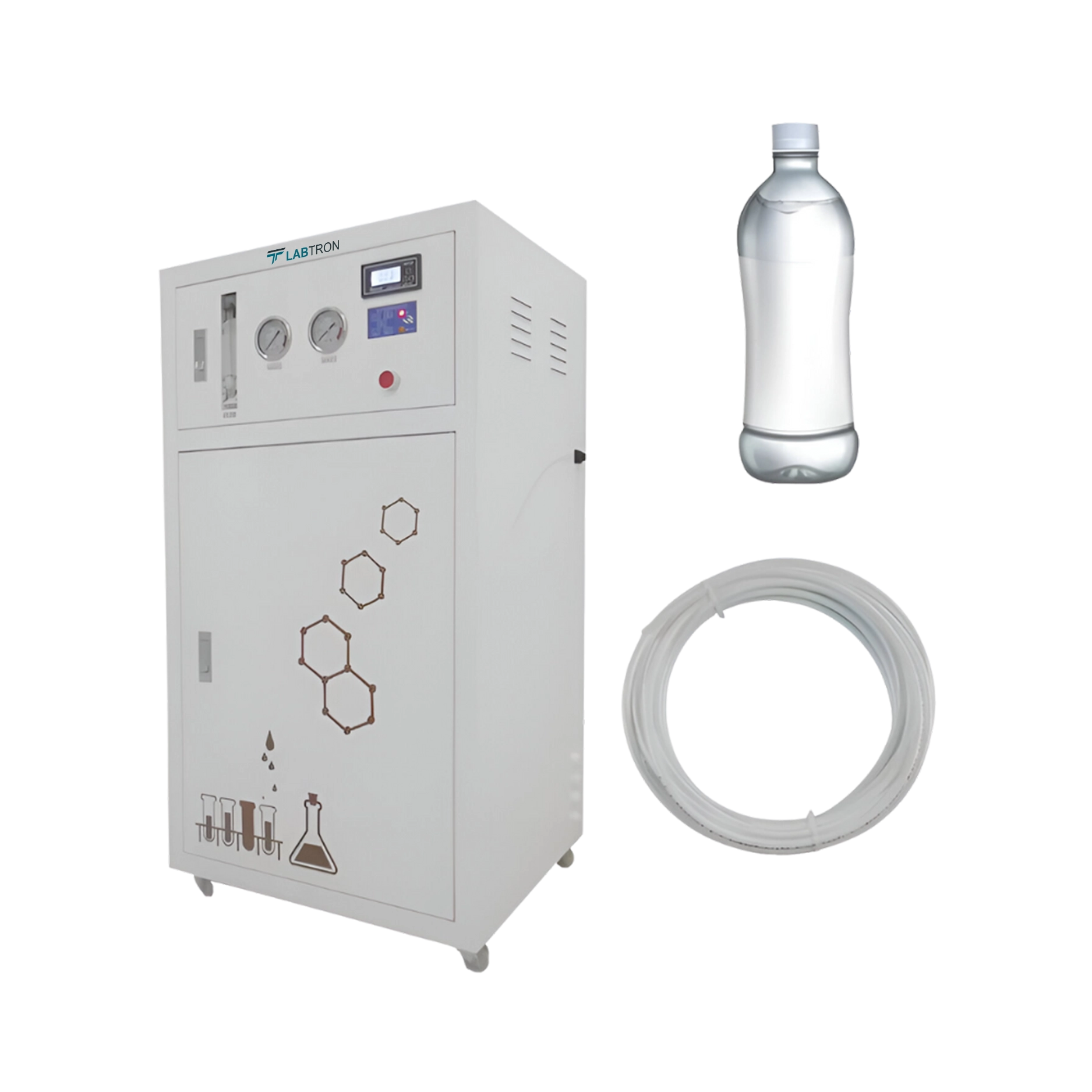

Type II RO Water Purification System LTWP-B20 (SIDE VIEW 5)

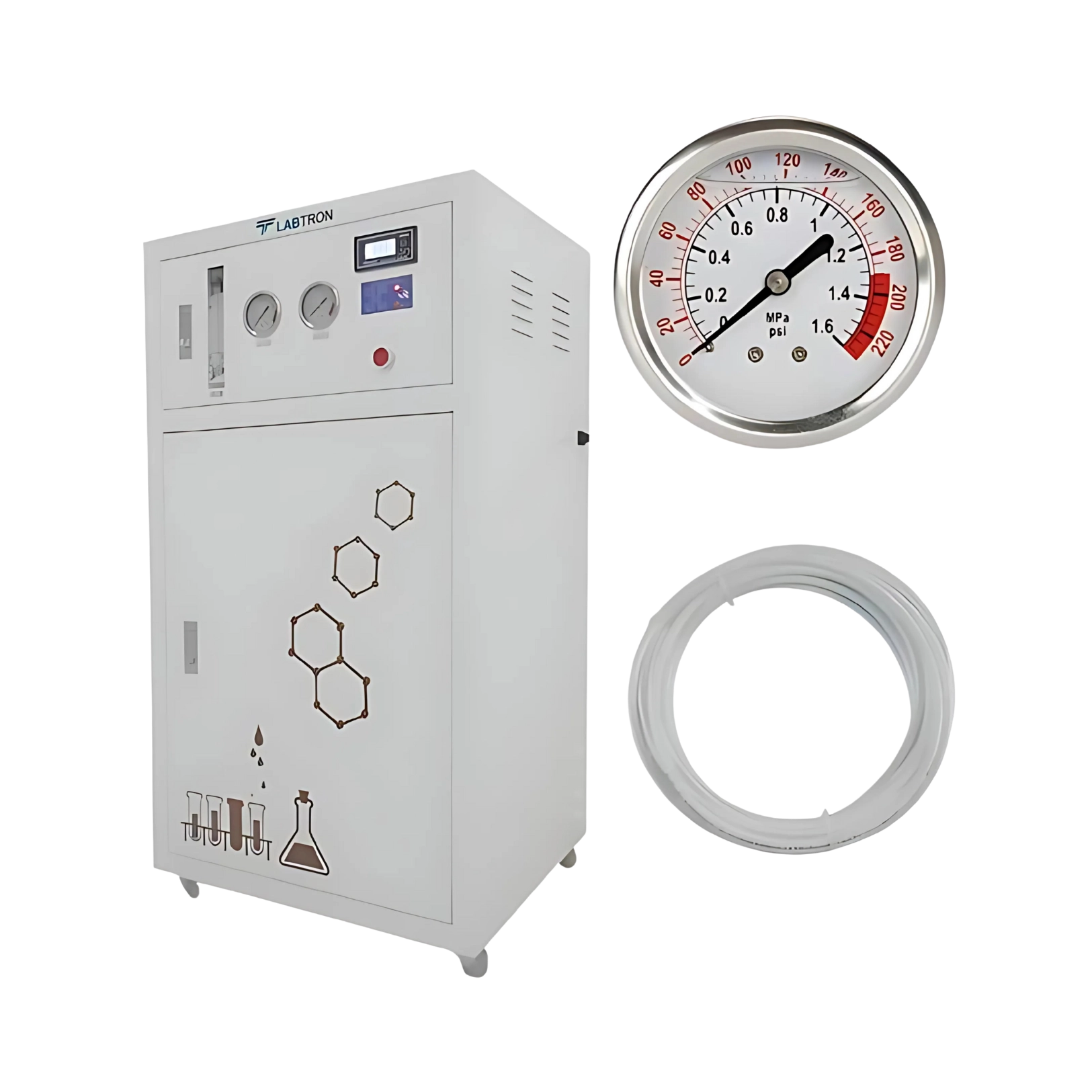

Type II RO Water Purification System LTWP-B20 (SIDE VIEW 6)
Request Quote
Output of Pure Water 120L/hr
Production Speed 1.5 to 2 L/min (with pressure barrel)
Water Requirements Urban tap water
Water Inlet Pressure 0.15 to 0.5 MPa
Water Temperature 5 to 40°C
TDS < 200 ppm
Ion Rejection Rate 97% to 99% (using a new RO membrane)
Organic Matter Rejection Rate >99% (for molecules with MW >200 Dalton)
Particle & Bacterial Rejection >99%
DI Water Resistivity (25°C) 10 to 16 MΩ·cm at 25°C
DI Water Conductivity <0.1 μS/cm
Power Supply 110 to 240V / 50 to 60Hz, 48 to 72W
Dimension 590×430×1010 mm
Packaging Dimension 720×550×1220 mm
Net Weight 70 Kg
Gross Weight 85 Kg

Dual LCD displays

Real-time water quality monitoring

Two separate water outlets

Includes TDS testing pen

Type II RO Water Purification System LTWP-B20 is ideal for ultrapure water system pre-treatment and biochemical analyzer supply. It also supports lab, industrial, and testing applications like electroplating, chip cleaning, and buffer preparation.

No.

Accessories Name

Quantity (Pcs)

1

20" PP Filter / 11" PP Filter

1

2

20" Activated Carbon Filter / 11"

1

3

400 GPD RO Membrane / 75 GPD

1

4

12L Deionized-Purification Tank

1

5

70L Sterile Water Tank

1

6

3L Delivery Pump

1

Type II RO Water Purification System LTWP-B20 | Output of Pure Water: 120L/hr | Water Requirements: Urban tap water
Type II RO Water Purification System LTWP-B20 | Dual LCD displays | Real-time water quality monitoring

Models of Type II RO Water Purification System

Labtron Type II RO Water Purification System offers a reliable output of pure water, rangingfrom ≥ 10 to ≥ 50 L/hr. Utilizing cutting-edge single and double pass RO processes, thesedeliver ultrapure water at rates of ≥1-1.5 L/min. They feature tank capacities of 30 or 80 L toeffectively accommodate your operational requirements. With TOC under 20 ppb and heavymetals below 0.01 ppm, they ensure exceptional purity. Our Water Purification System areavailable in both benchtop and floor-standing configurations for optimal performance.

Type II RO Water Purification System LTWP-B10

Type II RO Water Purification System LTWP-B10

  • Output of Pure water : ≥ 10 L / hr.
  • Process : Double Pass RO system
  • Water Type : Type II
  • Water Tank capacity : 30 L
Type II RO Water Purification System LTWP-B13

Type II RO Water Purification System LTWP-B13

  • Output of Pure water : 60 L/hr
  • Water Type : Type II
  • Water Tank capacity : 60 L
  • Configuration : Floor Standing
Type II RO Water Purification System LTWP-A13

Type II RO Water Purification System LTWP-A13

  • Output of Pure water : ≥ 40 L / hr.
  • Process : Single Pass RO system
  • Water Type : Type II
  • Water Tank capacity : 80 L
Type II RO Water Purification System LTWP-A11
Type II RO Water Purification System LTWP-A11
  • Output of Pure water : ≥ 20 L / hr.
  • Process : Single Pass RO system
  • Water Type : Type II
  • Water Tank capacity : 30 L
Type II RO Water Purification System LTWP-B11
Type II RO Water Purification System LTWP-B11
  • Output of Pure water : ≥ 20 L / hr.
  • Process : Double Pass RO system
  • Water Type : Type II
  • Water Tank capacity : 30 L
Type II RO Water Purification System LTWP-D20

Type II RO Water Purification System LTWP-D20

  • Type : Benchtop System
  • Water Requirements : Tap Water
  • Feed Water Conductivity : < 2000 µS/cm
  • Feed Water Hardness : < 450 ppm as CaCO3
Type II RO Water Purification System LTWP-A12

Type II RO Water Purification System LTWP-A12

  • Output of Pure water : ≥ 30 L / hr.
  • Process : Single Pass RO system
  • Water Type : Type II
  • Water Tank capacity : 30 L
Type II RO Water Purification System LTWP-D22

Type II RO Water Purification System LTWP-D22

  • Type : Floor Type System
  • Water Requirements : Tap Water
  • Feed Water Conductivity : < 2000 µS/cm
  • Feed Water Hardness : < 450 ppm as CaCO3
Type II RO Water Purification System LTWP-B20 FAQ's
  • The Labtron Type II RO Water Purification System is specifically designed to meet the needs of both laboratory and industrial environments. It delivers a consistent water output of 120 liters per hour and includes features such as dual LCD displays and real-time water quality monitoring, which are essential for processes requiring reliable and high-purity water. Its ability to remove up to 99% of ions, organic matter, particles, and bacteria ensures that the water meets stringent quality standards. With separate water outlets and TDS testing included, users can easily monitor and control water quality, making it perfect for sensitive applications like biochemical analysis, buffer preparation, and electroplating.

  • The system is equipped with automatic anti-scaling and timed flushing programs that help maintain the RO membrane in optimal condition. These features reduce scale buildup and periodically flush the system, preventing clogging and fouling. This not only extends the membrane’s life but also minimizes maintenance needs and operational downtime. The microcomputer control system manages these functions automatically, allowing users to benefit from consistent performance without manual intervention.

  • The fully automatic microcomputer control system in the Labtron water purifier simplifies the operation and monitoring of the unit. It provides real-time status updates including power levels, pump operation, water flow, flushing cycles, and tank status (e.g., full or water shortage alerts). This automation helps users identify issues quickly and ensures that the system runs efficiently with minimal manual input. It’s especially beneficial in busy labs or industrial settings where operational reliability is critical.

  • Yes, the system features a floor-standing design with both fixed and movable base stands. This makes it easy to install in a permanent location or relocate if required. Whether it's being used in a laboratory, testing facility, or industrial workshop, the flexibility of the base supports seamless integration into different environments. Additionally, its compact design (590×430×1010 mm) and user-friendly layout ensure it fits comfortably in most settings.

  • The Labtron system provides high-purity water suitable for a range of scientific and industrial tasks. It achieves an ion rejection rate of 97–99%, removes more than 99% of organic molecules (over 200 Dalton), and also eliminates more than 99% of bacteria and particles. The deionized water it produces has a resistivity of 10 to 16 M?·cm and a conductivity of less than 0.1 ?S/cm at 25°C. These specifications ensure that the water meets Type II quality standards, making it ideal for precise applications like chemical reagent preparation and analytical instrumentation.
