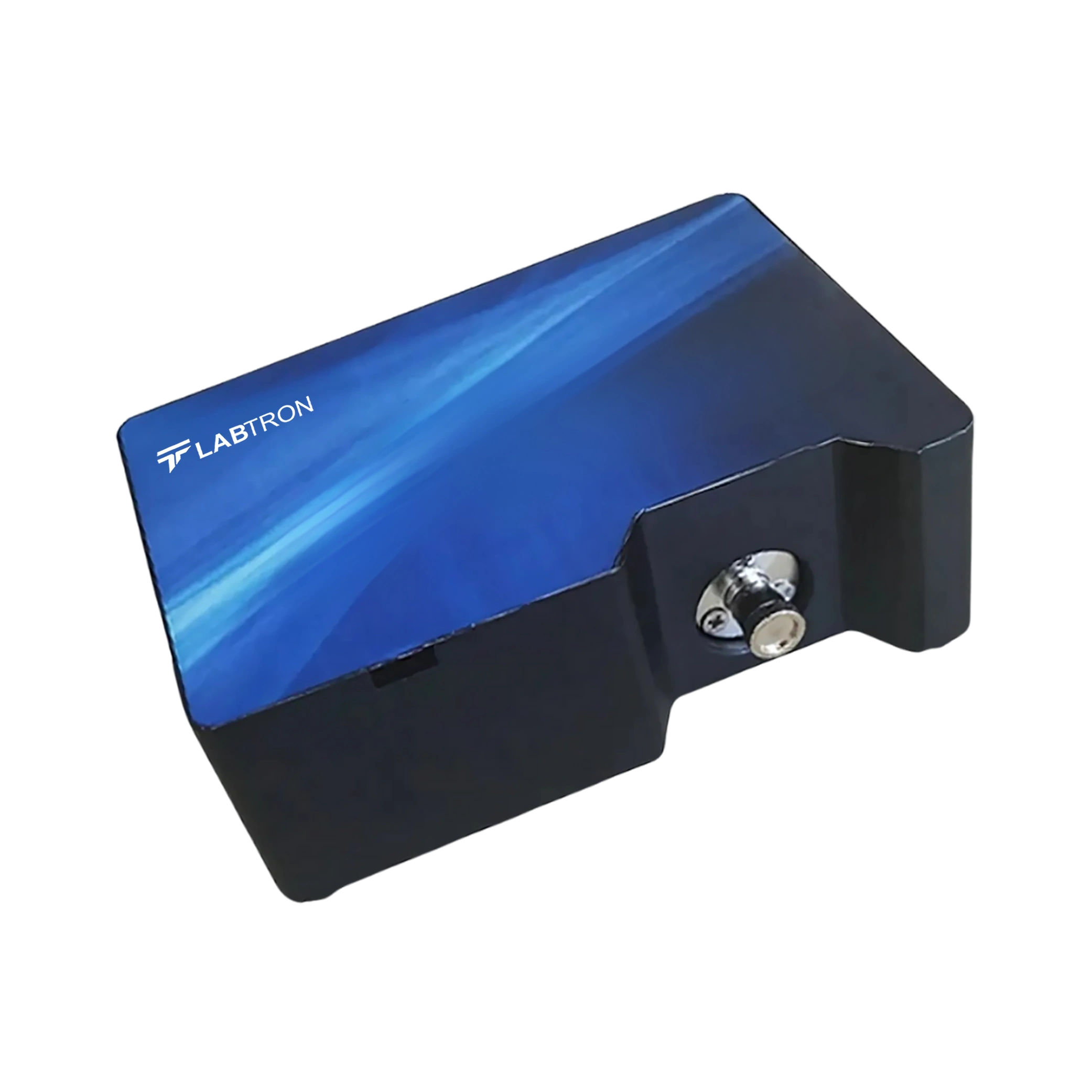

UV-NIR Spectrometer LUVP-A11

Name: UV-NIR Spectrometer LUVP-A11
Brand: Labtron
SKU: LUVP-A11
Rating: 4.9 (708 reviews)

UV-NIR Spectrometer LUVP-A11 offers wide spectral measurements with a range of 200 to 850 nm or 400 to 1100 nm. It incorporates a linear array CCD detector that delivers high quantum efficiency and dependable data acquisition. The programmable gain amplification and high-speed 16-bit AD conversion, with a large dynamic range. Its impressive signal-to-noise ratio and fast integration times ranging from 1 ms to 65 s, make it suitable for any workplace. Our Spectrometer is widely used for transmission/reflection detection, LED sorting, color measurement, industrial process monitoring, etc.

Request Quote

Detection Range	200–850 nm / 400–1100 nm (customizable)
Detector Type	Linear CCD Detector
Signal to Noise Ratio	350:1
Linearity	99.8%
Optical Resolution	Depending on the grating and slit, the minimum can reach 0.3 nm
Light Design	Asymmetric cross type
Stray	Up to 0.06% at 600 nm
Dark Noise	50 RMS counts
Entrance Slit	5, 10, 25, 50, 100, 200 μm (optional)
Integration Time	1ms to 65s
AD Conversion Resolution	16 bits
Fiber Connector	SMA905 standard fiber interface
Dimensions	80 × 75 × 110 mm
Net Weight	500 g

High-speed control technology
Full-spectrum detection technology
Cost-effective
Light-weight design

Our UV-NIR Spectrometer LUVP-A11 is widely used for transmission and reflection detection, LED sorting, and color measurement in both research and quality control environments. Its precision and adaptability make it suitable for absorbance measurement in chemical analysis and biological studies. Additionally, it plays a crucial role in industrial process monitoring, where consistent and accurate spectral analysis is essential for maintaining product quality and operational efficiency.

Download catalog for
UV-NIR Spectrometer LUVP-A11 Catalog

UV-NIR Spectrometer LUVP-A11 | Signal to Noise Ratio 350:1 | Linearity 99.8% | Dark Noise 50 RMS counts

UV-NIR Spectrometer LUVP-A11 | High-speed control technology | Full-spectrum detection technology | Cost-effective | Light-weight design

Models of UV-NIR Spectrometer

Labtron offers a wide range of UV-NIR Spectrometers that have a full spectrum range covering ultraviolet to near-infrared regions. Their high-resolution optical platform offers excellent resolution and sensitivity. They have a linear silicon-based CCD detector that ensures precise data collection. Their compact size and lightweight design make them user-friendly and easy to carry. Our UV-NIR Spectrometers are widely used in various working environments such as fabric measurement, phosphor detection, light analysis, biological measurement, chemical analysis, etc.
