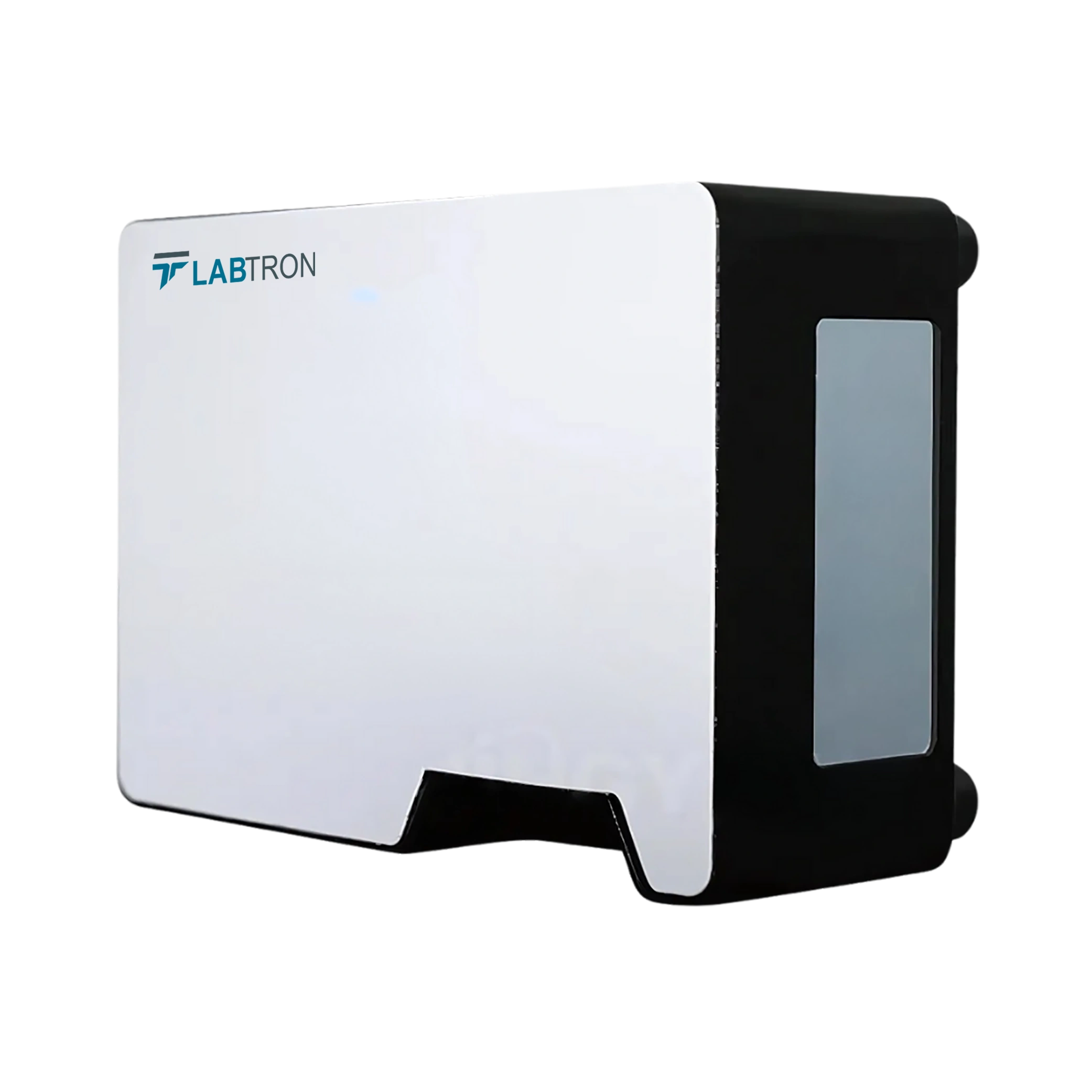

UV Spectrometer LUVSP-A11

Name: UV Spectrometer LUVSP-A11
Brand: Labtron
SKU: LUVSP-A11
Rating: 5 (955 reviews)

UV Spectrometer LUVSP-A11 offers a lightweight design that covers the ultraviolet region with a wavelength range of 200 to 535 nm. It features a stable grating and supports a customizable slit, enabling flexibility based on user needs. The silicon-based CCD sensor with a high pixel count to ensure sharp and reliable readings. It uses a USB 2.0 interface for seamless data transmission. Our UV Spectrometer is widely used in light analysis, color science, and biological monitoring.

Request Quote

Wavelength Range of The Spectroscope	200 to 535 nm
Detector Type	Linear silicon-based CCD detector
Detector Dynamic Pixel	3648
Light Source Size	8 µm × 200 µm
Working Temperature	-20℃ to -60℃
Slit	200 µm (customized)
Optical Resolution of The Spectroscope	1.83 nm FWHM (different resolution for slits)
Spectral Splitter Fiber Optic Connector	SMA905
Stray Light	Up to 0.1%
Correction of Linearity	99.80%
Data Interface	USB 2.0
A/D Conversion	16-bit high-precision height AD
Power Consumption	160 mA at 5V
Power Supply	Computer USB power supply or external 5V power supply

High-speed control technology
High-resolution optical platform
Energy efficient
Compact design

Our UV Spectrometer LUVSP-A11 is widely used in applications such as LED light source color analysis, concentration measurement, color evaluation, biological measurement, chemical analysis, and material identification. It also plays a vital role in phosphor detection, solar panel inspection, and biochemical process monitoring. Additionally, it functions as a highly effective tool for measuring optical component transmittance and reflectance in both industrial and research environments.

Slit No.	Spectral range (nm)	Pixel Spacing (nm)	Slit width (μ_m)	Resolution
Slit 01	200 to 535	0.09	10	0.34
Slit 02	200 to 535	0.09	25	0.34
Slit 03	200 to 535	0.09	50	0.50
Slit 04	200 to 535	0.09	100	0.92
Slit 05	200 to 535	0.09	200	1.83

Download catalog for
UV Spectrometer LUVSP-A11 Catalog

Available Range :

UV Spectrometer LUVSP-A10 : 200 to 425 nm UV Spectrometer LUVSP-A11 : 200 to 535 nm

Models of UV Spectrometer

Labtron offers a wide range of high-performance UV spectrometers that enable precise and accurate analysis. Their linear silicon-based CCD detectors ensure reliable and consistent data collection. They feature a compact, lightweight design that makes them user-friendly and easy to handle. Their high-speed control technology allows the shortest integration time, completing measurements in just 1 ms. Our UV spectrometers are widely used across diverse environments, including fabric measurement, phosphor detection, light analysis, biological research, and chemical analysis.
