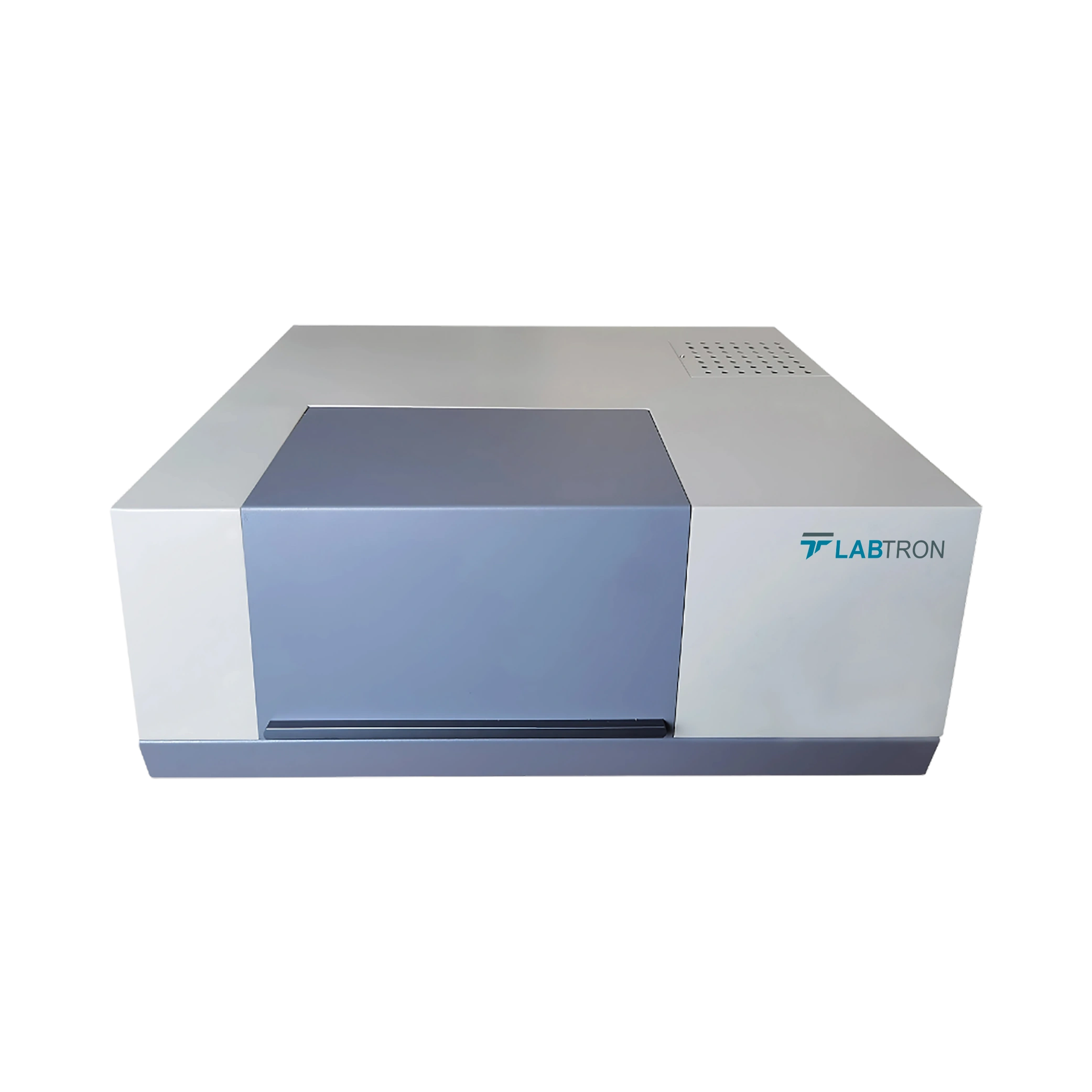

UV-VIS NIR Spectrophotometer LUVS-A10 is designed for precise spectral analysis across a broad wavelength range of 190 to 3200 nm. It features a double-beam optical design that minimizes background interference and enhances test accuracy. The integrated optical test system software enables automatic measurement of parameters. Its USB 2.0 interface allows for fast and reliable data communication. Our spectrophotometer is widely used in applications such as energy-saving detection of building glass and inspection of automobile glass.
| Light Source | Deuterium lamp, Tungsten Bromide lamp |
| Wavelength Range | 190 to 3200 nm (250 to 2500 nm using integrated sphere) |
| Wavelength Accuracy | UV-VIS : ± 0.5 nm NIR: ± 4 nm |
| Wavelength Repeatability | UV-VIS: Up to 0.3 nm NIR: Up to 2 nm (NIR) |
| Bandwidth | UV-VIS: 0.2 to 5 nm NIR: 1 to 20 nm |
| Transmittance Accuracy | ± 0.3% T |
| Transmission Specific Gravity Refolding | Up to 0.2% T |
| Operating Modes | Transmittance, Reflectivity, Spectral Energy, Absorbance |
| Sampling Interval | 0.1 nm, 0.2 nm, 0.5 nm, 1 nm, 1.5 nm, 2 nm, 5 nm, 10 nm |
| Stray Light | Up to 0.2% t (220 nm, NaI) |
| Photometric Range | 0 to 2.5 A |
| Baseline Flatness | ± 0.004 a (200 to 2500 nm, after preheating for 30 minutes) |
| Test sample specification | 30 to 110 mm, Thickness up to 20 mm |
| Sample Room Dimension | 120 × 240 × 200 mm |
| Overall Dimension | 830 × 600 × 260 mm |
| Net Weight | 65 kg |
Supports grating and filter conversion
Real-time data measurement and export
Software compatibility with Windows XP and 7
Suitable for various glass types
Our UV-VIS NIR Spectrophotometer LUVS-A10 is ideal for evaluating optical and thermal properties of building and automotive glass. It is ideal for energy-saving analysis, quality inspection, and material research.
Name | Quantity |
USB Cable | 1 piece |
Quartz Cuvette | 1 piece |
Zero Block | 1 piece |
Integrated Sphere (150 mm)
Download catalog for
UV-VIS NIR Spectrophotometer LUVS-A10 Catalog
Download manual for
UV-VIS NIR Spectrophotometer LUVS-A10 Manual
Labtron UV-VIS NIR Spectrophotometer measures the absorption, reflectance, andtransmission of light across the ultraviolet, visible, and near-infrared spectral ranges. Theyfeature a wide wavelength range with high spectral resolution and accuracy. Equipped withdouble-beam optics, they ensure precise measurements by comparing sample and referencebeams simultaneously. Their high-performance detectors, like photomultiplier tubes for UV-VIS and PbS for NIR, enhance sensitivity and detect subtle spectral features. OurSpectrophotometer features a versatile sample compartment for various sample types.
Labtron’s UV-VIS NIR Spectrophotometer LUVS-A10 covers an extensive wavelength range from 190 to 3200 nm, allowing it to analyze samples across the ultraviolet, visible, and near-infrared regions. This wide range enables precise evaluation of both optical transparency and thermal performance, making the UV-VIS NIR Spectrophotometer LUVS-A10 suitable for research, energy-saving evaluations, and industrial material testing, especially in the glass industry.
Our UV-VIS NIR Spectrophotometer LUVS-A10 uses a double-beam optical design, which enhances stability and reduces background interference during measurements. By simultaneously measuring the sample and reference beams, the UV-VIS NIR Spectrophotometer LUVS-A10 ensures higher accuracy and repeatability, which is essential for applications requiring precise spectral comparisons and long-term consistency.
The UV-VIS NIR Spectrophotometer LUVS-A10 is specifically engineered to handle various types of glass, including building and automotive glass. It supports sample dimensions ranging from 30 to 110 mm in width, with a maximum thickness of up to 20 mm. This makes it ideal for flat glass, laminated safety glass, electro float glass, ion-coated glass, and other transparent or coated materials.
Our UV-VIS NIR Spectrophotometer LUVS-A10 offers multiple operational modes, including transmittance, reflectivity, spectral energy, and absorbance. These modes allow users to obtain comprehensive data on how materials interact with light, making the UV-VIS NIR Spectrophotometer LUVS-A10 suitable for both fundamental research and applied material analysis in industry and academia.
