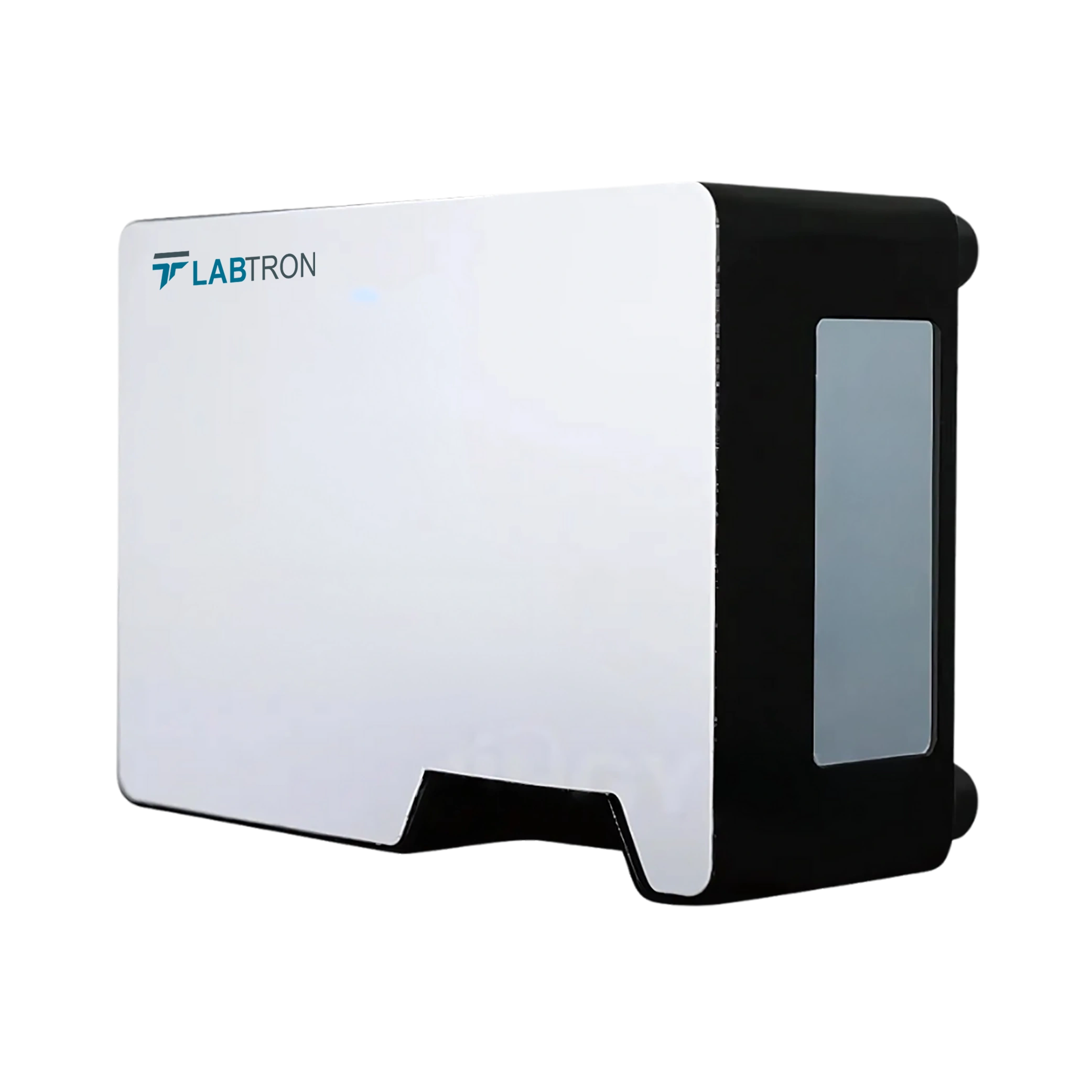

UV-VIS Spectrometer LUVI-A10

Name: UV-VIS Spectrometer LUVI-A10
Brand: Labtron
SKU: LUVI-A10
Rating: 4.7 (679 reviews)

UV-VIS Spectrometer LUVI-A10 offers a compact design that offers a wavelength range of 200 to 755nm. It features a fixed optical grating that maintains consistent signal stability during long-term use. The silicon-based CCD sensor with a high pixel count to ensure sharp and reliable readings. Its SMA905 optical fiber is industry-standard, ensuring easy connection and replacement when needed. Our UV-VIS Spectrometer is widely used in LED source analysis, fabric and color testing, phosphor detection, and optical component evaluation.

Request Quote

Wavelength Range of The Spectroscope	200 to 755 nm
Detector Type	Linear silicon-based CCD detector
Detector Dynamic Pixel	3648
Light Source Size	8 µm × 200 µm
Working Temperature	-20℃ to -60℃
Slit	200 µm (customizable)
Optical Resolution of The Spectroscope	3.21 nm FWHM (different resolution for slits)
Spectral Splitter Fiber Optic Connector	SMA905
Stray Light	Up to 0.1%
Correction of Linearity	99.80%
Data Interface	USB 2.0
A/D Conversion	16-bit high-precision height AD
Power Consumption	160 mA at 5V
Power Supply	Computer USB power supply or external 5V power supply

Custom slit option
USB interface
High-speed control technology
Compact design

Our UV Spectrometer LUVSP-A11 is widely used in applications such as LED light source color analysis, concentration measurement, color evaluation, biological measurement, chemical analysis, and material identification. It also plays a vital role in phosphor detection, solar panel inspection, and biochemical process monitoring. Additionally, it functions as a highly effective tool for measuring optical component transmittance and reflectance in both industrial and research environments.

Slit No.	Spectral range (nm)	Pixel Spacing (nm)	Slit width (μ_m)	Resolution
Slit 01	200 to 755	0.15	10	0.53
Slit 02	200 to 755	0.15	25	0.53
Slit 03	200 to 755	0.15	50	0.82
Slit 04	200 to 755	0.15	100	1.61
Slit 05	200 to 755	0.15	200	3.21

Download catalog for
UV-VIS Spectrometer LUVI-A10 Catalog

Available Range :

UV-VIS Spectrometer LUVI-A10 : 200 to 755 nm UV-VIS Spectrometer LUVI-A11 : 240 to 900 nm

UV-VIS Spectrometer LUVI-A10 | Detector Dynamic Pixel 3648 | Light Source Size 8 µm × 200 µm | Working Temperature -20℃ to -60℃

UV-VIS Spectrometer LUVI-A10 | Custom slit option | USB interface | High-speed control technology | Compact design

Models of UV-VIS Spectrometer

Labtron offers a wide range of UV-VIS Spectrometers that cover the ultraviolet and visible regions. They are a universal miniature design, suitable for many applications. Their linear silicon-based CCD detectors ensure precise data collection. They use a fixed grating rather than scanning one ensures superior optical stability. Our UV-VIS Spectrometers are widely used for fabric measurement, phosphor detection, light analysis, biological measurement, and chemical analysis.
