| Capacity | 23 L |
| Sterilization Temperature | 134℃ |
| Sterilization Pressure | 0.22MPa |
| Design Temperature | 139℃ |
| Design Pressure | 0.25MPa |
| Chamber Size | Φ250 × 452 mm |
| Type | Class B |
| Safety Features | Over-temperature protection Over-pressure protection Low water level protection Anti-dry burning Safety door lock |
| Power Consumption | 2 kW |
| Power Supply | 110V/220V, 60Hz/50Hz |
| Dimension (L×W×H) | 480 × 690 × 450 mm |
| Packaging Dimension (L×W×H) | 760 × 560 × 510 mm |
| Net Weight | 53 kg |
| Gross Weight | 60 kg |
Our Vacuum Dental Autoclave is used in dental clinics, hospital, first-aid station, laboratory, veterinary hospital, beauty parlour, tattoo house, etc. to sterilize instruments and equipment, ensuring a high level of hygiene and infection control.

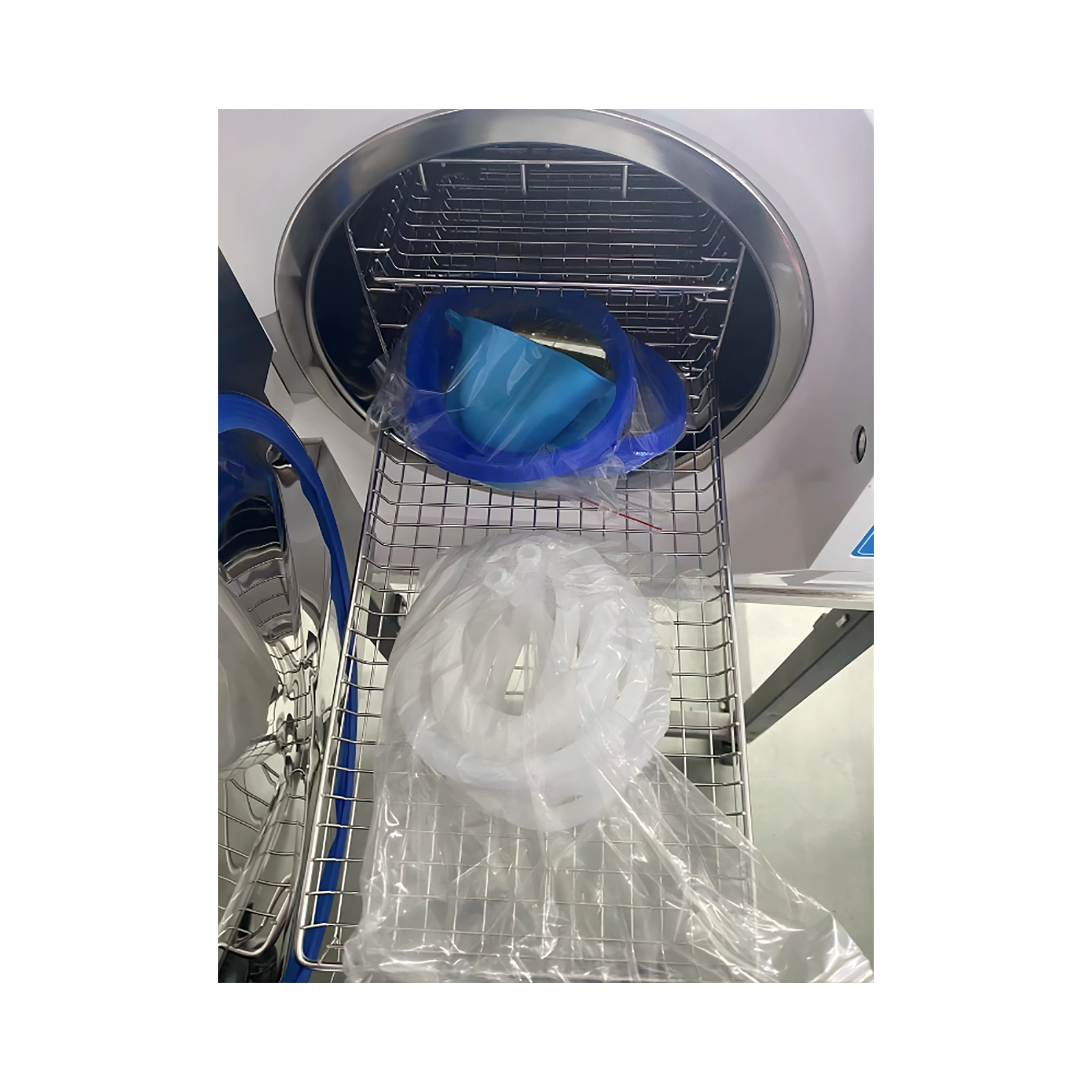

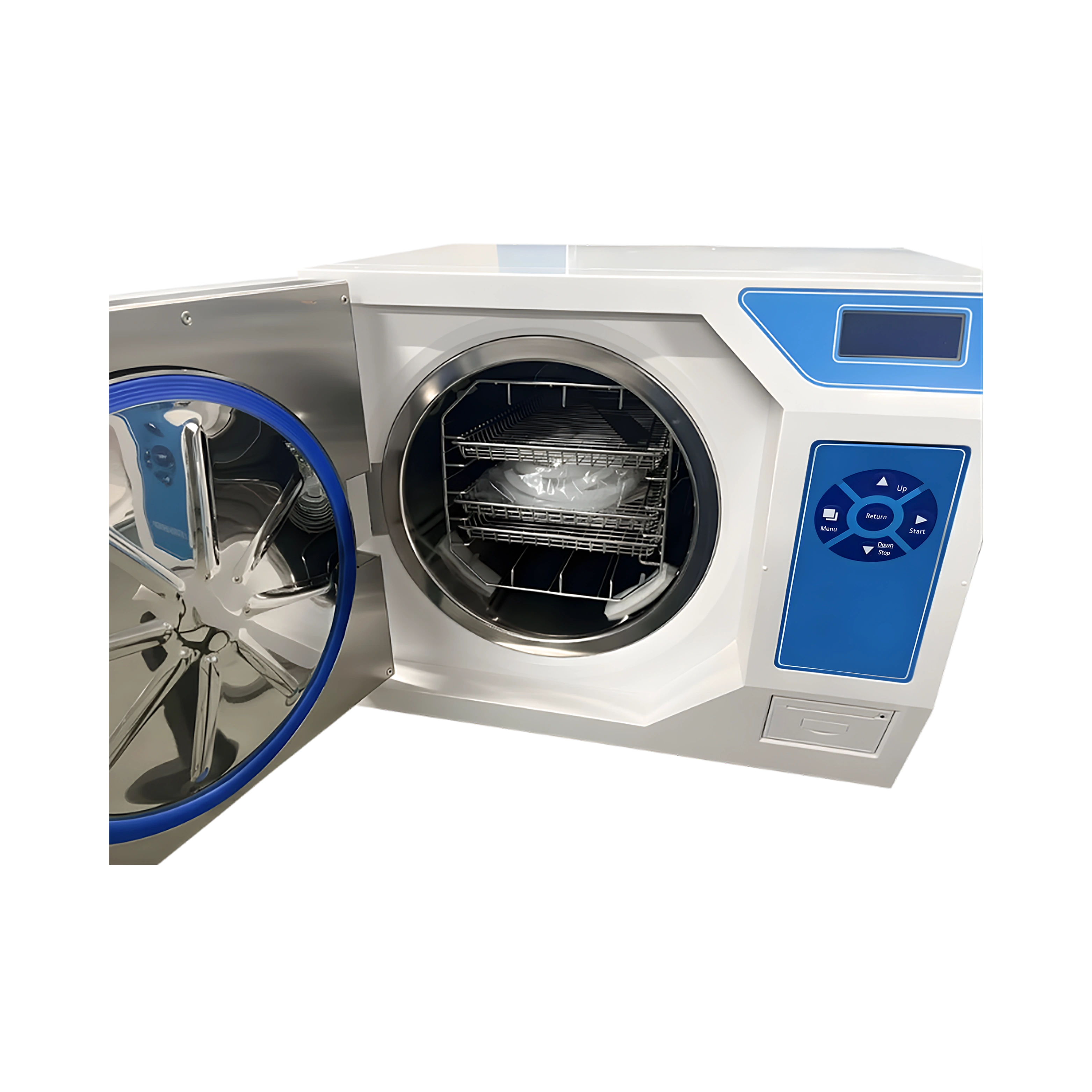

Instrument tray Instrument tray rack Instrument tray handle Draining hose
Power fuse Door seal Water drainage valve
Download catalog for
Vacuum Dental Autoclave LVDA-A10 Catalog

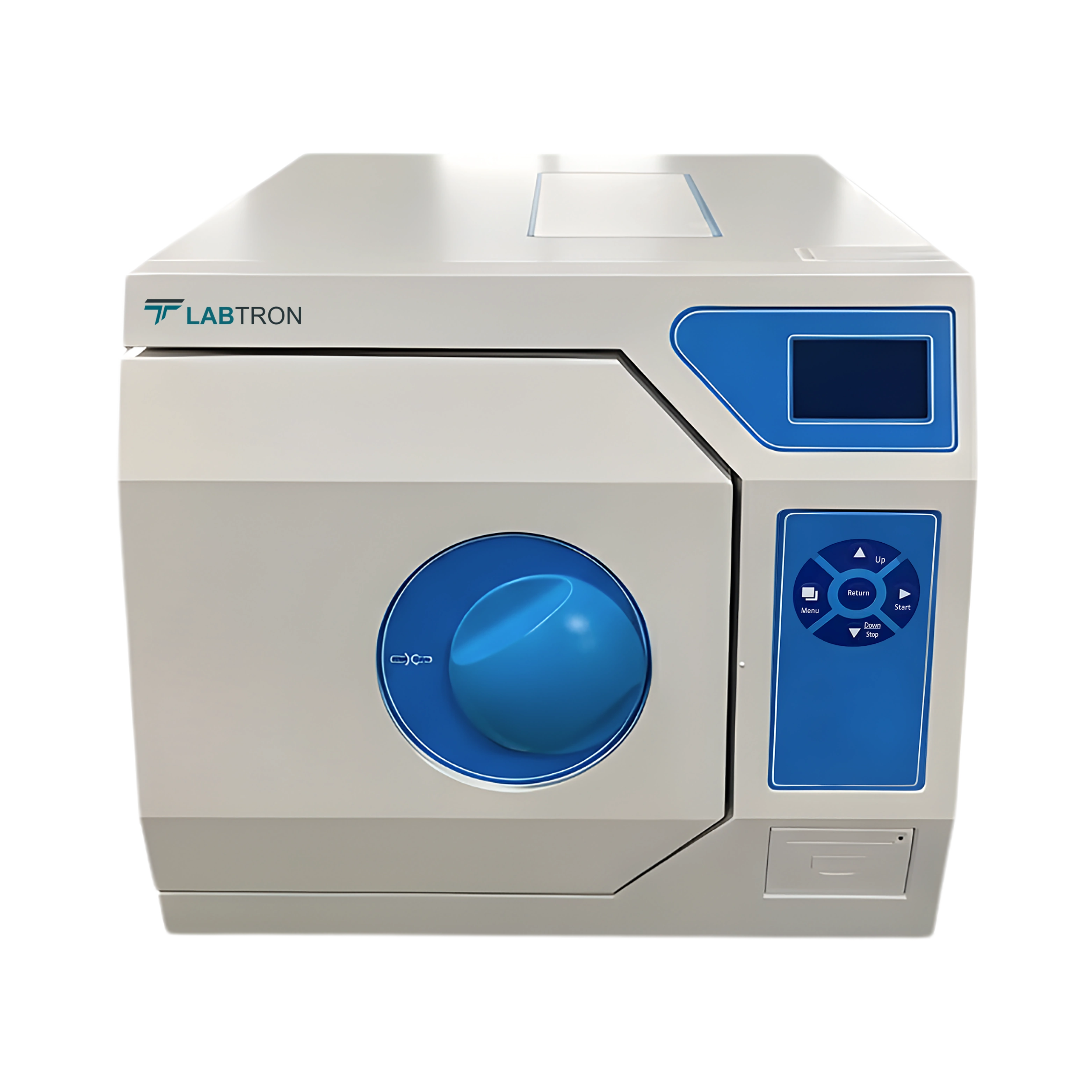

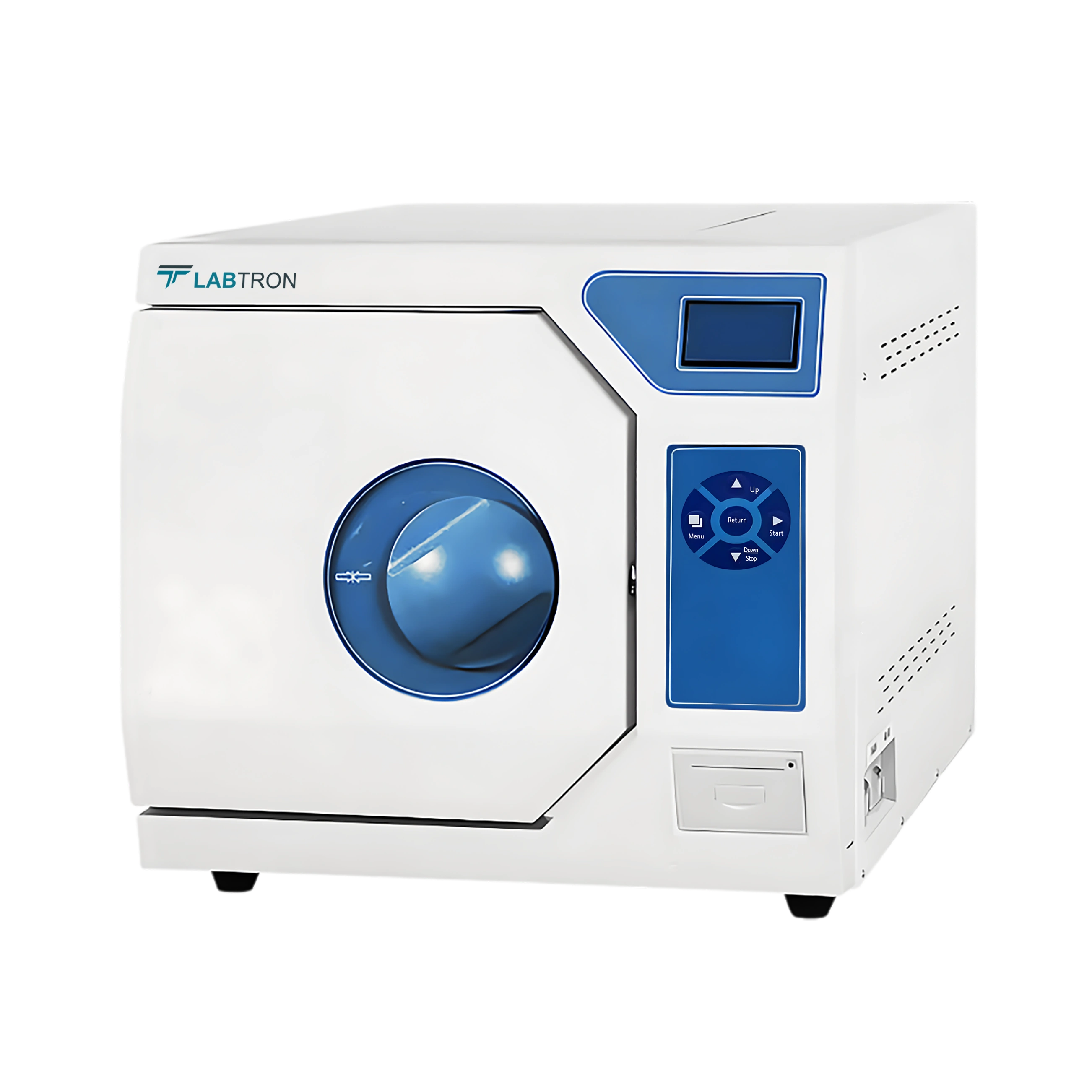

Labtron Vacuum Dental Autoclave operates by utilizing high-pressure steam to effectively eliminate bacteria, viruses, and other pathogens from dental tools. They feature three pre-vacuum cycles for enhanced sterilization and safety interlocking for secure operation. The user-friendly interface includes a vibrant LCD display with touch buttons. Safety is paramount, with multiple automatic protection functions including over-temperature, over-pressure, and low water level protection. Our dental autoclaves are available in various capacities and configurations providing an efficient, automated solution for sterilization.


Labtron Vacuum Dental Autoclave LVDA-A10 operates at a sterilization temperature of 134°C, which is optimal for sterilizing dental instruments and ensuring complete microbial inactivation. It also performs critical tests such as the Bowie-Dick (BD) test, HELIX test, and vacuum test to verify the effectiveness of sterilization. The three pre-vacuum cycles and rapid steam generation enhance the efficiency of the sterilization process. This makes it a reliable tool for maintaining the highest hygiene standards in dental practices.
The Vacuum Dental Autoclave is equipped with multiple safety features to ensure safe operation. These include over-temperature and over-pressure protection, low water level protection, and anti-dry burning features to prevent any potential hazards. The built-in safety door lock ensures that the autoclave door cannot be opened during the sterilization cycle. These measures ensure the safety of both the operator and the equipment being sterilized.
Labtron's Vacuum Dental Autoclave is designed with a microcomputer control system that allows for easy operation through a user-friendly LCD display with touch buttons. Its intuitive interface enables dental staff to quickly navigate through various sterilization cycles and monitor progress. Additionally, the autoclave features a built-in printer and USB function, allowing for easy documentation of sterilization results. A buzzer reminder and automatic stop function further simplify operation, ensuring efficient workflow.
Yes, our Vacuum Dental Autoclave’s 23-liter capacity and efficient sterilization cycles make it well-suited for high-volume environments such as dental clinics. It offers the ability to sterilize multiple instruments at once. The inclusion of an automatic steam exhaust system, ensures quick turnaround times. The three pre-vacuum cycles and integrated steam generator further enhance its performance, allowing for quick and consistent sterilization of dental equipments.
The Vacuum Dental Autoclave operates on a power supply of 110V/220V with a frequency of 60Hz/50Hz. This makes it compatible with different regional power systems. Our autoclave's power consumption is 2 kW, ensuring efficient operation while keeping energy usage reasonable. This flexibility in voltage and frequency ensures that the autoclave can be used globally, from dental clinics to hospitals or veterinary facilities.
