Vacuum Dental Autoclave LVDA-A12

Vacuum Dental Autoclave LVDA-A12

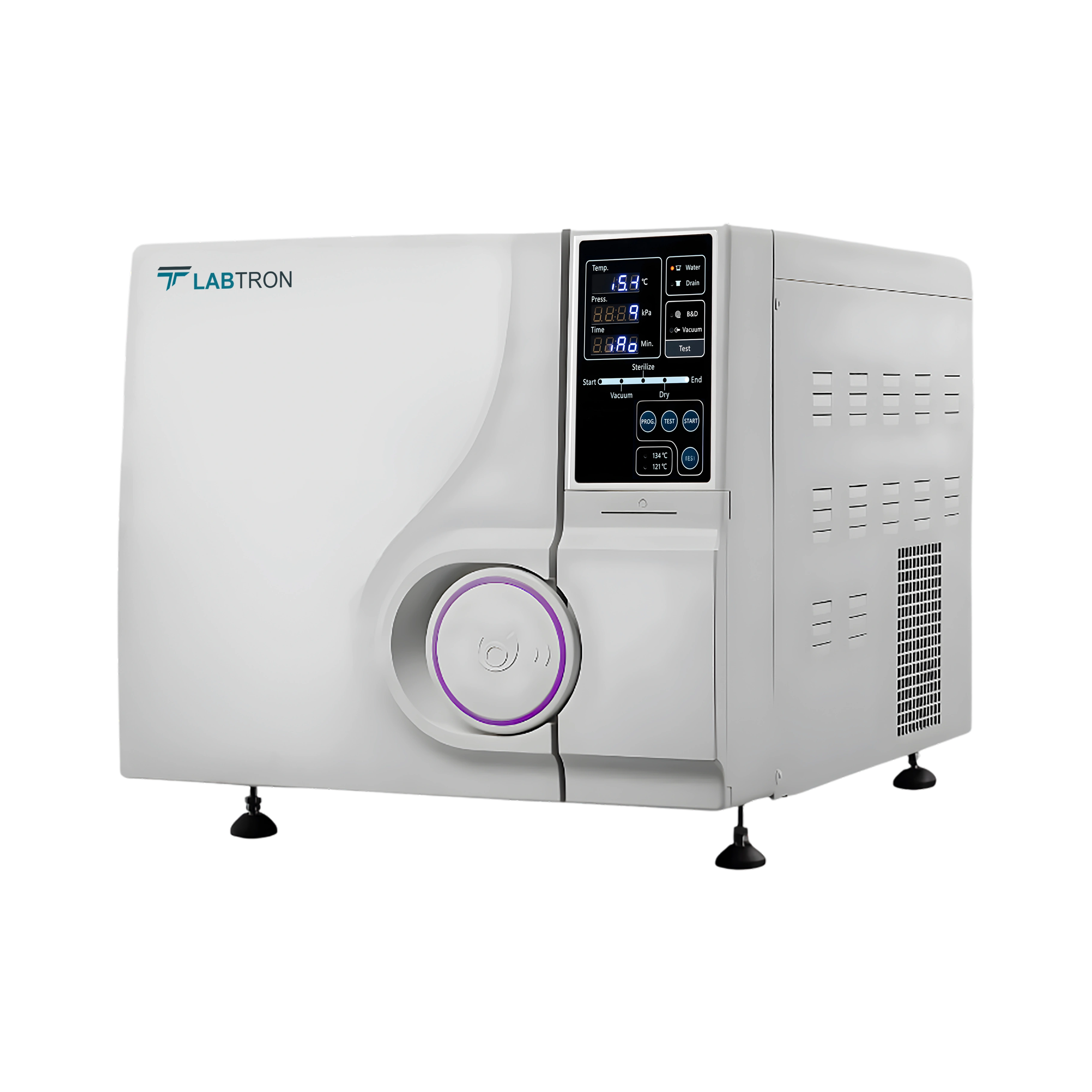

Vacuum Dental Autoclave LVDA-A12 features a capacity of 45 L and a sterilization temperature range of 121℃ to 134℃. It records sterilization data via a USB flash drive and a built-in mini printer for easy documentation. The loading device is a circle type with three trays for convenient arrangement of instruments. Its chamber is made of medical-grade stainless steel 304 for durability and hygiene. Our autoclave is ideal for medical clinics, dental practices, laboratories and research centers.

Vacuum Dental Autoclave LVDA-A12
Vacuum Dental Autoclave LVDA-A12
Vacuum Dental Autoclave LVDA-A12
Vacuum Dental Autoclave LVDA-A12
Vacuum Dental Autoclave LVDA-A12
Request Quote
Capacity 45 L
Sterilization Class Class B
Sterilization Temperature 121°C to 134°C
Special Program HIV, HBV long-sterilization program
Display High-light LCD colorful touch screen
Noise < 50 dB
Control Precision Temperature: 0.1 °C; Pressure: 0.001 bar
Max working pressure 2.3 bar
Min working pressure –0.9 bar
Max temperature 145 °C
Safety System High-torque motor; Self-priming door lock; Pressure lock system; Relief valve; Pressure and temperature overload protection

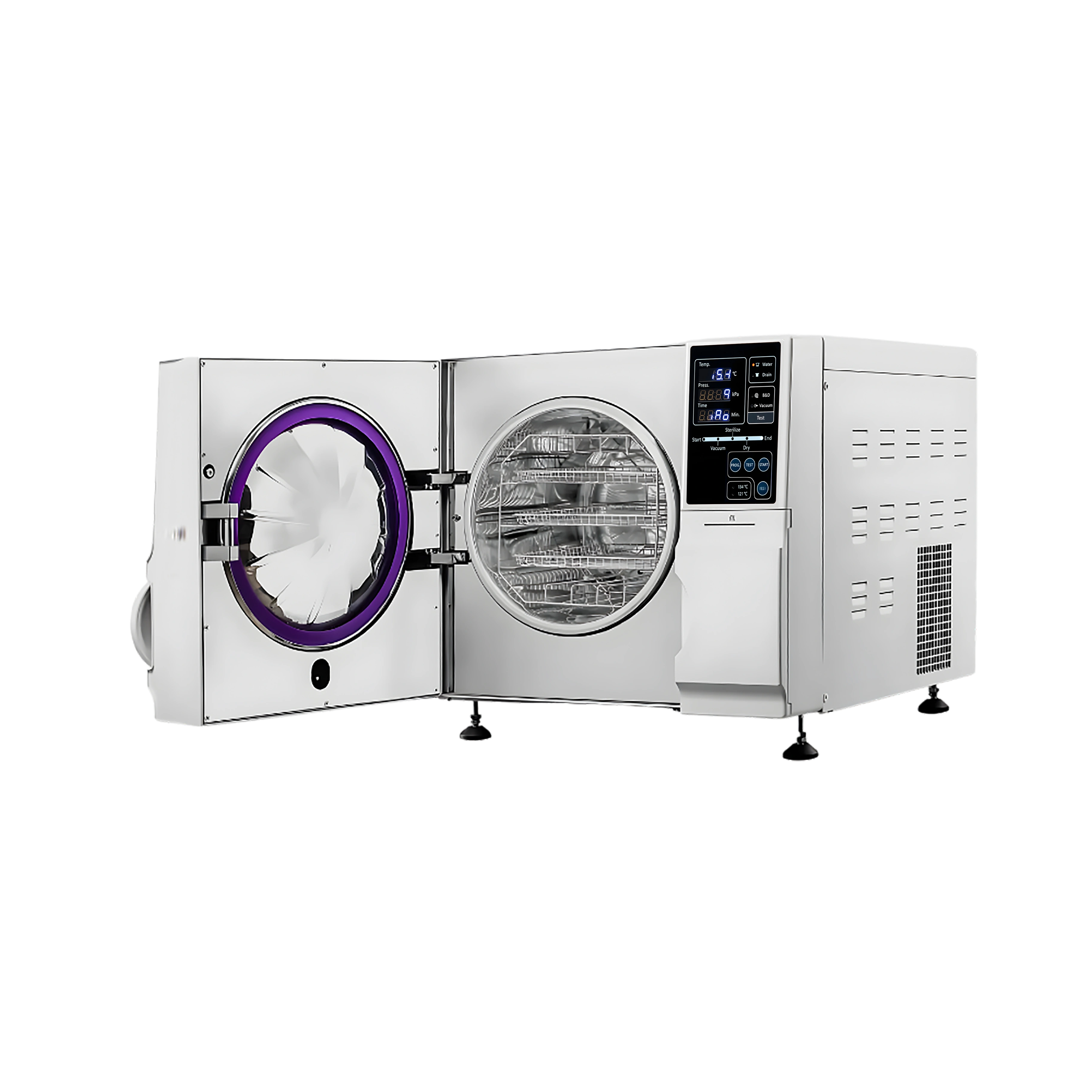

Loading Device Circle type with 3 trays
Dry System Powerful vacuum drying
Testing System Bowie & Dick Test, Vacuum Test, Helix Test
Sterilization Data USB flash drive, Built-in mini printer

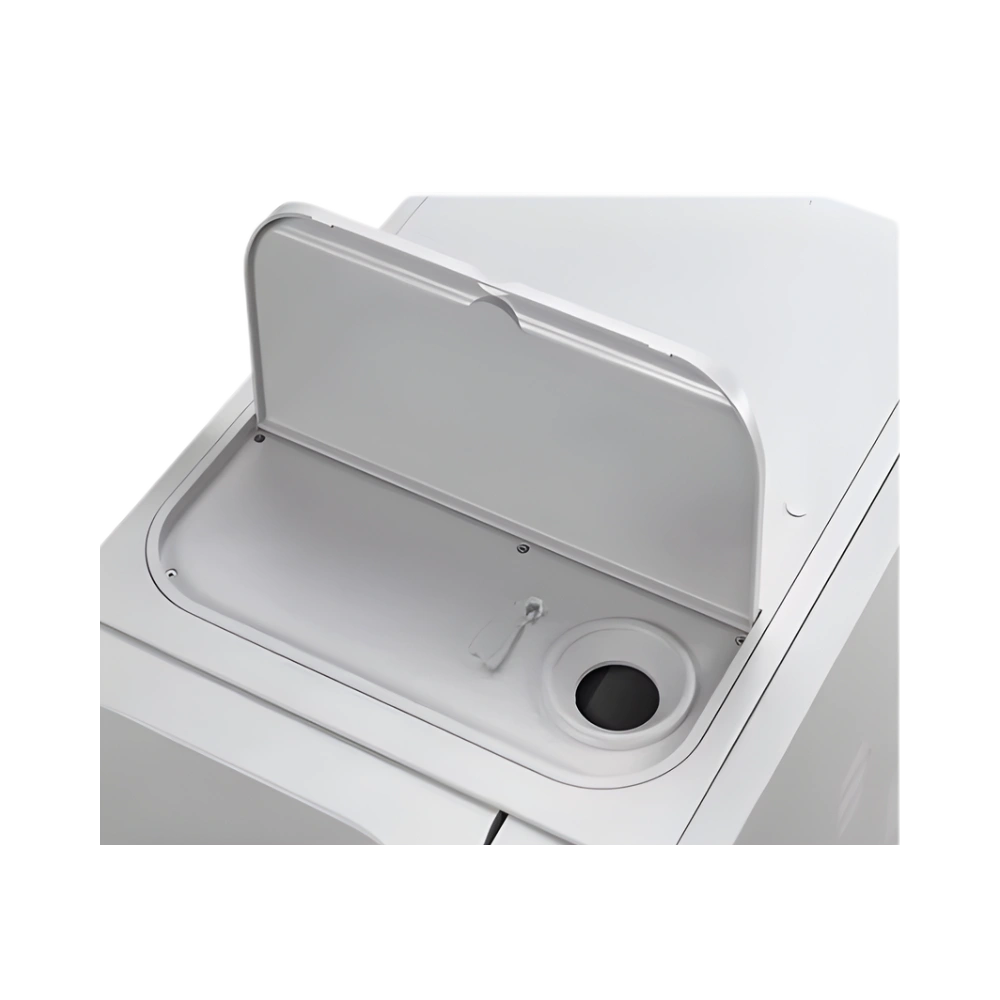

Water Supply System Built-in water tank, easy to clean, capacity 7 L
Chamber Medical stainless steel 304
Water Consumption 0.45 to 0.5 L (Laboratory data)
Power Consumption 2800 W
Power Supply 220V
Chamber Dimension Փ 325 × 623 mm
Outside Dimension 758 × 640 × 580 mm
Packaging Dimension 848 × 720 × 710 mm
Net Weight 90 kg

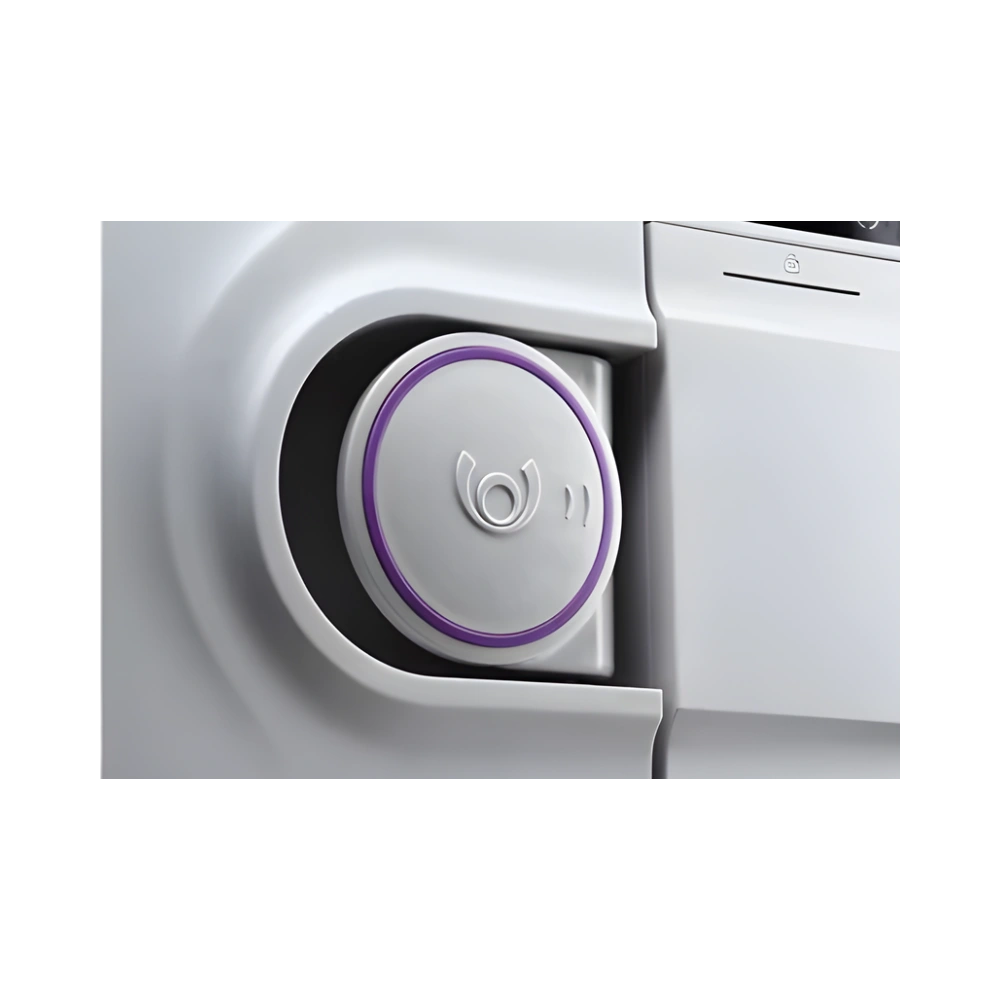

  • Automatic Electronic Door Lock
  • Water-Circulating Pump
  • Double Steam Generator
  • 5 Level Chamber
  • Sensitive Control

Our Vacuum Dental Autoclave LVDA-A12 is ideal for medical clinics, dental practices, laboratories and research centers, providing reliable sterilization of surgical tools and equipment while ensuring hygiene, safety and infection control compliance.

Models of Vacuum Dental Autoclave

Labtron Vacuum Dental Autoclave operates by utilizing high-pressure steam to effectively eliminate bacteria, viruses, and other pathogens from dental tools. They feature three pre-vacuum cycles for enhanced sterilization and safety interlocking for secure operation. The user-friendly interface includes a vibrant LCD display with touch buttons. Safety is paramount, with multiple automatic protection functions including over-temperature, over-pressure, and low water level protection. Our dental autoclaves are available in various capacities and configurations providing an efficient, automated solution for sterilization.

Vacuum Dental Autoclave LVDA-A11

Vacuum Dental Autoclave LVDA-A11

  • Capacity : 23 L
  • Sterilization Temperature Range : 121℃ to 134℃
  • Sterilization Method : Saturated steam under high pressure
  • Type : Class B
Vacuum Dental Autoclave LVDA-A10

Vacuum Dental Autoclave LVDA-A10

  • Capacity : 23 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22MPa
  • Design Temperature : 139℃

Vacuum Dental Autoclave LVDA-A12 FAQ's
  • This Vacuum Dental Autoclave qualifies as a Class B autoclave because it utilizes pre- and post-vacuum technology, which removes air completely from the chamber before steam injection. This allows it to sterilize a wide range of load types, including hollow instruments, wrapped items, and porous materials, which are not effectively sterilized by basic autoclaves. It complies with international sterilization standards suitable for clinical and dental use.

  • Yes, Labtron’s Vacuum Dental Autoclave is specially designed to sterilize wrapped instruments and complex tools with internal channels. Its vacuum system ensures steam thoroughly penetrates packaging and hollow objects, providing complete sterilization. This makes it ideal for dental packs, surgical trays, and medical toolkits that need to remain sterile until use.

  • Our Autoclave is built with several safety mechanisms to protect both the operator and the equipment. These include a pressure safety valve to prevent over-pressurization, an overheat protection system to avoid thermal damage, a double-control lock system that prevents the door from opening during operation, and a self-test alarm system that alerts the user of any malfunction or irregular condition.

  • Each cycle uses about 500 milliliters of water, which is very efficient for a 45-liter autoclave. This helps minimize operating costs and reduces water wastage. The efficient design ensures that only the necessary amount of water is used per cycle, without compromising sterilization quality or drying performance.

  • Yes, our Vacuum Dental Autoclave features a compact tabletop design, which makes it ideal for small spaces like dental offices, private clinics, and laboratories. Its combination of size, efficiency, and advanced features provides professional-level sterilization without requiring a large footprint.
