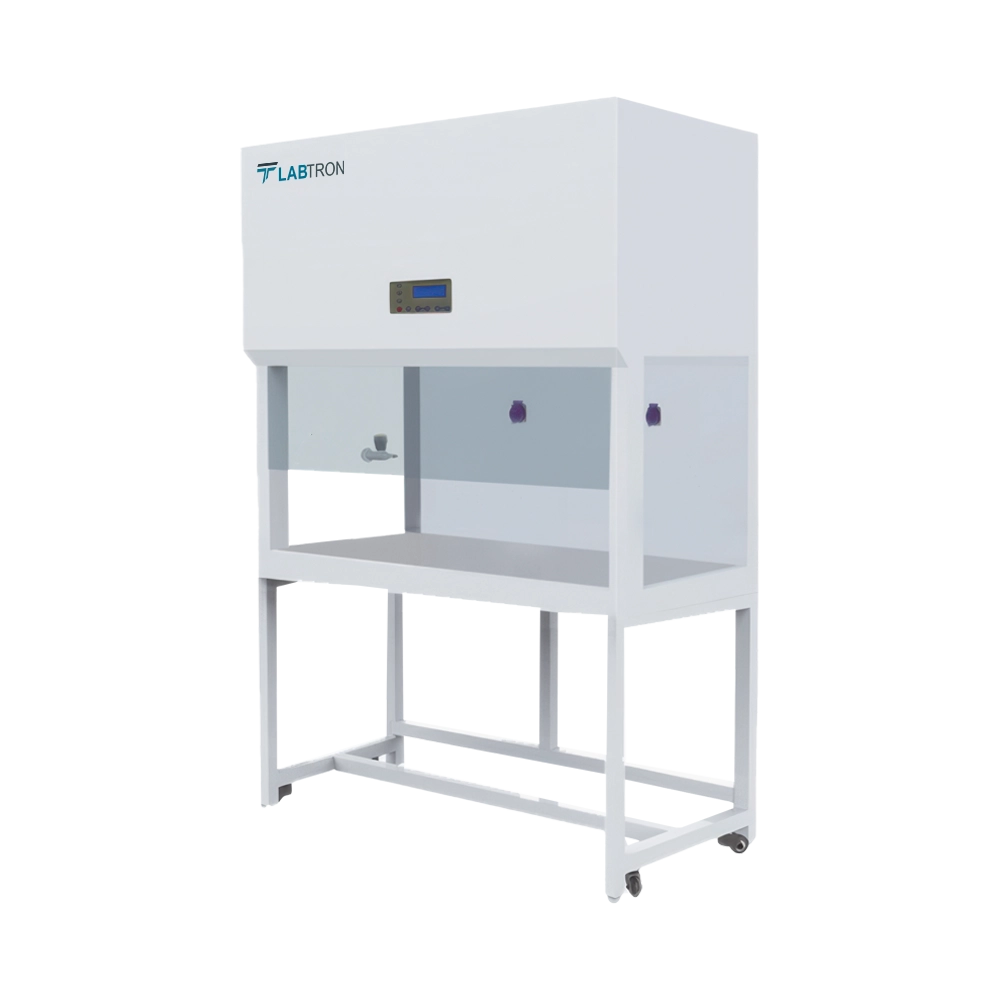

Vertical Laminar Flow Cabinet LVAC-C10

Vertical Laminar Flow Cabinet LVAC-C10

Vertical Laminar Flow Cabinet LVAC-C10 is one sided work bench device, operator can sit side by side. It offers 750 mm work surface height and maximum opening up to 430 mm. The particle-free working environment by taking air through filtration system and exhausting it across a work surface in a unidirectional air stream. It is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. The device is design with an internal dimension of 1200 × 645 × 610 mm where as its external dimension is 1300 × 750 × 2040 mm.

Request Quote
External dimension 1300 × 750 × 2040 mm
Internal dimension 1200 × 645 × 610 mm
Work surface height 750 mm
Display LCD
Airflow velocity Average 0f 0.3 to 0.5 m/s
Material main body Cold rolled steel with anti- bacteria power coating
Material work table 304 stainless steel
Side and Front windows 5 mm touchened glass, anti UV
Pre- filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3 µm
Noise < 65 dB
Front window Motorized
Max opening 430 mm
Illuminating lamp LED lamp 12 W × 1
UV Lamp 30 W × 1 Emission of 253.7 nanometer
Caster Universal caster with levelling feet
Waterproof socket Two, total load ≤ 500 W
Packing dimension 1460 × 1070 × 1650 mm
Power consumption 400 W
Power supply AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz
Gross weight 228 kg
  • LCD display with microprocessor control system
  • One sided work bench device, operator can sit side by side
  • Located 2 water proof sockets in side panel, for optimum convenience of using small devices inside the cabinet
  • Equipped with Airflow velocity, UV timer, UV work time, system work time and real time
  • Universal caster with leveling feet
  • Designed with gas tap and transparent side glass for windows maximum light and visibility inside the cabinet
  • Main body of the device is built of cold-rolled steel with anti-bacterial powder coating that prevents the infection and good performance
  • Working table is coated with stainless steel to prevent from corrosion
  • UV lamp with emission of 253.7 nanometer is used for most efficient decontamination
  • HEPA filter shows 99.999 % efficiency at 0.3 µm
  • 5 mm touchened glass, anti UV Side and front window

Vertical Laminar Flow Cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environment.

Accessories no. Name
1LED lamp
2UV lamp × 2
3Base stand
4Gas Tap
5Waterproof socket × 2

Compare Models

Model External dimension Internal dimension Work surface height Display Airflow velocity Material main body Material work table Side and Front windows Pre- filter HEPA Filter Noise Front window Max opening Illuminating lamp UV Lamp Caster Waterproof socket Packing dimension Power consumption Power supply Gross weight
LVAC-A10 680 × 410 × 1160 mm 630 × 375 × 615 mm NA LED Average 0f 0.3 to 0.5 m/s, air speed adjusted Cold rolled steel with anti- bacteria power coating NA - Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB NA NA Fluorescent lamp 8 W × 1 15 W × 1 Emission of 253.7 nanometer - - 840 × 560 × 1380 mm 160 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 50 kg
LVAC-A11 802 × 650 × 1550 mm 800 × 530 × 540 mm 660 mm LED Average 0f 0.3 to 0.5 m/s, air speed adjusted Cold rolled steel with anti- bacteria power coating 304 stainless steel - Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB Manual, 5 mm touchened glass, anti UV 490 mm LED lamp 8 W × 1 18 W × 1 Emission of 253.7 nanometer - - 960 × 800 × 1800 mm 350 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 116 kg
LVAC-B10 1040 × 615 × 1770 mm 940 × 540 × 545 mm 750 mm LED Average 0f 0.3 to 0.5 m/s, air speed adjusted Cold rolled steel with anti- bacteria power coating 304 stainless steel - Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB Manual, 5 mm touchened glass, anti UV 310 mm LED lamp 12 W × 1 18 W × 1 Emission of 253.7 nanometer - - 1200 × 850 × 1360 mm 350 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 131 kg
LVAC-B11 1440 × 615 × 1770 mm 1340 × 540 × 545 mm 750 mm LED Average 0f 0.3 to 0.5 m/s, air speed adjusted Cold rolled steel with anti- bacteria power coating 304 stainless steel - Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB Manual, 5 mm touchened glass, anti UV 310 mm LED lamp 16 W × 1 30 W × 1 Emission of 253.7 nanometer - - 1600 × 850 × 1360 mm 600 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 174 kg
LVAC-C10 1300 × 750 × 2040 mm 1200 × 645 × 610 mm 750 mm LCD Average 0f 0.3 to 0.5 m/s Cold rolled steel with anti- bacteria power coating 304 stainless steel 5 mm touchened glass, anti UV Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB Motorized 430 mm LED lamp 12 W × 1 30 W × 1 Emission of 253.7 nanometer Universal caster with levelling feet Two, total load ≤ 500 W 1460 × 1070 × 1650 mm 400 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 228 kg
LVAC-C11 1800 × 750 × 2040 mm 1700 × 645 × 610 mm 750 mm LCD Average 0f 0.3 to 0.5 m/s Cold rolled steel with anti- bacteria power coating 304 stainless steel 5 mm touchened glass, anti UV Polyester fiber, washable 99.999% efficiency at 0.3 µm < 65 dB Motorized 430 mm LED lamp 16 W × 1 40 W × 1 Emission of 253.7 nanometer Universal caster with levelling feet Two, total load ≤ 500 W 1960 × 970 × 1600 mm 450 W AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz 306 kg
LVAC-E10 - - - LED Display - - - - - 99.999 % efficiency at 0.3 µm < 60 dB - - - 18 W × 1 Universal caster with leveling feet - - - - -
LVAC-E11 - - - LED Display - - - - - 99.999 % efficiency at 0.3 µm < 60 dB - - - 30 W × 1 Universal caster with leveling feet - - - - -
