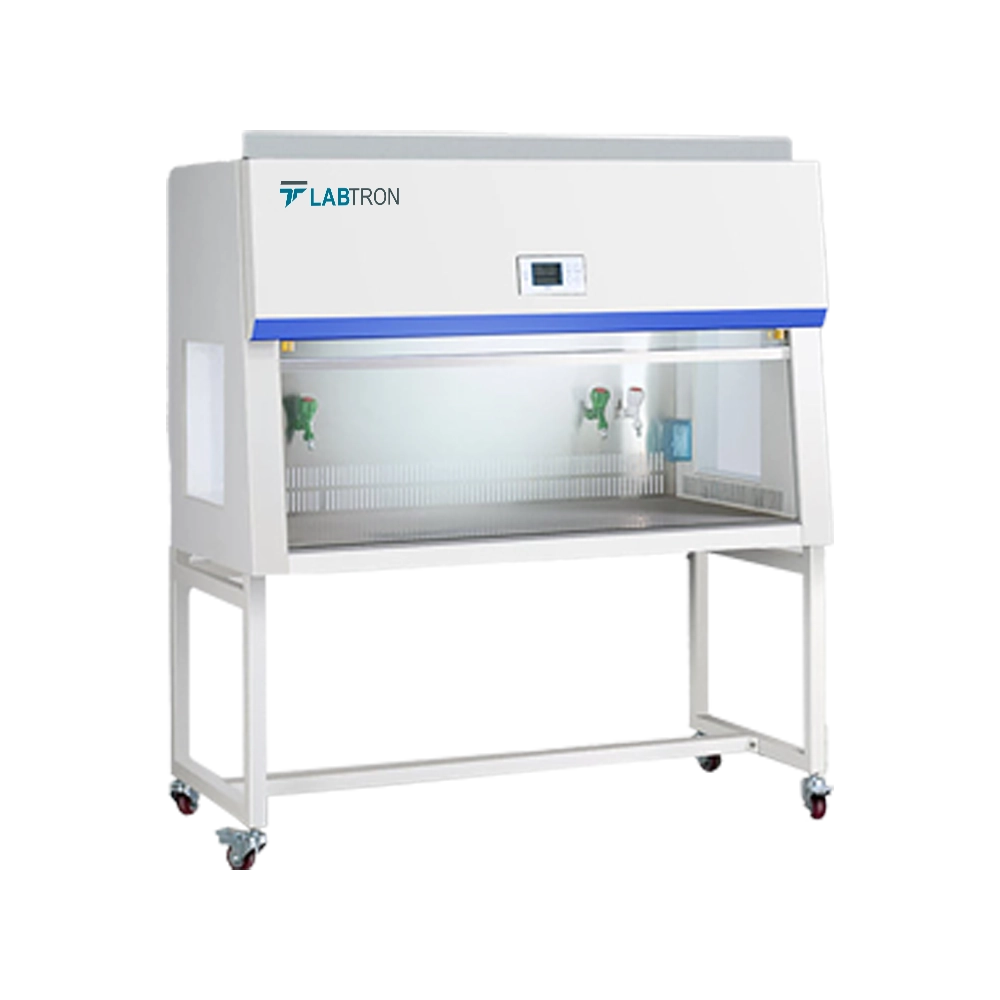

Vertical Laminar Flow Cabinet LVAC-F10

Name: Vertical Laminar Flow Cabinet LVAC-F10
Brand: Labtron
SKU: LVAC-F10
Rating: 4.8 (907 reviews)

Vertical Laminar Flow Cabinet LVAC-F10 offers an adjustable wind speed range from 0.3 to 0.6 m/s with a low noise level of ≤ 62 dB. It is equipped with a HEPA filter boasting a 99.99% efficiency. The flow cabinet meets international cleanliness standards and is compliant with ISO 14644.1 Class 5 requirements. It provides bright, clear illumination, enhancing visibility and accuracy for complex tasks. Our LVAC-F10 is an ergonomic, high-quality cabinet for maintaining an ultra-clean, efficient work environment.

Request Quote

Wind Speed	0.3 to 0.6m/s (Adjustable)
Noise	≤ 62 dB
Vibration Half Peak	≤ 3μm（X, Y, Z direction）
Filter Efficiency	0.9999
Cleanliness Rating	The international ISO 14644.1 standard (CLASS 5)
Illumination	≥ 300 LX
Ambient Temperature	10℃ to 30 ℃
Relative Humidity	below 70%
Power Consumption	400 W
Power Supply	AC220V/50Hz
Inner Dimension (H×W×D)	500×1300×680 mm
Overall Dimension (H×W×D)	1585×1460×735 mm
Packaging Dimension (H×W×D)	1030 × 1650 × 855 mm
Net Weight	210 Kg
Packaging Weight	235 Kg

Removable tripod and adjustable height
Easy to clean, with polished surfaces
Laser-cut and CNC-bent metal parts
Sliding, anchorable front door
Built-in lighting for visibility
Includes gas, water interface
Tilted design with low noise
Stainless steel platform with anti-corrosion finish
Comfortable operation and splash-proof outlets

The Vertical Laminar Flow Cabinet LVAC-F10 is ideal for contamination-sensitive tasks in biotechnology, pharmaceuticals, electronics, and medical research. It provides an ISO Class 5, particle-free environment for cell culturing, drug preparation, semiconductor assembly, and food quality testing, ensuring safe and sterile workspaces.

Timed Sterilization System

Filter Failure Alarm Procedures

Programmable UV Sterilization Control Procedures

ULPA Ultra-High Efficiency Filter

Water And Gas Interface

Download catalog for
Vertical Laminar Flow Cabinet LVAC-F10 Catalog

Models of Vertical Laminar Flow Cabinet

Labtron Vertical Laminar Flow Cabinet offer front sash that allows for easy access while maintaining barrier against contaminants. They feature an adjustable air velocity control for optimal performance. Their self-checking features alert users to any issues with airflow or filter performance. They have integrated power outlets for convenient connection of additional equipment and devices. Our Vertical Laminar Flow Cabinet is ideal for pharmaceutical production, cell culture, electronics assembly, forensic analysis and tissue engineering.
