| Wavelength Range of The Spectroscope | 300 to 1100 nm |
| Detector Type | Linear silicon-based CCD detector |
| Detector Dynamic Pixel | 3648 |
| Light Source Size | 8 µm × 200 µm |
| Working Temperature | -20℃ to -60℃ |
| Slit | 200 µm (customizable) |
| Optical Resolution of The Spectroscope | 4.63 nm FWHM (different resolution for slits) |
| Spectral Splitter Fiber Optic Connector | SMA905 |
| Stray Light | Up to 0.1% |
| Correction of Linearity | 99.80% |
| Data Interface | USB 2.0 |
| A/D Conversion | 16-bit high-precision height AD |
| Power Consumption | 160 mA at 5V |
| Power Supply | Computer USB power supply or external 5V power supply |

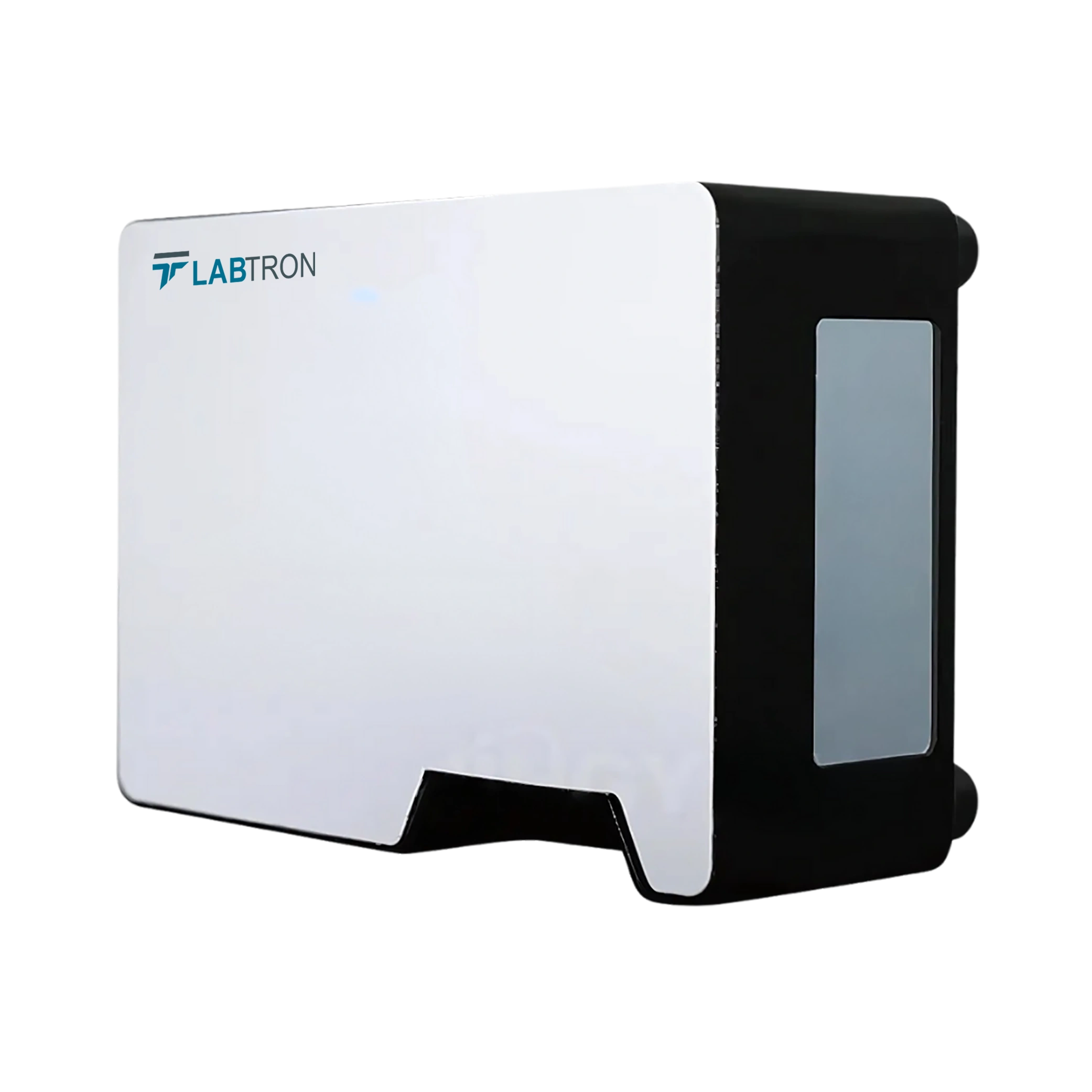

Our VIS-NIR Spectrometer LVNS-A10 is widely used in LED light source color analysis, concentration measurement, color measurement and analysis, fabric measurements, phosphor detection, and solar panel detection. Additionally, it is also used in biochemical process monitoring, light analysis, chemical analysis, and biological measurement.
| Slit No. | Spectral range (nm) | Pixel Spacing (nm) | Slit width (μm) | Resolution |
| Slit 01 | 300 to 1100 | 0.22 | 10 | 0.77 |
| Slit 02 | 300 to 1100 | 0.22 | 25 | 0.77 |
| Slit 03 | 300 to 1100 | 0.22 | 50 | 1.18 |
| Slit 04 | 300 to 1100 | 0.22 | 100 | 2.26 |
| Slit 05 | 300 to 1100 | 0.22 | 200 | 4.63 |
Labtorn offers a wide range of VIS-NIR Spectrometers that cover the wavelength of the visible to the near-infrared regions. Their silicon-based CCD sensor with a high pixel count to ensure sharp and reliable readings. They offer a durable design and integrate a fixed grating for superior optical path consistency. Their USB 2.0 interface for seamless data transmission and system integration. Our VIS-NIR Spectrometers are widely used in LED light source analysis, concentration measurement, color measurement, phosphor detection, etc.
