What types of applications is the Labtron Visible Spectrophotometer LVS-A20 suitable for?

Labtron Visible Spectrophotometer is ideal for precision measurements in fields such as organic and biochemistry, medical diagnostics, food safety, and environmental monitoring. It offers a wavelength range of 340 to 1000 nm, making it suitable for analyzing compounds that absorb in the visible spectrum. Researchers and technicians use it for qualitative and quantitative analysis of solutions. The device supports both routine testing and more advanced analytical procedures.

How does the holographic blazed grating of the Visible Spectrophotometer enhance performance?

The Visible Spectrophotometer's holographic blazed grating improves wavelength accuracy and reduces stray light, resulting in more precise and reliable readings. It ensures better monochromaticity, which is essential for accurate photometric measurements. This technology enhances the instrument's performance when analyzing complex samples with overlapping spectra. As a result, users can trust the integrity of their data.

Can the Visible Spectrophotometer accommodate different cuvette sizes for various sample volumes?

Yes, our Visible Spectrophotometer's sample compartment is compatible with cuvettes ranging from 5 mm to 50 mm in size. This flexibility allows users to work with both small and large sample volumes, depending on the experimental needs. It also makes the instrument adaptable for both low- and high-concentration solutions. The adjustable compartment ensures proper alignment for optimal light transmission.

What features contribute to the safety and longevity of the Visible Spectrophotometer?

Labtron's Visible Spectrophotometer uses automatic light gate technology to protect the photoelectric sensor from excessive light exposure, reducing wear and extending sensor life. This feature eliminates the need for a blackbody to block light during idle periods. Additionally, the device is built with durable components and operates at a low power consumption of 80 W. These elements collectively support safe and long-term operation.

How does the Visible Spectrophotometer ensure consistent and repeatable measurement results?

The Visible Spectrophotometer offers high photometric repeatability of less than or equal to 0.2 %T and wavelength repeatability of less than or equal to 1 nm, ensuring stable results across repeated tests. Its microprocessor control maintains consistent performance and automatically adjusts for zero and full-scale calibration. These features help maintain measurement integrity, especially during long testing sessions or when comparing multiple samples. It is ideal for environments that require dependable reproducibility.

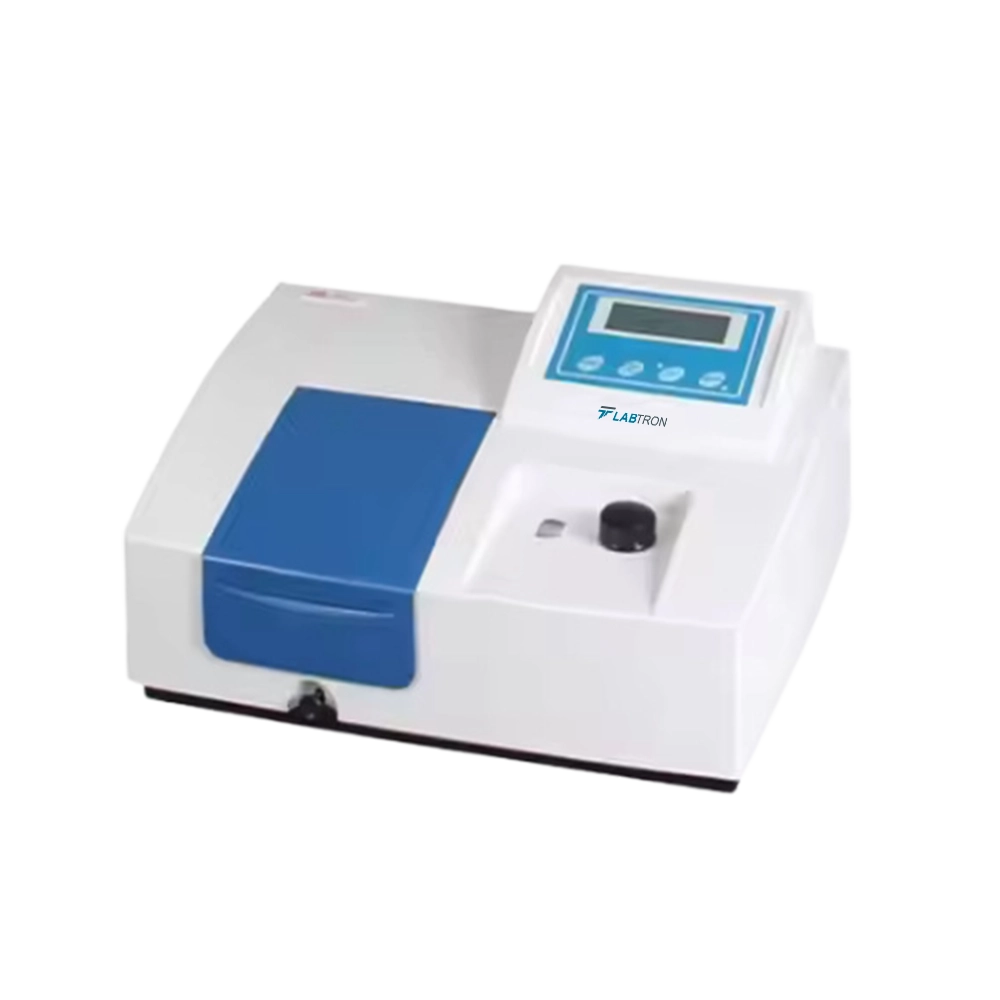

Visible Spectrophotometer LVS-A20

Name: Visible Spectrophotometer LVS-A20
Brand: Labtron
SKU: LVS-A20
Rating: 4.9 (919 reviews)

Visible Spectrophotometer LVS-A20 is single beam bench top device with 340 to 1000 nm wavelength range, and offers spectral bandwidth of 5 nm. Features with T, A, C photometric working mode and Czerny-Turner monochromator type unit. Designed with holographic blazed grating monochromator it has the advantage of high wavelength accuracy, good monochromaticity and low stray light. The high accuracy and good reproducibility and stability of measurement reading instrument.

Request Quote

Photometry	Single Beam
Monochromatic Type	Czerny-Turner
Wavelength range	340 to 1000nm
Spectral bandwidth	5 nm
Wavelength Accuracy	± 2nm
Wavelength Repeatability	≤ 1 nm
Focal length	160 mm
Photometric Range	0 to 100.0 %T 0 to 1.999 A 0 to 1999 C
Photometric Accuracy	± 0.5 % T
Photometric Repeatability	≤ 0.2 % T
Detector	Silicon Photocell
Grating	1200 lines/mm
Stray light	≤ 0.1( at 360nm NaNo2 )
Noise	100%（T）noise≤0.3%(T) ， 0%（T) noise ≤0.2 %(T)
Cuvette holder size	10 mm
Dimension	580 × 460 × 345 mm
Power consumption	80 W
Power supply	AC 220 V±22 V 50Hz ±1 Hz
Gross weight	12.5 kg

The holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light
Sample compartment for 5 to 50 mm cuvettes
Equipped with USB port and automatic zero, full scale adjustment
Automatic light gate technology to protect photoelectric sensors
Adopts microprocessor control technology, qualitative analysis of substances in the visible spectrum, High accuracy of measurement readings, good stability
Automatic light gate technology, no need blackbody, to protect the photoelectric sensor

Visible Spectrophotometer is used in high requirement for precision measurement in the research and production of organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industries, etc.

Accessories no.	Name	Qty.
1	User manual	1 pc
2	Glass cuvette 1cm 4	4 pcs
4	Power cable	1 pc
5	Fuse	2 pcs

Download catalog for
Visible Spectrophotometer LVS-A20 Catalog

Visible Spectrophotometer LVS-A20 | Focal length : 160 mm | Wavelength Repeatability : ≤ 1 nm

Visible Spectrophotometer LVS-A20 | Sample compartment for 5 to 50 mm cuvettes | Equipped with USB port and automatic zero

Models of Visible Spectrophotometer

Labtron visible spectrophotometers have high-resolution grating systems that span a broad range of wavelengths. They use light sources that are adaptable and silicon photodiode detectors for accurate measurements. These offer numerous modes, including transmittance, absorbance, concentration, and autocalibration. They include USB and RS232 connectors and big LCD screens. Our visible spectrophotometers offer excellent measurement stability and precision for use in industrial applications and research.

Visible Spectrophotometer LVS-C15

Wavelength Range : 325 to 1000 nm
Bandwidth : 2 nm
Wavelength Accuracy : ± 2 nm
Wavelength Repeatability : ≤ 0.5 nm

Compare Remove

Visible Spectrophotometer LVS-A11

Wavelength Range : 320 to 1020 nm
Spectral Bandwidth : 5 nm
Wavelength Accuracy : ± 2 nm
Wavelength Repeatability : Up to 1 nm

Compare Remove

Visible Spectrophotometer LVS-A41

Wavelength Range : 325 to 1100 nm
Spectral Bandwidth : 4 nm
Wavelength Accuracy : ±2 nm
Wavelength Repeatability : ±1 nm

Compare Remove

Visible Spectrophotometer LVS-A12

Wavelength Range : 340 to 1000nm
Spectral Bandwidth : 5 nm
Wavelength Accuracy : ± 2nm
Wavelength Repeatability : ≤ 1 nm

Compare Remove

Visible Spectrophotometer LVS-C13

Wavelength Range : 320mm to 1100nm
Spectral Bandwidth : 2.0 mm
Wavelength Accuracy : ±0.5nm
Wavelength Repeatability : ≤0.3nm

Compare Remove

Visible Spectrophotometer LVS-C10

Wavelength Range : 320 to 1100 nm
Spectral Bandwidth : 4 nm
Wavelength Accuracy : ± 0.5 nm
Wavelength Repeatability : ≤ 0.2 nm

Compare Remove

Visible Spectrophotometer LVS-A21

Wavelength Range : 325 to 1000nm
Spectral Bandwidth : 2 nm
Wavelength Accuracy : ± 2nm
Wavelength Repeatability : ≤1 nm

Compare Remove

Visible Spectrophotometer LVS-A10

Wavelength Range : 320 to 1020nm
Spectral Bandwidth : 5nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : ≤1nm

Compare Remove
