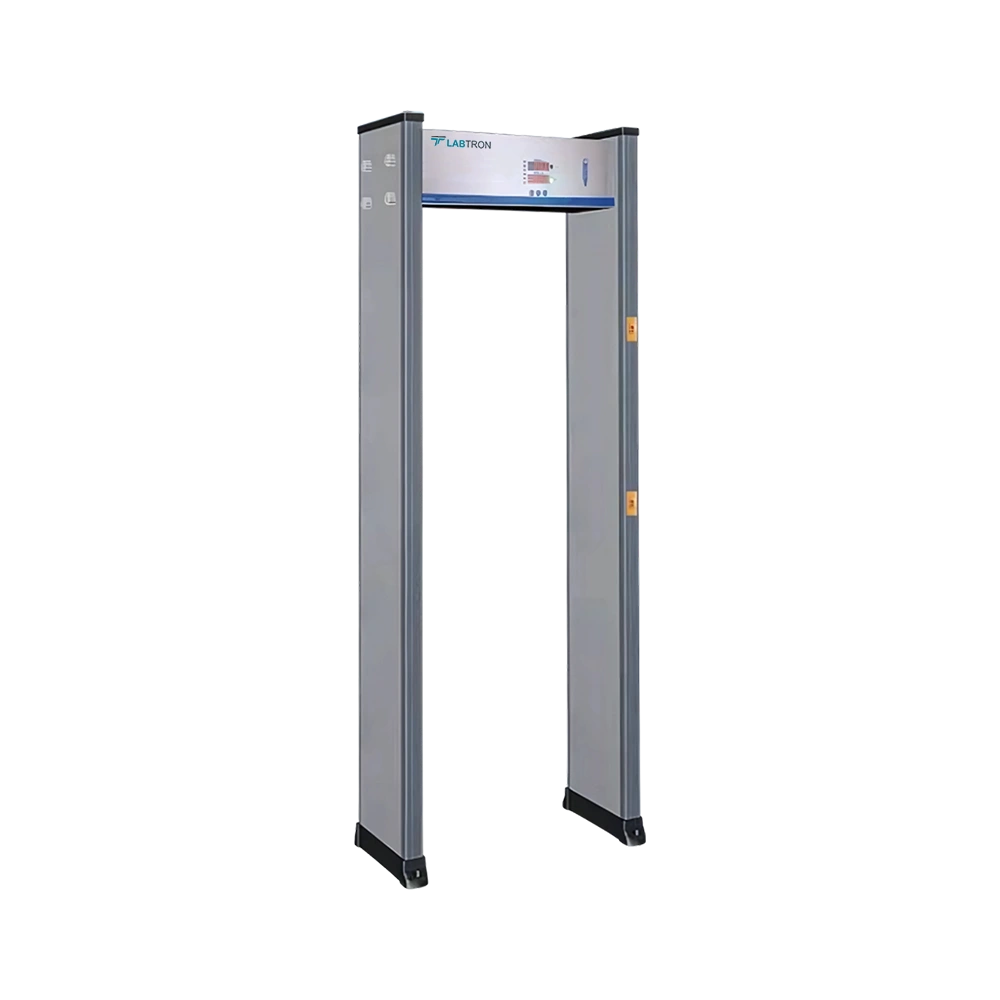

Walk through Metal Detector LWMD-A11

Name: Walk through Metal Detector LWMD-A11
Brand: Labtron
SKU: LWMD-A11
Rating: 4.8 (614 reviews)

Walk through Metal Detector LWMD-A11 is designed for indoor use. It has 6, 12,18 detection zones and offers an adjustable signal frequency of 7000 to 8999 Hz. With ultra-high sensitivity, this detector detects even the smallest threats. Equipped with two LED light bars for quick identification. Our walk through metal detector is ideal for hospitals and healthcare environments.

Request Quote

Space	Indoor use
Detection Zones	6, 12, 18
Signal Frequency	7000 to 8999Hz (adjustable)
Work Environment	-20°C to 45°C
Sensitivity Adjustable	Level 0 to 299
Alarm	Sound and light
Max Distance	0.3m at low sensitivity; 0.5m at high sensitivity
Operation Temperature	5°C to 40°C
Operation Humidity	0% to 90% (non-condensing)
Storage Temperature/Humidity	-20°C to 55°C
Storage Humidity	0% to 98% (non-condensing)
Electrical Current	AC 100V to 240V, 50/60Hz
Power	10 W
Operation Power	220V AC (±10%) 50±3Hz (Optional: 100V AC, 110V AC, 120V AC, 200V AC)
Outer Frame Dimension	2220 × 820 × 500 mm
Inner Frame Dimension	2000 × 700 × 500 mm
Weight	70 Kg

Remote control operations
Sound Alarm
Visual alarm

Operation way Sensibility Infrared counting Alarm settings Detecting areas

Walk through Metal Detector LWMD-A11 screens passengers at airports, prevents dangerous items at events, controls access in government buildings, ensures safety in schools, and protects valuable artifacts in museums.

Master control board Digital keypad Digital display location board Speaker Light bar

Download catalog for
Walk through Metal Detector LWMD-A11 Catalog

Available Range :

Walk through Metal Detector LWMD-A10 : Indoor use Walk through Metal Detector LWMD-A14 : Outdoor use

Models of Walk-through Metal Detectors

Labtron manufactures sensitive walk-through metal detectors for optimal security in airports, schools, government buildings, and public events. Utilizing multi-zone detection technology, these detectors identify the exact location of metal objects on the body. Their intuitive control panels and digital displays ensure easy operation for quick screenings. Built with durable materials, they are ideal for high-traffic areas and heavy use. Our detectors feature audible alarms and visual indicators for prompt alerts. Additionally, they are energy-efficient, helping to lower operational costs while maintaining high security.
