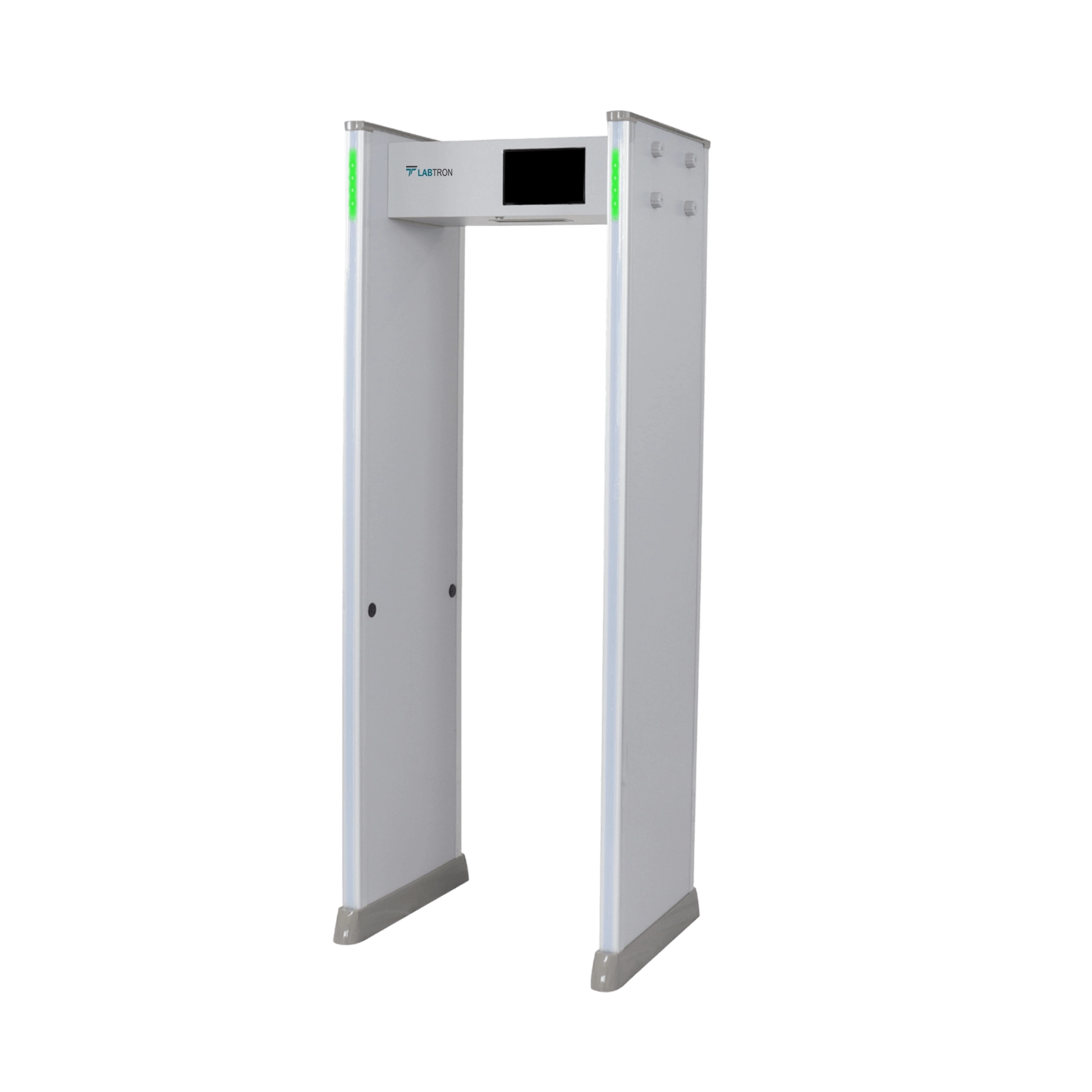

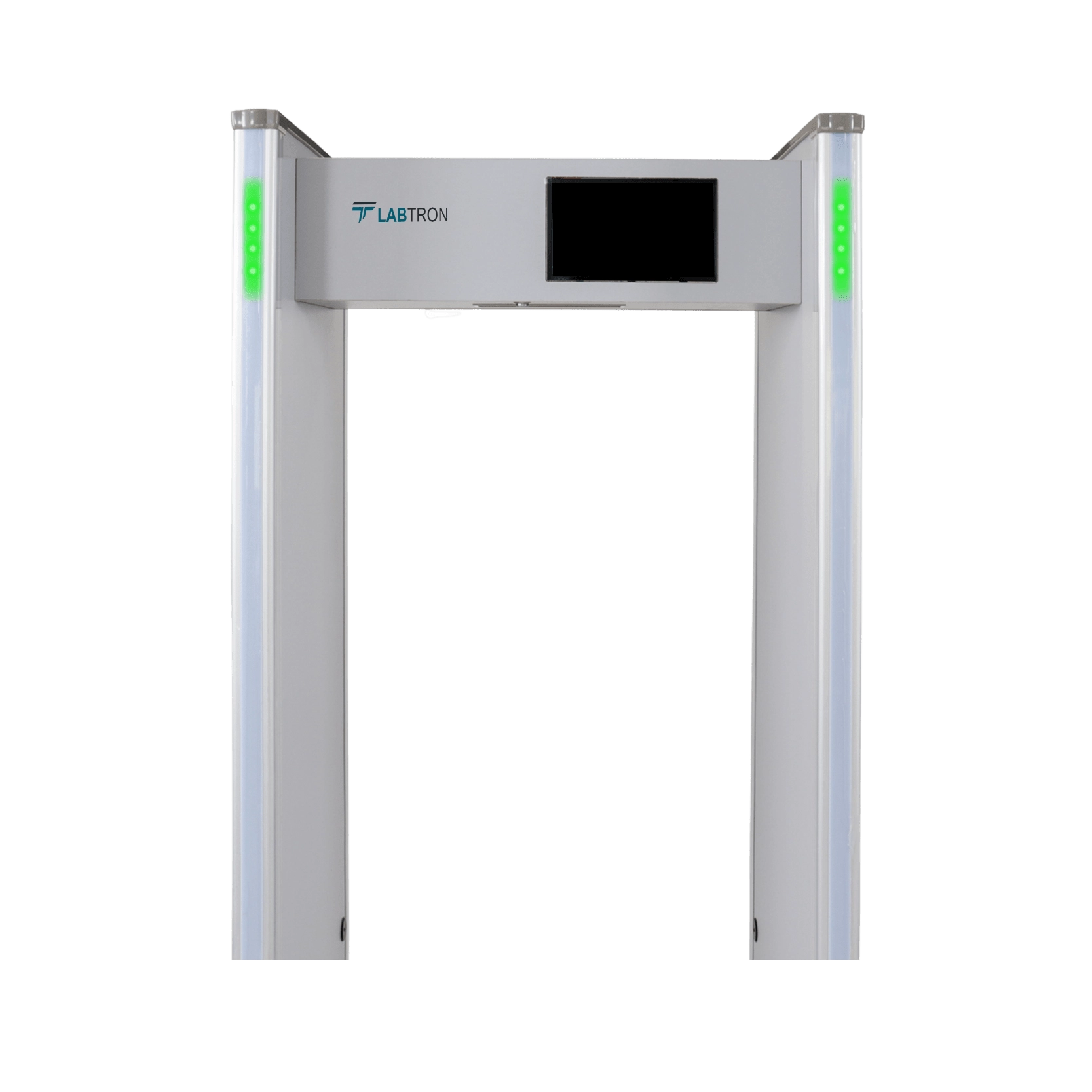

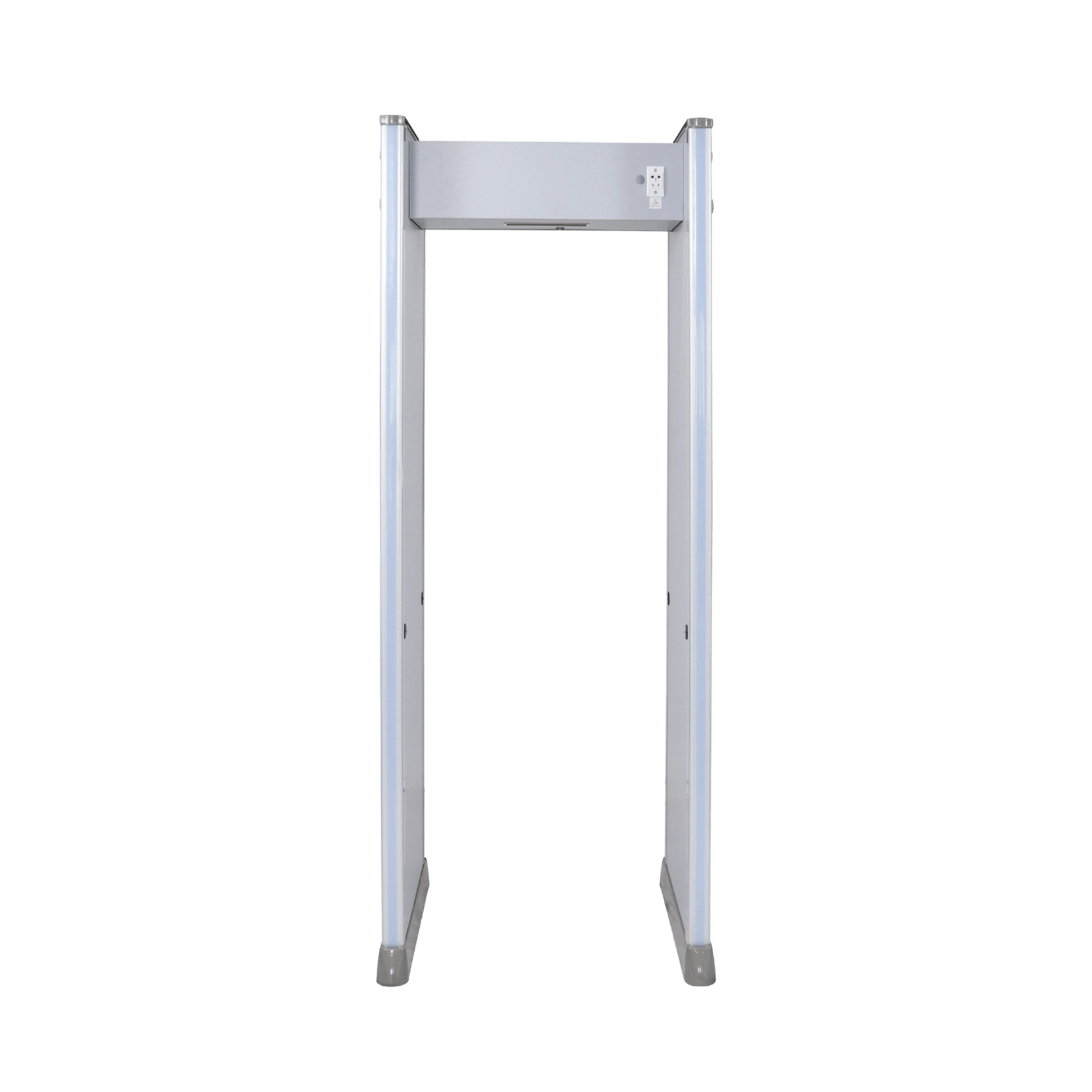

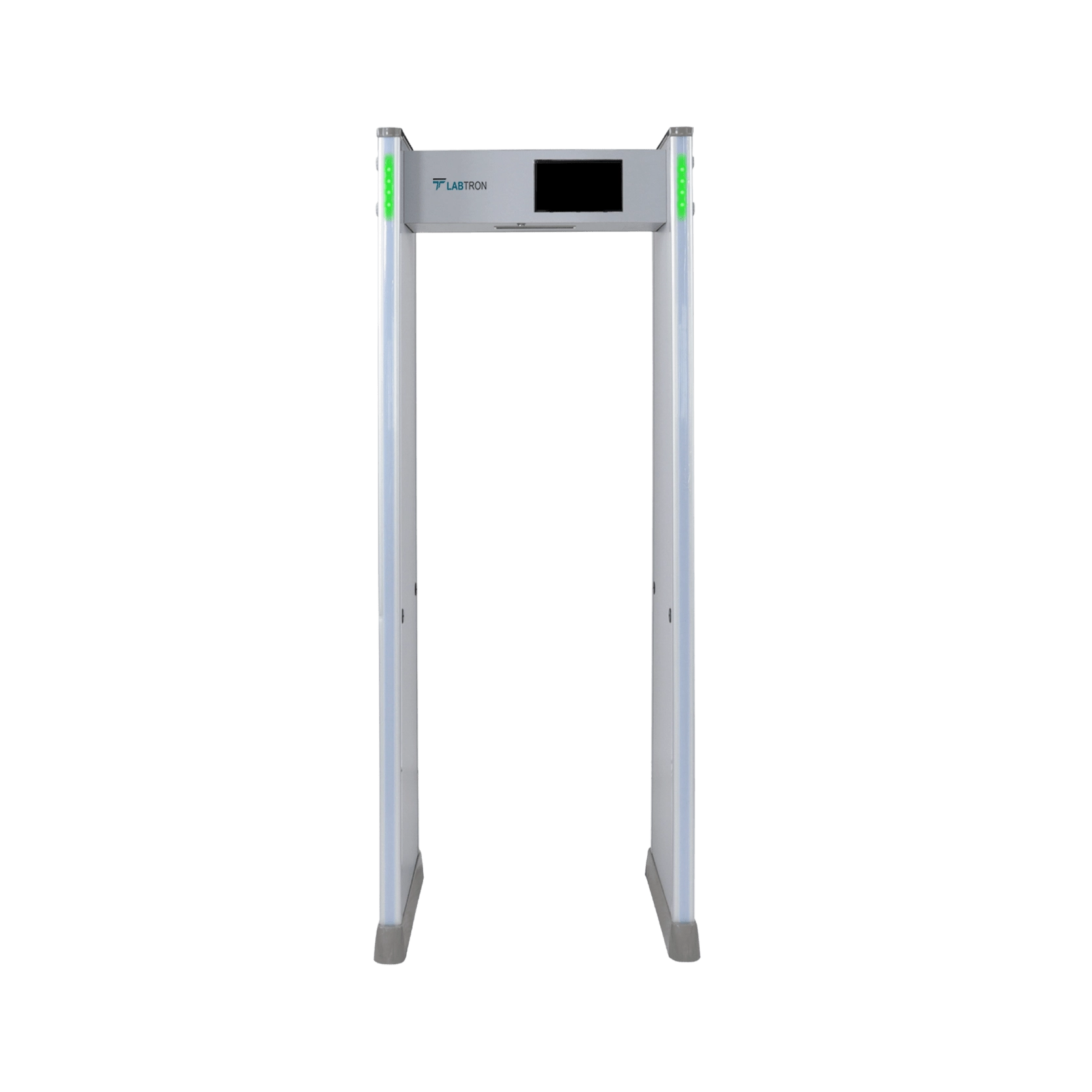

Walk Through Metal Detector LWMD-B15

Walk Through Metal Detector LWMD-B15

Walk through Metal Detector LWMD-B15 features 255 adjustable sensitivity levels for precise detection calibration to suit various security screening requirements. It offers interference-free multi-channel operation suitable for high-traffic areas with multiple gates. Integrated storage allows the retrieval and tracking of past alarms and individuals. Our metal detector is ideal for use in airports, schools, and other high-security environments requiring threat detection.

Walk Through Metal Detector LWMD-B15
Walk Through Metal Detector LWMD-B15
Walk Through Metal Detector LWMD-B15
Walk Through Metal Detector LWMD-B15
Walk Through Metal Detector LWMD-B15_Video
Request Quote
Sensitivity 255 level
Signal Frequency 4 to 7 kHz
Operating Temperature -20 to 45℃
Working Environment Humidity 0 to 95% non-condensing
Display Mode 7-inch LED display
Location Display Front and rear light bars in Zone 8
Detection Area 6 zone
Detection Channels 1 to 50
Timing Settings 1 to 100 s
Tone Settings 1 to 20 levels
Brightness Settings 0 to 250 levels
Alarm Volume Setting Range 1 to 10 levels
Mobile Phone Detection Coverage 360° detection
Power Consumption Less than 20 W
Power Supply AC110 to 240V/50 to 60 Hz
Channel Dimension (L×W×H) 1990 × 720 × 580 mm
Dimension (L×W×H) 2200 × 830 × 580 mm
Weight 60 kg
  • Real-time location detection

  • Advanced signal processing

  • Wide operating humidity range

  • Enhanced detection algorithms

  • Extended temperature range

Walk through Metal Detector LWMD-B15 is used for security screening in high-traffic areas, such as airports, government buildings, and event venues. It effectively detects metal objects, contraband, and electronic devices while ensuring smooth, fast passage.

Walk through Metal Detector LWMD-B15 | Operating Temperature : -20 to 45℃ | Working Environment Humidity : 0 to 95% non-condensing
Walk through Metal Detector LWMD-B15 | Real-time location detection | Advanced signal processing


Models of Walk-through Metal Detectors

Labtron manufactures sensitive walk-through metal detectors for optimal security in airports, schools, government buildings, and public events. Utilizing multi-zone detection technology, these detectors identify the exact location of metal objects on the body. Their intuitive control panels and digital displays ensure easy operation for quick screenings. Built with durable materials, they are ideal for high-traffic areas and heavy use. Our detectors feature audible alarms and visual indicators for prompt alerts. Additionally, they are energy-efficient, helping to lower operational costs while maintaining high security.

Walk-Through Metal Detector LWMD-C25

Walk-Through Metal Detector LWMD-C25

  • Sensitivity Level : 0 to 255 Grades
  • Detection Zone : 18
  • Thermometry : 3 Independent Points
  • Operating Frequency : 1 to 12 Hz
Walk-Through Metal Detector LWMD-C12

Walk-Through Metal Detector LWMD-C12

  • Detection Accuracy : 95%
  • Operating Frequency : Adjustable
  • Operating Temperature : -20°C to 55°C
  • Operating Humidity : 93%
Walk Through Metal Detector LWMD-B14

Walk Through Metal Detector LWMD-B14

  • Sensitivity : 0 to 255 (adjustable)
  • Signal Frequency : 6 to 9 kHz (adjustable)
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃
Walk-Through Metal Detector LWMD-C13
Walk-Through Metal Detector LWMD-C13
  • Detection Zone : 33
  • Sensitivity Level : 255
  • Operating Frequency : Adjustable
  • Operating Temperature : -20°C to 55°C
Walk-Through Metal Detector LWMD-C20
Walk-Through Metal Detector LWMD-C20
  • Sensitivity Level : 0 to 99 Grades
  • Detection Zone : 1
  • Thermometry : 3 Independent Points
  • Operating Frequency : 1 to 12 Hz
Walk Through Metal Detector LWMD-B10

Walk Through Metal Detector LWMD-B10

  • Signal Frequency : 6 to 9 kHz (adjustable)
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃
  • Sensitivity : Level 99
Walkthrough Metal Detector LWMD-A18

Walkthrough Metal Detector LWMD-A18

  • Operating temperature : - 20℃ to 70℃
  • Relative Humidity : 95%, non-condensing
  • Display : LCD touchscreen
  • Sensitivity Levels : 300
Walk Through Metal Detector LWMD-B13

Walk Through Metal Detector LWMD-B13

  • Sensitivity : 0 to 255 (adjustable)
  • Signal Frequency : 6 to 9 kHz (adjustable)
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃

Walk Through Metal Detector LWMD-B15 FAQ's
  • Our Walk-Through Metal Detector offers a reliable solution for event security by efficiently screening large crowds for concealed metallic items. The detector helps event organizers quickly identify prohibited items like knives or weapons while minimizing delays for attendees. It’s equipped with adjustable sensitivity levels and customizable detection zones, allowing for tailored security measures based on the specific needs of the event. Whether used for concerts, conferences, or public gatherings, the Metal Detector ensures effective, non-invasive detection with minimal disruption to event flow.

  • Yes, the Walk-Through Metal Detector is capable of detecting mobile phones along with other metallic and electronic devices. It utilizes advanced detection technology to distinguish between everyday metallic items like keys and coins and more concerning items such as phones, which can be concealed during screenings. The system provides both visual and audible alerts, along with location-based identification for better security management. This feature is particularly useful in settings like secure facilities or high-security zones where mobile phones are not allowed.

  • Labtron’s Walk-Through Metal Detector is built for high-traffic environments such as government buildings and transportation hubs, offering rapid and efficient screening without causing delays. The system supports multiple channels and sensitivity levels, ensuring it can handle large volumes of people while maintaining high accuracy. With its customizable detection zones and adjustable settings, the detector minimizes false alarms and focuses on identifying concealed contraband or weapons. This capability ensures smooth operations even in busy, crowded locations.

  • Yes, our Walk-Through Metal Detector is crafted for easy installation and user-friendly operation. It comes with a clear, intuitive interface and simple controls for setting sensitivity, alarm volumes, and other key settings. The installation process is quick, and the detector is ready to use shortly after setup. It also includes a remote control for convenient operation, making it ideal for environments where manual adjustment may be needed. Our product ensures that security staff can efficiently manage the system with minimal training required.

  • For government buildings, the Walk-Through Metal Detector offers enhanced security by accurately detecting concealed weapons, contraband, and electronic devices. Its high sensitivity and customizable detection zones ensure effective screening of employees, visitors, and contractors without causing delays. The detector's durable design provides reliability in diverse environments, from entryways to restricted zones. With its rapid response time, it efficiently manages large volumes of people. This system ensures a secure environment while allowing smooth, uninterrupted access to the building.

  • Labtron’s Walk-Through Metal Detector is also highly effective for industrial use, particularly in areas where strict security measures are necessary, such as manufacturing plants or research labs. Its ability to detect metal objects, both small and large, ensures that workers and visitors aren’t carrying prohibited items into sensitive areas. The customizable detection zones and sensitivity settings allow for tailored security depending on the industrial environment’s needs. Additionally, the detector’s robust construction makes it suitable for environments with varying temperatures and humidity levels, ensuring consistent performance.
