| Detection Zones | 33 zones |
| Operation Methods | Remote control and keyboard control |
| Working Environment | -20°C to +45°C |
| LED Light Bars | Two LED light bars on both door panels, alarm corresponding to the height of the human body |
| Sensitivity Adjustment | Level 0 to 300 for each program, separate vertical zones with independent adjustable sensitivity from 0 to 300 |
| High Sensitivity | Can detect a clip |
| Low Sensitivity | Detects big metal articles such as knives, guns, copper, aluminium, and zinc (more than 150g), ignoring metal in belt buttons and shoes |
| Anti-Shock | Shock-proof to avoid false alarms |
| Intelligent Traffic & Alarm Counters | Calculates traffic flow and resultant alarms |
| Tamper-Proof | Operation program protected by password |
| Advantages & Functions | Self-diagnostic procedures Supports input MBSU battery backup with real-time power transfer Modular structure for easy after-sales service Automatically adapts to the working environment Auto scans environmental interference at the site |
| Weather-proof Level | IP65 |
| Technology | DSP and module construction |
| Screen | 7-inch LCD screen, Audible and visible alarm, and zoned display |
| Power | 12W |
| Power Supply | AC 215V to 230V, 50/60Hz |
| Inner Frame Dimensions | 2000 × 760× 600mm |
| Outer Frame Dimensions | 2220× 880× 600 mm |
| Packaging Dimension | 750 × 395 × 250 mm 226× 635× 205 mm |
| Net Weight | 40 Kgs |
| Gross Weight | 45 Kgs |
Signal Indicators
Dual-screen display
Chip System
Meets security norms

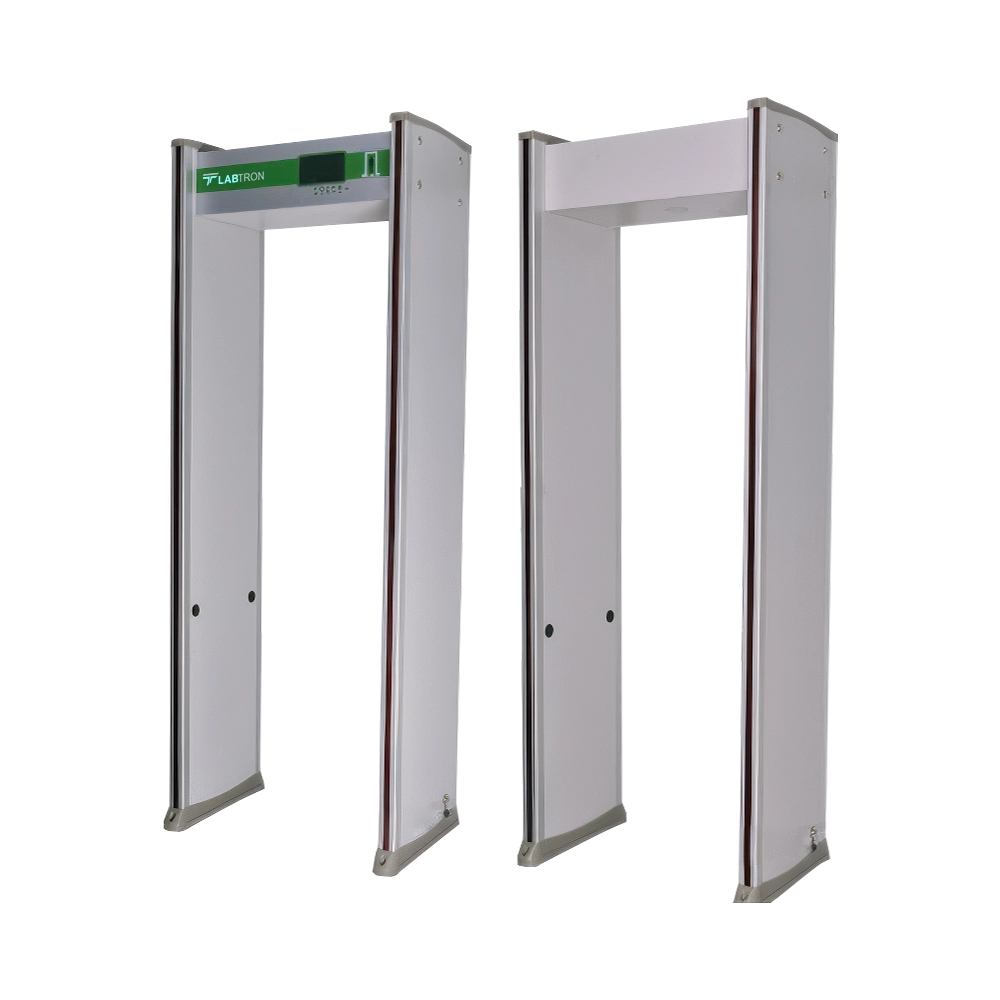

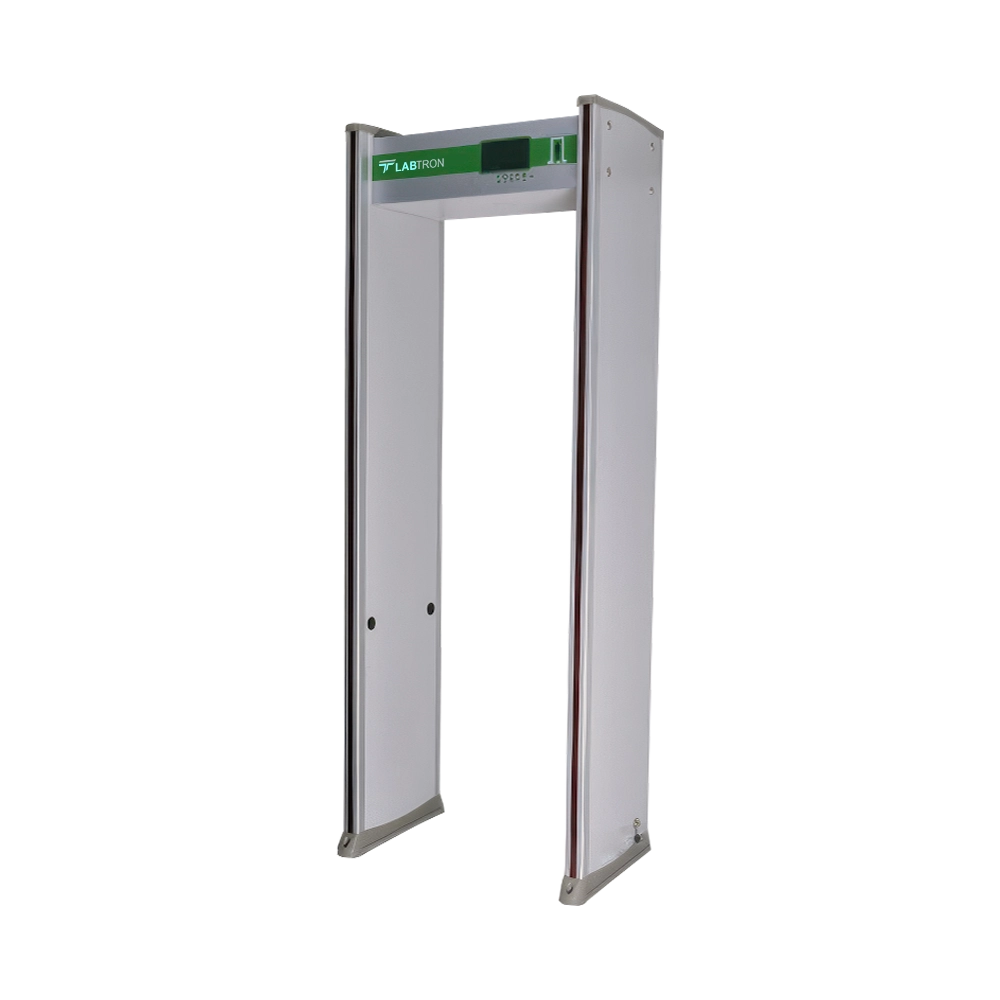

Walkthrough Metal Detector LWMD-A19 is ideal for schools, stadiums, government buildings, transit hubs, nightclubs, prisons, airports, events, and security checks.
Download catalog for
Walkthrough Metal Detector LWMD-A19 Catalog
Available Range :
Walk-Through Metal Detector LWMD-C11 : 16 Walkthrough Metal Detector LWMD-A19 : 33 zones Walk through Metal Detector LWMD-A15 : 33, 45 Walk through Metal Detector LWMD-A10 : 6 and 12 Walk through Metal Detector LWMD-A12 : 6, 12 ,18 Walk through Metal Detector LWMD-A11 : 6, 12, 18 Walk-Through Metal Detector LWMD-C10 : 8
Labtron manufactures sensitive walk-through metal detectors for optimal security in airports, schools, government buildings, and public events. Utilizing multi-zone detection technology, these detectors identify the exact location of metal objects on the body. Their intuitive control panels and digital displays ensure easy operation for quick screenings. Built with durable materials, they are ideal for high-traffic areas and heavy use. Our detectors feature audible alarms and visual indicators for prompt alerts. Additionally, they are energy-efficient, helping to lower operational costs while maintaining high security.
The Labtron LWMD-A19 is a highly sensitive walkthrough metal detector designed for efficient security screening. It features 33 detection zones that accurately pinpoint metal objects at different heights. With high sensitivity, it can detect a wide range of threats, from guns and 9mm bullets to a ½-inch cutter blade. The detector operates with remote control and keyboard options, offering flexibility and ease of use. Additionally, it has LED indicators, a dual display, and a chip card system for quick and secure settings adjustments.
The LWMD-A19 utilizes advanced digital signal processing (DSP) technology and precisely calibrated detection zones to enhance accuracy. It can differentiate between harmless everyday items (like belt buckles and shoes) and potential threats (such as weapons or large metallic objects). The system also features adjustable sensitivity levels (from 0 to 300) for each detection zone, ensuring that security personnel can customize detection parameters according to different environments.
The LWMD-A19 is designed for high-traffic areas and can scan up to 60 people per minute, making it ideal for airports, malls, stadiums, schools, and government buildings. The intelligent traffic and alarm counters track the number of people passing through and the alarms triggered, ensuring efficient security management without causing delays.
Yes, the LWMD-A19 is built with an IP65-rated weatherproof design, making it suitable for both indoor and outdoor use. It operates efficiently in a wide temperature range (-20°C to +45°C) and is shockproof, preventing false alarms caused by vibrations or environmental factors. This ensures reliable performance even in challenging conditions.
The Labtron LWMD-A19 complies with international security standards, including NILECJ, 3GUNTST, 3GUNTSE, GA, GD, and NIIJ-LO. It is also designed with tamper-proof settings, where the operating program is password-protected to prevent unauthorized changes. Additionally, it supports self-diagnostic procedures and automatic environmental interference scanning, ensuring optimal performance in various security scenarios.
