Walk-Through Metal Detector LWMD-C13

Walk-Through Metal Detector LWMD-C13

Walk-Through Metal Detector LWMD-C13 supports up to 33 detection zones to locate metallic objects on the body accurately. It includes non-contact body temperature scanning, displaying surface temperature as individuals pass through. The adjustable alarm thresholds allow for setting sensitivity based on object size and type. Our Walk-Through Metal Detector is widely used in transport facilities, prisons, universities, government sites, and public events.

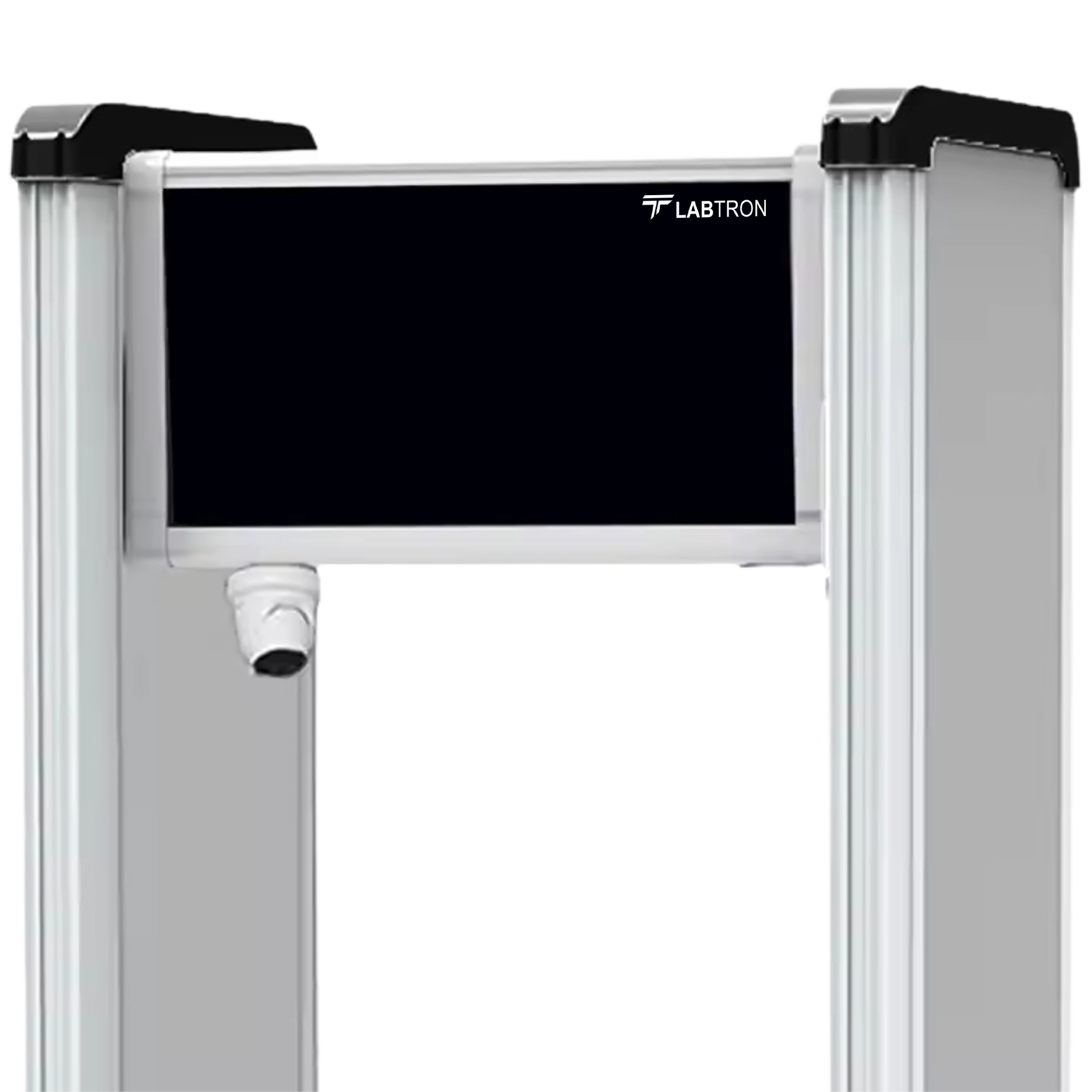

Walk-Through Metal Detector LWMD-C13_Front View
Walk-Through Metal Detector LWMD-C13_Front View
Request Quote
Detection Zone 33
Sensitivity Level 255
Operating Frequency Adjustable
Operating Temperature -20°C to 55°C
Operating Humidity Less than 95%
Display 29-inch LCD screen
Class of Protection IP41
Power Consumption Less than 60W
Power Supply AC 110V to 242V, 50/60Hz
External Dimensions 2414 × 945 × 769 mm
Channel Dimensions 1980 × 730 × 769 mm
Weight 80 kg
  • High detection accuracy

  • Self-diagnostic system

  • Multiple detection modes

  • Anti-interference design

  • Visual and audible alarm

Walk-Through Metal Detector LWMD-C13 is designed to identify contrabands and metal objects with high accuracy. It is ideal for customs, public events, schools, government offices, exhibitions, and emergency response zones

Walk-Through Metal Detector LWMD-C13 | Operating Frequency-Adjustable | Operating Temperature--20°C to 55°C
Walk-Through Metal Detector LWMD-C13 | High detection accuracy | Self-diagnostic system

Models of Walk-through Metal Detectors

Labtron manufactures sensitive walk-through metal detectors for optimal security in airports, schools, government buildings, and public events. Utilizing multi-zone detection technology, these detectors identify the exact location of metal objects on the body. Their intuitive control panels and digital displays ensure easy operation for quick screenings. Built with durable materials, they are ideal for high-traffic areas and heavy use. Our detectors feature audible alarms and visual indicators for prompt alerts. Additionally, they are energy-efficient, helping to lower operational costs while maintaining high security.

Walk Through Metal Detector LWMD-B16

Walk Through Metal Detector LWMD-B16

  • Sensitivity : 15000 adjustable
  • Signal Frequency : 6 to 9 kHz
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃
Walk Through Metal Detector LWMD-B12

Walk Through Metal Detector LWMD-B12

  • Sensitivity : 0 to 200 (adjustable)
  • Signal Frequency : 6 to 9 kHz (adjustable)
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃
Walkthrough Metal Detector LWMD-A18

Walkthrough Metal Detector LWMD-A18

  • Operating temperature : - 20℃ to 70℃
  • Relative Humidity : 95%, non-condensing
  • Display : LCD touchscreen
  • Sensitivity Levels : 300
Walk-Through Metal Detector LWMD-C29
Walk-Through Metal Detector LWMD-C29
  • Sensitivity Level : 300 Grades
  • Detection Zone : 45
  • Working Frequency : 100 Hz
  • Operating Temperature : -28℃ to 47℃
Walk through Metal Detector LWMD-A10
Walk through Metal Detector LWMD-A10
  • Space : Indoor use
  • Detection Zones : 6 and 12
  • Signal Frequency : 7000 to 8999Hz (adjustable)
  • Work Environment : -20°C to 45°C
Walk Through Metal Detector LWMD-B14

Walk Through Metal Detector LWMD-B14

  • Sensitivity : 0 to 255 (adjustable)
  • Signal Frequency : 6 to 9 kHz (adjustable)
  • Operating Temperature : -10 to 55℃
  • Storage Temperature : -25 to 75℃
Walk through Metal Detector LWMD-A17

Walk through Metal Detector LWMD-A17

  • Space : Outdoor use
  • Passing Speed : Adjustable downward; maximum speed is 100 people/minute, with self-defined detection speed
  • Detection Zones : 33, 45
  • Alarm Sound Time Setting : 1 to 9 sec
Walk-Through Metal Detector LWMD-C21

Walk-Through Metal Detector LWMD-C21

  • Frame Rate : 15 Hz maximum
  • Temperature Accuracy : ±0.2 °C
  • Measurement Type : Non-contact imaging
  • Face Capture : 200 Megapixel
Walk-Through Metal Detector LWMD-C13 FAQ's
  • The Walk-Through Metal Detector LWMD-C14 offers multi-zone detection technology, high sensitivity, and real-time alarm indication. It comes equipped with a user-friendly LCD interface for quick configuration and monitoring. The system supports anti-interference technology, allowing multiple units to function simultaneously without disruption. With adjustable sensitivity levels, it can detect both large and small metallic objects. Its durable construction ensures long-term use in various environments. The device is also designed to be safe for all individuals, including those with pacemakers. Overall, it is ideal for airports, schools, government buildings, and events.

  • Designed Walk-Through Metal Detector LWMD-C13 integrates non-contact human body temperature measurement functionality. This feature allows the system to scan and display the surface temperature of individuals as they pass through. A temperature threshold can be preset, and if exceeded, it triggers an alert to notify security personnel. This function is especially valuable in public health scenarios, such as during pandemics, where body temperature monitoring is crucial. The integration of this feature helps reduce the need for additional temperature screening stations. It contributes to a more streamlined and hygienic security process. This added function enhances the product’s versatility beyond just metal detection.

  • The Walk-Through Metal Detector LWMD-C13 is constructed from durable materials and includes internal components designed for high-traffic use and extended operation. Its modular design allows for easy servicing and upgrades, ensuring it remains functional for years. The detector supports ongoing calibration and software updates to maintain peak performance. In addition to metal detection, its added features like temperature scanning and zone indicators make it a multi-functional solution. Its high detection sensitivity, low false alarm rate, and ease of use contribute to operational efficiency. Altogether, it offers long-term value with minimal maintenance costs.

  • Our Walk-Through Metal Detector LWMD-C13 incorporates advanced anti-interference technology to ensure consistent performance. Its intelligent startup system automatically selects the operating frequency that best minimizes interference from nearby electronic devices or other metal detectors. This is particularly useful in locations where multiple units are installed close to one another, such as at event entrances or large facilities. By auto-calibrating its frequency, the detector avoids signal overlaps and interference-related errors. This results in more reliable detections and fewer false alarms during operation. The unit also maintains stability even in high-traffic areas with electronic noise. These features contribute to its reputation for stability and precision in complex environments.

  • Engineered Walk Through Metal Detector LWMD-C13 is harmless to individuals with pacemakers, pregnant women, and those carrying magnetic storage devices. It uses non-ionizing electromagnetic fields, which pose no known health risks. This allows it to be installed in sensitive public areas such as hospitals, schools, and government offices without causing any health concerns. Additionally, it does not interfere with other medical or electronic equipment in its vicinity. This feature is particularly beneficial for locations that require inclusive access and considerate security procedures. The product ensures a balance between thorough screening and user comfort. For environments where diverse individuals pass through daily, this safety assurance is crucial.

  • The Walk-Through Metal Detector LWMD-C13 is its exceptional detection accuracy and zone-based scanning system. With support for up to 33 detection zones, it can accurately identify the location of metallic objects on a person's body. This capability is ideal for airports, government buildings, public venues, and correctional facilities where high-level security is required. The device can detect metal items as small as a return pin and identify over 50 grams of metals such as copper and aluminum. Additionally, the system is designed to resist environmental interference, ensuring consistent performance even in busy or complex surroundings. Its fast response time and clear visual indicators contribute to smoother security checks. This makes it a reliable choice for both indoor and outdoor security operations.
