Walk-Through Metal Detector LWMD-C15

Walk-Through Metal Detector LWMD-C15

Walk-Through Metal Detector LWMD-C15 is equipped with 18 independent detection zones, enabling accurate identification of object locations. The password protection access prevents unauthorized configuration changes for secure operation. It features multiple frequency bands that allow simultaneous operation of multiple units. Our Walk-Through Metal Detector is ideal for security at airports, correctional facilities, government buildings, and public events.

Walk-Through Metal Detector LWMD-C15_Front View

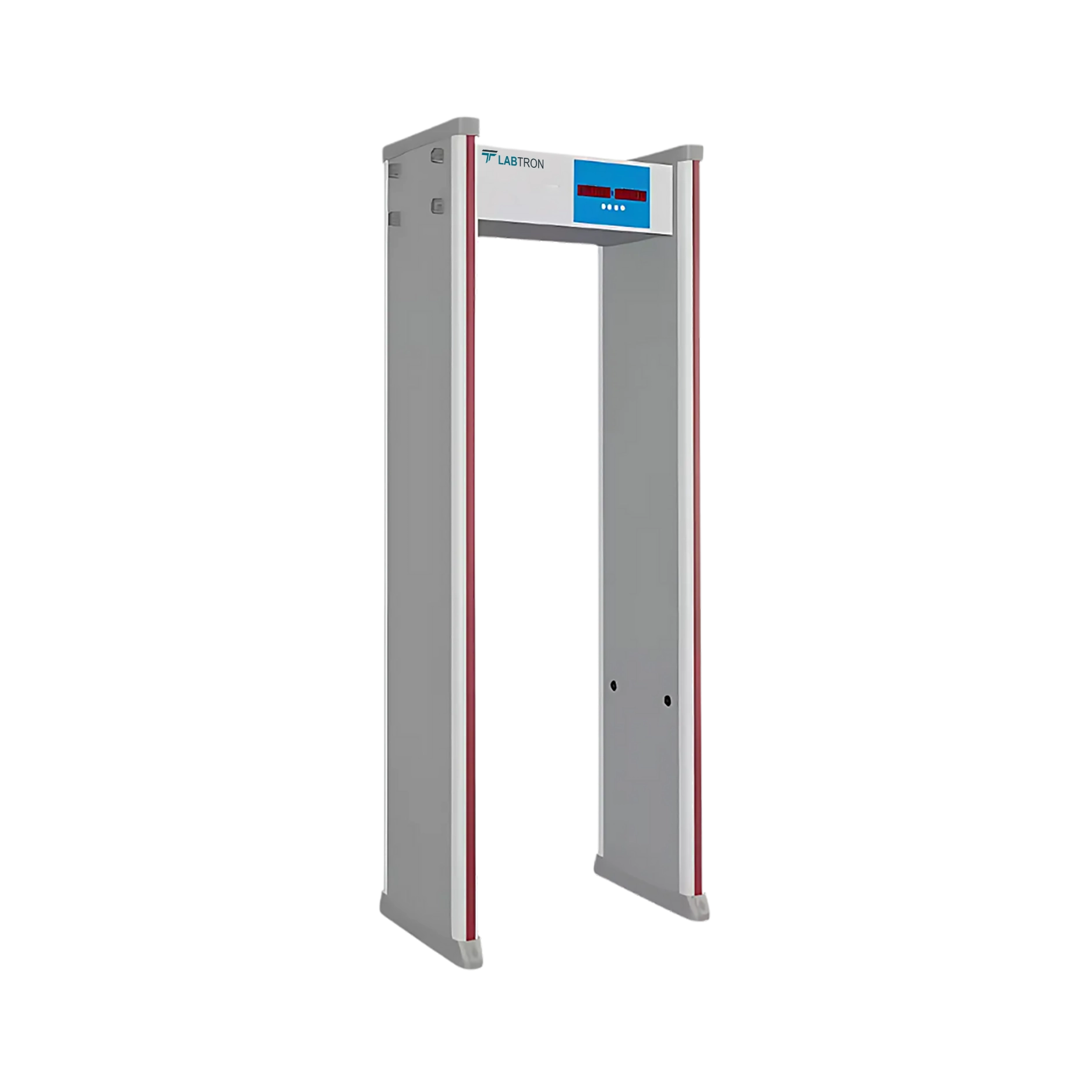

Walk-Through Metal Detector LWMD-C15_Side View
Request Quote
Detection Zone 18
Operating Frequency 1 to 12 Hz
Sensitivity Level 255 Grades
Operating Temperature -20°C to 45°C
Display 3.7-inch LCD screen
Throughput Rate 0.4 to 1.2 m/s
Chassis Dimensions 755 × 450 × 255 mm
Power Consumption Less than 30W
Power Supply AC 110V to 242V, 50/60Hz
External Dimensions (W × D × H) 2200 × 800 × 500 mm
Channel Dimensions (W × H) 2000 × 700 mm
External Packaging Dimensions (W × D × H) 710 × 330 × 200 mm
Packaging Dimensions (W × D × H) 2295 × 645 × 195 mm
Weight 58 kg
  • Anti-inference technology

  • Adaptive diagnostic system

  • UPS backup support

  • Visual and audible alarm system

  • Durable shell protection

Walk-Through Metal Detector LWMD-C15 is designed to identify contrabands, mobile phones, and metal objects with high accuracy. It is ideal for customs, public events, schools, government offices, exhibitions, emergency response zones

Walk-Through Metal Detector LWMD-C15 | Operating Frequency-1 to 12 Hz | Sensitivity Level-255 Grades
Walk-Through Metal Detector LWMD-C15 | Anti-inference technology | Adaptive diagnostic system

Models of Walk-through Metal Detectors

Labtron manufactures sensitive walk-through metal detectors for optimal security in airports, schools, government buildings, and public events. Utilizing multi-zone detection technology, these detectors identify the exact location of metal objects on the body. Their intuitive control panels and digital displays ensure easy operation for quick screenings. Built with durable materials, they are ideal for high-traffic areas and heavy use. Our detectors feature audible alarms and visual indicators for prompt alerts. Additionally, they are energy-efficient, helping to lower operational costs while maintaining high security.

Walkthrough Metal Detector LWMD-A19

Walkthrough Metal Detector LWMD-A19

  • Detection Zones : 33 zones
  • Operation Methods : Remote control and keyboard control
  • Working Environment : -20°C to +45°C
  • LED Light Bars : Two LED light bars on both door panels, alarm corresponding to the height of the human body
Walk-Through Metal Detector LWMD-C22

Walk-Through Metal Detector LWMD-C22

  • Sensitivity Level : 255 Grades
  • Detection Zone : 6 to 8
  • Temperature Measurement Range : 1.5 to 5 m
  • Thermometry : 3 Independent Points
Walk through Metal Detector LWMD-A15

Walk through Metal Detector LWMD-A15

  • Space : Outdoor use
  • Passing Speed : Adjustable; maximum speed is 100 people/minute, with self-defined detection speed
  • Detection Zones : 33, 45
  • Alarm Sound Time Setting : 1 to 9 sec
Walk through Metal Detector LWMD-A12
Walk through Metal Detector LWMD-A12
  • Space : Indoor use
  • Detection Zones : 6, 12 ,18
  • Signal Frequency : 7000 to 8999Hz (adjustable)
  • Work Environment : -20°C to 45°C
Walk Through Metal Detector LWMD-A20
Walk Through Metal Detector LWMD-A20
  • Type of Visual Zone Indication : 60 zones (Vertically: 20 pinpoint zones)
  • Sensitivity Level : Adjustable from Level 0 to 300
  • High Sensitivity : Detects a coin
  • Low Sensitivity : Detects large metal objects (e.g., gun, knife, copper, aluminium, zinc >150g) while ignoring small items like belt buckles, shoe metals
Walk-Through Metal Detector LWMD-C24

Walk-Through Metal Detector LWMD-C24

  • Thermometry : 3 Probes
  • Temperature Difference : 0.3°C
  • Operating Temperature : -20°C to 45°C
  • Throughput Rate : 0.4 to 1.2 m/s
Walkthrough Metal Detector LWMD-A18

Walkthrough Metal Detector LWMD-A18

  • Operating temperature : - 20℃ to 70℃
  • Relative Humidity : 95%, non-condensing
  • Display : LCD touchscreen
  • Sensitivity Levels : 300
Walk-Through Metal Detector LWMD-C23

Walk-Through Metal Detector LWMD-C23

  • Sensitivity Level : 255 Grades
  • Detection Zone : 6 to 8
  • Temperature Measurement Range : 1.5 to 5 m
  • Thermometry : 3 Independent Points

Walk-Through Metal Detector LWMD-C15 FAQ's
  • Engineered Walk-Through Metal Detector LWMD-C15 is highly customizable, with up to 255 adjustment levels available. Each detection zone can be calibrated separately for precise control. This enables the system to adapt to specific security needs, such as detecting small jewelry or ignoring minor metal objects. It allows different setups for various locations like courthouses, stadiums, or industrial sites. Adjustments can be saved and applied quickly when switching between operational modes. This flexibility improves both security and user experience. It helps reduce false alarms while maintaining thorough scanning.

  • The Walk-Through Metal Detector LWMD-C15 features a multi-mode alarm system that provides both visual and audible alerts when a threat is detected. Each detection zone lights up on the panel to pinpoint where the metal object is located. The alarm volume and tone can be customized based on the environment. This allows quiet operation in low-noise areas and louder alerts in busy spaces. It improves the clarity of alerts for security personnel. This feature speeds up inspection time. It contributes to a smoother and more efficient screening process.

  • Labtron’s Walk-Through Metal Detector LWMD-C15 is designed to be user-friendly for operators of all experience levels. The interface allows quick adjustments to sensitivity, frequency, and alarm modes. Visual zone indicators help the user quickly locate the triggered area. Its real-time status display simplifies monitoring during use. The setup menu is structured for easy navigation. This reduces training time and enhances daily usability. It is ideal for both permanent staff and temporary security personnel.

  • Yes, the Walk-Through Metal Detector LWMD-C15 can be connected to access control systems such as turnstiles or personnel management platforms. This integration enables automated entry based on scanning results. It enhances security by restricting access only to cleared individuals. Integration also allows for data logging and real-time monitoring. This makes the system suitable for high-security zones with strict entry protocols. It supports centralized control for large facilities. The feature ensures smooth coordination with broader security infrastructure.

  • Our Walk-Through Metal Detector LWMD-C15 supports UPS backup options of 6, 12, or 24 hours. This is essential in case of unexpected power outages. The backup ensures continuous screening during emergencies or mobile deployment. It enhances operational readiness in sensitive or remote areas. The system automatically switches to battery mode without disrupting performance. This feature is particularly useful in government, military, or outdoor environments. It supports seamless operation during critical security events.

  • Designed Walk-Through Metal Detector LWMD-C15 features 12 adjustable frequency bands. This allows multiple units to operate in close proximity without affecting each other. It is particularly useful in environments where multiple metal detectors are required. By adjusting frequency settings, operators can avoid overlapping signals. The technology ensures clear and accurate readings during operation. It enhances both safety and efficiency at large-scale security setups. The system also supports intelligent self-diagnostics for consistent performance.

Post your question?

Our experts are here to help!

Walk-through Metal Detectors:
Walkthrough Metal Detector LWMD-A19, Walk-Through Metal Detector LWMD-C22, Walk through Metal Detector LWMD-A15, Walk through Metal Detector LWMD-A12, Walk Through Metal Detector LWMD-A20, Walk-Through Metal Detector LWMD-C24, Walkthrough Metal Detector LWMD-A18, Walk-Through Metal Detector LWMD-C23, and more.
