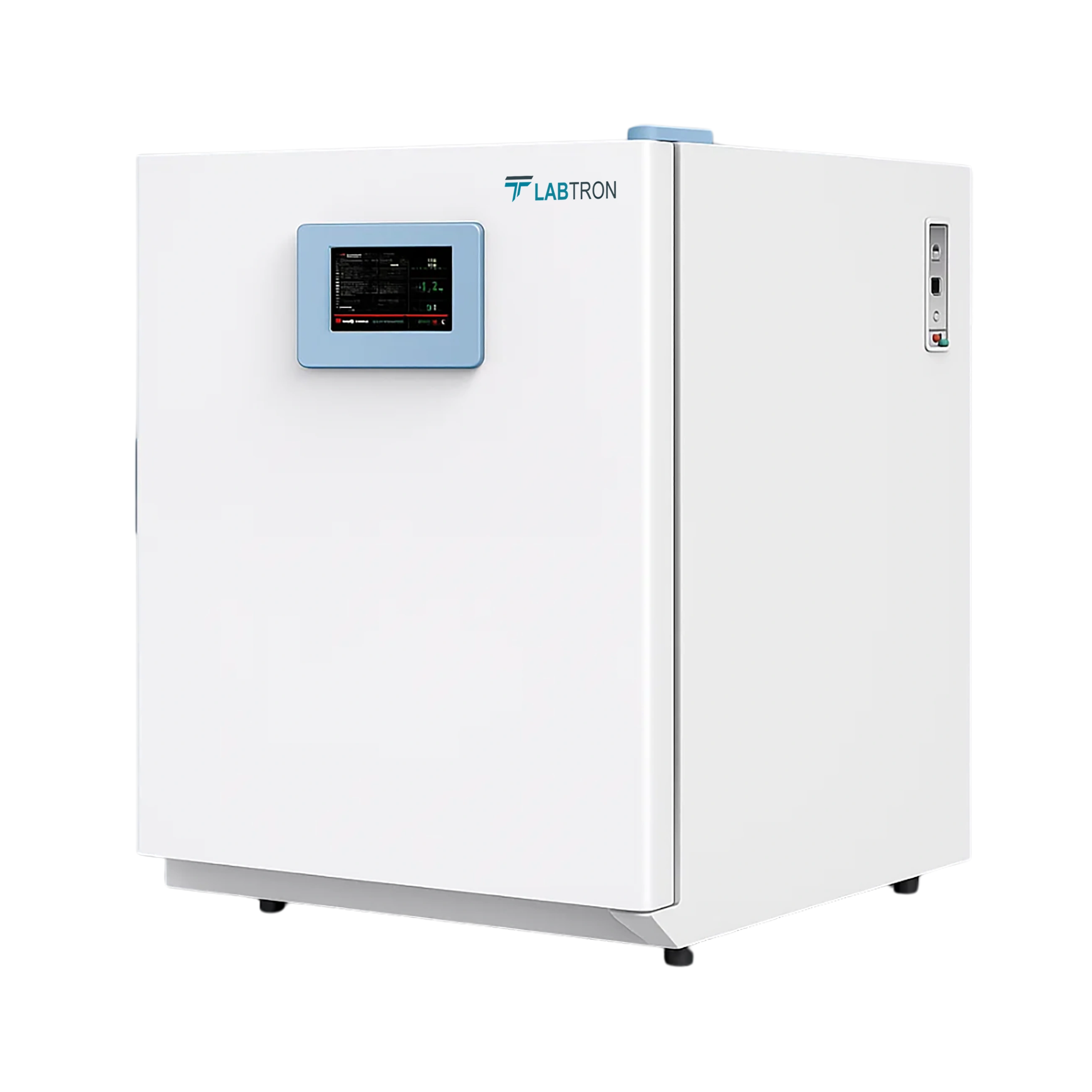

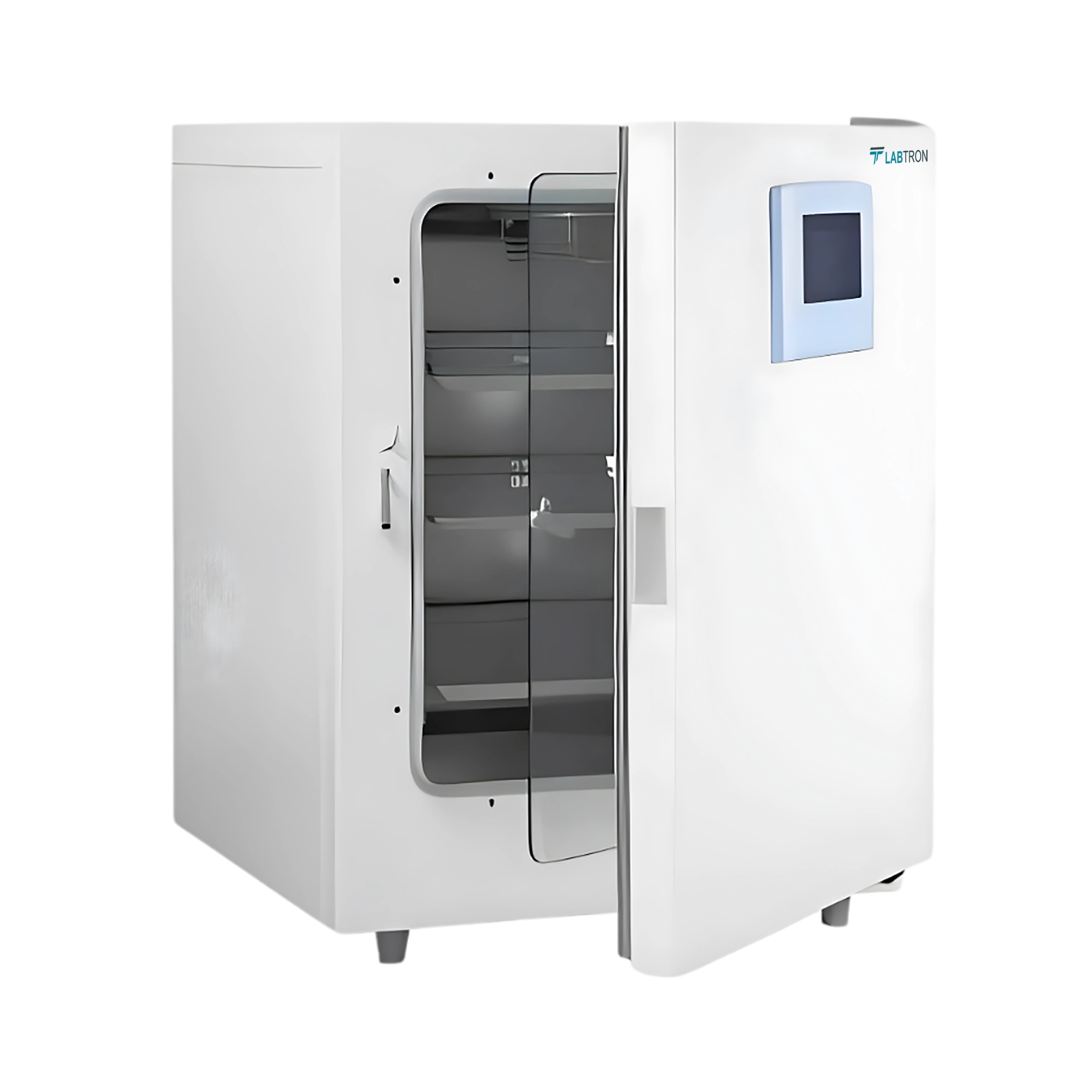

Water Jacketed CO2 Incubator LWJI-B14

Name: Water Jacketed CO 2 Incubator LWJI-B14
Brand: Labtron
SKU: LWJI-B14
Rating: 5 (805 reviews)

Water Jacketed CO₂ Incubator LWJI-B14 offers 0 to 20 % CO₂ range, water jacketed heating method and polished stainless steel chamber having 170 L capacity. Chamber is incorporated with HEPA filter to maintain aseptic condition, prevent culture cross contamination, and to effectively filter out the outside bacteria & dust particles. Features microbial efficient filter with diameter <0.3 um at CO₂ inlet with 99.99% efficiency provides effective filtration (removal of bacteria and dust) and supplies pure CO₂ into the incubator. Designed with imported (IR) Infrared sensor to keep CO₂ concentration inside the chamber stable and uniform as door is open frequently.

Request Quote

Heating method	Water Jacketed
Chamber volume	170 L
CO2 range	0 to 20 %
CO2 control resolution	± 0.1% (IR Sensor)
CO2 recovery	(Door open 30 s, recovery to 5%) ≤ 3 min
Temperature range	RT + 5 to 50°C
Ambient temperature	5 to 30°C
Temperature stability	± 0.1°C
Temperature recovery	(Door open 30 s, recovery to 37℃ ) ≤ 8 min
Humidity method	Natural vaporization > 95 %
No. of shelves	3 pcs
Sterilization method	UV lamp sterilization
Interior dimension	530×460×720 mm
Exterior dimension	684×700×960 mm
Power consumption	700 W
Power supply	AC 220 V, 50 Hz
Packaging dimension	820×810×1230 mm
Packaging weight	125 kg (1 CTN)

Water Jacketed Type Heating Method
PID Microprocessor controlled system
Semicircular arcs at corners for easy cleaning
3 pcs of adjustable shelves inside the chamber
Faster CO₂ concentration restoration speed
Built-in UV germicidal lamp in the rear of top of the box of effective sterilization
Door temperature controller prevents dewfall on glass door of incubator effectively
Pt100 Temperature sensor to ensure accurate temperature
Can adjust heating power in real time
Touch screen controller display (shows real time curve with curve summary function)
Can run continuously up to 72 hours
HEPA filter: Cleanliness level 100 (air quality inside chamber) is recovered on 5 minutes door closing
Audible and visible temperature-limiting alarm system to ensure safe running of the experiments
Auto-controller of fan speed to prevent damage to the samples
Alarm function for CO₂ over concentration and concentration difference, door open time, UV lamp working status

Water jacketed CO2 incubators are widely used for a broad range of applications that includes tissue engineering, In vitro fertilization, neuroscience, cancer research, stem cell research, regenerative medicine and mammalian cell research.

Humidity display
RS485 connector
CO₂ pressure releasing valve

Download catalog for
Water Jacketed CO2 Incubator LWJI-B14 Catalog

Download manual for
Water Jacketed CO2 Incubator LWJI-B14 Manual

Models of Water-jacketed CO2 Incubator

Labtron Water-Jacketed CO2 Incubator provide liquid filled outer chamber to maintain ambient temperature from 5℃ to 65℃. They include integrated humidity control system which is essential for maintaining cell cultures in optimal conditions. Their stainless-steel interiors are easy to clean, promoting a sterile environment for biological processes. They are equipped with adjustable shelves, allowing flexible arrangement for various sizes of culture vessels. Our Water-Jacketed CO2 Incubator is essential for tissue engineering, vaccine development and pharmaceutical research.
