| Operating Temperature | 0°C to 40°C |
| Operating Humidity | ≤85% RH |
| Temperature Setting Range | 4℃ to 20℃ |
| Temperature Control Accuracy | ±1.5 ℃ |
| Sampling Bottle | 1000 ml × 25 bottles |
| Single Sampling Quantity | 10 to 1000 ml |
| Sampling Interval | 2 to 9999 min |
| Maximum Capacity of a Single Bottle | 1000 ml (customized) |
| Sampling Record | 1000 slips |
| Records for Opening and Closing Doors | 200 slips |
| Sampling Volume Error | ± 7% |
| Sampling Volume Error of Equal Proportion | ± 8% |
| Time Control Error of System Clock | Δ1 ≤ 0.1% Δ12 ≤ 30s |
| Vertical Height for Sampling | ≥ 6.5 m |
| Horizontal Sampling Distance | ≥ 65 m |
| Air Tightness of Piping System | ≤ -0.07 MPa |
| Average Trouble-Free Continuous Running Time | ≥ 1440 h/time |
| Insulation Resistance | >20 MΩ |
| Communication Interface | RS-232/RS-485 |
| Analog Interface | 4 mA to 20 mA/0V to 2.5V |
| Digital Quantity Input Interface | switching value |
| Power Consumption | 75 W |
| Power Supply | AC220V ± 10%, 50Hz ± 1 Hz |
| Dimensions (L x W x H) | 460mm × 450mm × 1100mm |
| Packing Dimensions | 620 × 620 × 1200 mm |
| Net Weight | 100 Kg |
| Gross Weight | 112 Kg |
Our Water Sampler is ideal for pollution source monitoring, sewage treatment plants, industrial wastewater management, and environmental projects, enabling continuous sampling with COD, ammonia nitrogen, heavy metal, and analysis applications.
Accessory | Quantity | Unit |
|---|---|---|
| Sampling bottle | 1 | pc |
| Power cord | 1 | pc |
| Sampling tube | 1 | pc |
| Sampling head | 1 | pc |
| Corrugated drain pipe | 1 | pc |
| Nylon cable tie | 1 | pack |
| Tee | 1 | pc |
| Reducing tee | 1 | pc |
| Peristaltic pump tube | 1 | pc |
| Valve tube | 1 | pc |
Download catalog for
Water Sampler LBWS-A10 Catalog

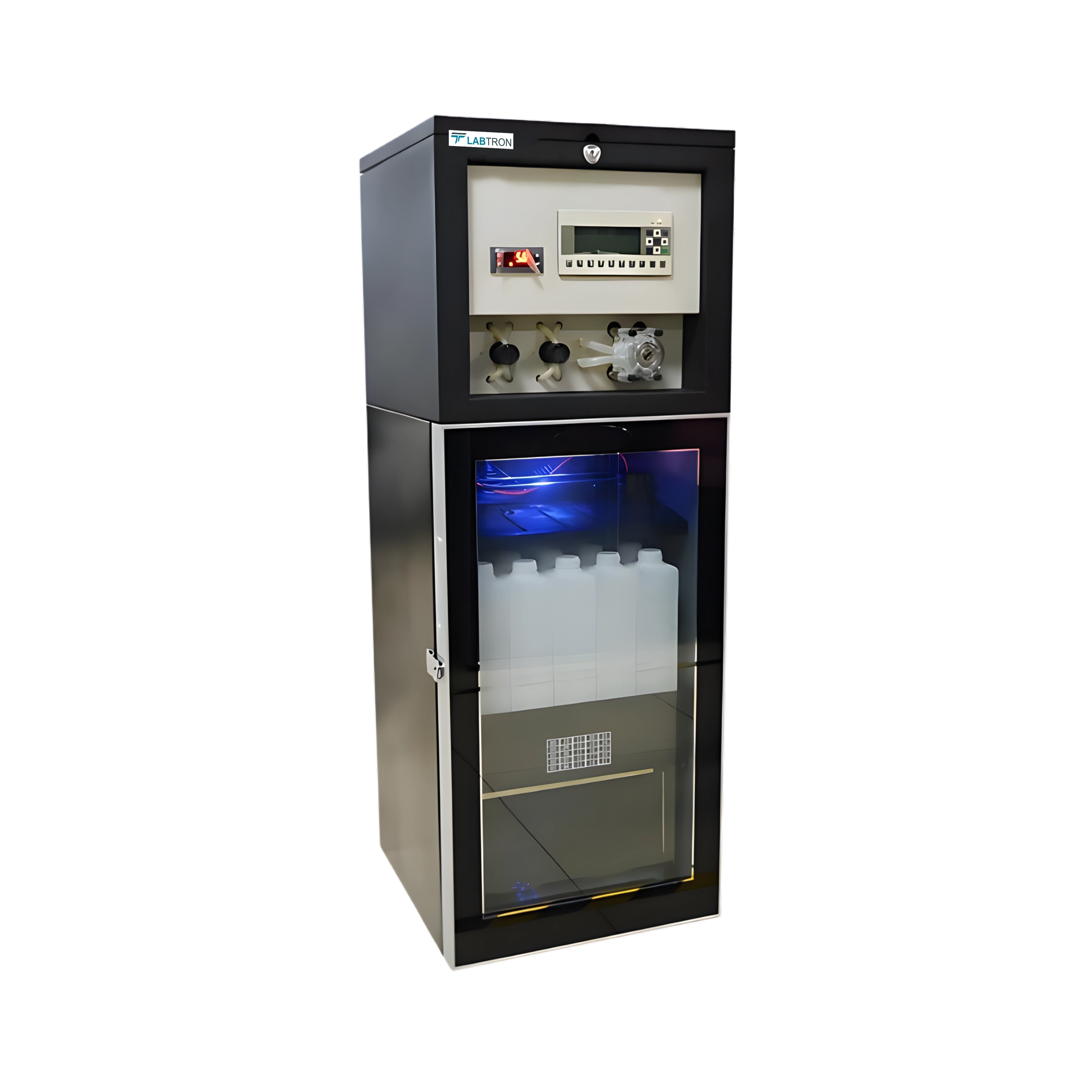

The Water Sampler LBWS-A10 operates reliably within a temperature range of 0°C to 40°C, ensuring stable performance in different working environments. This allows it to be used in both moderate indoor setups and demanding outdoor conditions, making it suitable for a wide range of environmental applications. The operating range helps maintain consistent accuracy during sampling, preventing temperature-related deviations. This feature ensures the device can deliver dependable results across varying climates and sampling conditions.
The Water Sampler LBWS-A10 supports multiple routine sampling methods, including timing and equal ratio modes. These options provide flexibility to users, allowing them to select the most appropriate method based on the specific monitoring requirement. Timing mode ensures samples are collected at fixed intervals, while equal ratio mode allows sampling proportional to flow. By supporting different techniques, the device adapts to various monitoring environments such as pollution sources, sewage treatment facilities, and industrial wastewater plants. This flexibility makes the sampler highly efficient for diverse field conditions.
The Water Sampler LBWS-A10 is equipped with advanced power-off protection, which enables automatic shutdown when power is interrupted and automatic restart once power is restored. This ensures that the sampling process is not compromised during unexpected power failures. The feature protects collected samples and reduces the risk of data loss or operational downtime. For facilities that rely on continuous monitoring, this safeguard provides reliability and confidence that sampling tasks will resume without manual intervention. It is especially useful in critical applications such as wastewater treatment plants and pollution source monitoring.
The Water Sampler LBWS-A10 is designed for a wide range of applications, making it a versatile solution for environmental monitoring needs. It is widely used in pollution source monitoring, sewage treatment plants, industrial wastewater management, and environmental protection projects. Its ability to provide continuous sampling makes it valuable for COD, ammonia nitrogen, and heavy metal analysis. The robust design ensures that it can withstand demanding environments while maintaining reliable performance. This versatility makes it a dependable choice for laboratories, industries, and environmental monitoring agencies.
Choosing the Water Sampler LBWS-A10 from Labtron provides assurance of quality, reliability, and excellent customer support. Labtron ensures that the device is manufactured with high standards, incorporating user-friendly features like routine sampling modes, digital control, and power-off protection. The sampler is engineered for accuracy and consistency, helping users achieve reliable monitoring results. Additionally, Labtron’s expertise as a trusted supplier means customers receive technical support, after-sales assistance, and guidance on the proper use of the equipment. This makes the Water Sampler LBWS-A10 a valuable long-term investment for environmental monitoring applications.
