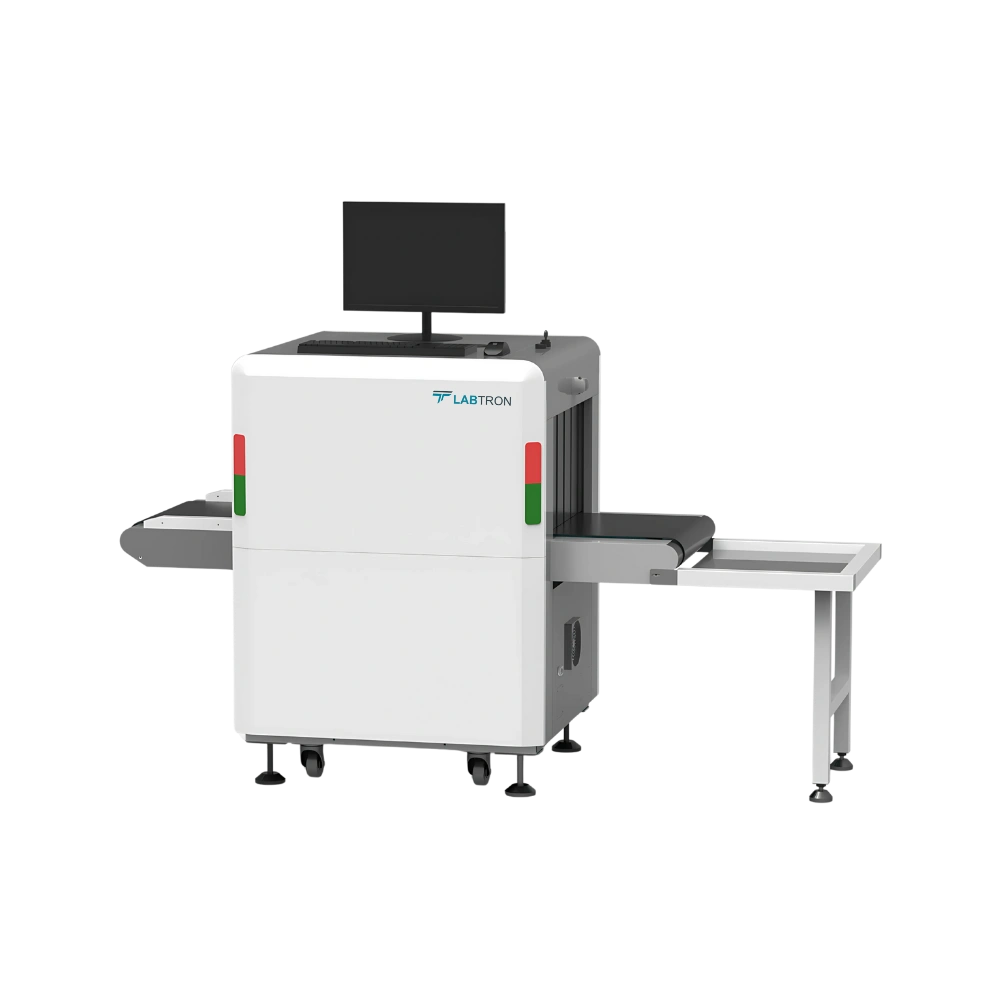

X-Ray Baggage Scanner LXBS-A19

Name: X-Ray Baggage Scanner LXBS-A19
Brand: Labtron
SKU: LXBS-A19
Rating: 4.9 (925 reviews)

X-Ray Baggage Scanner LXBS-A19 operates at a speed of 0.2 m/s and supports loads of up to 200 kg. It ensures high penetration and efficient processing. Our linux based X-Ray Baggage Scanner features a reliable digital signal processor with a lifespan of 10,000 hours, delivering fast and energy-efficient image analysis. It runs on a dual-energy source, supported by a single generator, for consistent and dependable scanning performance.

Request Quote

Conveyor Speed	0.2 m/s
Conveyor Max Load	200 kg
Operation System	LINUX
Wire Resolution	AWG36
Penetration Resolution	AWG24
Energy	Dual
Spatial Resolution	Vertical: 2.0 mm, Horizontal: 2.0 mm
Resolution of Organic Matter	1 to 120 mm
Grayscale and Mixture Resolution	1 to 40 mm
Resolution of Inorganic Objects	0.2 to 10 mm
Penetration	27 mm
X-Ray Dosage Each Inspection	≤ 2.5 µSv (uGy)
Boundary Leakage	≤0.5µSv /h (uGy/h)
S/N Ratio	< 60 dB
Film Safety	ASA/ISO1600 Film
Operation Temperature	5℃ to 40℃
Operation Humidity	0 to 90%
Storage Temperature	-20℃ to 60℃
Storage Humidity	10 to 90%
Atmospheric Pressure	86 kPa to 106 kPa AC
Generator	One
X-Ray Generator	140 KV, oil cooling, from top to bottom
Electric Roller	One phase
Computer	Hard drive: 500G, Storage: 1G
Image Storage	10,00 images stored automatically
Monitor	17
Operation Console	Double screen console
Power Consumption	1.0 KW
Leakage Current	≤ 5.0 mA
Power Supply	220V (±10% to 15%), 50±3Hz
Tunnel Dimension	1011 × 1006.5 mm
Dimension	4835× 1295 × 1916 mm
Weight	940 Kg

Self-check
Energy saving Design
One key turn off
Good quality images
Alarm System

Image Processing Power on self test Image Pullback Real-Time Curve Monitoring Time Setting Probe Setting Ray Source Setting Troubleshooting Image Settings Software Registration User Login User Management Authority Management Language Settings Log Management TIP Report Tip Management Document Management Function Setting Data Setting System Parameter Setting

X-Ray Baggage Scanner LXBS-A19 is suitable for checking briefcases, parcels, express mail, hand luggage, and small packages in various settings, including government agencies, transportation hubs, courts, prisons, schools, hospitals, and entertainment venues.

X-ray generator Dedicated keyboard and mouse Console with monitor Extended table Power cable Electric drum Control panel

Download catalog for
X-Ray Baggage Scanner LXBS-A19 Catalog

Available Range :

X-Ray Baggage Scanner LXBS-A10 : 0.2 m/s X-Ray Baggage Scanner LXBS-F10 : 0.22 m/s X-Ray Baggage Scanner LXBS-G10 : 0.22 m/s Bidirectional X-Ray Baggage Scanner LXBS-C10 : 0.22 m/s, bi-directional scanning X-Ray Baggage Scanner LXBS-G11 : 0.23 m/s Bidirectional X-Ray Baggage Scanner LXBS-H23 : 0.5 to 2.0 m/s X-Ray Baggage Scanner LXBS-D10 : 0.50 m/s

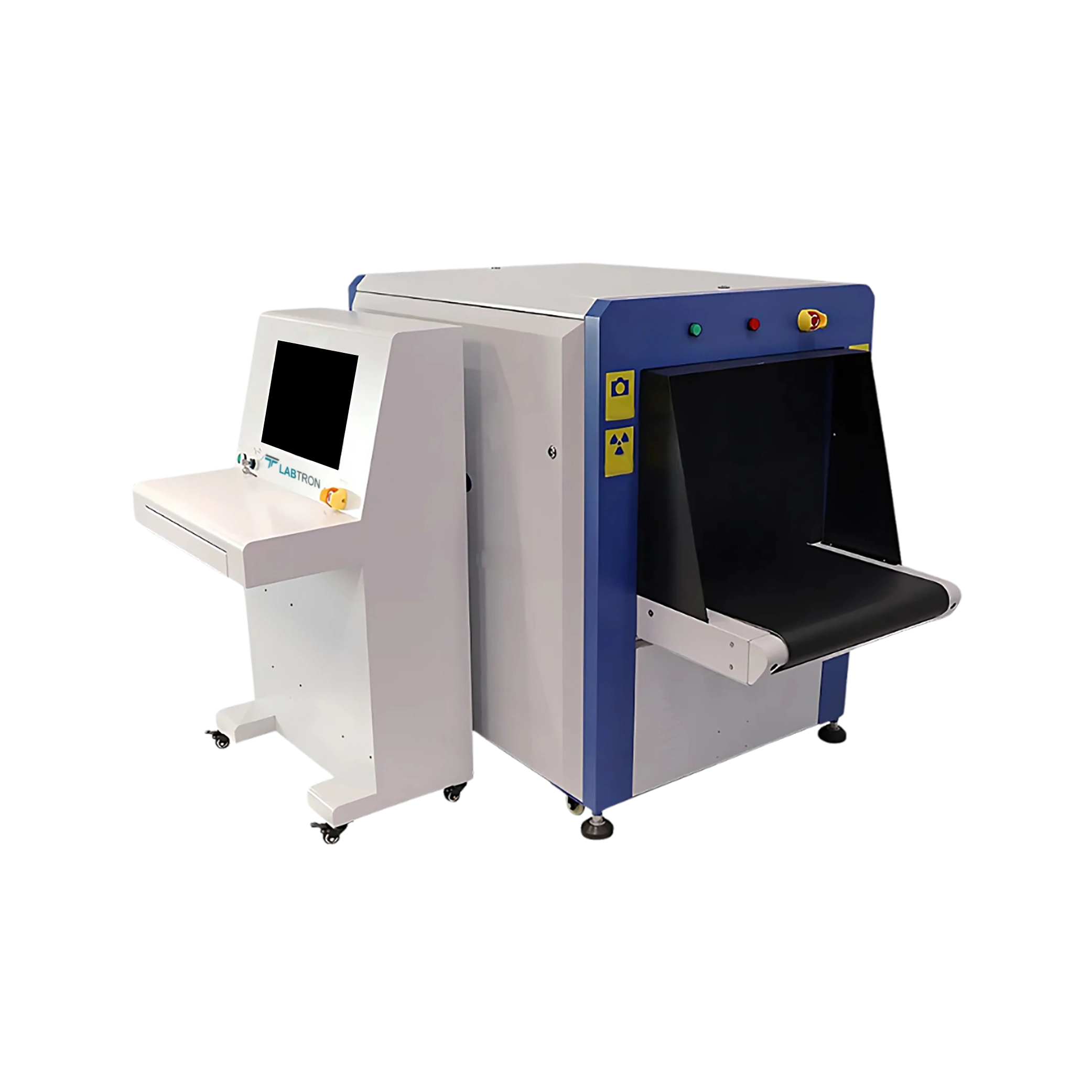

Models of X-Ray Baggage Scanner

Labtron X-Ray Baggage Scanners provide high-resolution imaging, enabling precise identification of items within luggage. Their dual-view technology scans from multiple angles, improving the detection of contraband, weapons, and explosives. Designed for busy environments, our x-ray baggage scanners offer high throughput. Their user-friendly touchscreens simplify operation, and compact designs allow for easy installation in smaller spaces. These scanners minimize radiation exposure, ensuring safety for both users and the public. With customizable settings for sensitivity and image quality, along with remote monitoring and real-time analysis, they enhance operational efficiency.
