| Conveyor Speed | 0.22 m/s |
| Conveyor Max Load | 170 kg |
| Wire Resolution | 40 AWG |
| Penetration | 34 mm |
| Pass Resolution | AWG 34 |
| Spatial Resolution | Vertical: 1.0mm, Horizontal: 1.0mm |
| Image Maximum Resolution | 1440 × 900 pixels |
| Image Gray Level | 4096 levels |
| X-Ray Dosage Each Inspection | Less than 1.5 µGy/h |
| Boundary Leakage | Less than 1.0 µGy/h at 5 cm from frame house |
| S/N Ratio | Less than 55 dB |
| Conveyor Height | 350 mm or 630 mm |
| Film Safety | ISO 1600 Film |
| Operation Temperature | 0 to 45°C |
| Operation Humidity | 20 to 95% |
| Storage Temperature | -20 to 60°C |
| Storage Humidity | 20 to 95% |
| Generator | Single Generator |
| X-ray Sensor | L-shaped photo diode array, 16-bit depth |
| X-Ray Generator | 140,000 V, from top to bottom |
| Generator Angle | 80 degrees downward |
| Zone | 1 to 9 image zones |
| Image Processing | 24-bit real-time processing |
| Image Storage | 500,000 images |
| Monitor | High resolution colour, LCD compatible, 19inch |
| Leakage Current | 0.3 mA |
| Cooling Cycle | Oil cooling 100% |
| Cubic Meter Volume | 4.28 CBM |
| Power Consumption | 1000 W |
| Power Supply | 220 VAC (±10%) 50 ± 3 Hz |
| Tunnel Dimension (W×H) | 650 × 500 mm |
| Packaging Dimension (L×W×H) | 1300 × 80 × 750 mm |
| Dimension (L×W×H) | 2150 × 1080 × 1500 mm |
| Net Weight | 400 kg |
| Gross Weight | 455 kg |
Sensitive 16-bit sensor array
Vivid high-resolution LCD monitor
Strong anti-interference data transmission
User-friendly interface design system
Efficient power consumption

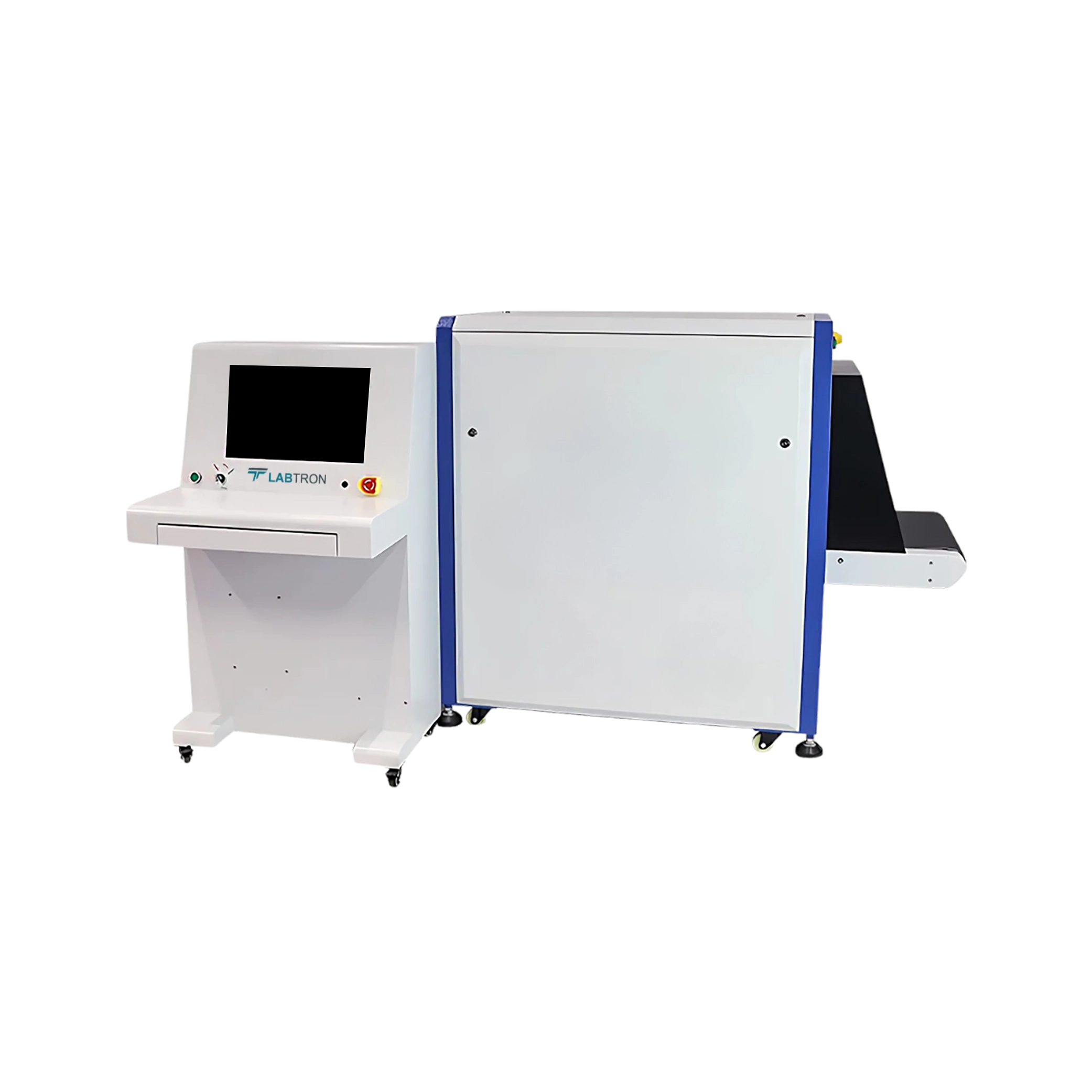

X-Ray Baggage Scanner LXBS-F13 is built to detect hidden objects and threats within luggage using advanced imaging technology. It is widely applied in airports, railway stations, government buildings, and other high-security areas.
Download catalog for
X-Ray Baggage Scanner LXBS-F13 Catalog
Available Range :
X-Ray Baggage Scanner LXBS-A10 : 0.2 m/s X-Ray Baggage Scanner LXBS-F10 : 0.22 m/s X-Ray Baggage Scanner LXBS-G10 : 0.22 m/s Bidirectional X-Ray Baggage Scanner LXBS-C10 : 0.22 m/s, bi-directional scanning X-Ray Baggage Scanner LXBS-G11 : 0.23 m/s Bidirectional X-Ray Baggage Scanner LXBS-H23 : 0.5 to 2.0 m/s X-Ray Baggage Scanner LXBS-D10 : 0.50 m/s
Labtron X-Ray Baggage Scanners provide high-resolution imaging, enabling precise identification of items within luggage. Their dual-view technology scans from multiple angles, improving the detection of contraband, weapons, and explosives. Designed for busy environments, our x-ray baggage scanners offer high throughput. Their user-friendly touchscreens simplify operation, and compact designs allow for easy installation in smaller spaces. These scanners minimize radiation exposure, ensuring safety for both users and the public. With customizable settings for sensitivity and image quality, along with remote monitoring and real-time analysis, they enhance operational efficiency.








Our X-Ray Baggage Scanner is ideal for various high-security environments. It enhances security in airports, railway stations, and bus terminals by efficiently screening luggage for prohibited items. Government buildings and courthouses utilize it to prevent unauthorized items from entering secure areas. High-security facilities like military bases and research labs rely on it for safeguarding sensitive information and materials. Retail stores and corporate offices use our scanner to deter theft and ensure the safety of personnel. Event venues and hospitality industries employ it to screen guests' belongings, ensuring a safe environment. Manufacturing and packaging industries use it for quality control by inspecting sealed packages. Our scanner's versatility makes it a valuable asset across multiple sectors.
The X-Ray Baggage Scanner significantly improves security at transportation hubs by providing detailed imaging of luggage contents. It detects concealed weapons, explosives, and other prohibited items, preventing potential threats. The scanner's high-resolution imaging allows security personnel to identify dangerous items quickly and accurately. Its efficient scanning process reduces wait times, ensuring a smooth flow of passengers. The scanner's reliability and accuracy contribute to a safer travel experience for all. Our commitment to safety makes this scanner an essential tool in public transportation security.
Yes, the X-Ray Baggage Scanner is well-suited for use in government buildings and courthouses. It ensures that all items entering these facilities are thoroughly inspected, preventing unauthorized or dangerous items from compromising security. The scanner's advanced imaging technology allows for the detection of concealed weapons and contraband. Its user-friendly interface enables security personnel to operate it effectively with minimal training. The scanner's reliability and efficiency make it an invaluable asset in maintaining the integrity of secure government environments. Our scanner supports the enforcement of strict security protocols in sensitive areas.
Labtron’s X-Ray Baggage Scanner enhances security in retail and corporate settings by providing thorough inspection of bags and packages. It helps prevent theft by detecting concealed items leaving the premises. The scanner's high-resolution images allow for accurate identification of unauthorized items. In corporate environments, it safeguards sensitive information by ensuring that confidential materials are not removed without authorization. The scanner's efficient operation minimizes disruptions to daily activities. Our scanner contributes to a secure and trustworthy environment for employees and customers alike.
Absolutely, our X-Ray Baggage Scanner is ideal for enhancing security in the event and hospitality industries. It efficiently screens guests' belongings, ensuring that no prohibited items enter the premises. The scanner's quick processing time maintains a smooth flow of attendees, enhancing their experience. Its advanced imaging technology detects a wide range of threats, from weapons to contraband. The scanner's user-friendly design allows staff to operate it with ease. Our scanner helps create a safe and welcoming environment for all guests.
In manufacturing and packaging environments, the X-Ray Baggage Scanner ensures product quality by inspecting sealed items for defects or foreign objects. It identifies issues such as missing components, internal cracks, or contamination without the need to open packages. This non-destructive process preserves packaging integrity while maintaining safety standards. Our scanner delivers high-resolution imaging for accurate evaluations. Seamless integration into production lines improves workflow efficiency and minimizes material waste. The system is ideal for industries requiring precise quality control. Our scanner enhances both safety and product consistency across various applications.
