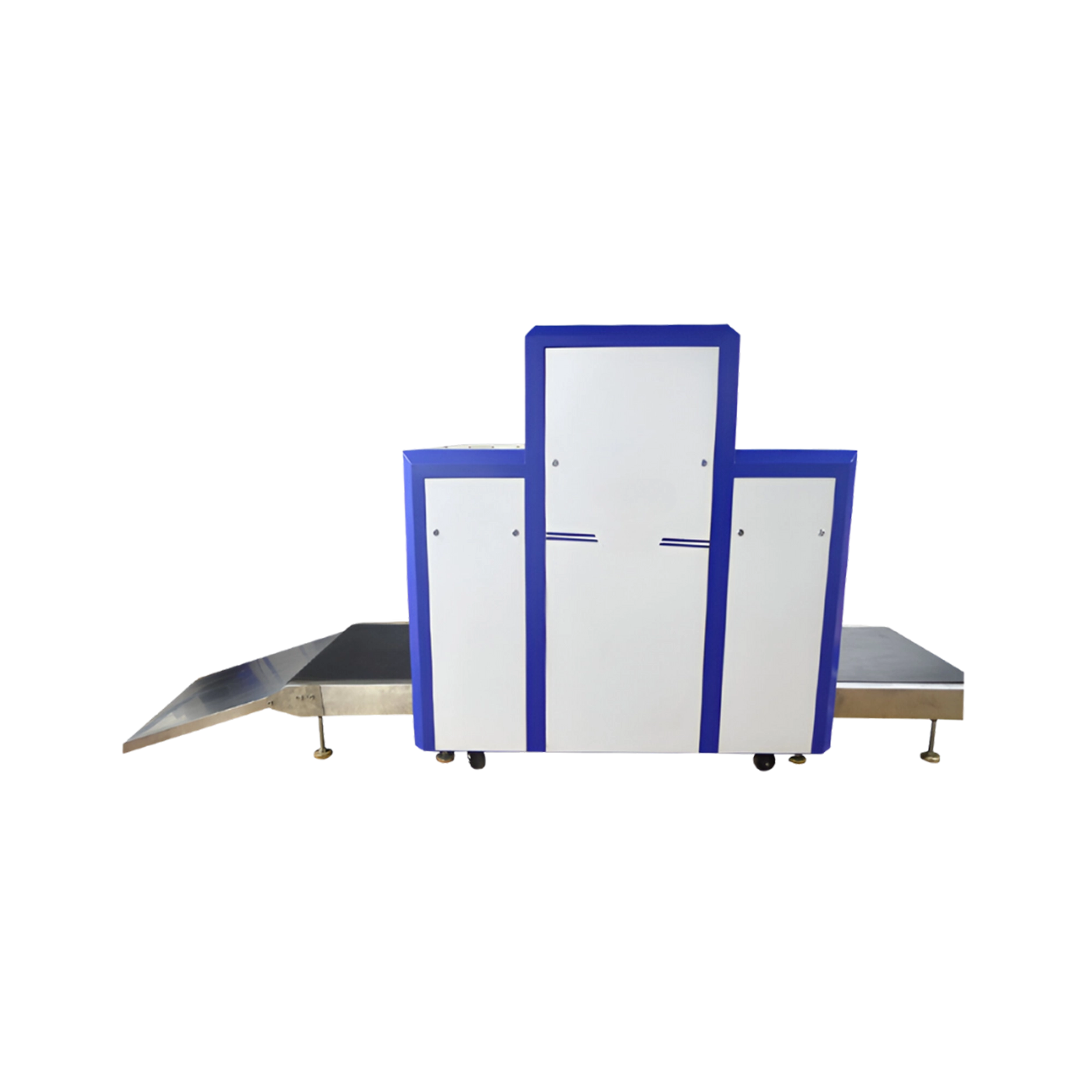

X-Ray Baggage Scanner LXBS-F18

Labtron’s X-Ray Baggage Scanner utilizes advanced image processing technology and a 40 AWG wire resolution, enabling it to distinguish between organic, inorganic, and mixed materials. It uses color-coded imaging to visually differentiate these materials, enhancing the security personnel's ability to identify threats with high accuracy. The system provides clear, detailed images for further analysis, making it ideal for detecting concealed objects. Our scanner’s high spatial resolution ensures even fine wires or small, dangerous items are detected. It is particularly effective in high-security environments requiring precise and reliable screening.

Our X-Ray Baggage Scanner features a conveyor height of 350 mm, which is designed to provide ease of access for baggage loading and unloading. This height is particularly useful in busy environments, as it ensures efficient handling of various bag sizes, minimizing operator fatigue, and optimizing workflow for faster security screening. Our system’s ergonomic design also supports smooth integration with automated baggage handling lines. The optimized height contributes to a safer and more efficient inspection process in high-traffic screening zones.

The X-Ray Baggage Scanner offers high-definition image resolution with a maximum of 1440 × 900 pixels. This superior resolution allows for precise detection of hidden objects within the scanned items, ensuring that even the smallest threats are visible. The detailed imaging is further enhanced by 4096 grey levels, providing depth and clarity for accurate security analysis. Our scanner also supports 24-bit real-time image processing, which ensures minimal delay and high image accuracy during scanning. Operators can use the zoom and pan functions to closely examine suspicious areas. This high image quality improves decision-making speed and enhances overall threat detection capabilities.

In addition to its core safety features, the X-Ray Baggage Scanner complies with international radiation safety standards, making it suitable for continuous use in public areas. The system also includes a protective green lead curtain that prevents radiation escape while allowing easy baggage movement. Our X-Ray Baggage Scanner is designed with multiple safety features to ensure the well-being of operators. It has low radiation leakage, with boundary leakage levels kept under 1 µGy/h at 5 cm from the frame, significantly reducing exposure risks. Additionally, the scanner includes a self-diagnosis system, which alerts operators in case of any malfunction, ensuring continued safety and operational reliability.

Our X-Ray Baggage Scanner is equipped with a powerful conveyor system that supports a maximum load of 250 kg. It is designed to handle high volumes of baggage quickly and efficiently, making it ideal for busy airports, transit hubs, and public facilities. The 0.22 m/s conveyor speed ensures smooth and continuous scanning, minimizing delays in the screening process. Our system's intelligent roller function automatically engages when luggage is detected, reducing energy use when idle. This feature enhances both environmental sustainability and operational efficiency. The robust conveyor design also supports various baggage sizes without compromising stability or throughput.

Labtron’s X-Ray Baggage Scanner can be easily integrated into existing security systems through its standard Ethernet port, which enables rapid image transmission and secure data sharing. The scanner’s user-friendly interface also ensures that operators can quickly adapt to its functions. Furthermore, the machine's ability to connect with central monitoring systems ensures seamless security operations across multiple checkpoints. Our system supports remote diagnostics and updates, reducing the need for on-site technical support. Integration with access control and alarm systems further enhances situational awareness. Its flexible connectivity makes it a reliable choice for scalable security infrastructures.
