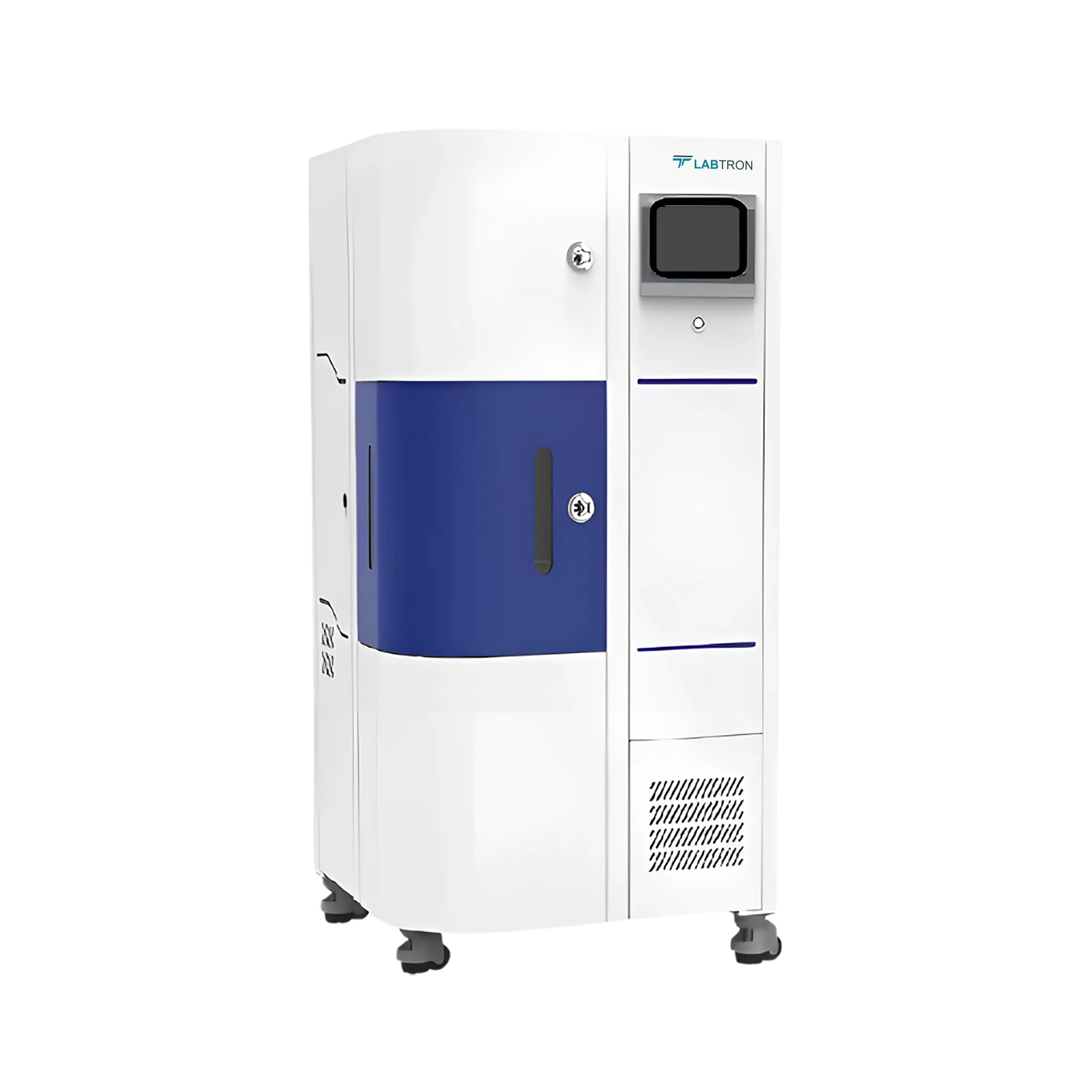

Xenon Test Chamber LXC-A11

Xenon Test Chamber LXC-A11 operates at a maximum temperature of 100 ℃ and has a 760 L capacity for precise testing conditions. It offers an irradiance range from 100 to 1200 W/m² and measures wavelengths from 280 to 800 nm. This unit includes a water-cooled xenon arc lamp with quartz and borosilicate filters for accurate sunlight simulation. Our chamber features a programmable LCD touchscreen controller for user-friendly operation.

Request Quote
Bandwidth Measurement 280 to 800 nm
Irradiance Range 100 to 1200 W/m2
Chamber Capacity 760 L
Chamber Temperature Range Ambient to 100 ℃ ± 2℃
Black Panel Temperature range 35℃ to 85 ℃ ± 2℃
Specimen Capacity 43 pcs
Specimen Holder Size 180 × 100 mm (L × W) with Thickness 20 mm
Specimen shelf Rotary sample frame
Irradiation Source 1 piece of 6500W water-cooled xenon arc lamp
Humidity Range 50% to 98% RH
Humidity Deviation ± 5% RH
Water Spray Cycle 1 to 9999hr 59 min
Radiometer Tolerance ± 5%
Maximum Noise 65 dBA
Heating Element Nichrome heater
Refrigerating Unit French TECUMSEH compressor
Exterior Material Steel plate with a protective coating
Interior Material SUS304 stainless steel
Thermal Insulation Polyurethane foam and insulation cotton
Observation Window Internal lighting, double layer thermo stability silicone rubber sealing
Controller Programmable color LCD touchscreen controller
Ethernet interface
USB port
Safety Device Over-temperature Protection
Over-current Protection
Water Shortage Protection
Earth leakage Protection
Phase Sequence Protection
Environmental Conditional 5℃ to 35 ℃, ≤ 85% RH
Power Supply AC 380V, 50Hz 3Phase
Window Dimension 250 × 330 mm
Water Tank Dimension 270 × 300 × 900 mm
Internal Dimension (D × W × H) 950 × 950 × 850 mm
External Dimension (D × W × H) 1400 × 1400 × 1950 mm
Packaging Dimension 1510 × 1580 × 2250 mm
Net Weight 652 kg
Gross Weight 802 kg
  • Automatic purified water supply
  • Includes UV Radiometer
  • Mechanical compression refrigeration system
  • Equipped with centrifugal fan
  • External stainless-steel humidifier

Xenon Test Chamber simulates sunlight to test material durability under UV, temperature, and humidity conditions. It's used in laboratories, automotive, and aerospace industries to evaluate product performance.
