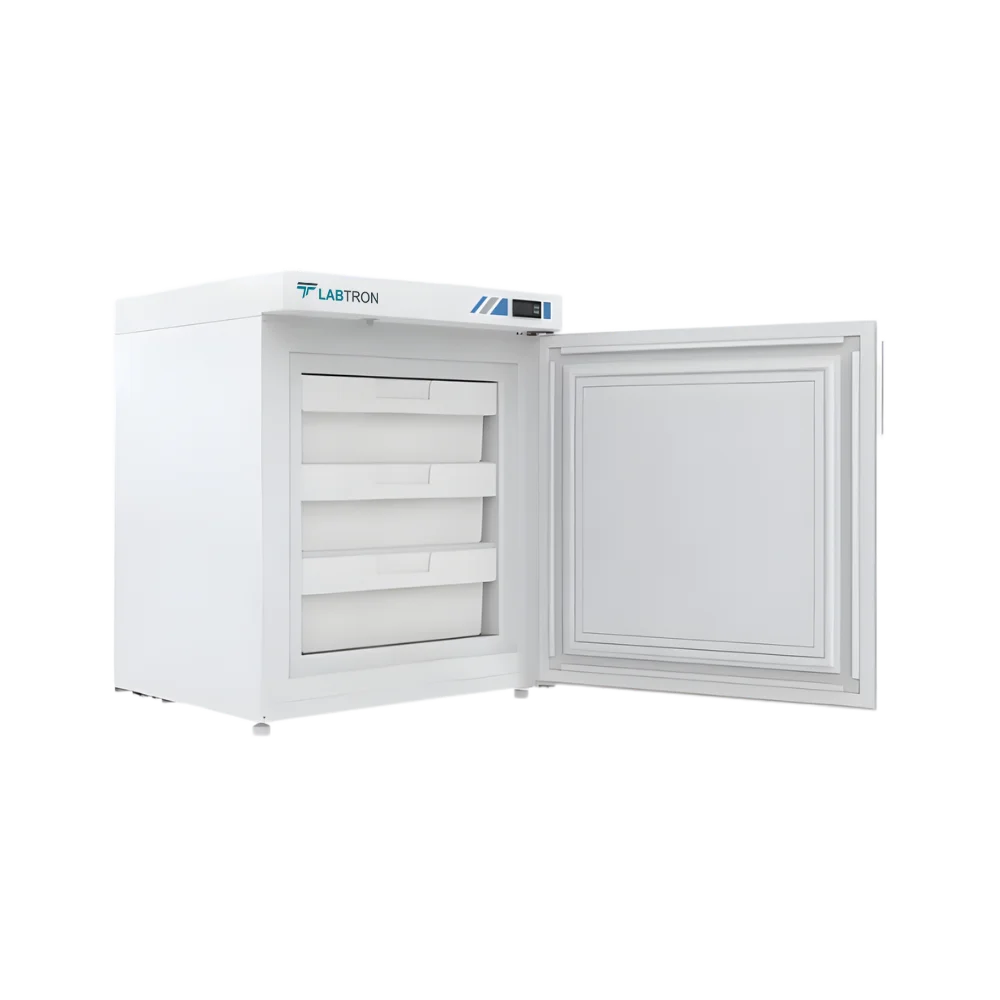

-25°C Upright Freezer LUF-A30 is an undercounter and upright type freezer comprised with direct cooling method and manual defrost mode. With 90 L capacity and high-precision microprocessor temperature control system, features -10 to -25°C of temperature range with -25°C of cooling performance and R600a as refrigerant. Compact design with powder coated materialized exterior and sprayed aluminum plated interior, has 3 adjustable shelves and polyurethane foam door. Equipped with multiple audible and visual alarm system with digital display, it is an ideal unit for easy and convenient storage of different samples.
| Cabinet Type | Upright |
| Capacity | 90 L |
| Temperature Range | -10˚ to -25˚C |
| Ambient Temperature | 16˚ to 32˚C |
| Cooling Performance | -25˚C |
| Cooling Method | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | R600a |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Compressor | 1 pc |
| Alarm System | High/Low temperature, Sensor failure, Door Ajar |
| External Material | Powder coated Material |
| Internal Material | Aluminum plate with spraying |
| Insulation thickness | 100 mm |
| Shelves | 3 (ABS) |
| Casters | 2+2 leveling feet |
| Door lock with Key | Yes |
| Access Port | 1pc. Ø 25 mm |
| Power Supply | 220 to 240 V/50 Hz |
| Rated Current | 0.68 A |
| Internal Dimension (W×D×H) | 500×485×532 mm |
| External Dimension (W×D×H) | 700×669×1792 mm |
| Packaging Dimension (W×D×H) | 760×720×854 mm |
| Net Weight | 54 kg |
| Gross Weight | 59 kg |
-25°C Upright freezer is used for scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. across research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.
| Model | Cabinet Type | Capacity | Temperature Range | Ambient Temperature | Cooling Performance | Cooling Method | Defrost Mode | Refrigerant | Climate Class | Controller | Display | Compressor | Alarm System | External Material | Internal Material | Insulation thickness | Shelves | Casters | Door lock with Key | Access Port | Power Supply | Rated Current | Internal Dimension (W×D×H) | External Dimension (W×D×H) | Packaging Dimension (W×D×H) | Net Weight | Gross Weight |
| LUF-A10 | Upright | 270 L | -10˚ to -25˚C | 16˚ to 32˚C | -25˚C | Direct cooling | Manual | R600a | N | Microprocessor | Digital display | 1 pc | High/Low temperature, Sensor failure, Door Ajar | Powder coated Material | Aluminum plate with spraying | 100 mm | 7 (ABS) | 2+2 leveling feet | Yes | 1pc. Ø 25 mm | 220 to 240 V/50 Hz | 1.53 A | 500×460×1235 mm | 700×640×1792 mm | 760×720×1885 mm | 87 kg | 95 kg |
| LUF-A20 | Upright | 450 L | -10˚ to -25˚C | 16˚ to 32˚C | -25˚C | Direct cooling | Manual | R600a | N | Microprocessor | Digital display | 2 pcs | High/Low temperature, High ambient temperature, Power failure, Low battery, Sensor failure, USB data-log failure, Door ajar, Main board Communication error, Recorder failure | Powder coated Material | Aluminum plate with spraying | 80 mm | 6×2 (ABS) | 4 (2 casters with brake) | Yes | 2 pcs. Ø 25 mm | 220 to 240 V/50 Hz | 1.9 A | 650×570×672 mm (×2) | 810×735×1960 mm | 895×820×2127 mm | 136 kg | 156 kg |
| LUF-A30 | Upright | 90 L | -10˚ to -25˚C | 16˚ to 32˚C | -25˚C | Direct cooling | Manual | R600a | N | Microprocessor | Digital display | 1 pc | High/Low temperature, Sensor failure, Door Ajar | Powder coated Material | Aluminum plate with spraying | 100 mm | 3 (ABS) | 2+2 leveling feet | Yes | 1pc. Ø 25 mm | 220 to 240 V/50 Hz | 0.68 A | 500×485×532 mm | 700×669×1792 mm | 760×720×854 mm | 54 kg | 59 kg |
| LUF-A40 | Upright | 608 L | - | - | -25˚C | Direct cooling | - | R404a | - | Microprocessor | LED | 1 pc | High/Low temperature, Sensor failure | - | SS304 | - | 3 | - | - | - | - | - | - | - | - | 280 kg | - |
