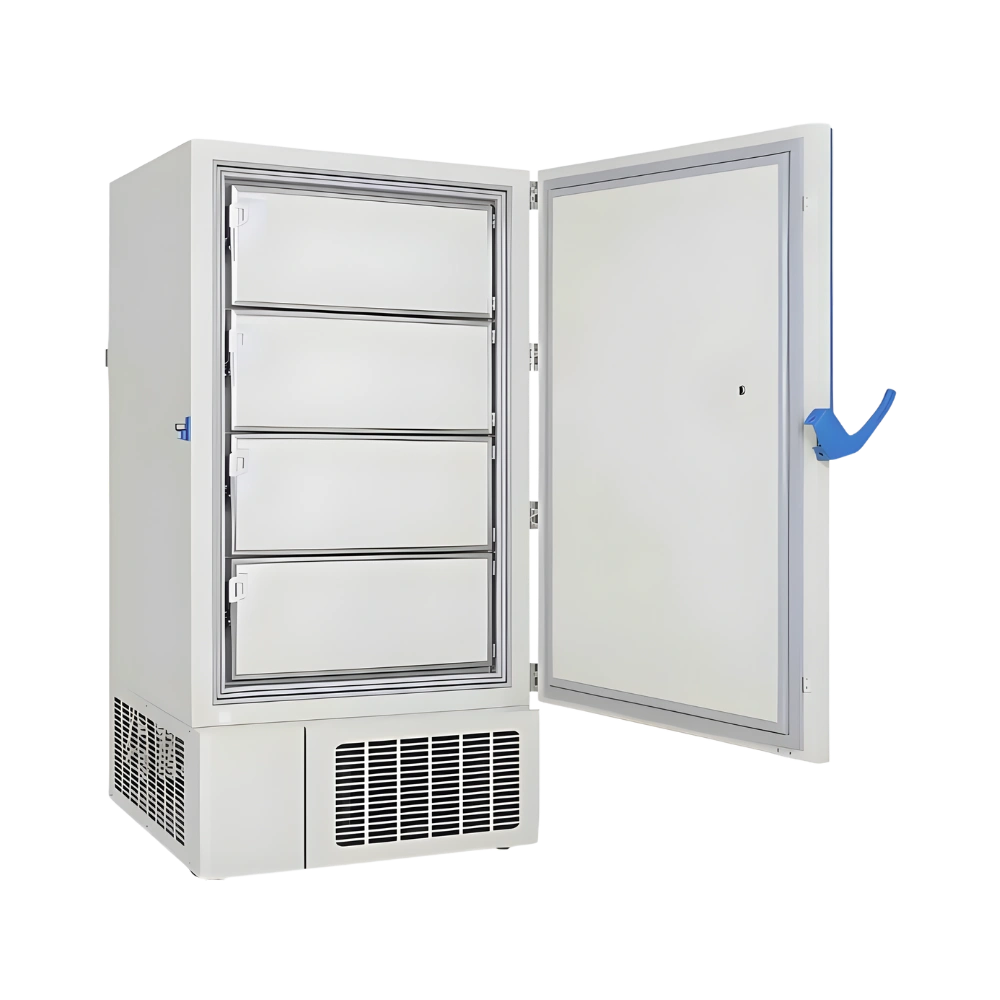

-86 °C Ultra Low Temperature Upright Freezer LUF-D25

Name: -86 °C Ultra Low Temperature Upright Freezer LUF-D25
Brand: Labtron
SKU: LUF-D25
Rating: 4.9 (1000 reviews)

-86 °C Ultra Low Temperature Upright Freezer LUF-D25 is an upright type freezer comes with 778 L capacity and offers temperature range -40 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior 7 inches LED touch Screen temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant Mixture gas, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It offers high or low temperature alarm, Door open alarm and Keyboard lock, password protection function to prevent arbitrary adjustment of operating parameters.

Request Quote

Cabinet type	Upright
Capacity	778 L
Temperature range	-40 to -86˚C
Ambient temperature	16 to 32˚C
Cooling performance	-86˚C
Refrigerant	Mixture gas
Defrost Mode	Manual
Cooling method	Direct cooling
Controller	Microprocessor
Display	Touch screen
Climate class	N
Insulation thickness	130 mm
Compressor	2 pcs
Alarm system	High and low temperature, high ambient temperature
External material	High quality steel plates with spraying
Inner material	Galvanized steel sheet
Shelves	3 (stainless steel)
Door look with key	Yes
External Lock	Yes
Access Port	3 pcs. Φ 25 mm
Casters	4 +(2 leveling feet)
Data Logging / Interval/ Recording Time	USB/Record every 1 minute / 365 days
Electrical	Power failure
System	Sensor error, Built-in data logger USB failure , Main board communication error , Condenser cooling failure, Door ajar, Samples out of date, System failure
Backup Battery	Yes
Rated power	1750 W
Input power	2050 W
Rated current	9. 31 A
Power consumption	15 KWh/24h
Power supply	230 ±10% V /50 Hz
Internal dimension	865 × 696 × 1286 mm
External dimension	1205 × 1025 × 1955 mm
Package size	1203 × 1155 × 2171 mm
Net weight	365 kg
Gross weight	408 kg

Adopts 7 inches LED touch screen display control system
Inventory racks/boxes for cryopreservation are optional
Designed with high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
Temperature ranges from -40 to -86˚C
EBM fan are powerful, energy-saving and highly efficient
Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent
The rotating handle facilitates door opening
Universal wheels easy for movement and fixation
Two-layer heat insulating foamed door with airbag-typed outer seal and the insulation
Forced air circulation system
Highly effective condenser and expansive evaporator to provide quick freezing
Upright type, Exterior and inside body all made from stainless steel
Design with safety door lock, ensure sample storage is more secure
The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc

Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.
