-86 °C Ultra Low-Temperature Upright Freezer LUF-F12

Name: -86 °C Ultra Low-Temperature Upright Freezer LUF-F12
Brand: Labtron
SKU: LUF-F12
Rating: 4.7 (837 reviews)

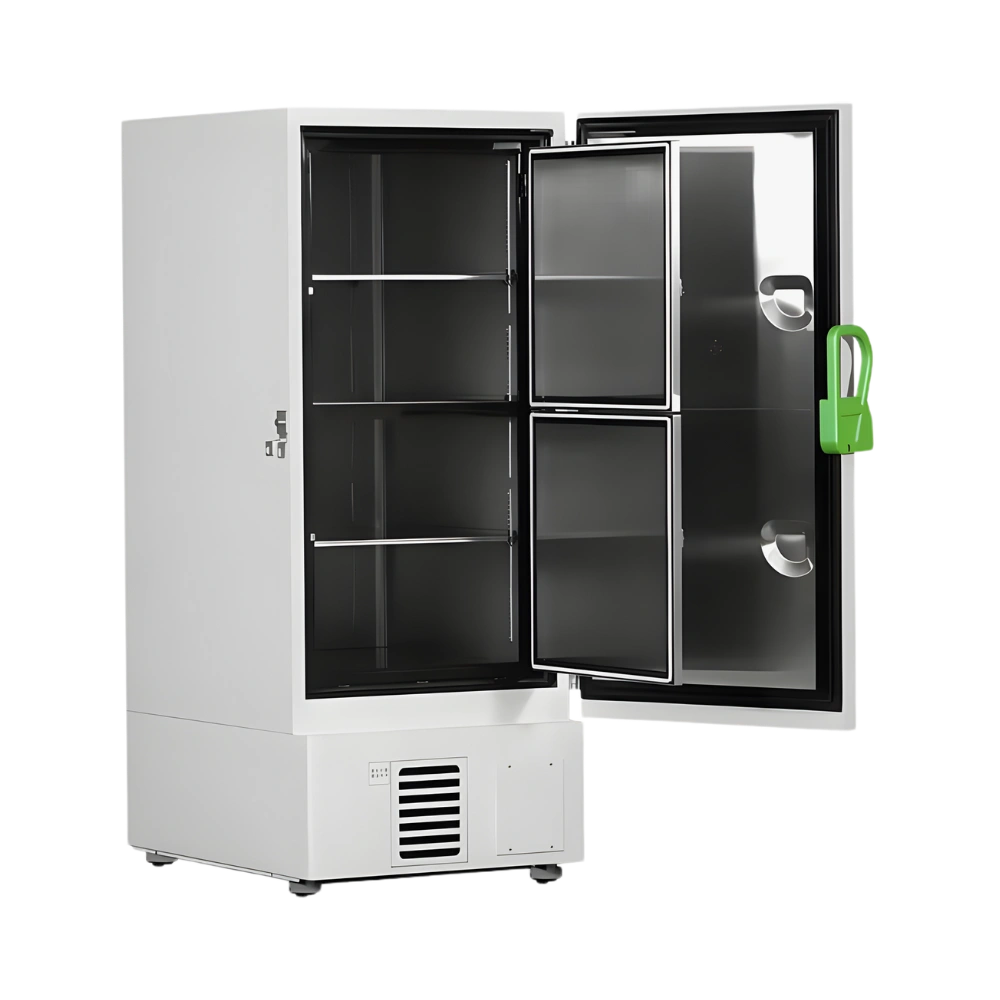

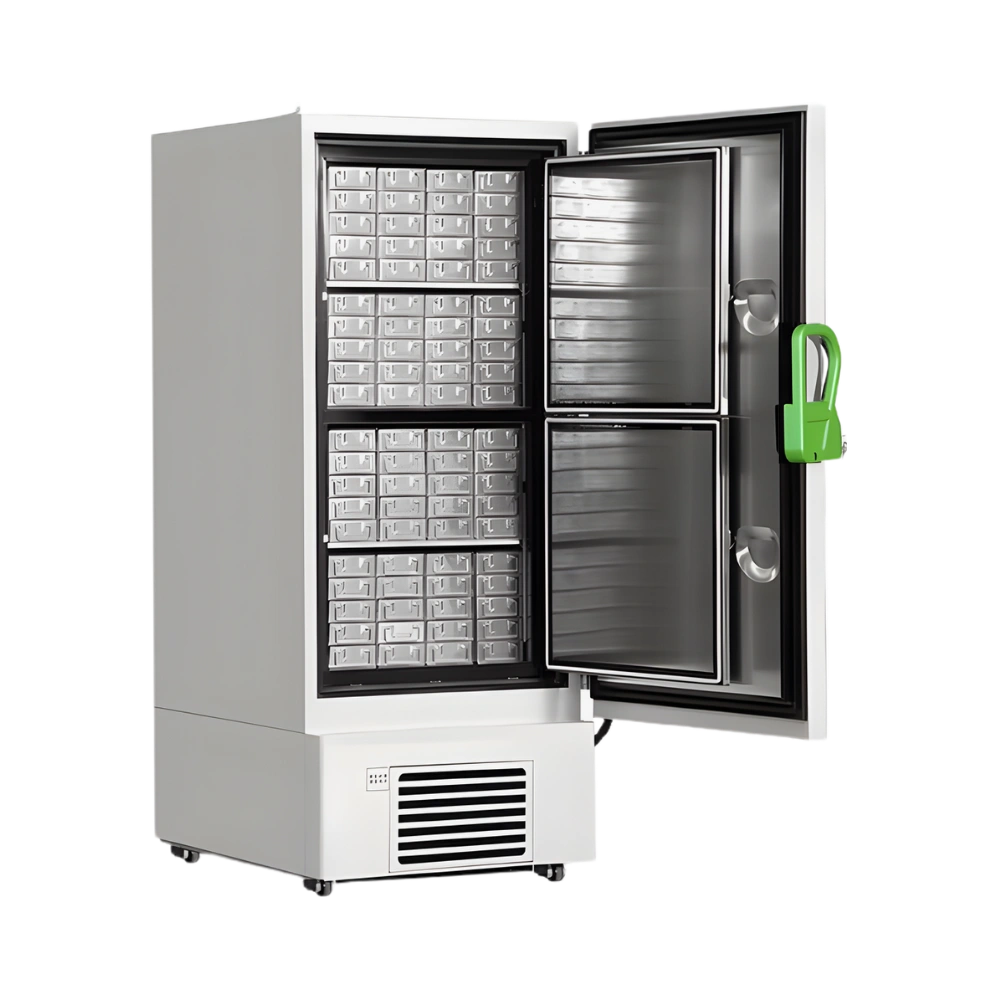

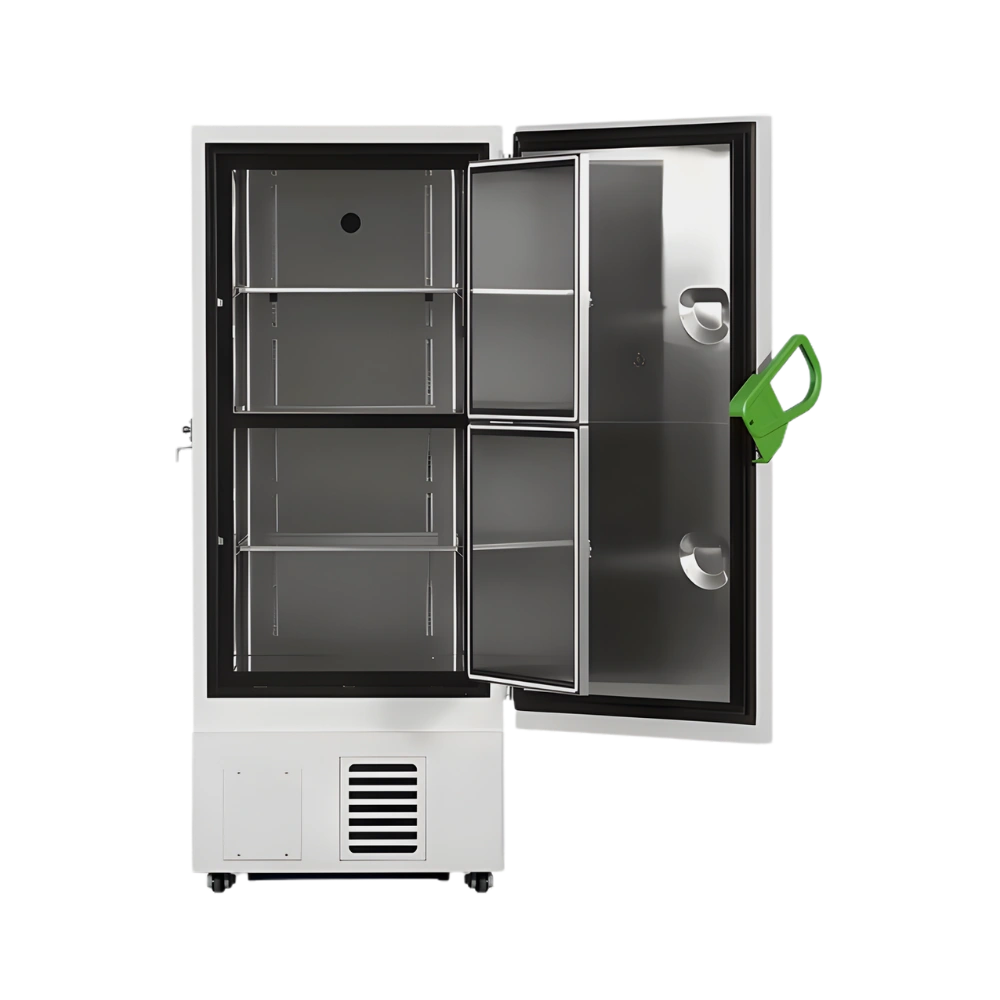

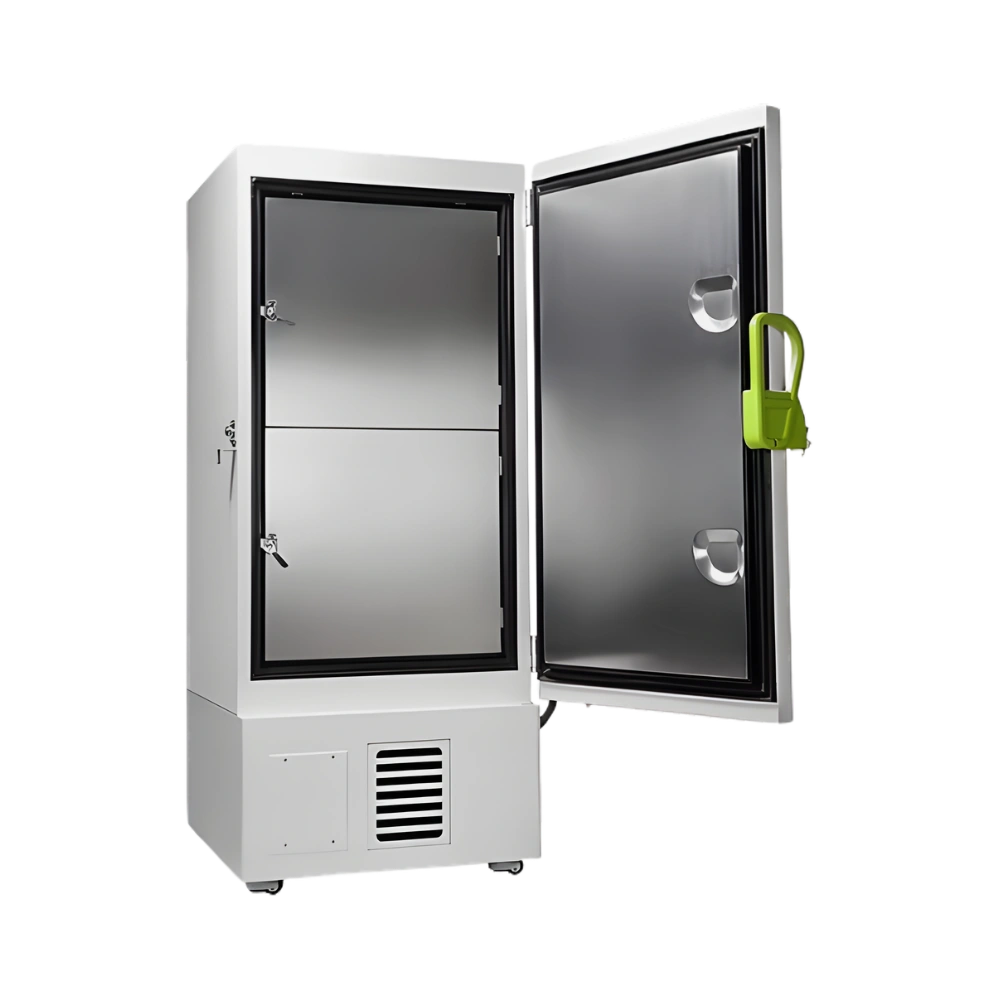

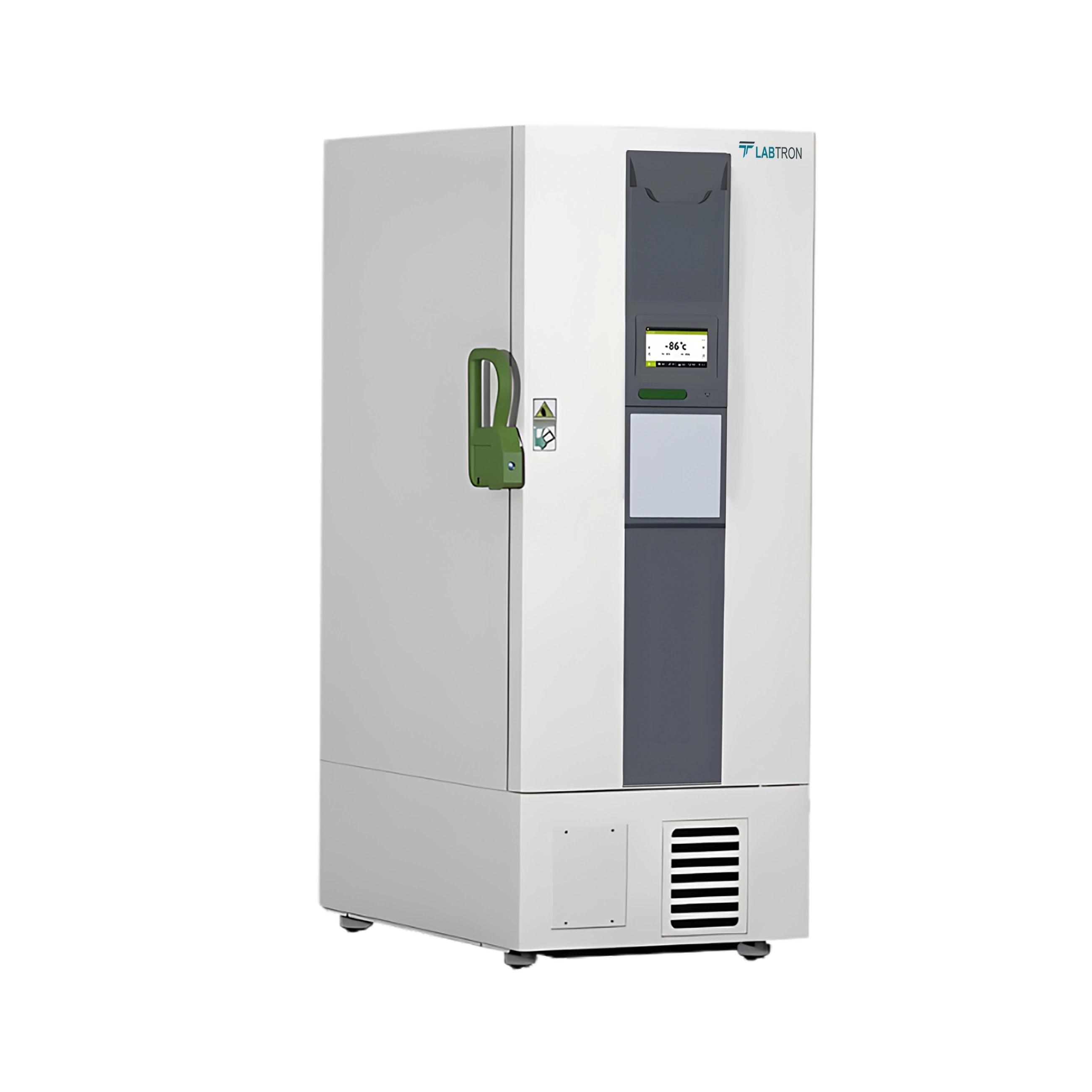

-86°C Ultra Low-Temperature Upright Freezer LUF-F12 comes with 588 L capacity and can maintain temperatures ranging from -40°C to -86°C. It has multi-layered sealing for enhanced insulation and reduced temperature fluctuations. The freezer features a microprocessor controller and a 7-inch LCD for easy and precise monitoring. Our -86°C Upright Freezer features an ergonomic handle for easy and comfortable use, minimizing strain during operation.

Request Quote

System	Cascade
Capacity	588 L
Temperature Range	-40℃ to -86℃
Ambient Temperature	10℃ to 32℃
Refrigerant	HC (R290 and R170)
Sensor	PTC
Compressor	2
Cooling Type	Direct Cooling
Defrost	Manual
Insulation	PURF + VIP
Noise	53 dB
Compartment	4
Inner door	2
Racks	16 (5 × 5)
Boxes (2 Inch)	400
Samples (2 ml)	40000
Exterior material	Color Sprayed Steel
Interior material	Stainless steel
Remote Alarm Access	RS232/485
Alarms	High/low temperature Power failure Abnormal voltage Sensor error Door ajar Filter screen check Thermostat failure Low battery Condenser clean High ambient temperature 72 hr Power failure backup
Current	8.33 A
Power	690 W
Power consumption	14.85 Wh/24h
Power Supply	220V/50Hz
Exterior Dimension	891 × 1155 × 1994.5 mm
Interior Dimension	606 × 738 × 1310 mm
Package Dimension	970 × 1138 × 2185 mm
Net Weight	290 Kg
Gross Weight	354 Kg

Low noise operation
Audible and visual alarms
Adjustable shelves
Easy access USB interface
Dual Compressor

Our -86 °C Ultra Low-Temperature Upright Freezer is used in life science, bio-banking, blood banks, pharmaceuticals, clinical settings, and vaccine production.

Castors × 4

25mm Access port × 1

LN2/ CO2 backup system

Data logger

Chart recorder

Download catalog for
-86 °C Ultra Low-Temperature Upright Freezer LUF-F12 Catalog

Available Range :

-86 °C Ultra Low-Temperature Upright Freezer LUF-F14 : Cascade -86 °C Ultra Low-Temperature Upright Freezer LUF-C10 : Dual System -86 °C Ultra Low Temperature Upright Freezer LUF-C13 : Sensor error, Built-in data logger USB failure , Main board communication error , Condenser cooling failure, Door ajar, Samples out of date, System failure -86 °C Ultra Low Temperature Upright Freezer LUF-C14 : Sensor error, Built-in data logger USB failure ,Main board communication error , System failure, Condenser cooling failure ,Door ajar, Samples out of date -86 °C Ultra Low Temperature Upright Freezer LUF-D20 : Sensor error, Main board communication error ,System failure, Condenser cooling failure, Door ajar, Samples out of date -86 °C Ultra Low Temperature Upright Freezer LUF-C11 : Sensor error, Main board communication error, Built-in data logger USB failure， Condenser cooling failure, Door ajar, Samples out of date， System failure -86 °C Ultra Low Temperature Upright Freezer LUF-D21 : Sensor error, System failure, Condenser cooling failure, Door ajar
