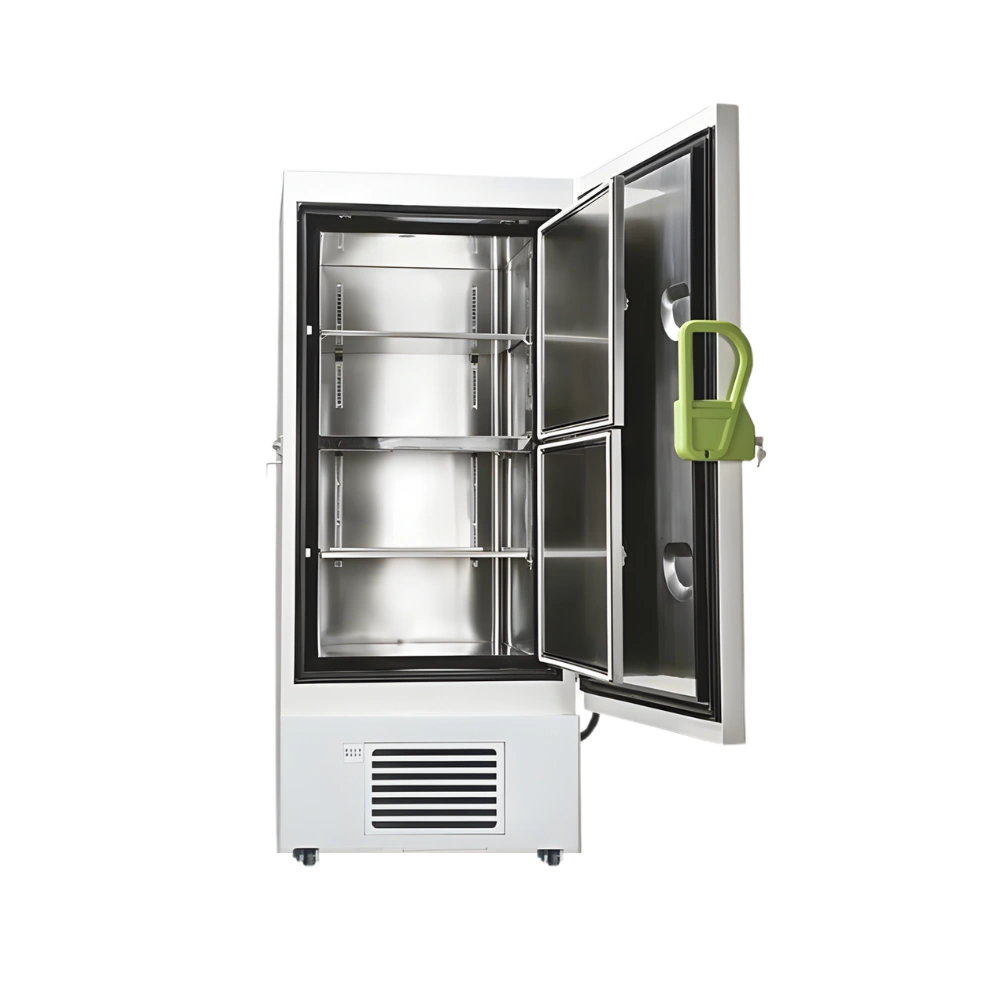

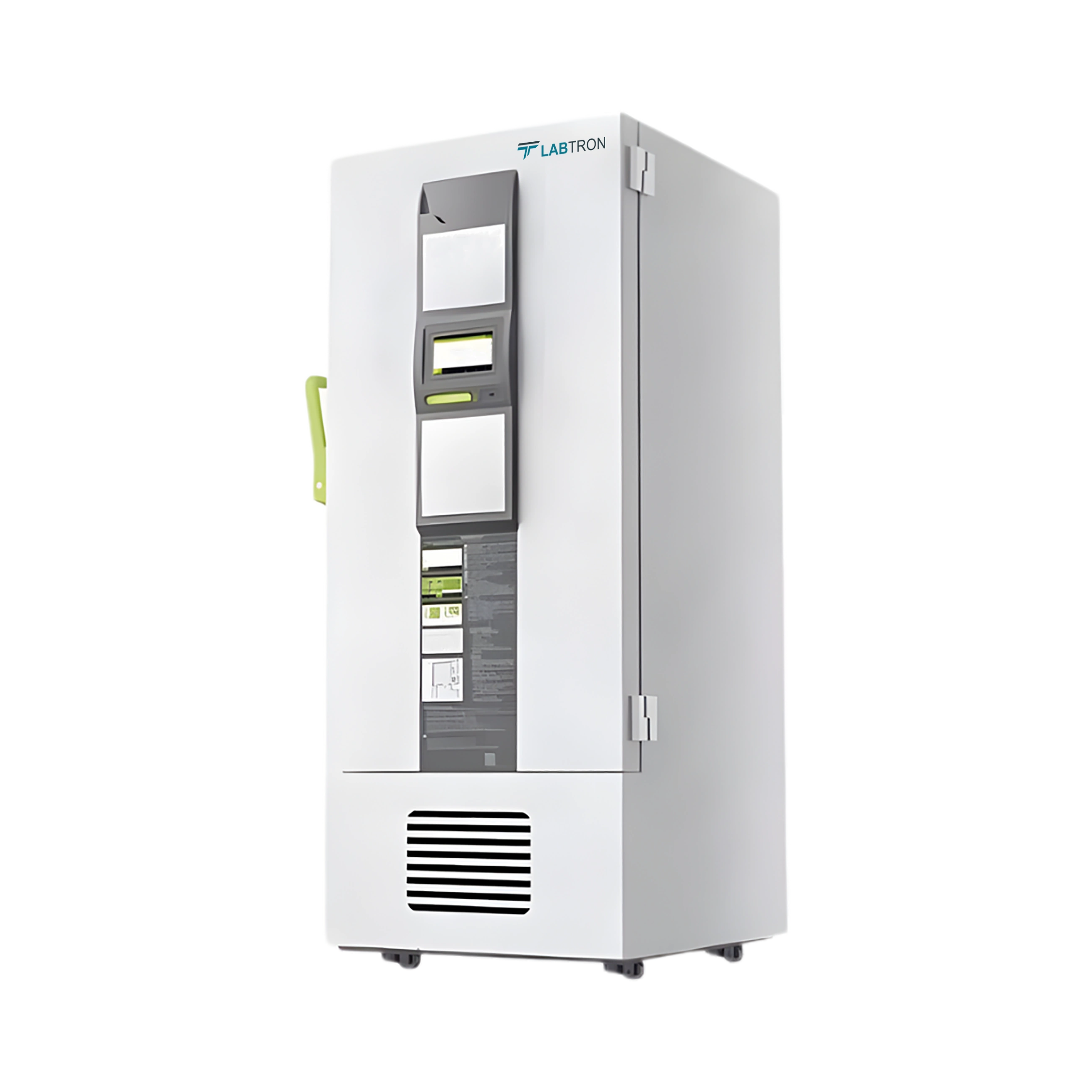

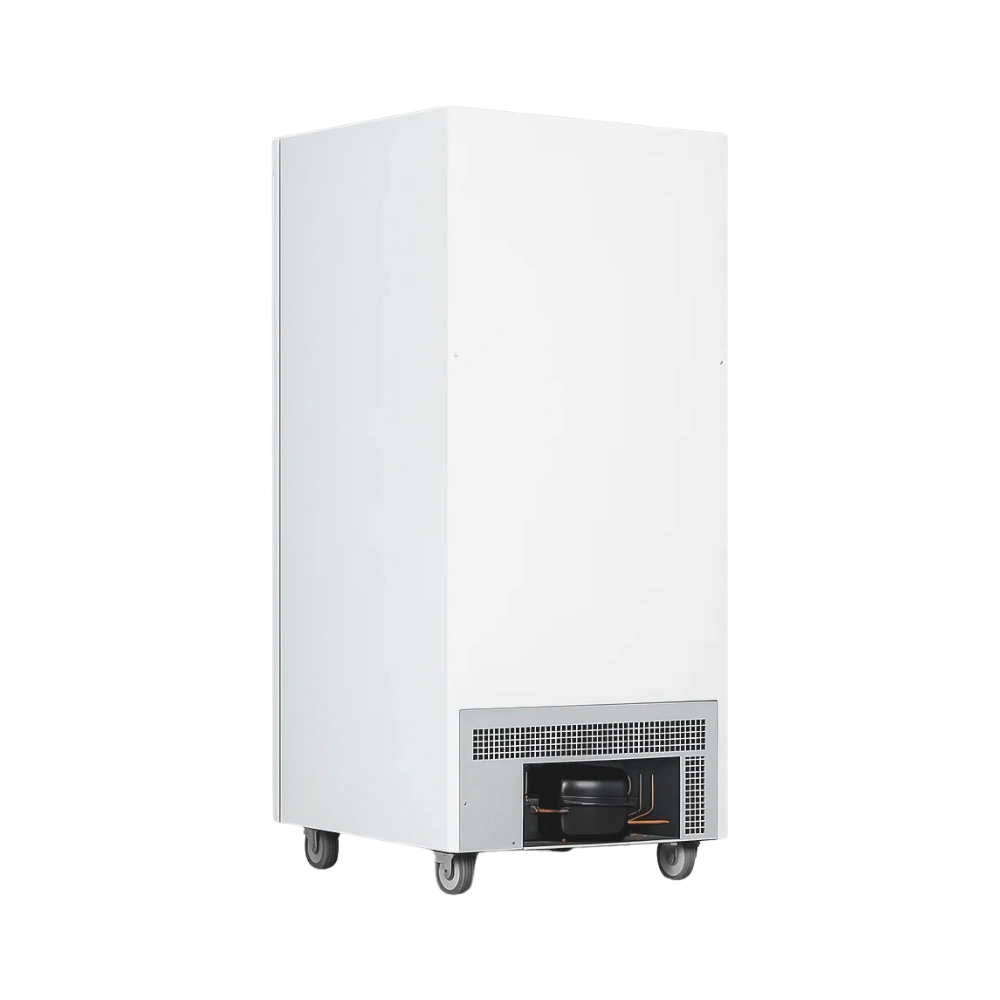

-86 °C Ultra Low-Temperature Upright Freezer LUF-F14

Name: -86 °C Ultra Low-Temperature Upright Freezer LUF-F14
Brand: Labtron
SKU: LUF-F14
Rating: 4.7 (747 reviews)

-86°C Ultra Low-Temperature Upright Freezer LUF-F14 offers 838 L capacity and operates within temperatures ranging from -40°C to -86°C. It has a dual compressor that powers the cooling system efficiently. It features multi-layered sealing for enhanced insulation and reduced temperature fluctuations. Our -86°C ultra low-temperature upright freezer includes adjustable shelves, allowing flexible storage and easy organization of items.

Request Quote

System	Cascade
Capacity	838 L
Temperature Range	-40℃ to -86℃
Ambient Temperature	10℃ to 32℃
Refrigerant	HC (R290 and R170)
Sensor	PTC
Compressor	2
Cooling Type	Direct Cooling
Defrost	Manual
Insulation	PURF + VIP
Noise	53 dB
Compartment	4
Inner door	2
Racks	24 (5 × 5)
Boxes (2 Inch)	600
Samples (2 ml)	60000
Exterior material	Color Sprayed Steel
Interior material	Stainless steel
Remote Alarm Access	Yes
RS485 Access	Yes
Alarms	High/low temperature Power failure Abnormal voltage Sensor error Door ajar Filter screen check Thermostat failure Low battery Condenser clean High ambient temperature 72 hr Power failure backup
Current	8.64 A
Power	720 W
Power consumption	16.47 Wh/24h
Power Supply	220V/50Hz
Exterior Dimension	1179 × 1135 × 1994.5 mm
Interior Dimension	894 × 718 × 1310 mm
Package Dimension	1262 × 1098 × 2185 mm
Net Weight	397 Kg
Gross Weight	430 Kg

Low noise operation
Audible and visual alarms
Easy access USB interface
Ergonomic handle
Smart operating system
7-inch LCD touchscreen

Our -86 °C Ultra Low-Temperature Upright Freezer is used in life science, bio-banking, blood banks, pharmaceuticals, clinical settings, and vaccine production.

Castors × 4

25mm Access port × 1

LN2/ CO2 backup system

Data logger

Chart recorder
