| Capacity | 718 L / 25.36 Cu. Ft |
| Temperature Range | -40°C to -86°C |
| Temperature Accuracy | 0.1°C |
| Cabinet Type | Upright |
| Climate Class | N (16°C to 32°C) |
| Sound Level | 49 dB |
| Defrost Type | Manual |
| Cooling System | Twin cooling |
| Refrigerant Type | Mix refrigerant |
| 2ml Cryo Tube Quantity | 50,000 |
| External Material | High quality coated steel |
| Internal Material | Stainless steel |
| Controller | Microprocessor |
| Display Panel | LED |
| Backup Battery Endurance | 52 hours |
| Rated Current | 12 A |
| Power | 2210 W |
| Power Supply | 115 V/60Hz or 220 to 240 V/50 Hz |
| Internal Dimensions (W×D×H) | 740 × 720 × 1310 mm |
| Overall Dimensions (W×D×H) | 1030 × 995 × 1980 mm |
| Net Weight | 302 kg |
| Gross Weight | 365 kg |
LED screen panel
Upright cabinet design
Sensor failure detection
Microprocessor-based temperature control
Remote alarm output

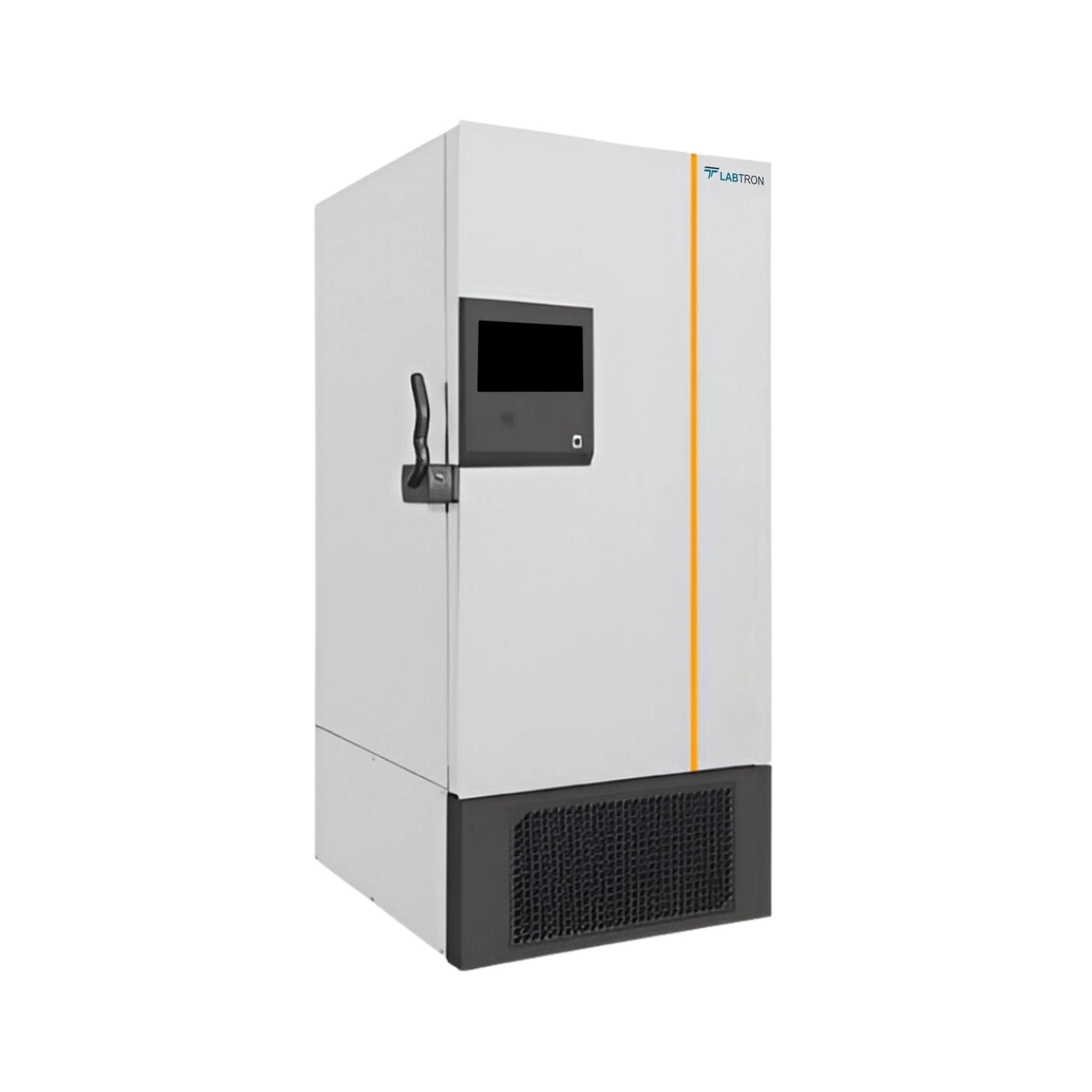

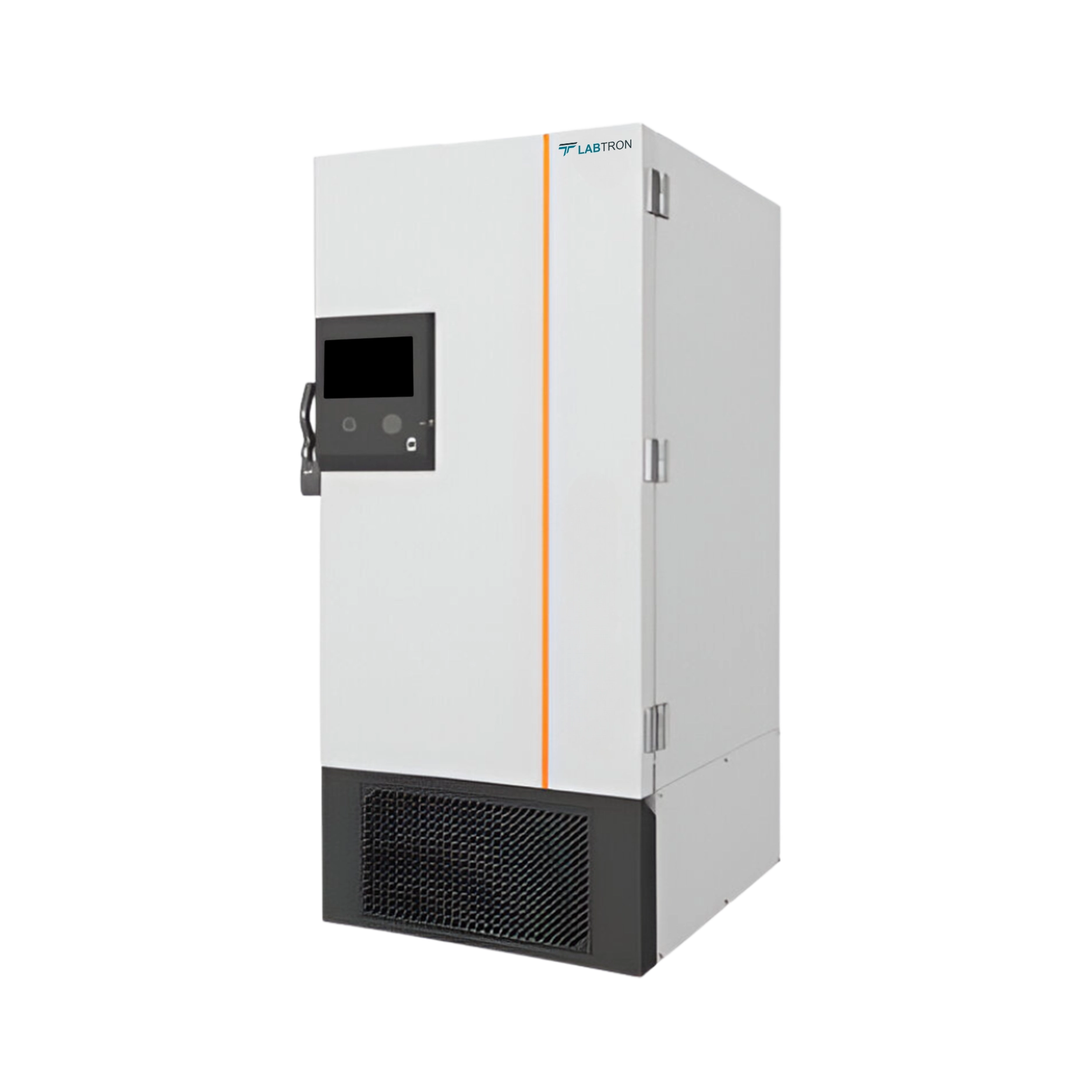

-86⁰C Ultra Low Temperature Upright Freezer LUF-H11 designed to store biological samples, vaccines, enzymes, cell cultures, and other temperature-sensitive materials. It is widely used in hospitals, scientific research institutions and biomedical engineering institutes.
Download catalog for
-86⁰C Ultra Low Temperature Upright Freezer LUF-H11 Catalog
Available Range :
-86 °C Ultra Low Temperature Upright Freezer LUF-C20 : 100 L -86 °C Ultra Low Temperature Upright Freezer LUF-C15 : 1008 L -86 °C Ultra Low Temperature Upright Freezer LUF-C32 : 188 L -86 °C Ultra Low Temperature Upright Freezer LUF-C30 : 218 L -86°C Ultra Low Temperature Freezer LUF-F16 : 280 L -86 °C Ultra Low-Temperature Upright Freezer LUF-F10 : 338 L -86 °C Ultra Low Temperature Upright Freezer LUF-D27 : 340 L -86⁰C Ultra Low Temperature Upright Freezer LUF-I10 : 358 L / 12.64 Cu. Ft -86°C Ultra Low Temperature Freezer LUF-F17 : 360 L -86 °C Ultra Low-Temperature Upright Freezer LUF-J10 : 390 L -86 °C Ultra Low Temperature Upright Freezer LUF-D22 : 398 L -86 °C Ultra Low-Temperature Upright Freezer LUF-C10 : 408 L -86℃ Ultra Low Temperature Upright Freezer LUF-E11 : 437 L -86 °C Ultra Low-Temperature Upright Freezer LUF-C19 : 458 L / 16.17 Cu. Ft -86⁰C Ultra Low Temperature Upright Freezer LUF-I11 : 480 L -86 °C Ultra Low Temperature Upright Freezer LUF-C11 : 528 L -86⁰C Ultra Low Temperature Upright Freezer LUF-G10 : 568 L / 20.06 Cu. Ft -86 °C Ultra Low Temperature Upright Freezer LUF-C31 : 58 L -86 °C Ultra Low Temperature Upright Freezer LUF-D29 : 588 L -86 °C Ultra Low Temperature Upright Freezer LUF-C12 : 678 L -86 °C Ultra Low Temperature Upright Freezer LUF-E10 : 718 L -86⁰C Ultra Low Temperature Upright Freezer LUF-G11 : 718 L / 25.36 Cu. Ft -86 °C Ultra Low Temperature Upright Freezer LUF-D30 : 728 L -86°C Ultra Low-Temperature Upright Freezer LUF-F15 : 730 L -86 °C Ultra Low Temperature Upright Freezer LUF-C13 : 778 L -86 °C Ultra Low Temperature Upright Freezer LUF-D31 : 838 L -86⁰C Ultra Low Temperature Upright Freezer LUF-G12 : 838 L / 29.59 Cu. Ft -86 °C Ultra Low Temperature Upright Freezer LUF-C14 : 858 L
Labtron’s -86℃ ultra-low temperature upright freezers offer a temperature range from -40℃ to -86℃. They are available in various sizes with adjustable shelving to meet different storage needs. These upright freezers are equipped with advanced cooling technology, high-performance compressors, and excellent insulation. Our -86℃ ultra-low temperature upright freezers provide reliable long-term storage for a variety of biological samples.








Yes, the -86°C Ultra Low Temperature Upright Freezer LUF-H11 operates at a low noise level of 49 dB, which is comparable to a normal conversation. This makes it highly suitable for quiet lab environments, offices, or clinical settings where noise can be a concern. Its sound-dampening design ensures that it doesn’t interfere with daily work or concentration. This is especially useful in shared lab spaces or noise-sensitive areas. Despite its powerful cooling performance, it runs efficiently and quietly. Users can rely on it for both performance and comfort
Labtron’s -86°C Ultra Low Temperature Upright Freezer LUF-H11 uses a dual cooling system for unmatched temperature stability. It maintains an ultra-low temperature range with a precision of ±0.1°C, reducing fluctuations that could affect samples. A high-efficiency insulation layer and durable inner doors help retain cold air even during door openings. The microprocessor controller continuously monitors internal conditions for precise regulation. Our freezer performs exceptionally in demanding conditions, ensuring reliability over long-term storage. Real-time data from the LED screen allows users to observe and adjust settings easily. This stability ensures critical samples are consistently preserved in compliance with scientific and clinical standards.
The -86?C Ultra Low Temperature Upright Freezer LUF-H11 freezer is equipped with a clear and responsive LED display panel that shows real-time temperature readings. It works in conjunction with a microprocessor controller that maintains precise temperature regulation and offers easy setting adjustments. Users can view and track performance directly on the panel. Alerts and warnings are also shown on this interface for quick action. This provides a user-friendly control experience and enhances sample safety. The display remains active even during power interruptions, thanks to the backup battery.
The -86°C Ultra Low Temperature Upright Freezer LUF-H11 is designed for operation in climate class N conditions. This makes it suitable for installation in standard lab environments, clinics, and pharmaceutical manufacturing zones. It functions effectively even in settings with moderate ambient temperature variations. The quiet operation at 49 dB ensures a noise-friendly workspace for research and clinical staff. Our unit's rugged construction and stainless steel interior also make it durable in high-traffic areas. It’s ideal for central laboratories, university research centers, and long-term biobanking facilities. These qualities make the LUF-H11 a dependable choice for diverse scientific environments.
Engineered -86°C Ultra Low Temperature Upright Freezer LUF-H11 includes a built-in RS-458 communication port for integration with external monitoring systems. This allows labs to track temperature data in real-time and receive alerts remotely when issues arise. With optional USB functionality, users can easily extract performance data for auditing and compliance. Our system supports advanced alarm logging and tracking for regulatory documentation purposes. Remote connectivity is crucial for pharmaceutical companies and labs following GMP and GLP standards. Data accessibility helps users ensure consistent sample conditions even when off-site. This makes the LUF-H11 a smart solution for institutions requiring 24/7 monitoring and documentation.
Our -86°C Ultra Low Temperature Upright Freezer LUF-H11 uses a mix of eco-friendly refrigerants to reduce environmental impact while ensuring effective cooling. It’s engineered with energy-efficient components and high-performance insulation to lower power consumption. The twin cooling system operates only as needed, further conserving electricity. Our freezer meets international environmental and safety standards such as CE and UL. Efficient design reduces operating costs and supports sustainability goals in green-certified labs. Low energy draw makes it suitable for continuous use without excessive utility burden. Choosing LUF-H11 supports both reliable sample storage and environmental responsibility.
