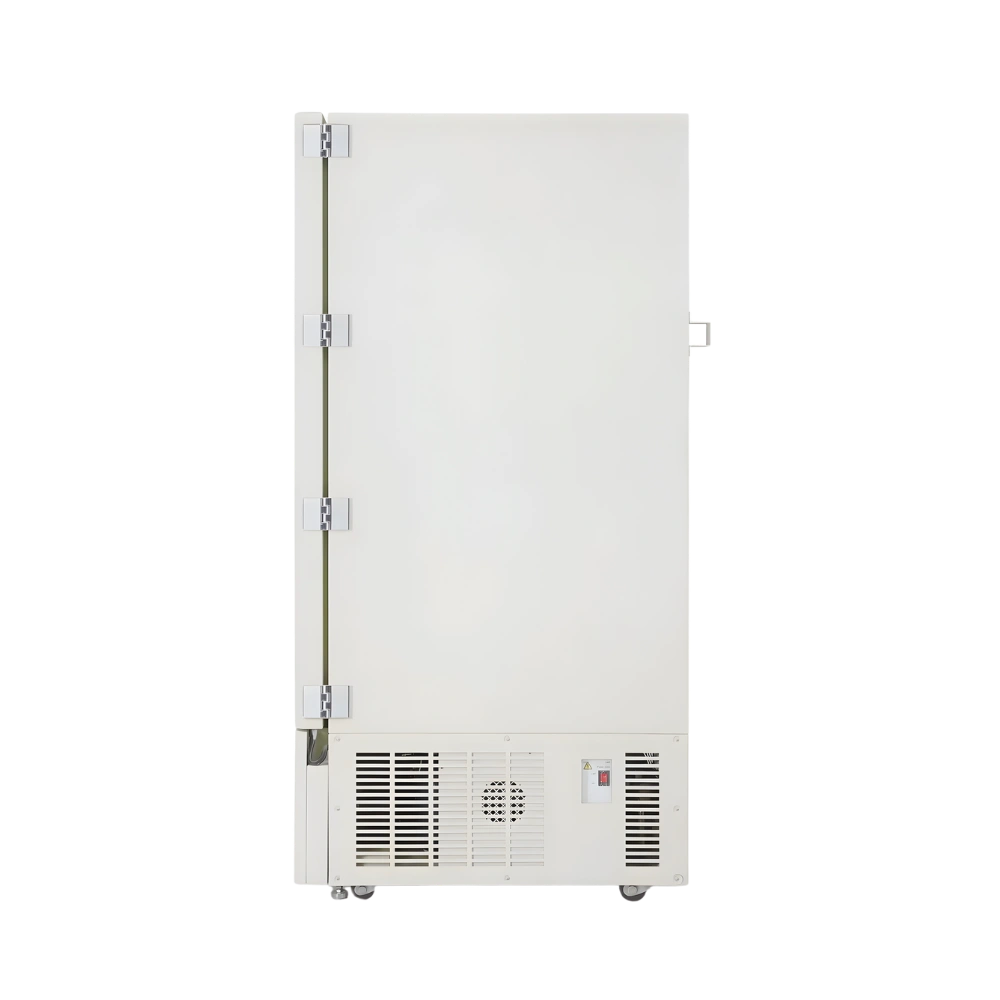

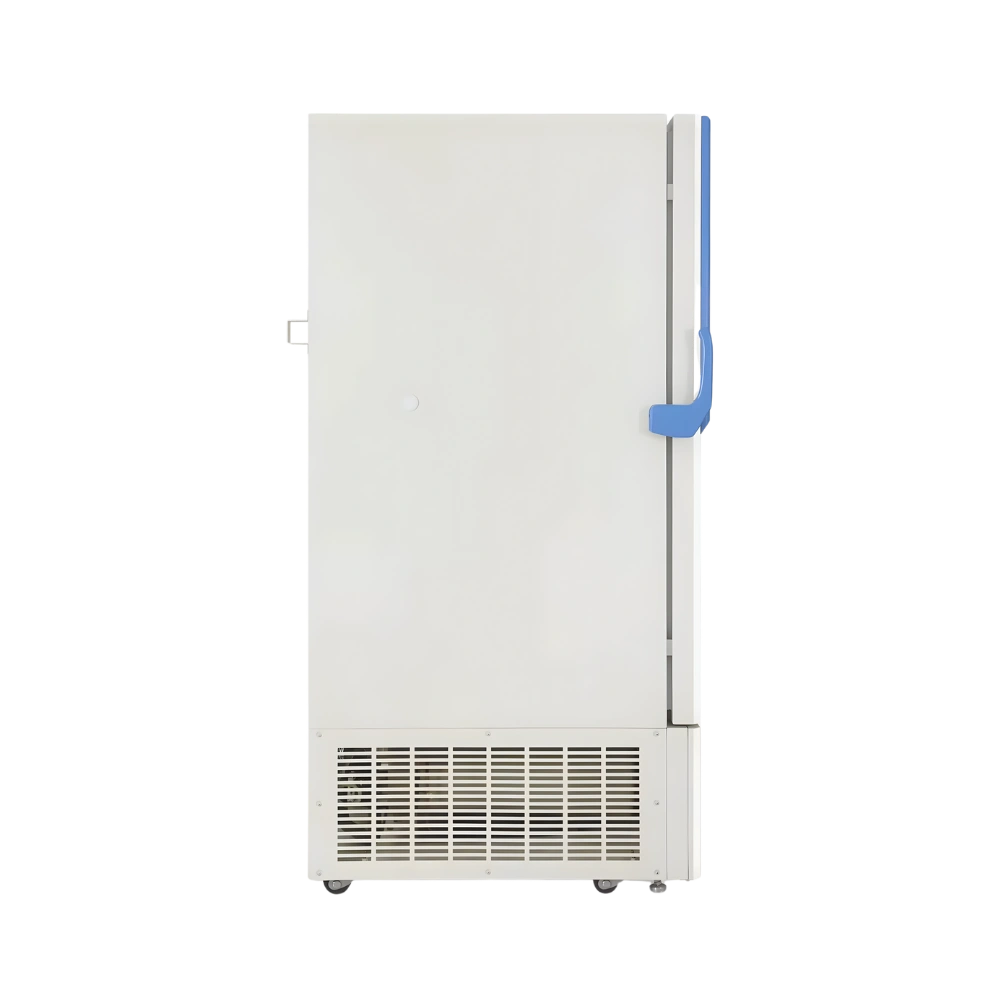

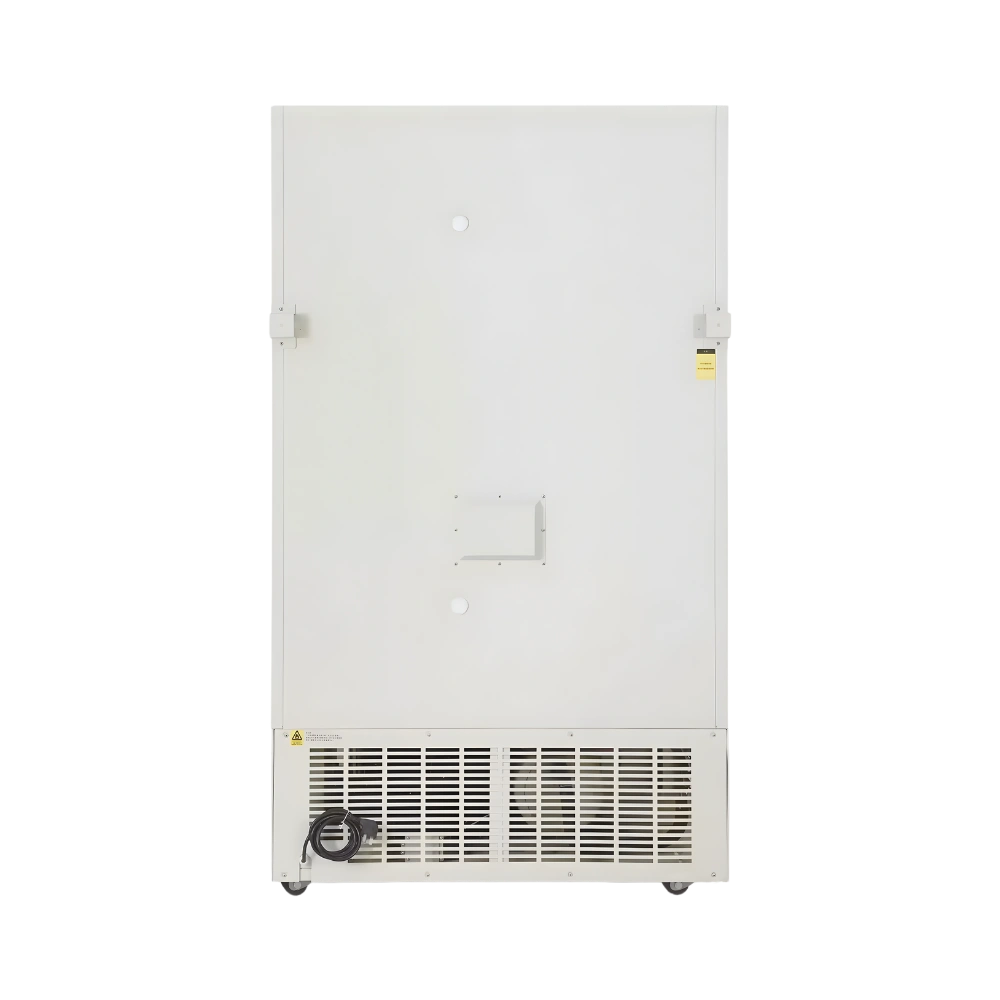

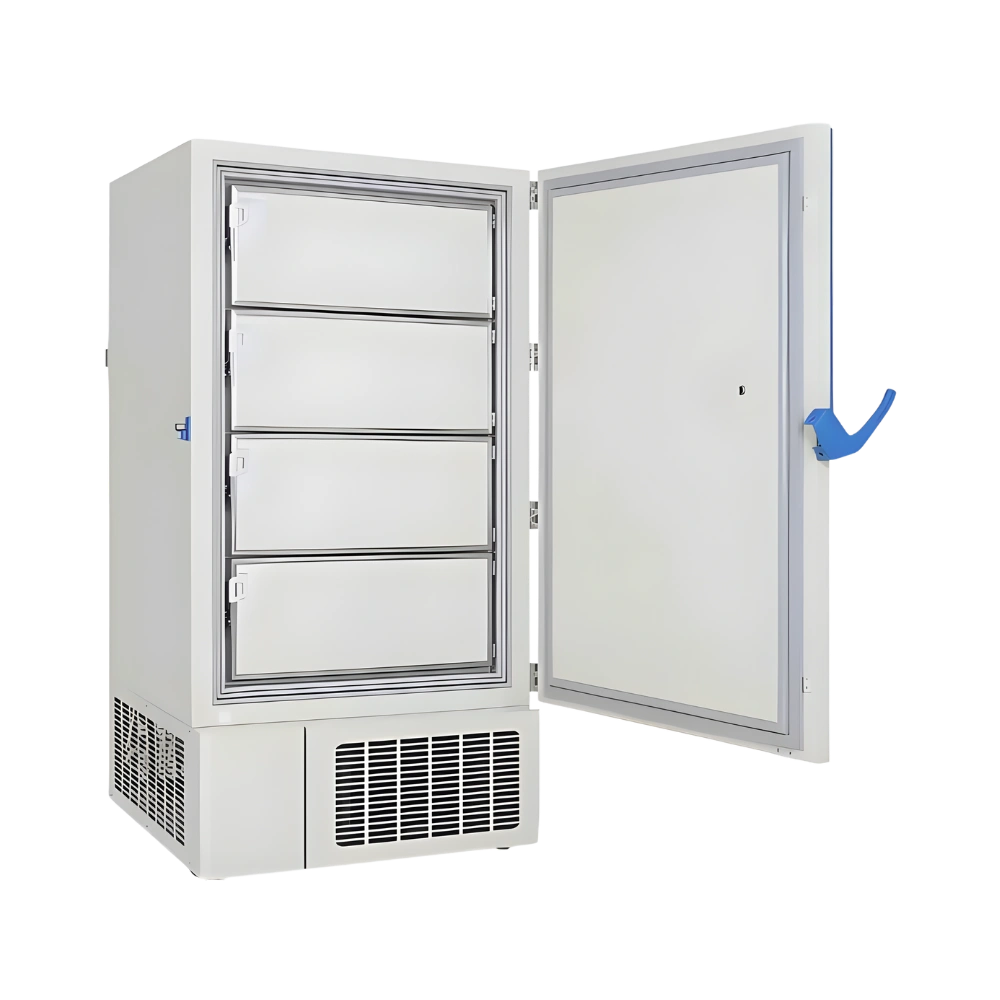

-86 °C Ultra Low Temperature Upright Freezer LUF-D26

-86 °C Ultra Low Temperature Upright Freezer LUF-D26

-86 °C Ultra Low Temperature Upright Freezer LUF-D26 comes with an upright type design, with a capacity of 858 L for storing temperature-sensitive materials. It features an LED touchscreen display control system for precise temperature adjustments. The forced air circulation system ensures uniform temperature distribution. This unit is equipped with an expansive evaporator to provide quick freezing. Our -86 °C Ultra Low Temperature Upright Freezer LUF-D26 is made from stainless steel, ensuring durability, and corrosion resistance.

Request Quote
Cabinet type Upright
Capacity 858 L
Temperature range -40 to -86˚C
Ambient temperature 16 to 32˚C
Cooling performance -86˚C
Refrigerant Mixture gas
Defrost Mode Manual
Cooling method Direct cooling
Controller Microprocessor
Display Touch screen
Climate class N
Insulation thickness 130 mm
Compressor 2 pcs
Alarm system High and low temperature, high ambient temperature
External material High quality steel plates with spraying
Inner material Galvanized steel sheet
Shelves 3 (stainless steel)
Door lock with key Yes
External Lock Yes
Access Port 3 pcs. Φ 25 mm
Casters 4 +(2 leveling feet)
Data Logging / Interval/ Recording Time USB/Record every 1 minute / 365 days
Electrical Power failure, Low battery
System Sensor error, Built-in data logger USB failure, Main board communication error , System failure, Condenser cooling failure ,Door ajar, Samples out of date
Backup Battery Yes
Rated power 1900 W
Input power 2380 W
Rated current 10.86 A
Power consumption 16.5 KWh/24h
Power supply 230 ±10% V /50 Hz
Internal dimension (L × D × H) 877 × 696 × 1378 mm
External dimension (L × D × H) 1217 × 1025 × 2005 mm
Package size 1330 × 1155 × 2176 mm
Net weight 390 kg
Gross weight 431 kg
  • Optional inventory racks/boxes available

  • Equipped with an EBM fan

  • Inbuilt universal wheels for mobility

  • Two-layer insulated foamed door

  • Integrated with safety door lock

  • Incorporates audible & visual alarm

-86 °C Ultra Low Temperature Upright Freezer LUF-D26 is used to store items at extremely low temperatures, typically for scientific, medical, and industrial purposes. It is commonly used for Biotechnology and Pharmaceuticals, Research Laboratories, Hospitals and Blood Banks, Clinical Trials, Universities and Medical Research Institutions, and Forensic and Crime Labs.

Accessories no.Name
1Chart recorder
2CO2 backup system
3Printer
4Remote alarm contact

Models of -86℃ Ultra-Low Temperature Upright Freezers

Labtron’s -86℃ ultra-low temperature upright freezers offer a temperature range from -40℃ to -86℃. They are available in various sizes with adjustable shelving to meet different storage needs. These upright freezers are equipped with advanced cooling technology, high-performance compressors, and excellent insulation. Our -86℃ ultra-low temperature upright freezers provide reliable long-term storage for a variety of biological samples.

-86 °C Ultra Low Temperature Upright Freezer LUF-D30

-86 °C Ultra Low Temperature Upright Freezer LUF-D30

  • Cabinet Type : Upright
  • Capacity : 728 L
  • Temperature Range : -40˚C to -86˚C
  • Ambient Temperature : 10 ˚C to 32˚C
-86 °C Ultra Low-Temperature Upright Freezer LUF-F13

-86 °C Ultra Low-Temperature Upright Freezer LUF-F13

  • System : Cascade
  • Capacity : 728 L
  • Temperature Range : -40℃ to -86℃
  • Ambient Temperature : 10℃ to 32℃
-86 °C Ultra Low Temperature Upright Freezer LUF-D22

-86 °C Ultra Low Temperature Upright Freezer LUF-D22

  • Cabinet type : Upright
  • Capacity : 398 L
  • Temperature range : -40 to -86˚C
  • Ambient temperature : 16 to 32˚C
-86 °C Ultra Low Temperature Upright Freezer LUF-C14
-86 °C Ultra Low Temperature Upright Freezer LUF-C14
  • Cabinet type : Upright
  • Capacity : 858 L
  • Temperature range : -40 to -86˚C
  • Ambient temperature : 16 to 32˚C
-86 °C Ultra Low Temperature Upright Freezer LUF-D27
-86 °C Ultra Low Temperature Upright Freezer LUF-D27
  • Cabinet Type : Upright
  • Capacity : 340 L
  • Temperature Range : -40˚C to -86˚C
  • Ambient Temperature : 10 ˚C to 32˚C
-86 °C Ultra Low Temperature Upright Freezer LUF-E10

-86 °C Ultra Low Temperature Upright Freezer LUF-E10

  • Cabinet type : Upright
  • Capacity : 718 L
  • Temperature range : -40 to -86˚C
  • Temperature accuracy : 0.1 ℃
-86℃ Ultra Low Temperature Upright Freezer LUF-E11

-86℃ Ultra Low Temperature Upright Freezer LUF-E11

  • Cabinet Type : Upright
  • Capacity : 437 L
  • Temperature Range : -40℃ to -86 ℃
  • Refrigeration : dual cascade refrigeration
-86 °C Ultra Low Temperature Upright Freezer LUF-D31

-86 °C Ultra Low Temperature Upright Freezer LUF-D31

  • Cabinet Type : Upright
  • Capacity : 838 L
  • Temperature Range : -40˚C to -86˚C
  • Ambient Temperature : 10 ˚C to 32˚C

-86℃ Ultra-Low Temperature Upright Freezers:
-86 °C Ultra Low Temperature Upright Freezer LUF-D30, -86 °C Ultra Low-Temperature Upright Freezer LUF-F13, -86 °C Ultra Low Temperature Upright Freezer LUF-D22, -86 °C Ultra Low Temperature Upright Freezer LUF-C14, -86 °C Ultra Low Temperature Upright Freezer LUF-D27, -86 °C Ultra Low Temperature Upright Freezer LUF-E10, -86℃ Ultra Low Temperature Upright Freezer LUF-E11, -86 °C Ultra Low Temperature Upright Freezer LUF-D31, and more.
