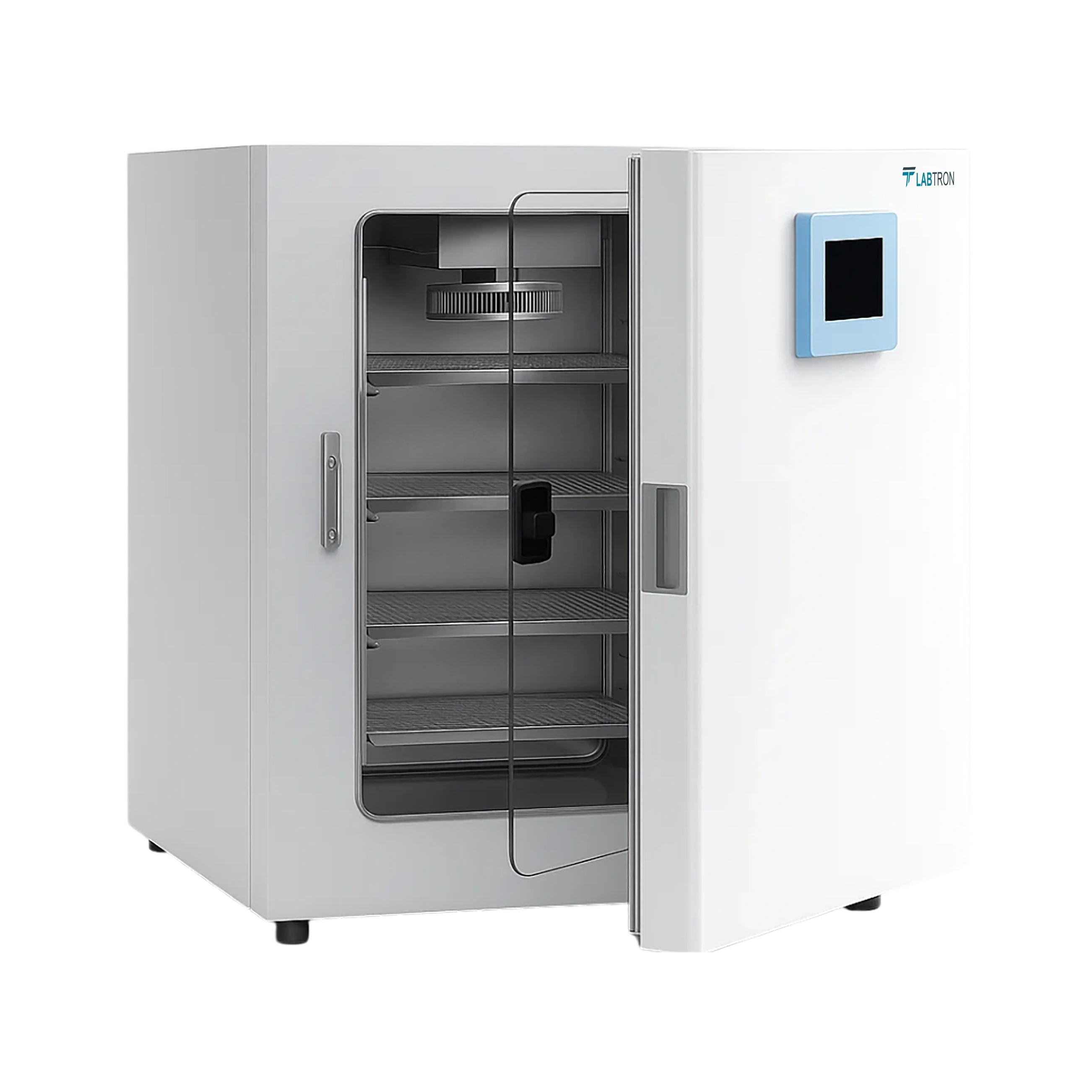

Air Jacketed CO2 Incubator LAJI-C20

Name: Air Jacketed CO 2 Incubator LAJI-C20
Brand: Labtron
SKU: LAJI-C20
Rating: 4.8 (891 reviews)

Air Jacketed CO ₂ Incubator LAJI-C20 is a shaking CO₂ incubator with air jacketed configurations suitable for heat/UV sterilization and temperature range of 4˚ to 65˚C with shaking frequency of 40 to 300 rpm. Designed with CO₂ concentration sensor, advanced alarm system, temperature control and monitoring system, it provides uniform and stable conditions. Incorporated 90˚ C high temperature sterilization method, touch screen with PID controller, and enhanced safety features provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Request Quote

CO₂ range	0-20%
CO₂ recovery time	(Return to 5% after opening the door for 30 seconds) ≤3 mins
CO₂ control accuracy	±0.1%
CO₂ stability of 5%CO₂	±0.1%
CO₂ uniformity	±0.1%
CO₂ sensor	IR CO₂ sensor
Shaking frequency	40-300 rpm
Shaking Precision	±1 rpm
Amplitude	20 mm
Drive way	Three eccentric shaft balance drive type
Humidity control	50 to 90%
37C humidity control accuracy	The chamber can reach 85%-95% when 37˚ C , and the humidity can be controlled in real time
Humidity resolution	0.001
Humidity deviation	±2%
Related humidity	Nature vaporate > 95%
Allowable shaking load	10 kg
Temperature control range	4-65° C
Temperature control accuracy	±0.1° C
Temperature uniformity	±0.5° C
Temperature sensor	PT 100
Environment temperature detector	Independent
Over temperature protection system	Independent
Temperature recover time	(Return to 37˚ C after opening the door for 30 sec) ≤8 mins
Heating method	6 side heating
Disinfection method	90˚ C high temp
Timing range	0 to 99 hour 59 min
Platform size (L×B)	350×350 mm
Shelf	1
Display	Digital Color display with touch panel
Sterilization system	90 degree high temp. high humidity sterilization system (RHP); UV sterilization (option)
Controller	PID
Interface	RS485
Door Open/close message	Yes
Alarm system	High and low temperature and over temperature; Chamber sensor failure; Independent temperature limiter; Door open; High/low CO2 condensation; Power off alarm; Door temperature sensor failure; Disinfection and sterilization status reminder; Over temp sensor failure and Abnormal function
Interior dimension (W×D×H)	505×600×420 mm
Exterior dimension (W×D×H)	693×875×753 mm
Gross Weight	91 kg
Power	1500 W
Voltage	220V 50Hz
Flask Configuration	50 ml×36, 100 ml×23, 250 ml×13, 500 ml×8, 1 L×5, 2 L×3, 4 L×1, 5 L×1

Touch screen interface with Screen lock while functioning
Infrared CO₂ concentration sensor with PT100 temperature sensor
Outer door ring with heating function
Independent environment temperature detector
UV lamp at the back top of chamber
90 degree high temperature and high humidity sterilization system with One touch simple sterilization function
Short sterilization cycle (18 hours) with 72 hours machine performance
Heating elements: Located on all 6 sides of the chamber
Alarm system: High and low temperature and over temperature; Chamber sensor failure; Independent temperature limiter; Door open; High/low CO₂ condensation; Power off alarm; Door temperature sensor failure; Disinfection and sterilization status reminder; Over temp sensor failure and Abnormal function
Data logging capabilities with PID controller
Designed to minimize contamination

Air Jacketed CO₂ Incubator are used for tissue engineering, cell culture, in vitro fertilization, diagnostics, neuroscience, cancer research and for developing biosensors across medical research and the pharmaceutical industry.

Download catalog for
Air Jacketed CO2 Incubator LAJI-C20 Catalog

Available Range :

Air Jacketed CO2 Incubator LAJI-C10 : (0~20)% V/V Air Jacketed CO₂ Incubator LAJI-C20 : 0-20%

Models of Air-jacketed CO2 Incubator

Labtron Air-Jacketed CO2 Incubator is specialized to maintain optimal condition with chamber volume of 40 L to 570 L. Their dual-layer construction ensures stable internal temperature and protects against external fluctuations effectively. They are equipped with carbon dioxide monitoring system to measure accurate gas concentration levels. Their humidity control system prevents dehydration of cell cultures, promoting healthy growth environments consistently. Our Air-Jacketed CO2 Incubator culture sensitive cells and tissues for stem cell research and genetic engineering.
