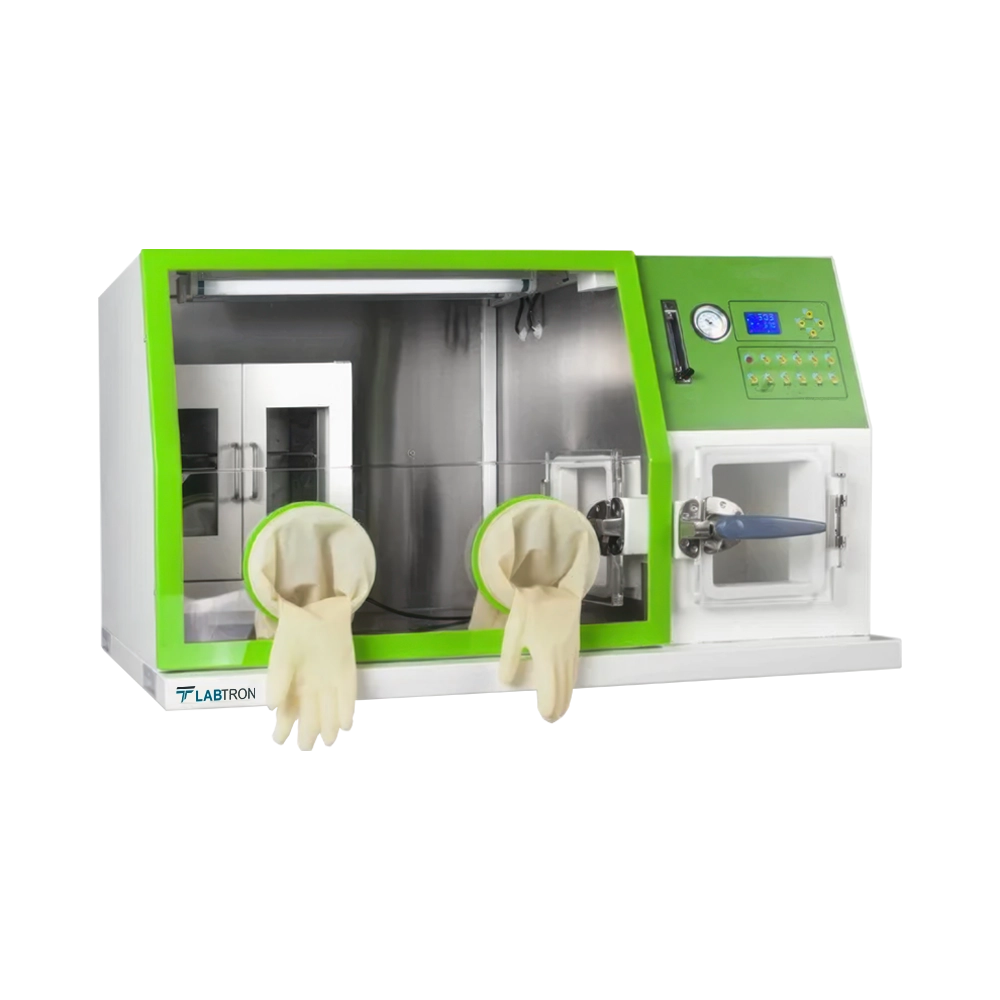

Anaerobic Incubator LAI-A10


Share :


Anaerobic Incubator LAI-A10


Anaerobic Incubator LAI-A10 is a workstation especially designed to culture anaerobic micro-organisms for various studies. Features micro-computer control system, UV sterilizer, stainless steel chamber, latex gloves, tough front glass window, de-oxidization catalyst, leakage protection etc. to ensure anaerobic environment while working along with operator’s safety. Within 5 min anaerobic environment is created in the cultivation chamber while it takes less than 1 hr for the operation chamber. It is used in microbiology labs, oil industry, soil research etc.



Available Range :

Control System : Microcomputer control system Control System : Microprocessor control system + Siemens PLC Time for creating anaerobic state in sample chamber : < 5 min
Control System Microcomputer control system
Display LCD display with button-press keypad
Time for creating anaerobic state in sample chamber < 5 minutes
Time for creating anaerobic state in operation chamber < 1hr
Anaerobic environment maintenance time > 12 hrs (when no supply of mixed gas)
Temperature Range RT+3 to 60°C
Temperature Stability < ± 0.3°C
Temperature Uniformity < ± 1°C
Display Resolution 0.1°C
Timing Range 1 to 9999 min
Power Rating 600 W
Power Supply AC 220V, 50 Hz
Data Storage No
Interface nil
Interior Chamber Dimension (W×D×H) 300×190×290 mm
Operation Chamber Dimension (W×D×H) 820×660×670 mm
Exterior Dimension (W×D×H) 1260×730×1380 mm
Package Dimension (W×D×H) 1390×920×1560 mm
Net Weight 240 kg
Gross Weight 320 kg
  • High-precision microcomputer control system to display accurate temperature inside the incubator
  • UV sterilizer for effective de-contamination
  • Solenoid valve switch control to adjust and input essential gas
  • Cultivation and operation chamber made of stainless steel
  • Impact-resistant front glass window for easier observation
  • Deoxidization catalyst in operation room
  • Double door for cultivation chamber to add more petri plates
  • Latex gloves, Leakage protection, Over-heating alarm for user safety
  • Caster wheels for easier transport
  • LCD screen to view parameter and button press keypad to pre-set values
  • 2 shelves and wheels for cultivation chamber
  • Tube-light inside the operation chamber for better illumination
  • Door handle provided for easier opening and closing
  • Wires and pipes inside chamber are properly concealed for user safety

It is widely used to culture anaerobic micro-organism to perform various studies in soil research, pathology labs, oil industry etc.
