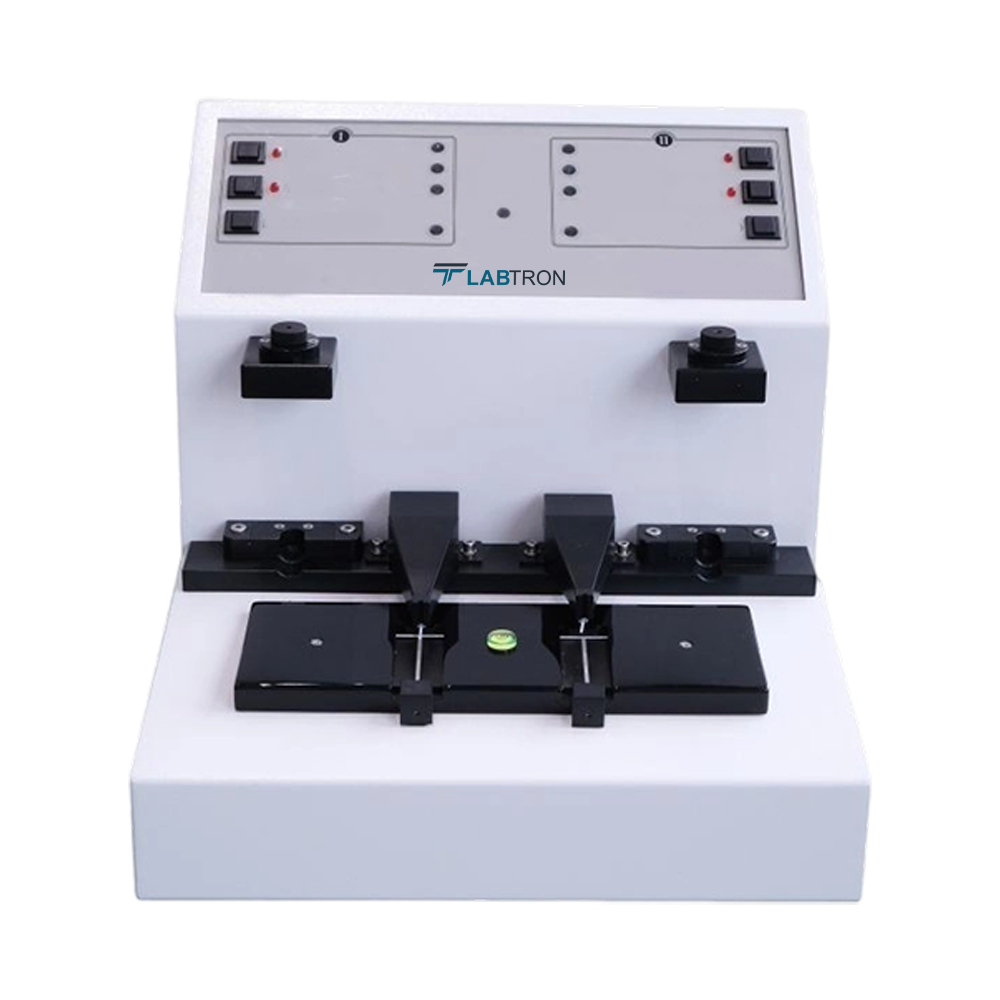

Analytical Ferrospectrometer LALF-B10

Labton’s Analytical Ferrospectrometer LALF-B10 uses a magnetic sedimentation method to separate ferrous particles from an oil sample within a thistle tube. A strong magnetic field attracts and deposits these particles along a glass surface. Their quantity and distribution are then analyzed, either visually or through image analysis. This simple yet effective method provides quick insight into wear levels in machinery, helping users monitor abnormal wear conditions and schedule maintenance before significant equipment damage occurs.

The Analytical Ferrospectrometer LALF-B10 is primarily designed to detect ferrous wear particles, including sliding wear fragments, cutting wear, and fatigue particles. It can also reveal the presence of oxides and rust-related debris. While non-ferrous particles may not respond to the magnetic field, they can still be observed visually on the deposit slide. This allows technicians to identify abnormal wear mechanisms and distinguish between different failures modes, providing a clearer understanding of machine condition and lubrication system performance.

The Analytical Ferrospectrometer LALF-B10 typically requires about 5 to 10 milliliters of oil per test. The oil must be well-agitated before sampling to ensure particles are evenly distributed. For high-viscosity oils, preheating or dilution with a suitable solvent might be necessary to improve flow and particle mobility. Proper sample handling ensures that the magnetic sedimentation process provides accurate and consistent particle deposition, enabling users to make reliable assessments of machinery wear status.

The thistle tube design in the Analytical Ferrospectrometer LALF-B10 offers a controlled and narrow flow path that enhances particle alignment and separation under a magnetic field. This structure improves sensitivity and resolution by concentrating ferrous particles in a clear, linear deposition zone, making visual assessment easier and more consistent. It simplifies sample handling, supports repeatable results, and is particularly useful for laboratories and service centers conducting routine oil analysis on engines, gearboxes, and hydraulic systems.

Labtron’s Analytical Ferrospectrometer LALF-B10 requires minimal maintenance. Users should regularly clean the thistle tube, magnet area, and glass deposition surface to prevent contamination and ensure clear particle observation. Calibration is generally not complex, as the device is based on physical sedimentation rather than advanced electronics. However, using reference samples for training and comparison improves consistency in interpretation. Adhering to simple maintenance practices ensures the Analytical Ferrospectrometer LALF-B10 delivers reliable results for ongoing wear monitoring and oil condition assessments.

Analytical ferrospectrometers are used to detect and quantify ferrous wear particles suspended in lubricating oils. They provide early warning of abnormal wear by measuring magnetic particle content and characteristics. These instruments are vital in predictive maintenance, allowing users to track machine condition, identify component failures, and prevent costly breakdowns. Ferrospectrometers support both laboratory and field-based analysis for engines, turbines, and hydraulic systems in industries like power generation, aviation, transportation, and manufacturing.

Unlike traditional spectrometers that detect atomic emissions from dissolved metal elements, analytical ferrospectrometers focus on solid ferrous particles suspended in oil. They rely on magnetic or electromagnetic detection rather than light emission, making them more effective at capturing larger wear debris that traditional ICP or RDE spectroscopy might miss. This makes ferrospectrometers ideal for monitoring mechanical wear rather than chemical composition, offering a valuable complement to other oil analysis methods for comprehensive condition monitoring.

Ferrospectrometers are commonly used in monitoring engines, gearboxes, turbines, compressors, hydraulic systems, and industrial machinery. Any equipment with metal-on-metal contact and oil lubrication benefits from ferrous wear monitoring. These systems are often found in sectors such as aerospace, marine, defense, automotive, mining, and manufacturing. Ferrospectrometers help detect wear in critical components like bearings, gears, pistons, and cams—allowing for preventive action before severe damage or unexpected equipment downtime occurs.

Ferrospectrometers can measure particle concentration, size distribution, and magnetic properties, depending on the model. Some systems also provide morphological information via ferrography or imaging features. The data helps determine wear severity and type such as abrasive, corrosive, or fatigue wear. These insights are valuable in diagnosing the source of wear, determining the urgency of maintenance, and ensuring safe and efficient machinery operation. Advanced models may combine this with software for trend analysis and automated alerts.

Routine cleaning of sample paths, magnetic sensors, and deposition slides is essential to prevent contamination and ensure accuracy. Calibration typically involves using standard ferromagnetic solutions or reference slides to validate instrument performance. The frequency of calibration depends on usage intensity and environment. Some models feature automatic calibration prompts and diagnostics. Regular upkeep and following manufacturer guidelines will ensure consistent, repeatable results, making the ferrospectrometer a reliable tool for long-term condition monitoring and oil diagnostics.
