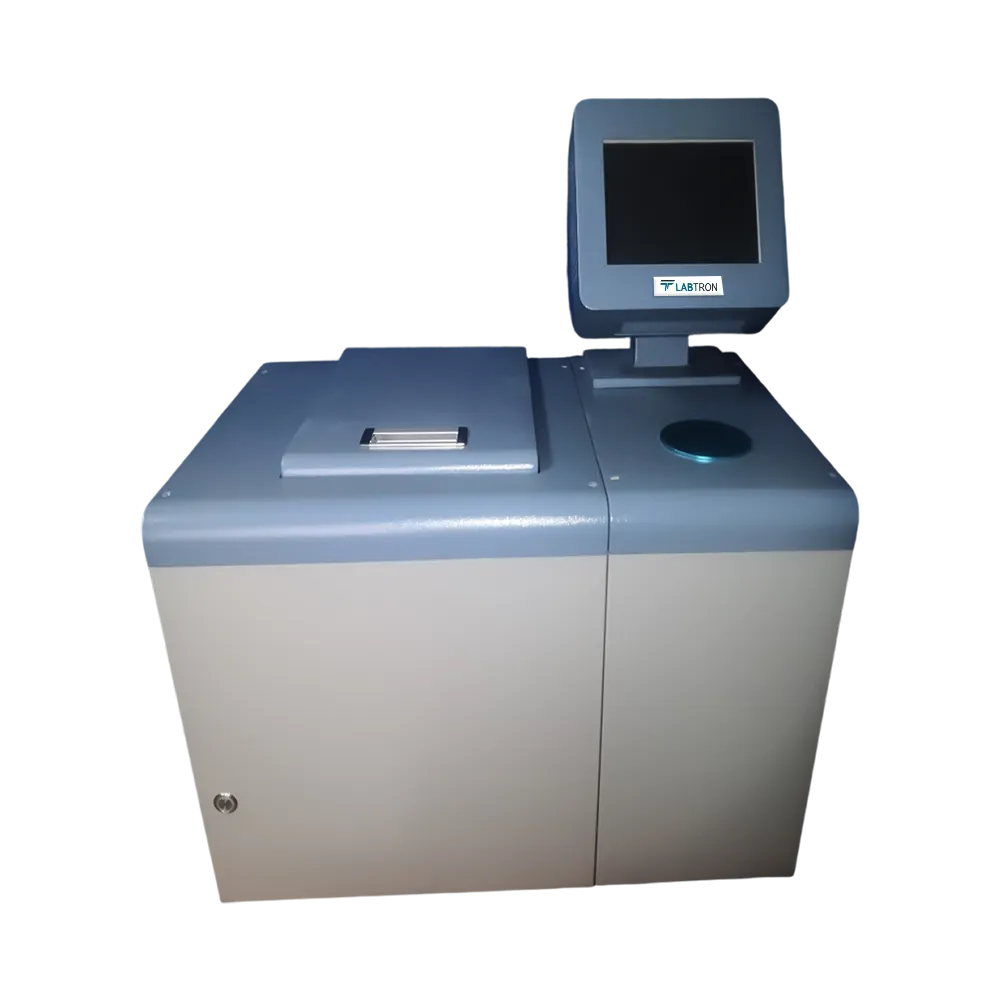

Automatic Bomb Calorimeter LABC-A10

Automatic Bomb Calorimeter LABC-A10

Automatic Bomb Calorimeter LABC-A10 with removable cover design, automatically detects the refrigerating capacity and balance the circulation system w.r.t. last time caloric value. Need to open the lid to put the bomb inside the instrument. Equipped with advance small oxygen filling instrument with low malfunction rate.

Request Quote
Calorimeter type Isoperibol
Temperature range 5 to 40°C
Measurement range 5 to 40 MJ/ kg
Operation Mode The outer barrel temperature is constant
Temperature resolution 0.0001°C
Precision RSD ≤0.1 %
Testing time 8 min
Power ≤1.5 kW
Power supply 220 V, 50/60 Hz
Dimension 540 × 420 × 420 mm
Weight 45 kg
  • Semi-conductor water refrigeration system
  • Probe type electronic measuring cup to measure inner bucket water
  • No need to measure water and adjust water temperature
  • Auto stop and auto draining joints
  • Use of advance USB technology
  • Supports Windows system, links electronic scale, shares data via network
  • CE certified

Used in coal, petroleum, cement, farming, medical research, electronics for measurement of calorific value of solid and liquid combustible materials.

Accessories no. Name Unit Qty.
1 Ignition thread (500 pieces) Box Box 20
2 Standard Benzoic Acid (1 gm * 10 pieces) Bottle 10
3 Gasket Ring for Oxygen Filling Facility (big, middle, small) Set 15
4 Heating Crucible PC 60
5 Oxygen bomb gasket ring (big, middle, small) Set 15
6 Plastic insulation cover Set 5
7 Special Oxygen filling pipe PC 2
8 Electrodes Set 1

Compare Models

Model Calorimeter type Temperature range Measurement range Operation Mode Temperature resolution Precision Testing time Power Power supply Dimension Weight
LABC-A10 Isoperibol 5 to 40°C 5 to 40 MJ/ kg The outer barrel temperature is constant 0.0001°C RSD ≤0.1 % 8 min ≤1.5 kW 220 V, 50/60 Hz 540 × 420 × 420 mm 45 kg
LABC-A11 Isoperibol 5 to 40°C 5 to 40 MJ/ kg A. Outer barrel temperature follows room temperature change mode Or B. Outer barrel temperature constant mode 0.0001°C RSD ≤0.1 % 8 min ≤1.5 kW 220 V, 50/60 Hz 630 × 420 × 450 mm 55 kg
LABC-B10 Isoperibol - - - 0.0001 K - - - 220 V ±, 15 to 10 %, 50/60 Hz Main body: 440 × 550 × 460 mm Water Tank: 390 × 550 × 440 mm 50 kg
LABC-B11 Isoperibol - - - 0.0001 K - - - 220 V ±, 15 to 10 %, 50/60 Hz Main body: 600 × 417 × 908 mm 106 kg
