Automatic Bomb Calorimeter LABC-C10

Name: Automatic Bomb Calorimeter LABC-C10
Brand: Labtron
SKU: LABC-C10
Rating: 4.9 (779 reviews)

Automatic Bomb Calorimeter LABC-C10 offers a heat capacity of 50,000 J/K and ensures accurate calibration using a reference calorific value for every 1°C increase. Equipped with a built-in cooling system, it supports continuous experiments lasting over 72 hours. The system automatically adjusts the temperature, maintaining the inner cylinder 1K higher at the endpoint. Our automatic bomb calorimeter is Ideal for measuring the calorific value of solid or liquid combustibles such as coal, coke, petroleum, and cement.

Automatic Bomb Calorimeter LABC-C10(Front View)

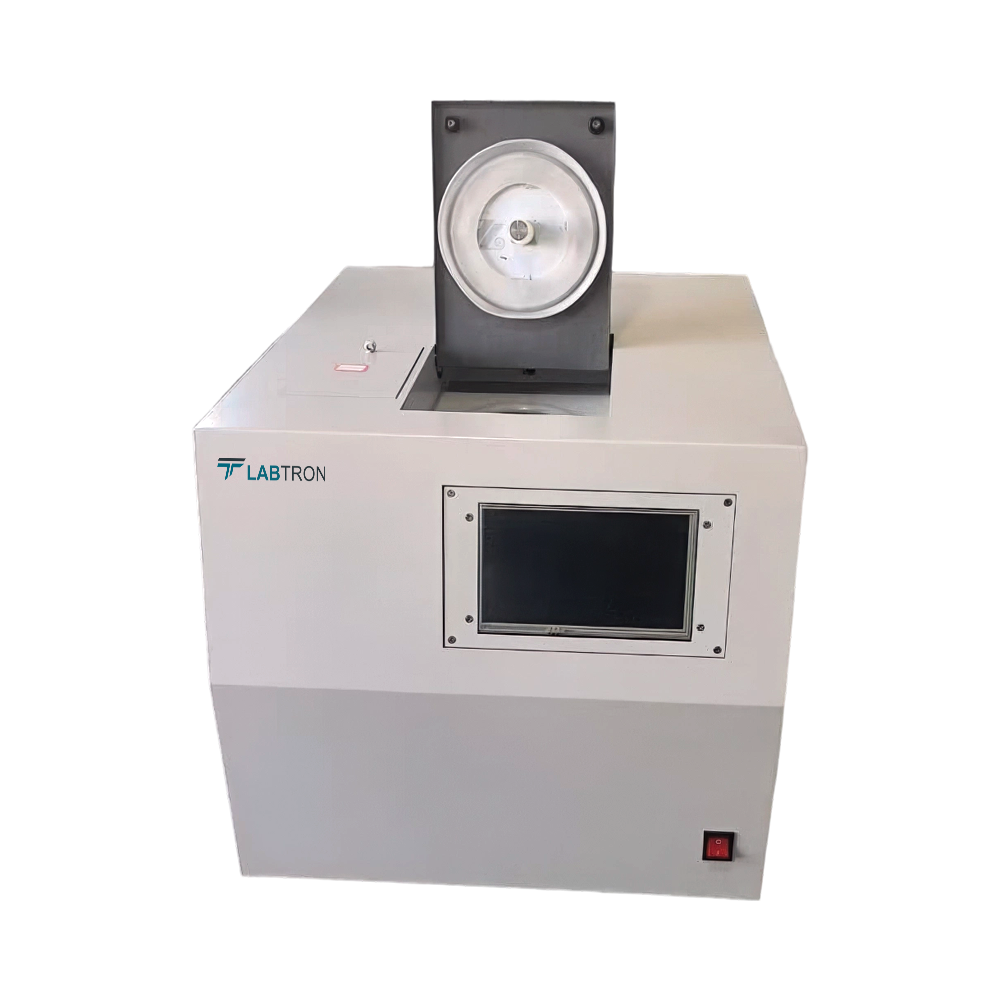

Automatic Bomb Calorimeter LABC-C10(Open Lid)

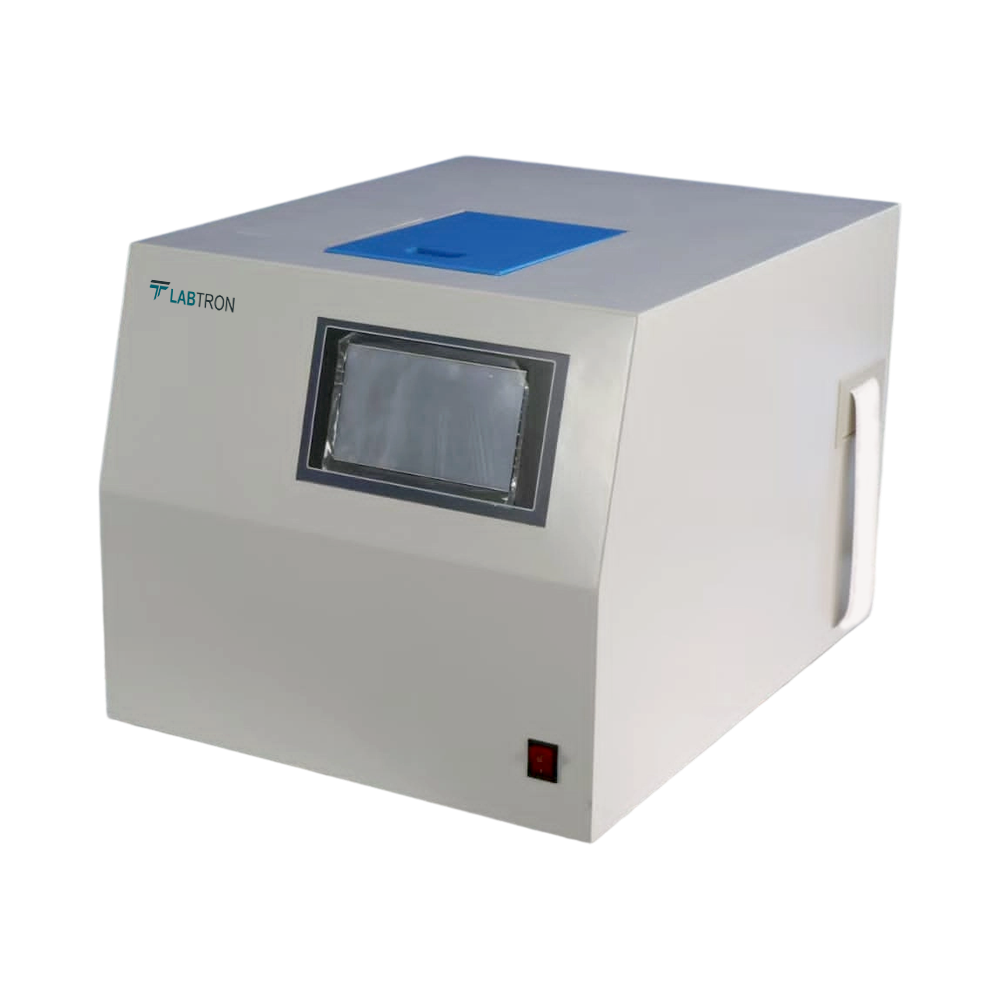

Automatic Bomb Calorimeter LABC-C10(Side View)

Request Quote

Heat Capacity	50,000 J/K
External Water Tank Capacity	40 L
Inner Water Tank Capacity	2.1 L
Test Method	Calibration with benzoic acid
Temperature Range	0 to 40 °C
Temperature Resolution	0.0001 K
Accuracy	±0.1K
Precision	≤ 0.1%
Power Consumption	≤ 100 W
Power	AC 220V, 50Hz
Single Calorie Measurement Time	15 minutes
Dimensions	700 × 730 × 630 mm
Packaging Dimensions	780 × 750 × 620 mm
Net Weight	58 kg
Gross Weight	65 kg

Automated operation
Sample weighing
Water quantification
Ignition & test completion
Temperature control
Inner/outer cylinder regulation
Compressor cooling & heating
Oxygenation system
special heating device

Automatic Bomb Calorimeter LABC-C10 is widely used for measuring the calorific value of coal, coke, petroleum, cement, brick, and other solid or liquid combustibles across various industries, including power, coal, metallurgy, petrochemicals, quality inspection, environmental protection, cement, papermaking, geological exploration, and scientific research.

Download catalog for
Automatic Bomb Calorimeter LABC-C10 Catalog

Available Range :

Automatic Bomb Calorimeter LABC-C10 : 50,000 J/K Automatic Bomb Calorimeter LABC-A12 : 9000 to 11000 J/K

Models of Automatic Bomb Calorimeter

Labtron Automatic Bomb Calorimeter features a semi-conductor water refrigeration system, ensuring efficient and reliable cooling performance. These are equipped with auto-stop and auto-draining joints, providing convenience and safety during operation. Their high-efficiency magnetic churning mechanism enhances mixing performance for precise results. They are integrated electronic measuring cups that allow accurate liquid measurements for improved accuracy. Our automatic bomb calorimeter features helix tube multipoint isothermal technology, ensuring enhanced thermal stability for precise and accurate readings.
