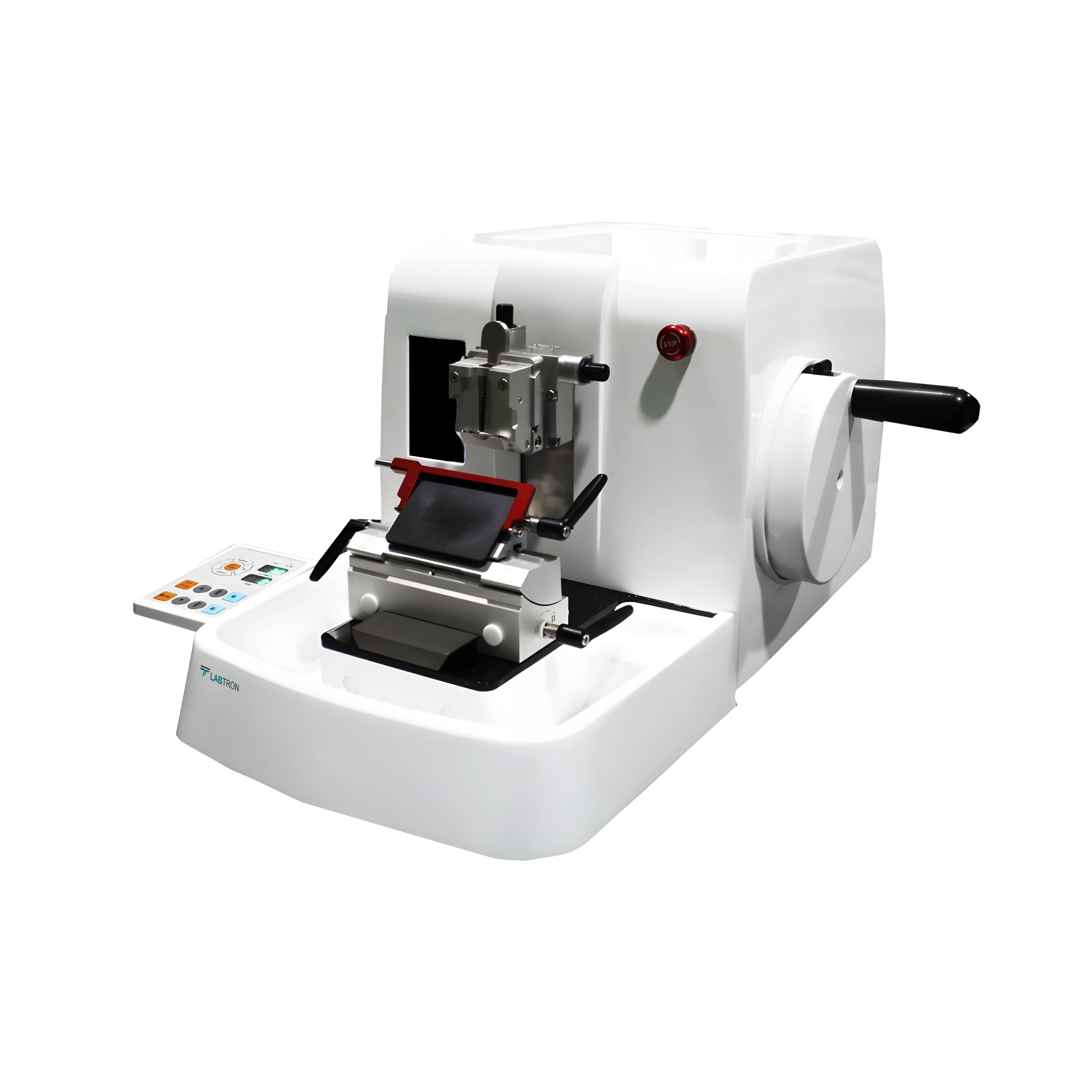

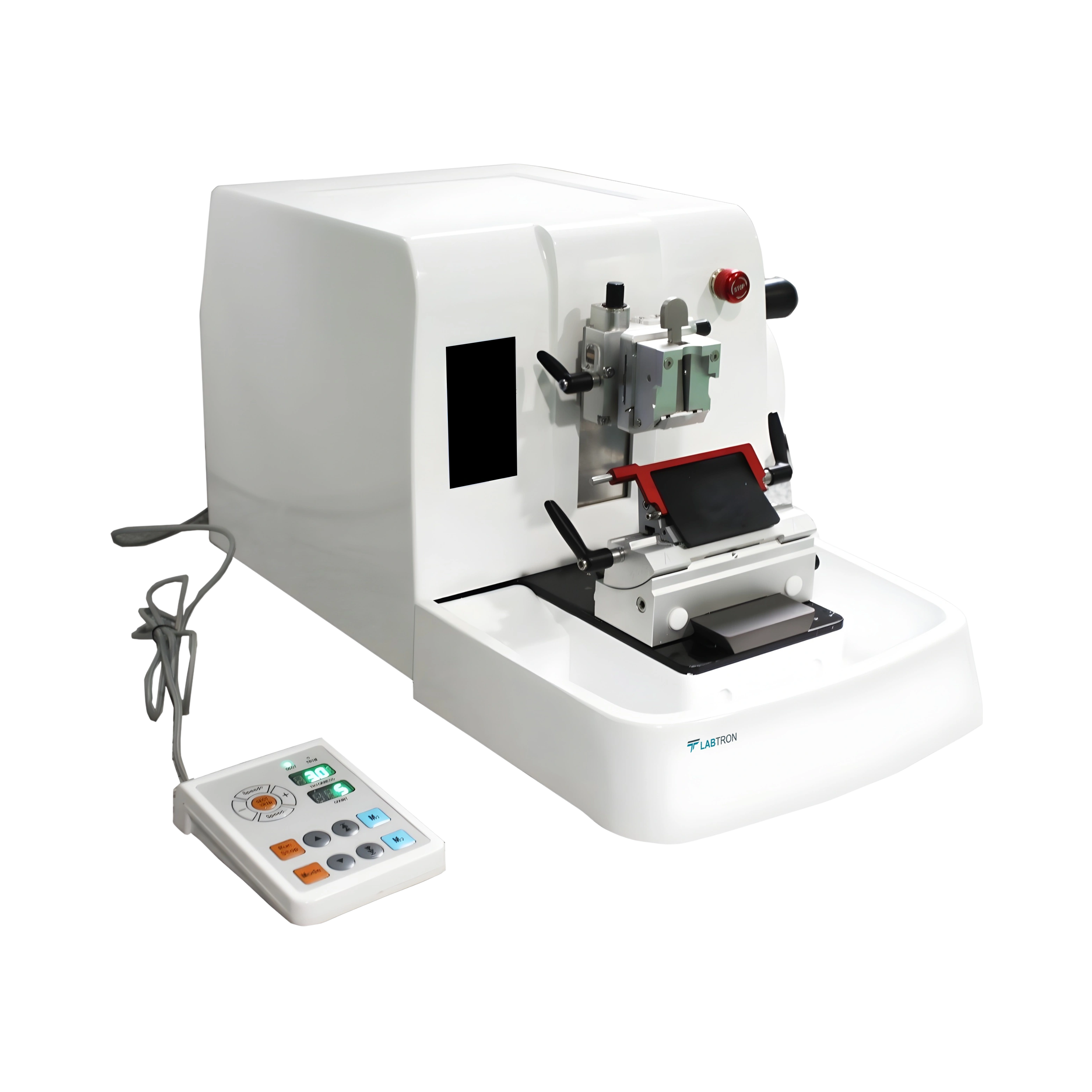

Automatic Microtome LAM-A12

Name: Automatic Microtome LAM-A12
Brand: Labtron
SKU: LAM-A12
Rating: 5 (698 reviews)

Automatic Microtome LAM-A12 designed with a slice thickness range of 0.5 µm to 200 µm for precise sectioning. It features a knife holder angle of 0 to 15° for flexible and accurate cutting adjustments. Equipped with fully automatic continuous sectioning and a 4.3-inch touch screen design it provides smooth workflow and intuitive operation. Automatic Microtome incorporates a cross-ball double guide rail design that ensures a solid structure and stable performance.

Request Quote

Slice thickness	0.5 µm to 200 µm
Trimming Thickness Range	0 µm to 800 µm
Specimen Horizontal Stroke	30 mm
Specimen Vertical Stroke	70 mm
Section Thickness Setting Range (0.5 to 200 µm)	0.5 to 5 µm increment 0.5 µm 5 to 20 µm increment 1 µm 20 to 60 µm increment 5 µm 100 to 200 µm increment 20 µm
Trimming Thickness Range (0 to 800 µm)	0 to 10 µm increment 1 µm 10 to 20 µm increment 2 µm 20 to 50 µm increment 5 µm 50 to 100 µm increment 10 µm 100 to 800 µm increment 50 µm
Sample Retraction	0 µm to 250 µm
Maximum Slice Section	55 × 45 mm
Slip Precision	±5%
Knife Holder Angle	0 to 15°
Power Consumption	150 W
Power Supply	AC 220 V ± 10%, 50 Hz
Dimension	305 × 450 × 600 mm
Packaging Dimension	480 × 510 × 570 mm
Net Weight	36 kg
Gross Weight	46 Kg

Simple operation
Auto sectioning
Position memory
Low vibration
Safety cutting
Easy cleaning

Automatic Microtome LAM-A12 is widely used for preparing high-precision tissue sections required in histology, pathology diagnostics, biomedical research, and routine laboratory analysis, ensuring consistent results for various sample types.

Disposable Blade Holder
External keypad
Fuse
Power line
Hexagonal Wrench
Brush

Paraffin Wax Holder or Cassette Holder
Microtome Blade

Download catalog for
Automatic Microtome LAM-A12 Catalog

Models of Automatic Microtome

Labtron manufactures a wide range of automatic microtomes with section thicknesses ranging from 0 to 100µm. They include a specimen retraction feature to minimize wear on consumables. The adjustable hand-wheel balance is equipped for the safe and controlled slicing of specimens. Large, easy-to-clean waste trays are fitted to maintain an efficient and tidy workspace. Our models also come with intuitive control panels, for easy operations. With the ability to produce high-quality sections consistently, our automatic microtomes are essential tools in histology, pathology, and research applications.
