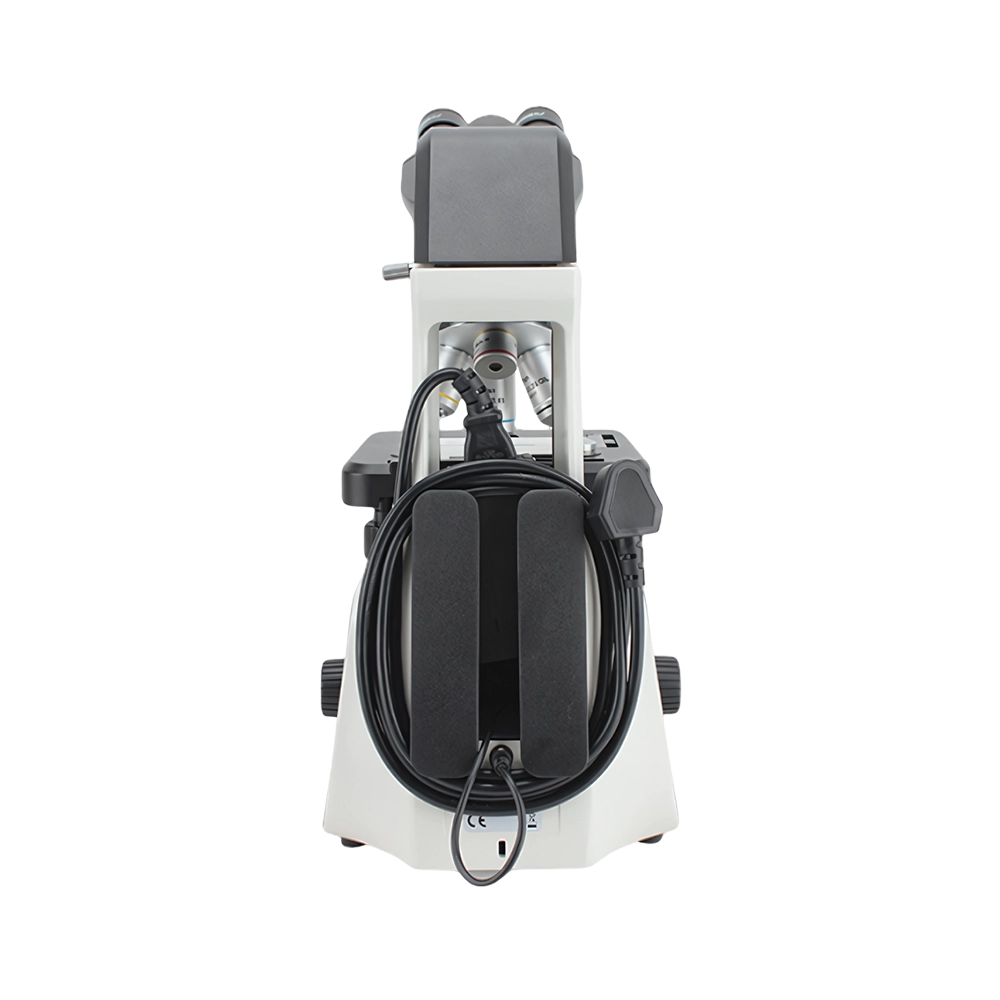

Biological Microscope LBM-G12

Name: Biological Microscope LBM-G12
Brand: Labtron
SKU: LBM-G12
Rating: 4.9 (939 reviews)

Biological Microscope LBM-G12 comes with 3W LED illumination and adjustable brightness, providing optimal clarity for specimen observation. It has a 10×/20mm eyepiece and a 20mm wide field of view for inspection. The Seidentopf binocular head is inclined at 30° with an interpupillary range of 47-78mm. The low-position focus knob design ensures comfort and precision with adjustable torque. Ideal for laboratory and educational environments, providing clear and reliable observation.

Request Quote

Optical System	NIS Infinite Optical System
Viewing Head	Seidentopf Binocular Head, 30° inclined, Interpupillary 47-78mm
Eyepiece	WF10×/20mm
Objectives	Infinite plan Achromatic Objectives 4×, 10×, 40× (S), 100× (S, Oil)
Nosepiece	Backward Coded Quadruple Nosepiece
Stage	Rackless Double Layers, 180mm×130mm, Moving Range 74mm to 30mm
Condenser	Abbe Condenser NA1.25 with iris
Focusing	Coaxial Coarse and Fine Adjustment, 37.7mm Coarse Stroke, 0.002mm Fine Division
Illumination	3W LED, Brightness Adjustable
Reliability	Anti-mold Treatment on all optics
Packing Dimensions	380×520×530mm
Gross Weight	8.6kg

High contrast and sharp image
Long LED lifespan of 60,000 hours
Rackless stage design prevents scratches
Adjustable color temperature for accuracy
Coded nosepiece adjusts light intensity
Anti-mold treatment on optics

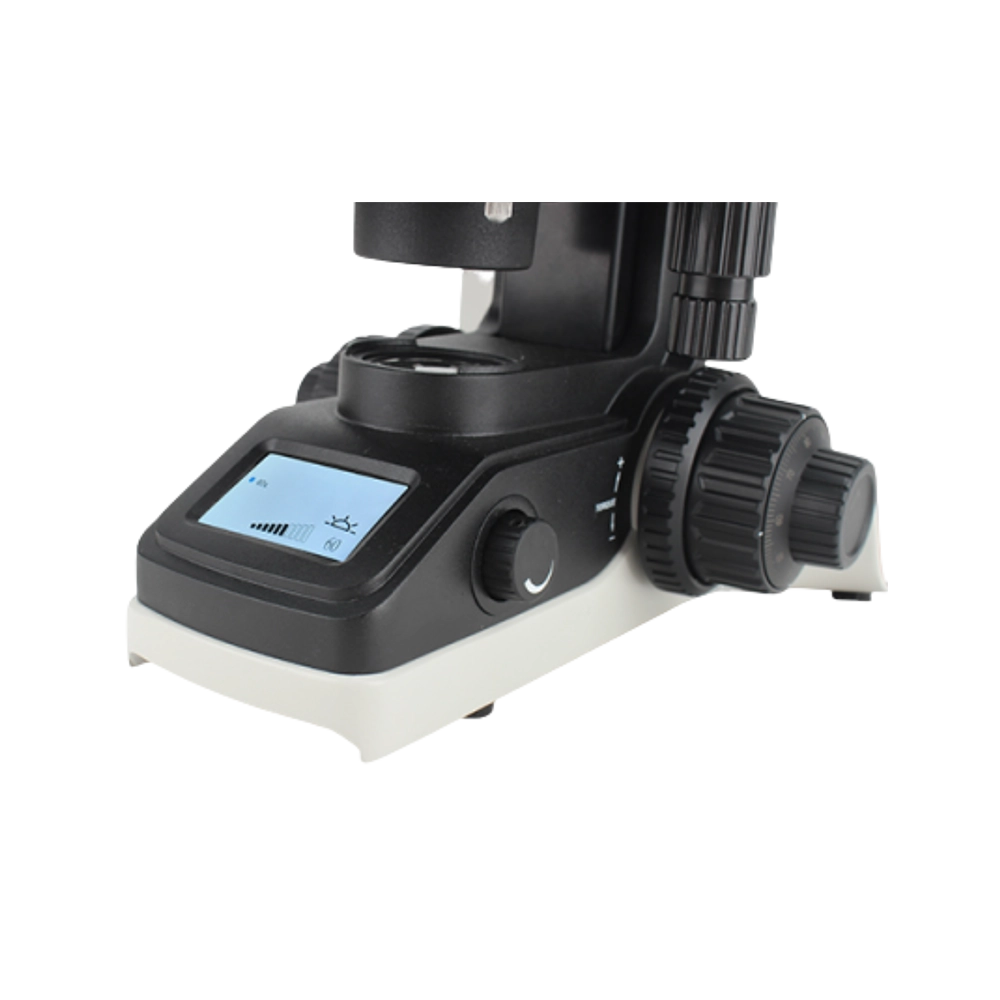

Real-Time Status Display

Our Biological Microscope LBM-G12 is ideal for laboratory and educational use. The high-quality optics and ergonomic design make it perfect for detailed biological specimen observation and demonstrations in classrooms.

Dust Cover
Power Adapter
Green Filter

Download catalog for
Biological Microscope LBM-G12 Catalog

Available Range :

Biological Microscope LBM-E20 : Color corrected infinity optical system Biological Microscope LBM-D10 : Finite Optical System Biological Microscope LBM-G10 : Infinite Color Corrected Optical System Biological Microscope LBM-G11 : Infinite Colour Corrected Optical System Biological microscope LBM-B11 : Infinite optical system Biological Microscope LBM-C20 : Infinity Optical System F=200mm Biological Microscope LBM-G12 : NIS Infinite Optical System

Models of Biological Microscope

Labtron Biological Microscope is specialized for examining small organisms, cells, and tissues. They operate using optical lenses to magnify specimens, allowing for detailed observation. Their stage holds slides securely and provides correct positioning. They feature rotating nosepiece to easily switch between different objective magnifiers. Our Biological Microscope is applicable for education, research, medical diagnostics, and quality control in various laboratory settings.

Biological Microscope LBM-G22

Optical System : Infinite Color Corrected Optical System
Viewing Head : 30° gemel binocular, 360° rotatable, adjustable height 375mm to 428.5mm
Eyepiece : PL10X/22mm, high eye point wide field
Objectives : Infinity Plan Achromatic Objectives: 4×, 10×, 40×, 100×

Compare Remove

Biological Microscope LBM-G10

Optical System : Infinite Color Corrected Optical System
Viewing Head : Siedentop binocular head, 30° inclined, Interpupillary 47-75 mm
Eyepiece : High eyepoint wide field plan eyepiece PL 10×/20 mm with adjustable diopter
Objectives : Infinite plan Achromatic Objectives 4X, 10X, 40X (S), 100X (S, Oil)

Compare Remove

Biological Microscope LBM-B21

Optical System : Infinite optical system
Viewing Head : Trinocular 30° inclined 360° rotation viewing head, interpupillary distance 48 to 75 mm
Eyepiece : Diopter adjustment ± 5, high eye point dia.30 mm WF10X/22 mm
Nosepiece : Backward quintuple nosepiece

Compare Remove

Biological Microscope LBM-B13

Optical System : Infinite Optical System
Viewing head : Compensation free Binocular head, 30° inclined, interpapillary distance 48 to 75 mm
Eyepiece : Wide field eyepiece WF 10X / 22 mm
Nosepiece : Quadruple nosepiece

Compare Remove

Biological microscope LBM-B11

Optical System : Infinite optical system
Viewing Head : Siedentopf Binocular viewing head, Interpupillary distance range 48-75 mm, Inclined at 30º
Eyepiece : Wide Field Eyepiece WF10X/F.N. 22 mm
Nosepiece : Backward quadruple nosepiece

Compare Remove

Biological Microscope LBM-D13

Optical System : Finite Optical System
Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
Magnification : 40X to 1600X
Objectives : Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)

Compare Remove

Biological Microscope LBM-F10

Viewing head : Siedentopf type trinocular head (dual light transform) inclined at 30°, 360° rotation, interpupillary adjustable distance 48 to 76 mm
Optical System : Infinite Optical System
Light distribution : 100: 0 (100% for eyepiece) 80: 20 (80% for trinocular head and 20% for eyepiece)
Eyepiece : WF 10X / 23 mm (adjustable)

Compare Remove

Biological Microscope LBM-E21

Viewing Head : Seidentopf Trinocular Head Inclined 30° , Light Split Switch :E100:P0/E0:P100/E20:P80
Eyepiece : Wide field eyepiece 10x/22 mm ( High eyepoint)
Objectives : Infinity semi-apochromatic fluorescent objectives 4x/0.16, WD=17.15 mm 10x/0.30, WD=7.68 mm 20x/0.50, WD=1.96 mm 40x/0.75, WD=0.78 mm 60x/0.8, WD=0.33 mm 100x/1.30, WD=0.15 mm
Nose-Piece : Sixtuple Nosepiece with DIC slot, Backward

Compare Remove
