How does the rackless steel wire stage improve microscope usability?

The rackless steel wire stage enhances our Biological Microscope’s usability. It offers smooth, precise, and durable specimen movement while minimizing maintenance and operational issues. Its increased durability, precise specimen positioning, reduced maintenance, user-friendly design and enhanced safety make it ideal for routine laboratory usage.

What is the total magnification range of this Biological Microscope?

Our Biological Microscope offers a total magnification range of 40x to 1000x, making it suitable for various laboratory applications. The 40x magnification is ideal for observing larger specimens. Its highest setting, 1000x magnification, enables detailed visualization of microscopic structures.

How is the seidentopf trinocular head beneficial for users?

The seidentopf trinocular head in Labtron’s Biological Microscope offers several benefits for users. It includes a 30° inclined design that reduces strain on neck and eyes during prolonged use. The 360° rotatable head allows easy sharing of observations without moving the entire microscope. Its light split switch and trinocular port enables capturing of image and video while observation.

Is this Biological Microscope suitable for live cell imaging and medical diagnostics?

Yes. Labtron’s biological microscope is well suited for live cell imaging and medical diagnostics. The high magnification range and infinity semi apochromatic Flu objectives, allows enhanced visualization of cellular components, and tissue samples. Its trinocular head and advanced illumination system enables real time observation and image capture and documentation, crucial for live cell imaging and pathology diagnostics.

What is the advantage of kohler illumination that is used in Biological Microscope?

The Kohler illumination provides even and well-distributed light, eliminating shadows and glare, and improves the clarity. Its LED consumes less power (5W) while providing bright and stable illumination. The LED illumination produces low heat, true color rendering provides stable white light and enhances color accuracy in stained samples and histopathology slides. Additionally, the LED does not yellow over time that ensures consistent image quality.

Biological Microscope LBM-E21

Name: Biological Microscope LBM-E21
Brand: Labtron
SKU: LBM-E21
Rating: 4.8 (853 reviews)

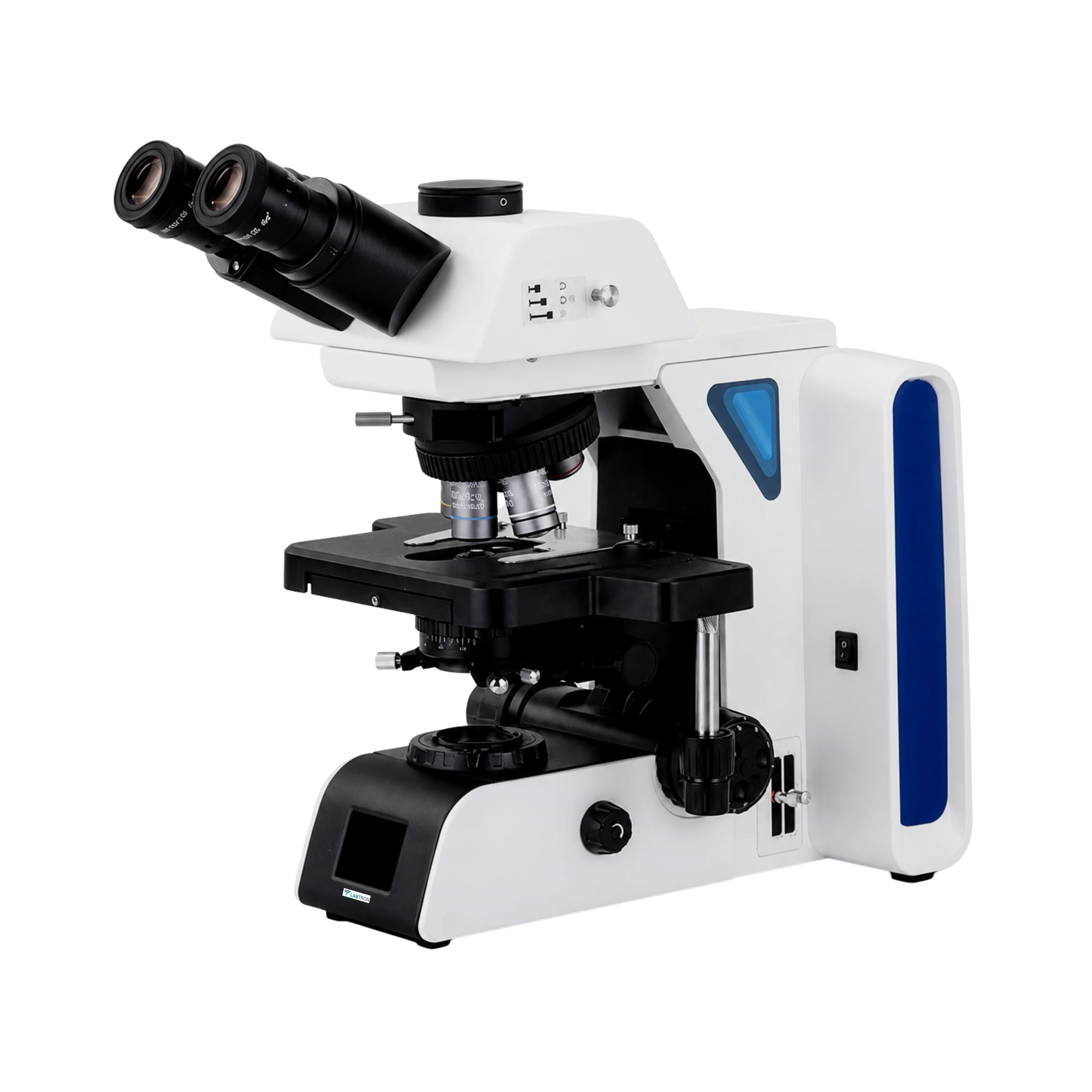

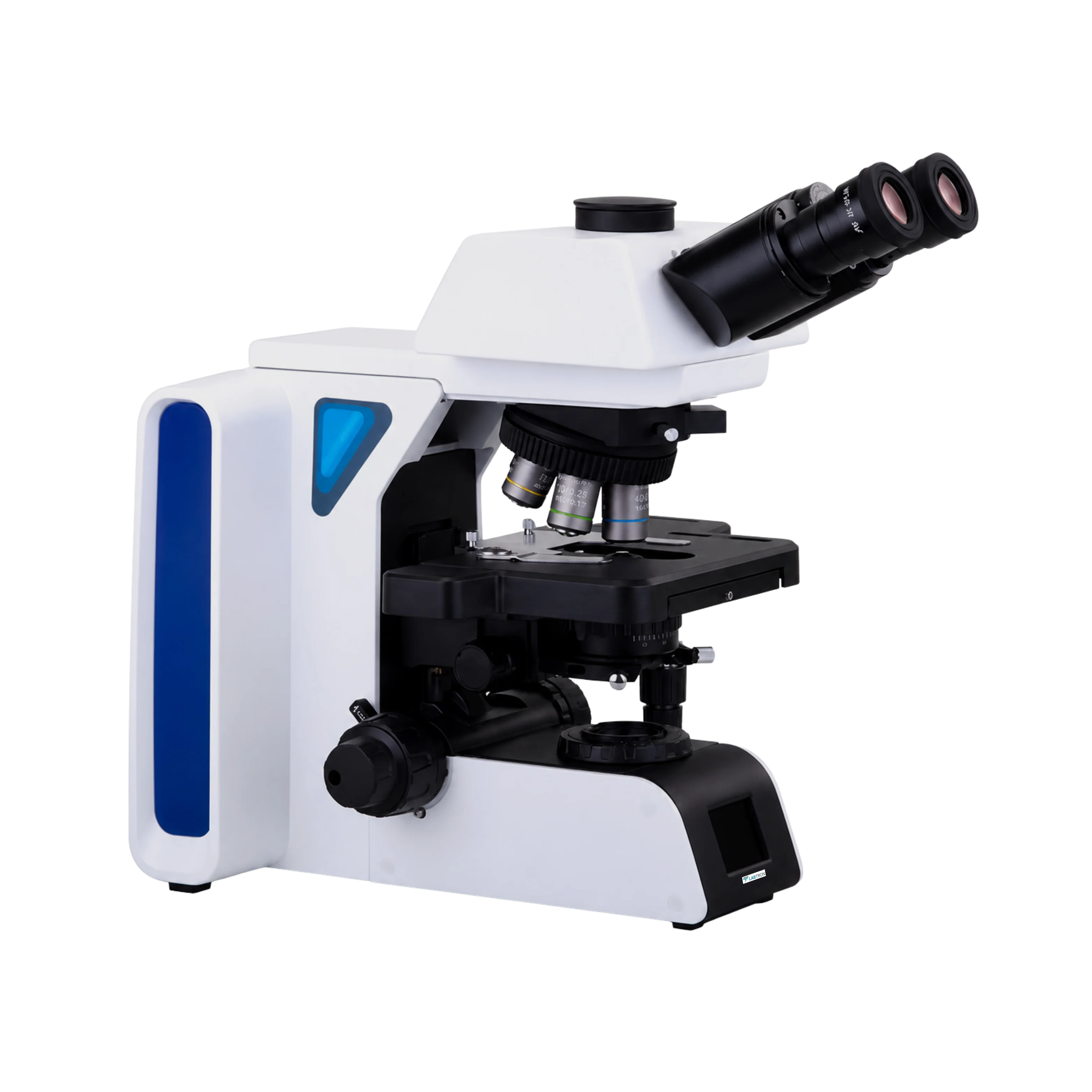

Biological Microscope LBM-E21 features an infinite plan semi-apochromatic optical microscope with a trinocular head inclined at 30°. It provides 6 field magnification levels, ranging from 40x to 1000x. The rackless steel wire stage, offering a moving range of 80 × 52 mm, allows smooth adjustments. Its backward nosepiece design and rotatable head enhance specimen observation. Our biological microscope is ideal for routine microscopic analysis and well-suited for research institutes and academic levels.

Request Quote

Viewing Head	Seidentopf Trinocular Head Inclined 30° , Light Split Switch :E100:P0/E0:P100/E20:P80
Eyepiece	Wide field eyepiece 10x/22 mm ( High eyepoint)
Objectives	Infinity semi-apochromatic fluorescent objectives 4x/0.16, WD=17.15 mm 10x/0.30, WD=7.68 mm 20x/0.50, WD=1.96 mm 40x/0.75, WD=0.78 mm 60x/0.8, WD=0.33 mm 100x/1.30, WD=0.15 mm
Nose-Piece	Sixtuple Nosepiece with DIC slot, Backward
Focusing	Coaxial coarse and Fine focusing, Coarse focusing travel range : 30 mm, Fine focusing Div.0.001 mm
Condenser	Swing-out Condenser, N.A0.9/0.13, Iris diaphragm
Working Stage	Steel wire stage with rackless, Size 280 × 160 mm, Moving range 80 × 52 mm
Illumination	5W LED, Input Voltage 100 to 240

High-eye point wide field eyepiece
Compact and stable build
Rotatable 360°
Sixtuple nosepiece with DIC slot
Swing-out condenser with iris diaphragm

Our Biological Microscope LBM-E21 is a high-performance optical microscope designed for advanced biological research and laboratory applications. It is an ideal option for medical and diagnostics, microbial analysis, cell biology, pharmaceutical and drug development, and research institutions.

C-Mount 0.5x

Download catalog for
Biological Microscope LBM-E21 Catalog

Available Range :

Models of Biological Microscope

Labtron Biological Microscope is specialized for examining small organisms, cells, and tissues. They operate using optical lenses to magnify specimens, allowing for detailed observation. Their stage holds slides securely and provides correct positioning. They feature rotating nosepiece to easily switch between different objective magnifiers. Our Biological Microscope is applicable for education, research, medical diagnostics, and quality control in various laboratory settings.
