Biological Microscope LBM-G23

Biological Microscope LBM-G23

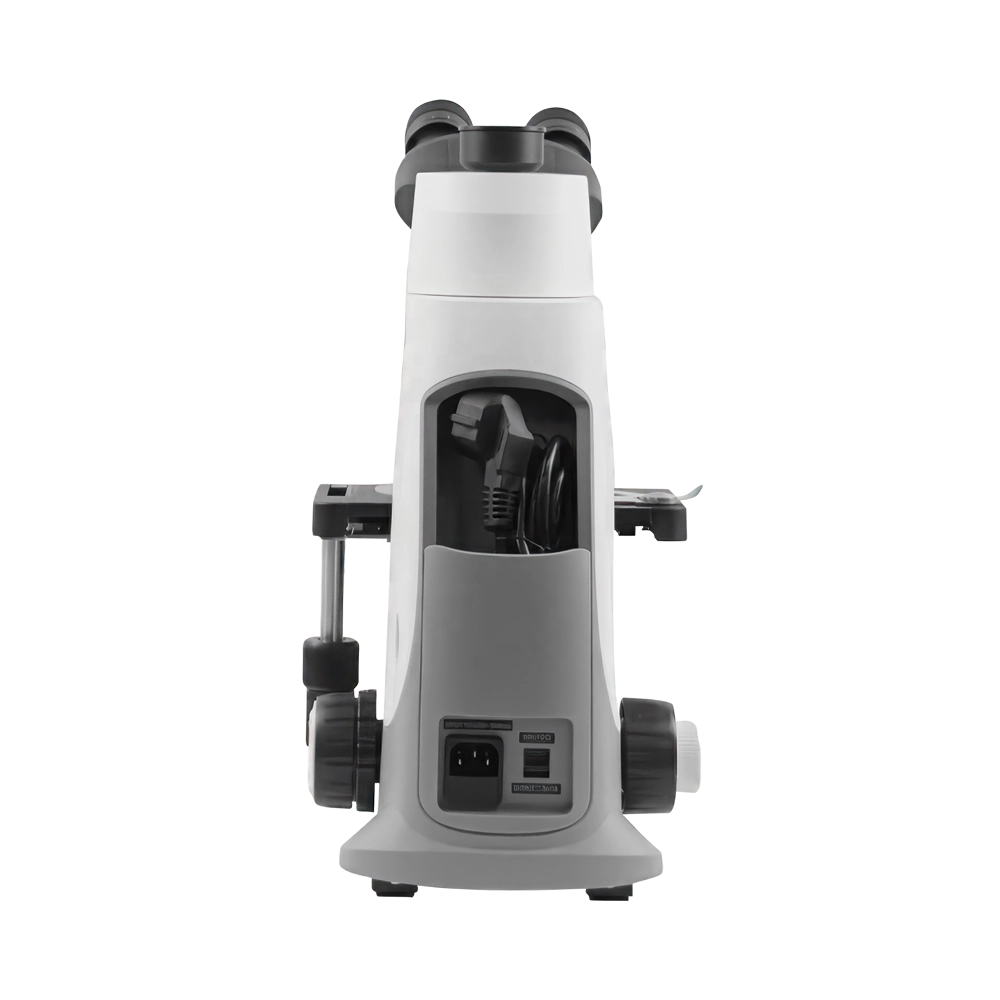

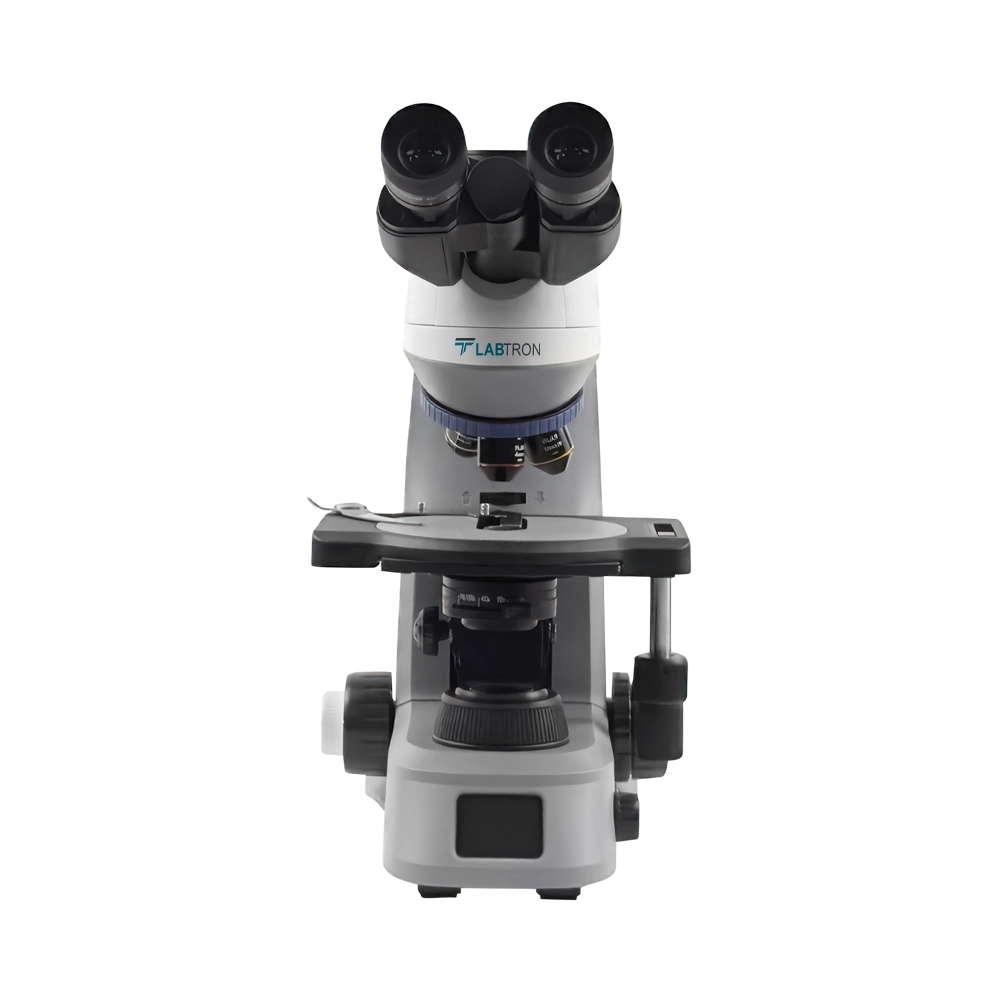

Biological Microscope LBM-G23 is a trinocular microscope with a 50:50 splitting ratio for simultaneous observation. Its N.A. 1.25 Koehler illuminator condenser enhances contrast, making it ideal for phase contrast and dark field applications. LED illumination with color temperature control offers customizable lighting for diverse specimen types. An LCD display monitors illumination settings and color temperature adjustments in real time. This microscope is designed for advanced use in research, diagnostics, and education.

Biological Microscope LBM-G23
Biological Microscope LBM-G23
Biological Microscope LBM-G23
Biological Microscope LBM-G23
Biological Microscope LBM-G23
Request Quote
Optical System Infinite Color Corrected Optical System

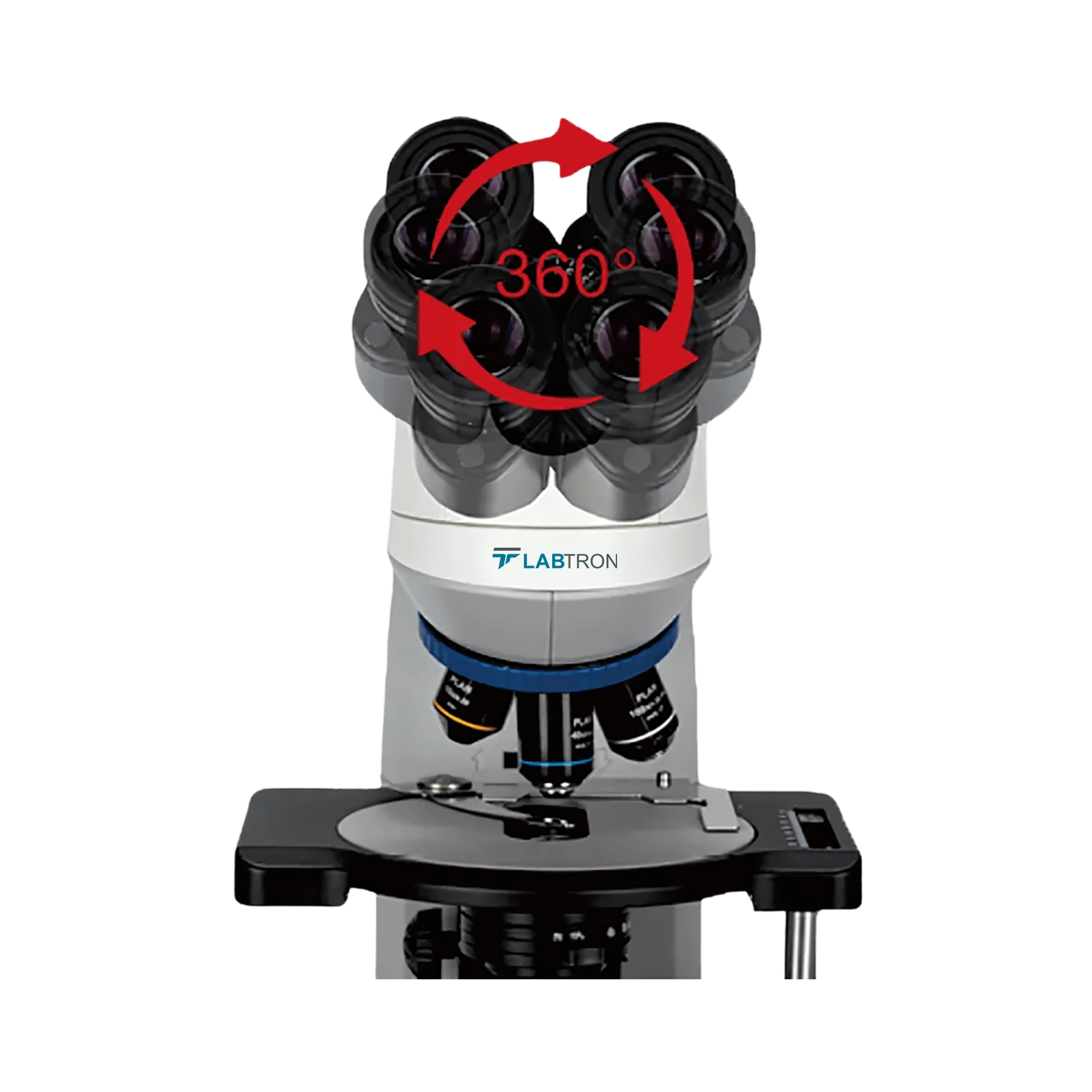

Viewing Head 30° trinocular gemel tube, 360° rotatable, adjustable eye-point: 375mm–428.5mm, fixed eyepiece, Interpupillary Distance 48-76mm, Splitting ratio: 50:50
Eyepiece PL10X/22mm, high eye point wide field
Objectives 4×, 10×, 40×, 100×
Nosepiece Quintuple Nosepiece
Stage Ceramic paint, 210mm × 171mm, precision: 0.1mm (X-axis), moving range: 78mm × 51mm
Condenser N.A. 1.25 Koehler with phase contrast & dark field slot, aperture diaphragm
Focusing Coarse & fine coaxial system, coarse range: 27mm, fine tuning accuracy: 2 μm
Illumination 100V-240V, 3W LED, 4750K-5500K colour temp, Type-C interface, battery option with ECO function
Power Supply 12V 1A built-in transformer, Type-C interface
  • High Contrast Display
  • Adjustable Brightness Control
  • User-friendly and safe design
  • Built-in transformer for easy charging
  • Diopter adjustment for personalized focus
  • Ergonomic design for comfort
  • High-quality optics for clarity

Our Biological Microscope LBM-G23 is designed for research and educational applications that require a trinocular viewing head for both visual and digital observation. Its advanced optics and imaging capabilities make it perfect for detailed specimen analysis.

  • Internal hexagonal Spanner M4

Download catalog for
Biological Microscope LBM-G23 Catalog

Available Range :

Biological Microscope LBM-E20 : Color corrected infinity optical system Biological Microscope LBM-D10 : Finite Optical System Biological Microscope LBM-G10 : Infinite Color Corrected Optical System Biological Microscope LBM-G11 : Infinite Colour Corrected Optical System Biological microscope LBM-B11 : Infinite optical system Biological Microscope LBM-C20 : Infinity Optical System F=200mm Biological Microscope LBM-G12 : NIS Infinite Optical System

Models of Biological Microscope

Labtron Biological Microscope is specialized for examining small organisms, cells, and tissues. They operate using optical lenses to magnify specimens, allowing for detailed observation. Their stage holds slides securely and provides correct positioning. They feature rotating nosepiece to easily switch between different objective magnifiers. Our Biological Microscope is applicable for education, research, medical diagnostics, and quality control in various laboratory settings.

Biological Microscope LBM-G21

Biological Microscope LBM-G21
  • Optical System : Infinite Color Corrected Optical System
  • Viewing Head : 30° gemel trinocular tube, 360° rotatable, Fixed Eyepiece Tube, Interpupillary Distance 48-76mm, Splitting ratio: 50:50
  • Eyepiece : High eye point wide field plan eyepiece PL10X/22mm
  • Objective : Infinity Plan Achromatic Objectives: 4×, 10×, 40×, 100×
Biological microscope LBM-A10

Biological microscope LBM-A10
  • Optical System : Finite Optical System
  • Viewing Head : Sliding type binocular head, inclined at 45º
  • Eyepiece : WF10X
  • Nosepiece : Quadruple, click-stop
Biological Microscope LBM-D13

Biological Microscope LBM-D13
  • Optical System : Finite Optical System
  • Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
  • Objectives : Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological microscope LBM-B11
Biological microscope LBM-B11
  • Optical System : Infinite optical system
  • Viewing Head : Siedentopf Binocular viewing head, Interpupillary distance range 48-75 mm, Inclined at 30º
  • Eyepiece : Wide Field Eyepiece WF10X/F.N. 22 mm
  • Nosepiece : Backward quadruple nosepiece
Biological Microscope LBM-G22
Biological Microscope LBM-G22
  • Optical System : Infinite Color Corrected Optical System
  • Viewing Head : 30° gemel binocular, 360° rotatable, adjustable height 375mm to 428.5mm
  • Eyepiece : PL10X/22mm, high eye point wide field
  • Objectives : Infinity Plan Achromatic Objectives: 4×, 10×, 40×, 100×
Biological Microscope LBM-D12

Biological Microscope LBM-D12
  • Optical System : Finite Optical System
  • Viewing Head : Trinocular viewing head, 30° inclined 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
  • Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological Microscope LBM-G10

Biological Microscope LBM-G10
  • Optical System : Infinite Color Corrected Optical System
  • Viewing Head : Siedentop binocular head, 30° inclined, Interpupillary 47-75 mm
  • Eyepiece : High eyepoint wide field plan eyepiece PL 10×/20 mm with adjustable diopter
  • Objectives : Infinite plan Achromatic Objectives 4X, 10X, 40X (S), 100X (S, Oil)
Biological Microscope LBM-F22

Biological Microscope LBM-F22
  • Optical System : Finite optical system
  • Magnification Range : 40X to 1000X
  • Viewing Head : Compensation Free trinocular Head, 30° inclined, 360° swiveling, interpupillary 55 to 75 mm
  • Nosepiece : Quadruple revolving nosepiece

Biological Microscope:
Biological Microscope LBM-G21, Biological microscope LBM-A10, Biological Microscope LBM-D13, Biological microscope LBM-B11, Biological Microscope LBM-G22, Biological Microscope LBM-D12, Biological Microscope LBM-G10, Biological Microscope LBM-F22, and more.
