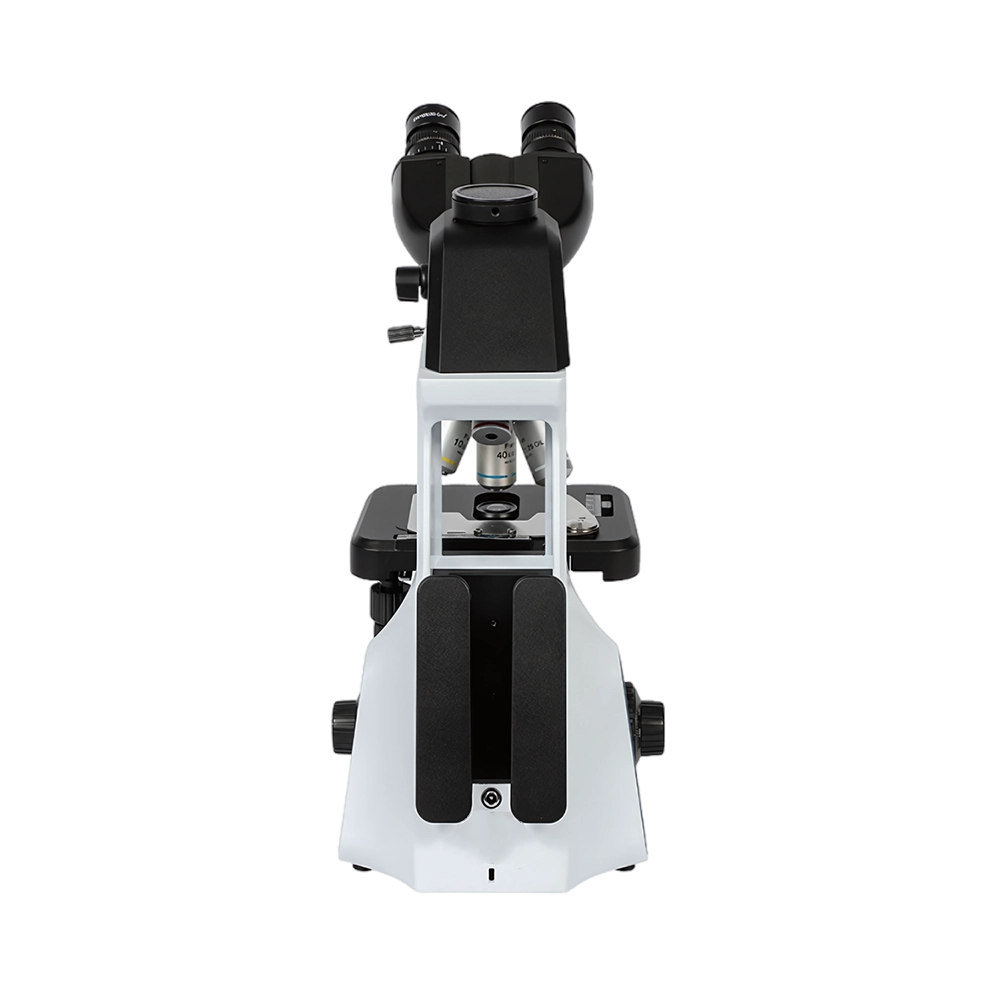

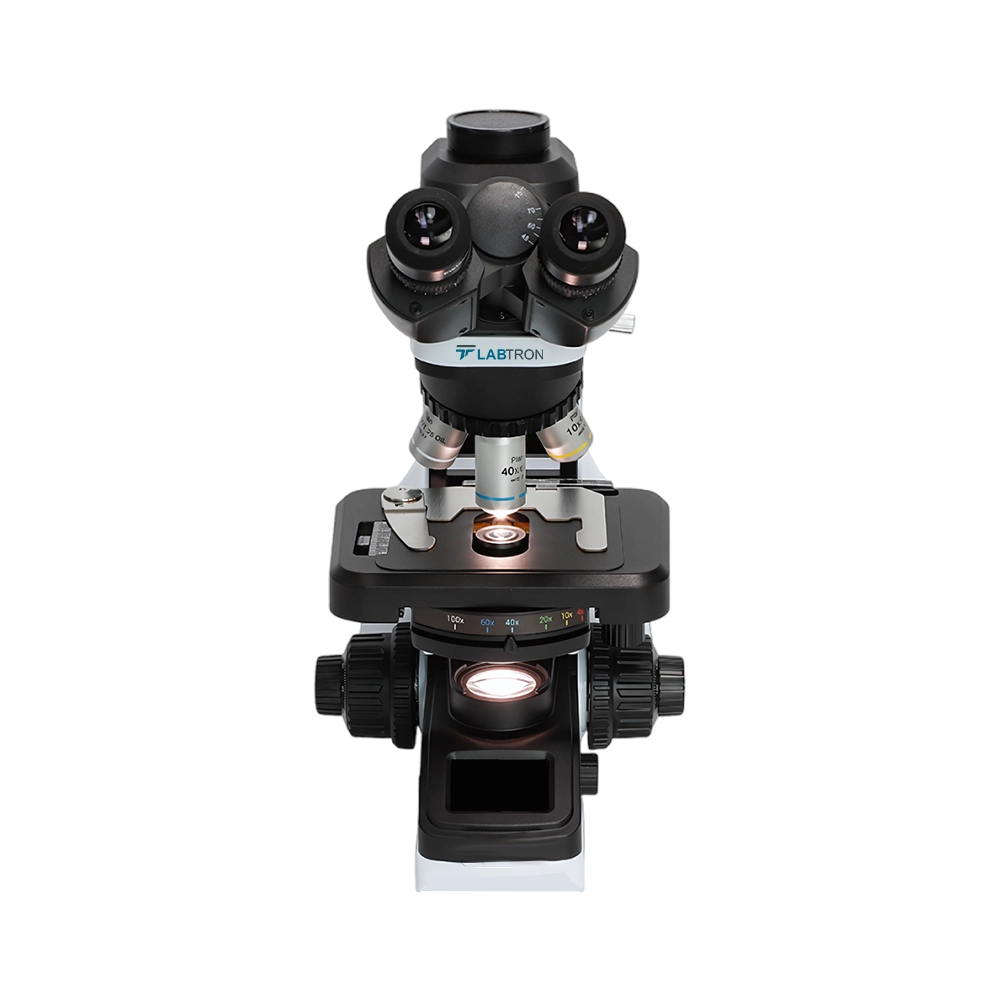

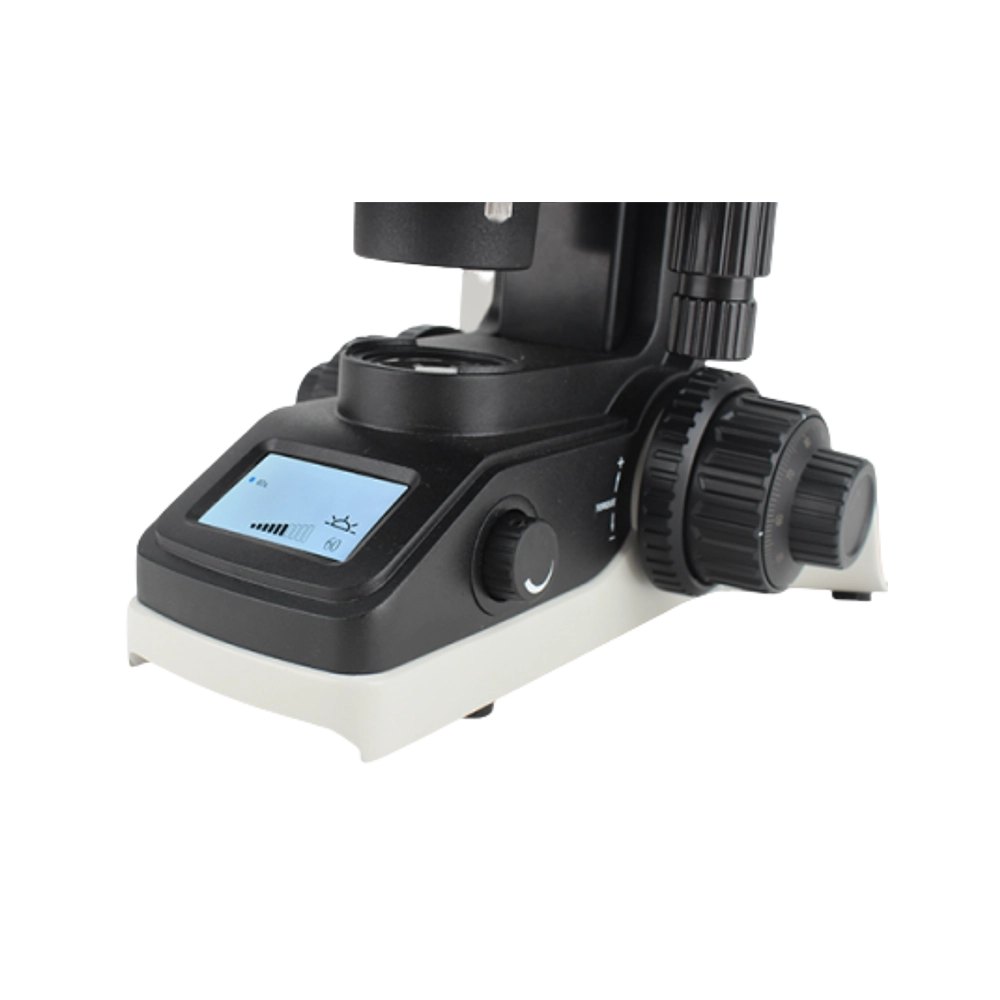

Biological Microscope LBM-G13

Name: Biological Microscope LBM-G13
Brand: Labtron
SKU: LBM-G13
Rating: 4.8 (745 reviews)

Biological Microscope LBM-G13 features a trinocular head with a 30° incline for comfortable viewing and camera integration. Its rackless double-layer mechanical stage, measuring 180mm by 130mm, ensures smoot specimen movement. A backward-coded quadruple nosepiece allows quick and secure objective switching. Anti-mold treatment guarantees reliable performance in humid environments, maintaining optics quality. It delivers clear, detailed observations and is perfect for laboratory, clinical, and research applications.

Request Quote

Optical System	NIS Infinite Optical System
Viewing Head	Seidentopf Trinocular Head, 30° inclined, Interpupillary 47-78mm
Eyepiece	WF10×/20mm
Objective	Infinite plan Achromatic Objectives 4×, 10×, 40× (S), 100× (S, Oil)
Nosepiece	Backward Coded Quadruple Nosepiece
Stage	Rackless Double Layers, 180mm×130mm, Moving Range 74mm to 30mm
Condenser	Abbe Condenser NA1.25 with iris
Focusing	Coaxial Coarse and Fine Adjustment, 37.7mm Coarse Stroke, 0.002mm Fine Division
Illumination	3W LED, Brightness Adjustable
Other Accessories	Dust Cover, Power Adapter, Green Filter
Reliability	Anti-mold Treatment on all optics
Packing Dimensions	380×520×530mm
Gross Weight	8.6kg

NIS optical system enhances clarity
Long-lasting 3W LED illumination
Built-in handle for easy transport
Safety features with height limit lock
Anti-glare eyepiece design included
Large moving range for positioning
Stable power supply ensures reliability

Our Biological Microscope LBM-G13 is perfect for clinical diagnostics, educational settings, and research laboratories. Its ergonomic design and advanced optical features ensure clear, accurate observations for a variety of applications.

Dust Cover
Power Adapter
Green Filter

Download catalog for
Biological Microscope LBM-G13 Catalog

Available Range :

Biological Microscope LBM-E20 : Color corrected infinity optical system Biological Microscope LBM-D10 : Finite Optical System Biological Microscope LBM-G10 : Infinite Color Corrected Optical System Biological Microscope LBM-G11 : Infinite Colour Corrected Optical System Biological microscope LBM-B11 : Infinite optical system Biological Microscope LBM-C20 : Infinity Optical System F=200mm Biological Microscope LBM-G12 : NIS Infinite Optical System

Models of Biological Microscope

Labtron Biological Microscope is specialized for examining small organisms, cells, and tissues. They operate using optical lenses to magnify specimens, allowing for detailed observation. Their stage holds slides securely and provides correct positioning. They feature rotating nosepiece to easily switch between different objective magnifiers. Our Biological Microscope is applicable for education, research, medical diagnostics, and quality control in various laboratory settings.

Biological Microscope LBM-D12

Optical System : Finite Optical System
Viewing Head : Trinocular viewing head, 30° inclined 360° rotation, interpupillary distance 48 to 75 mm
Magnification : 40X to 1600X
Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)

Compare Remove

Biological Microscope LBM-D11

Optical System : Finite Optical System
Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
Magnification : 40X to 1600X
Objectives : Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)

Compare Remove

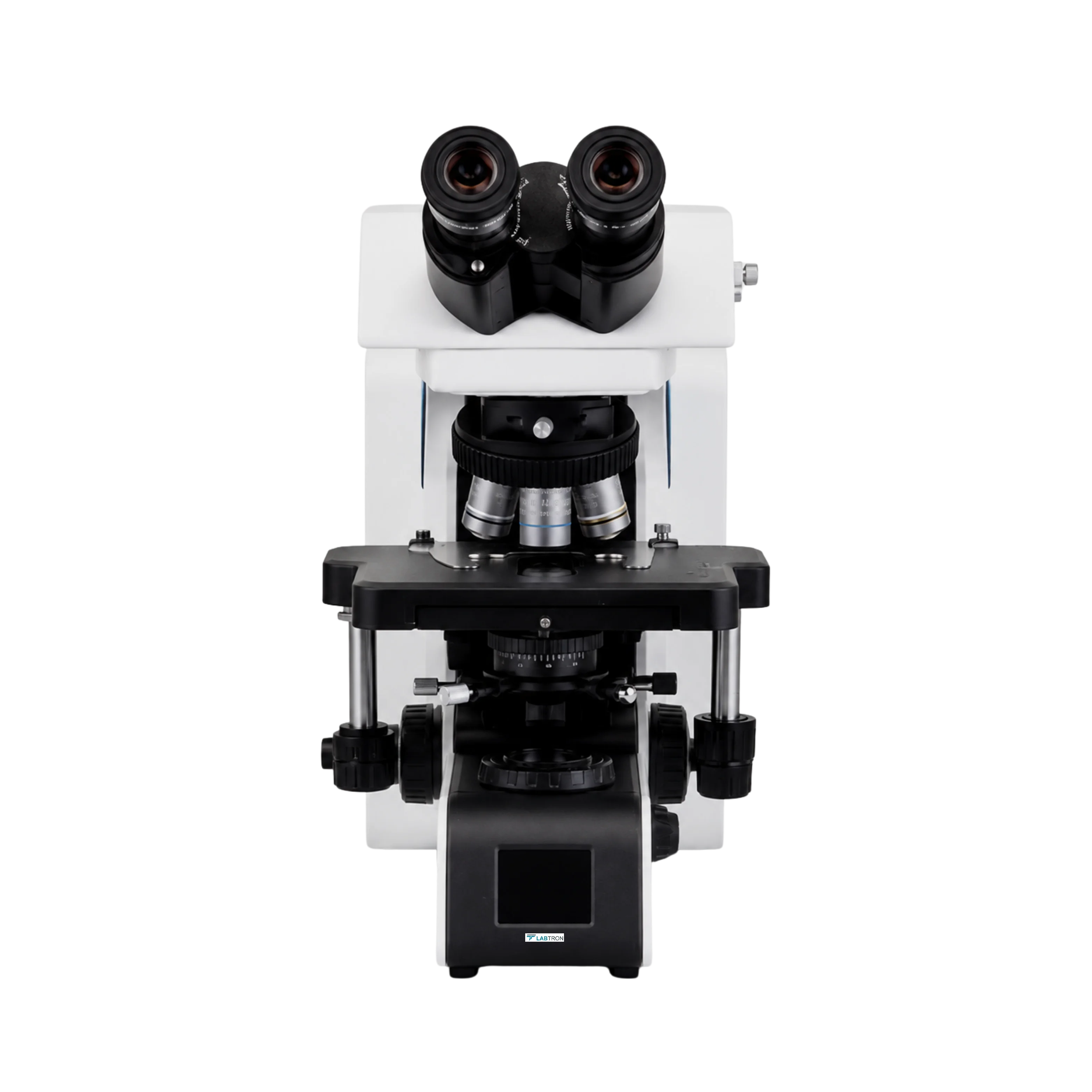

Biological Microscope LBM-E21

Viewing Head : Seidentopf Trinocular Head Inclined 30° , Light Split Switch :E100:P0/E0:P100/E20:P80
Eyepiece : Wide field eyepiece 10x/22 mm ( High eyepoint)
Objectives : Infinity semi-apochromatic fluorescent objectives 4x/0.16, WD=17.15 mm 10x/0.30, WD=7.68 mm 20x/0.50, WD=1.96 mm 40x/0.75, WD=0.78 mm 60x/0.8, WD=0.33 mm 100x/1.30, WD=0.15 mm
Nose-Piece : Sixtuple Nosepiece with DIC slot, Backward

Compare Remove

Biological Microscope LBM-G10

Optical System : Infinite Color Corrected Optical System
Viewing Head : Siedentop binocular head, 30° inclined, Interpupillary 47-75 mm
Eyepiece : High eyepoint wide field plan eyepiece PL 10×/20 mm with adjustable diopter
Objectives : Infinite plan Achromatic Objectives 4X, 10X, 40X (S), 100X (S, Oil)

Compare Remove

Biological Microscope LBM-D14

Optical System : Finite Optical System
Viewing Head : Monocular viewing head, 45° inclined, 360° rotation
Magnification : 40X to 1600X
Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)

Compare Remove

Biological Microscope LBM-E20

Optical system : Color corrected infinity optical system
Viewing head : Gemel trinocular head, 30° inclined, Inverted Image, Interpupillary Distance 50 to 76 mm, Three Split Ratio 0:100, 20:80, 100:0
Eyepiece : High-Eye point Plan Eyepiece PL10X/25 mm, Diopter Adjustable
Nosepiece : Bright Field Sextuple Nosepiece, With DIC Slot

Compare Remove

Biological Microscope LBM-F10

Viewing head : Siedentopf type trinocular head (dual light transform) inclined at 30°, 360° rotation, interpupillary adjustable distance 48 to 76 mm
Optical System : Infinite Optical System
Light distribution : 100: 0 (100% for eyepiece) 80: 20 (80% for trinocular head and 20% for eyepiece)
Eyepiece : WF 10X / 23 mm (adjustable)

Compare Remove

Biological Microscope LBM-G12

Optical System : NIS Infinite Optical System
Viewing Head : Seidentopf Binocular Head, 30° inclined, Interpupillary 47-78mm
Eyepiece : WF10×/20mm
Objectives : Infinite plan Achromatic Objectives 4×, 10×, 40× (S), 100× (S, Oil)

Compare Remove

Biological Microscope:
Biological Microscope LBM-D12, Biological Microscope LBM-D11, Biological Microscope LBM-E21, Biological Microscope LBM-G10, Biological Microscope LBM-D14, Biological Microscope LBM-E20, Biological Microscope LBM-F10, Biological Microscope LBM-G12, and more.
