Biological Microscope LBM-G21

Name: Biological Microscope LBM-G21
Brand: Labtron
SKU: LBM-G21
Rating: 4.7 (982 reviews)

Biological Microscope LBM-G21 is designed with a 30° gemel trinocular tube, offering a 50:50 splitting ratio for camera attachment. The stage measures 210mm by 171mm with precision movement to support efficient slide handling. Its 3W LED illumination provides a color temperature range of 4750K to 5500K for clear, cool lighting. The quintuple nosepiece allows easy switching between objectives, optimizing workflow. Ideal for advanced imaging applications, such as research and photomicrography.

Request Quote

Optical System	Infinite Color Corrected Optical System

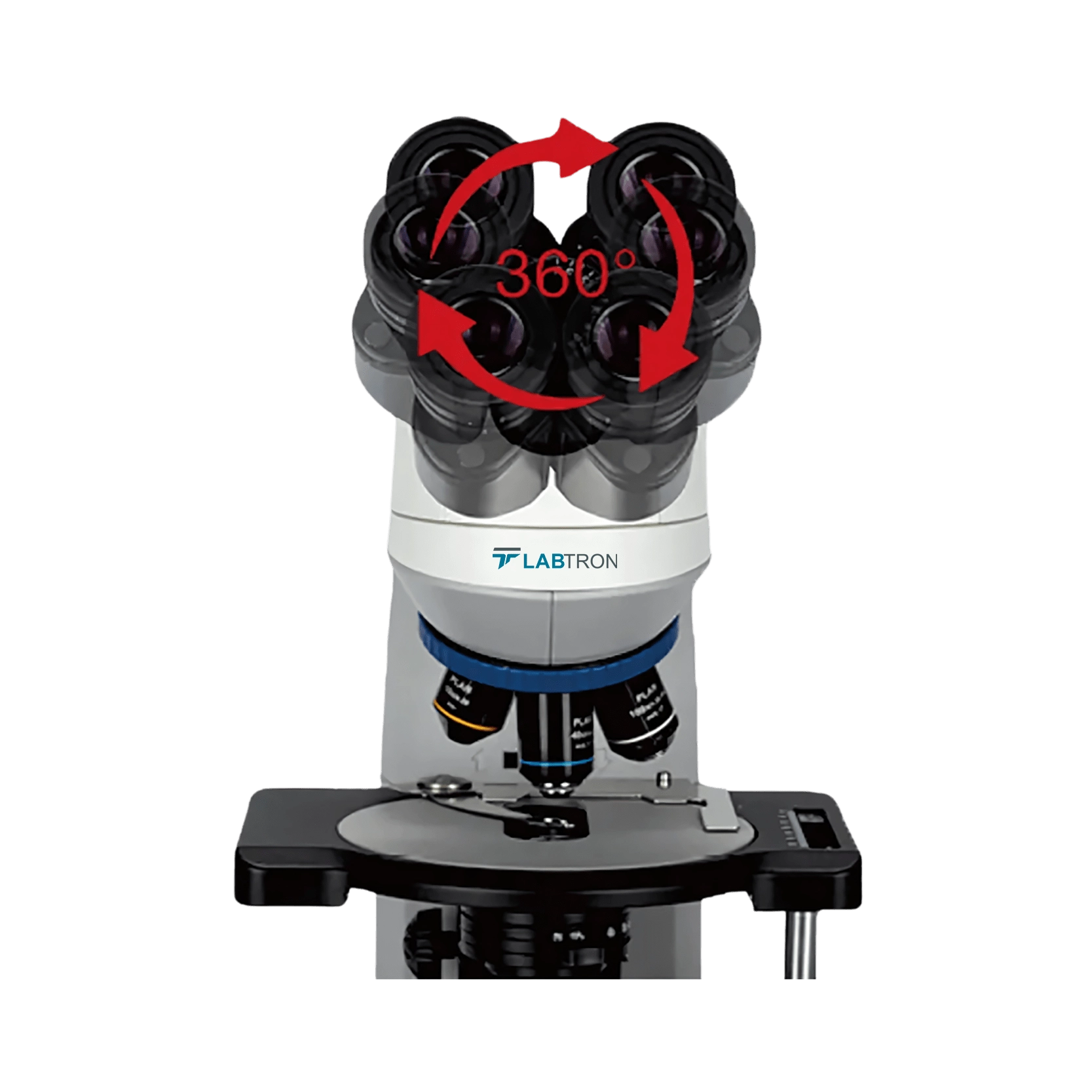

Viewing Head	30° gemel trinocular tube, 360° rotatable, Fixed Eyepiece Tube, Interpupillary Distance 48-76mm, Splitting ratio: 50:50
Eyepiece	High eye point wide field plan eyepiece PL10X/22mm
Objective	Infinity Plan Achromatic Objectives: 4×, 10×, 40×, 100×
Nosepiece	Quintuple Nosepiece
Stage	Double-layer mechanical ceramic paint stage
Condenser	N.A. 1.26 Koehler illuminator condenser
Focusing	Coarse and fine coaxial focus system
Illumination	3W LED with continuous intensity control
Power Supply	100V-240V external transformer, Type-C interface
ECO Function	Built-in ECO function with auto standby after 30 mins of inactivity

Coaxial focus system
Secure carrying handle
Eco energy-saving mode
Concealed locking design
Fluorescent illumination support

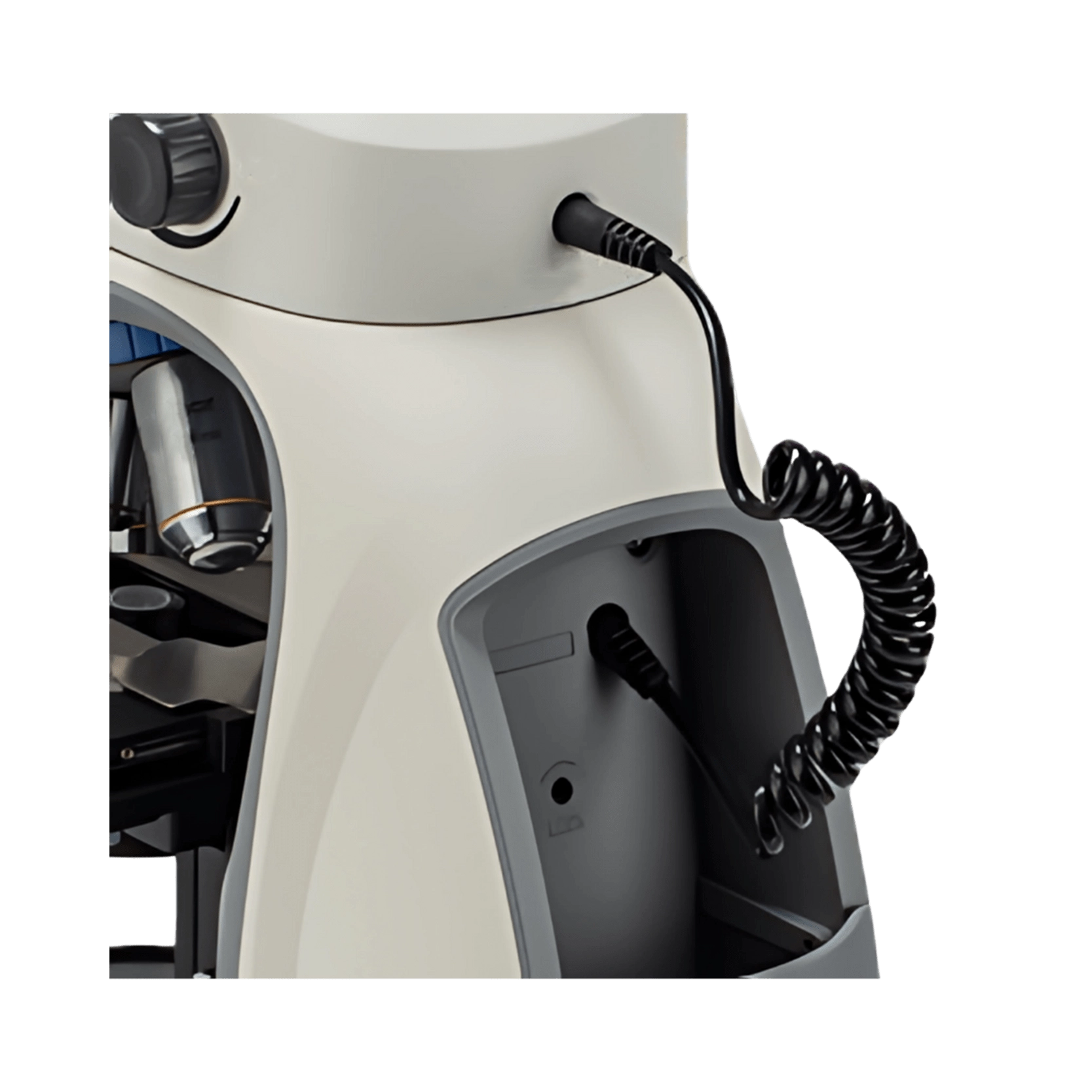

Integrated storage compartment

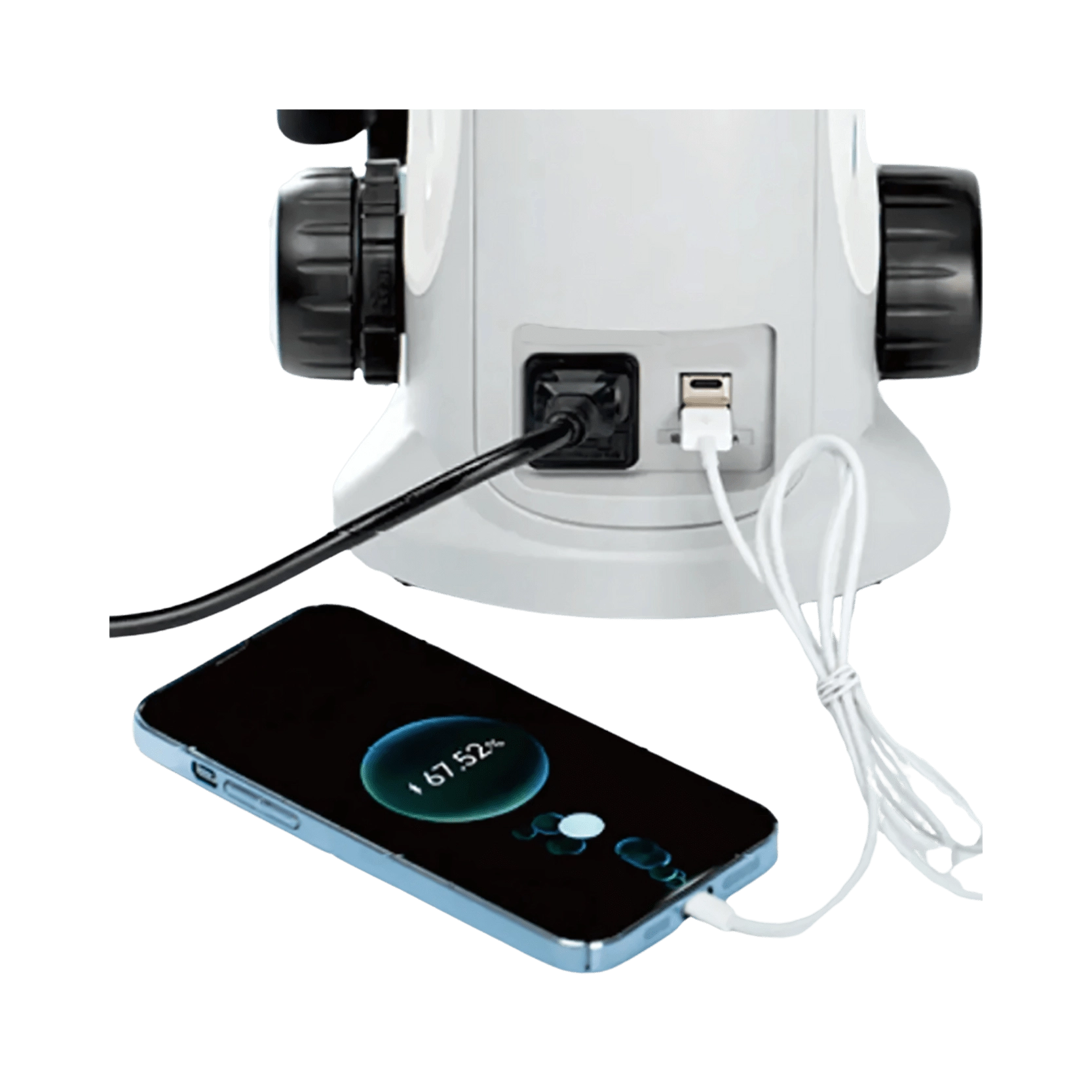

Portable battery for charging devices

Our Biological Microscope LBM-G21 is designed for high-quality image capture and research in advanced microscopy. Its trinocular head and camera integration features make it ideal for detailed analysis and documentation in educational and laboratory environments.

Internal hexagonal Spanner M4

Download catalog for
Biological Microscope LBM-G21 Catalog

Available Range :

Biological Microscope LBM-E20 : Color corrected infinity optical system Biological Microscope LBM-D10 : Finite Optical System Biological Microscope LBM-G10 : Infinite Color Corrected Optical System Biological Microscope LBM-G11 : Infinite Colour Corrected Optical System Biological microscope LBM-B11 : Infinite optical system Biological Microscope LBM-C20 : Infinity Optical System F=200mm Biological Microscope LBM-G12 : NIS Infinite Optical System

Models of Biological Microscope

Labtron Biological Microscope is specialized for examining small organisms, cells, and tissues. They operate using optical lenses to magnify specimens, allowing for detailed observation. Their stage holds slides securely and provides correct positioning. They feature rotating nosepiece to easily switch between different objective magnifiers. Our Biological Microscope is applicable for education, research, medical diagnostics, and quality control in various laboratory settings.

Biological Microscope LBM-C20

Optical System : Infinity Optical System F=200mm
Viewing Head : Trinocular Tube, 30°inclined, Interpupillary distance 52 to 75 mm, trinocular light is split 50/50 by a high quality prism (20/80 is optional)
Eyepiece : WF10X/20mm with the high point
Infinity Objective : Plan Achromatic 4X/0.10 Plan Achromatic 10X/0.25 Plan Achromatic 40X/0.65 Plan Achromatic 100X/1.25 (S,O)

Compare Remove

Biological Microscope LBM-E21

Viewing Head : Seidentopf Trinocular Head Inclined 30° , Light Split Switch :E100:P0/E0:P100/E20:P80
Eyepiece : Wide field eyepiece 10x/22 mm ( High eyepoint)
Objectives : Infinity semi-apochromatic fluorescent objectives 4x/0.16, WD=17.15 mm 10x/0.30, WD=7.68 mm 20x/0.50, WD=1.96 mm 40x/0.75, WD=0.78 mm 60x/0.8, WD=0.33 mm 100x/1.30, WD=0.15 mm
Nose-Piece : Sixtuple Nosepiece with DIC slot, Backward

Compare Remove

Biological Microscope LBM-F20

Optical System : Infinite optical system
Viewing Head : Compensation Free binocular Head, Tilting trinocular 5° to 35°, interpupillary 48 to 75 mm
Nosepiece : Backward Quintuple Nosepiece
Eyepiece : Extra wide field eyepiece EW 10X/ 22 mm

Compare Remove

Biological Microscope LBM-G11

Optical System : Infinite Colour Corrected Optical System
Magnification : 40x to 1000x
Viewing Head : Seidentopf trinocular head, 30° inclined, Interpupillary distance: 47-75 mm, Splitting ratio: eyepiece: trinocular = 80:2
Focusing : Low Position Coaxial Focusing System

Compare Remove

Biological Microscope LBM-G20

Optical System : Infinite Color Corrected Optical System
Viewing Head : 30° gemel binocular tube, 360° rotatable, Fixed Eyepiece Tube, Interpupillary Distance 48-76mm
Eyepiece : High Eye Point Wide Field Plan Eyepiece PL10X/22mm, with Adjustable Diopter
Objective : Infinity Plan Achromatic Objectives 4×, 10×, 40×, 100×

Compare Remove

Biological Microscope LBM-G13

Optical System : NIS Infinite Optical System
Viewing Head : Seidentopf Trinocular Head, 30° inclined, Interpupillary 47-78mm
Eyepiece : WF10×/20mm
Objective : Infinite plan Achromatic Objectives 4×, 10×, 40× (S), 100× (S, Oil)

Compare Remove

Biological Microscope LBM-B13

Optical System : Infinite Optical System
Viewing head : Compensation free Binocular head, 30° inclined, interpapillary distance 48 to 75 mm
Eyepiece : Wide field eyepiece WF 10X / 22 mm
Nosepiece : Quadruple nosepiece

Compare Remove

Biological Microscope LBM-G12

Optical System : NIS Infinite Optical System
Viewing Head : Seidentopf Binocular Head, 30° inclined, Interpupillary 47-78mm
Eyepiece : WF10×/20mm
Objectives : Infinite plan Achromatic Objectives 4×, 10×, 40× (S), 100× (S, Oil)

Compare Remove

Biological Microscope:
Biological Microscope LBM-C20, Biological Microscope LBM-E21, Biological Microscope LBM-F20, Biological Microscope LBM-G11, Biological Microscope LBM-G20, Biological Microscope LBM-G13, Biological Microscope LBM-B13, Biological Microscope LBM-G12, and more.
