What is the primary function of the Spectrodensitometer?

Our Spectrodensitometer is a high-precision optical instrument designed to measure color, density, and chromatic properties of various materials. It is primarily used in industries such as printing, textiles, coatings, and leather to ensure quality control. The Spectrodensitometer analyzes color consistency, ink density, and material properties to help manufacturers achieve accurate color reproduction and maintain industry standards.

What types of color models does this Spectrodensitometer support?

Labtron’s Spectrodensitometer supports multiple color models to accommodate different measurement requirements. It includes CIE Lab*, which is widely used for color differentiation, CIE XYZ for standard color representation, and CIE RGB for digital color matching. These color spaces help users analyze and compare colors accurately, making it suitable for industries requiring precise color matching and calibration.

Can the Spectrodensitometer measure fluorescent materials?

Yes, the Spectrodensitometer is capable of measuring fluorescent materials. It features a UV light excitation function, which enables the detection and evaluation of fluorescent pigments, coatings, and textiles. This feature is particularly useful in industries such as security printing, where fluorescent inks are used, as well as textile and coating applications where optical brighteners are added for enhanced visual effects.

What are the available aperture sizes for measurement?

Our Spectrodensitometer provides users with multiple aperture size options, allowing flexibility in measuring different sample sizes. Users can select from various aperture diameters (?2/4/8/20 mm) to suit their specific material requirements. This adaptability makes it ideal for measuring both large and small samples, ensuring comprehensive color analysis across different applications.

What connectivity options does the Spectrodensitometer support?

Labtron’s Spectrodensitometer comes with multiple connectivity options to facilitate data transfer and device integration. It features a USB port for connecting to computers, allowing users to store and analyze measurement data. Additionally, it supports RS-232 communication with a baud rate of 19200 bps, enabling direct integration with industrial systems and external software for advanced color analysis and quality control.

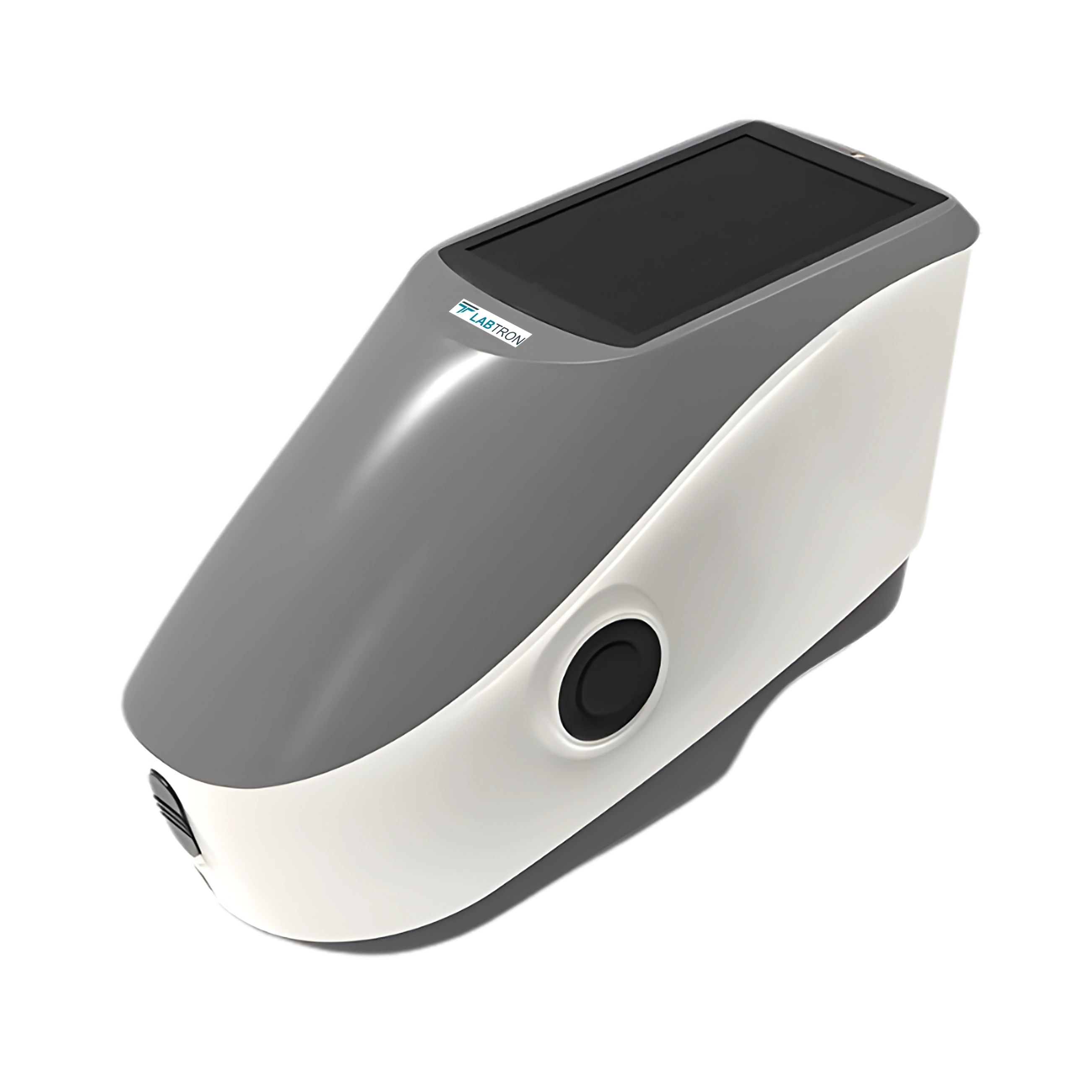

Spectrodensitometer LDTR-B10

Name: Spectrodensitometer LDTR-B10
Brand: Labtron
SKU: LDTR-B10
Rating: 4.7 (836 reviews)

Spectrodensitometer LDTR-B10 supports CIE Lab*, CIE XYZ, and CIE RGB display modes. It incorporates a 3.5-inch TFT touchscreen for enhanced user interaction. The spectrodensitometer features a 45/0 geometric optical structure, ensuring accurate ISO T, E, and A density measurements. Additionally, it has two standard observer angles and a variety of light source modes. Our spectrodensitometer is suitable for process control and quality control in printing industries, and more.

Request Quote

Display Mode	CIE Lab*, CIE XYZ, CIE RGB
Color Difference Formula	△E*ab
Measuring Range	L: 10 to 100
Repeatability	△E less than 0.08 (average of deviations from 30 measurements of the whiteboard)
Measurement Condition	CIE 10 standard observer
Sensor	Photodiode Array
Internal Light Source	LED blue light excitation
Standardize Light Source	D65
Lighting Condition	CIE recommended method 8°/d
Measuring Interval	More than 1 second
Monitor	TFT True Color 2.8 inch (16:9)
Interface	Type B-USB, RS-232 Baud rate 19200bps
Lamp Life	More than 1.6 million measurements over 5 years
Storage Temperature Range	-20℃ to 50℃
Operating Temperature Range	0℃ to 40℃
Humidity Range	Below 85%, No condensation

Photodiode array sensor
Multiple selectable aperture size
USB/ Bluetooth 2.0 dual communication mode
Dirt-resistant and stable standard white board
PC software compatibility
Long-lasting performance
User-friendly interface

Our Spectrodensitometer LDTR-B10 is used for precise color and density measurements in industries like printing, textiles, coatings, and leather. It ensures quality control in color matching, ink formulation, and material consistency.

Download catalog for
Spectrodensitometer LDTR-B10 Catalog

Models of Densitometer

Labtron Densitometer are designed with diverse measurement ranges. They can accommodate various material densities, from gases and liquids to solids. They are integrated with a digital temperature sensor to reduce measurement variability due to temperature changes. Made from robust materials that offer enhanced durability. They feature user-friendly controls and a clear display for easy operation. Our densitometer is used primarily for measuring optical density across several fields, such as photography, printing, radiology, and material science.

Spectrodensitometer LDTR-C11

Wavelength Range : 400 to 700 nm
Detector : 256 Image Element Double Array CMOS Image Sensor
Optical Geometry : 45/0
Wavelength Pitch : 10nm

Compare Remove

Spectrodensitometer LDTR-C10

Wavelength Pitch : 10nm
Optical Geometry : 45/0
Detector : 256 Image Element Double Array CMOS Image Sensor
Wavelength Range : 400 to 700 nm

Compare Remove

Densitometer LDTR-A10

Measuring range : 0 to 2.5 g /cc (0 to 2500 kg/m3)
Calibration range : 0 to 2.5 g /cc (0 to 2500 kg/m3)
Measurement accuracy : ± 0.002 g /cc (± 2 kg/m3)
Repeatability : ± 0.0002 g /cc (± 0.2 kg/m3)

Compare Remove

Spectrodensitometer LDTR-B10 FAQ's

Our Spectrodensitometer is a high-precision optical instrument designed to measure color, density, and chromatic properties of various materials. It is primarily used in industries such as printing, textiles, coatings, and leather to ensure quality control. The Spectrodensitometer analyzes color consistency, ink density, and material properties to help manufacturers achieve accurate color reproduction and maintain industry standards.
Labtron’s Spectrodensitometer supports multiple color models to accommodate different measurement requirements. It includes CIE Lab*, which is widely used for color differentiation, CIE XYZ for standard color representation, and CIE RGB for digital color matching. These color spaces help users analyze and compare colors accurately, making it suitable for industries requiring precise color matching and calibration.
Yes, the Spectrodensitometer is capable of measuring fluorescent materials. It features a UV light excitation function, which enables the detection and evaluation of fluorescent pigments, coatings, and textiles. This feature is particularly useful in industries such as security printing, where fluorescent inks are used, as well as textile and coating applications where optical brighteners are added for enhanced visual effects.
Our Spectrodensitometer provides users with multiple aperture size options, allowing flexibility in measuring different sample sizes. Users can select from various aperture diameters (?2/4/8/20 mm) to suit their specific material requirements. This adaptability makes it ideal for measuring both large and small samples, ensuring comprehensive color analysis across different applications.
Labtron’s Spectrodensitometer comes with multiple connectivity options to facilitate data transfer and device integration. It features a USB port for connecting to computers, allowing users to store and analyze measurement data. Additionally, it supports RS-232 communication with a baud rate of 19200 bps, enabling direct integration with industrial systems and external software for advanced color analysis and quality control.
