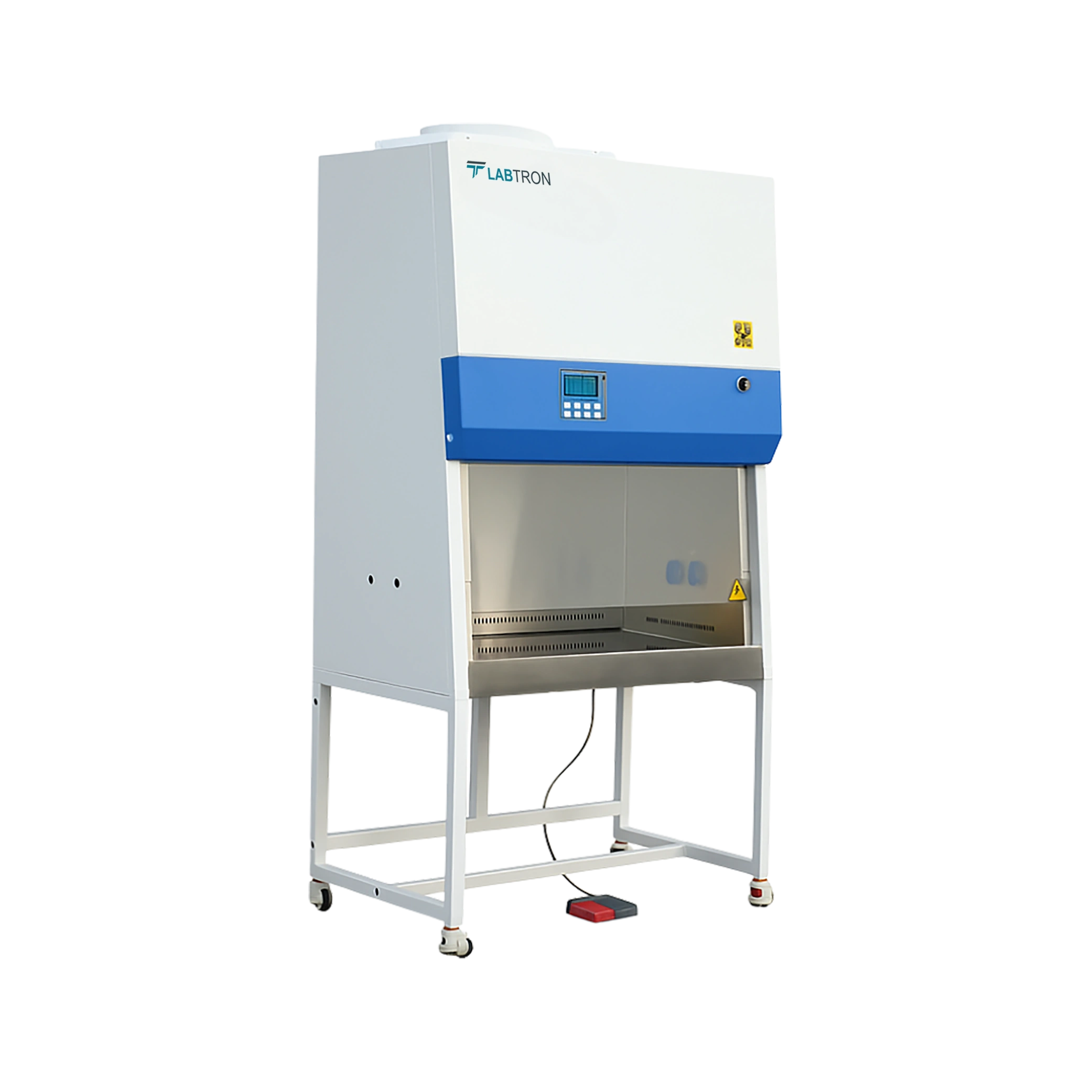

Biosafety Cabinet Class II A2 LBS2-A20 offers maximum opening of 420 mm (17 inch) and tested opening of safety height 200 mm (8 inch). Designed with UV life indicator and ULPA Filter, Two in number, 99.999 % efficiency at 0.12 um. Built in with foot switch to avoid airflow turbulence caused by arm movement, motorized front window of two layered laminated toughened glass and anti UV, UV lamp for most efficient decontamination and remote control with all functions for easier and convenient operation. Features airflow system of 30 % air exhaust and 70 % air recirculation and three protection such as sample, environment and operator. Incorporated with interlock function for blower and front window, UV lamp and front window, UV lamp and blower and LED lamp.
| Tested Opening | Safety height of 200 mm (8 inch) |
| Maximum Opening | 420 mm (17 inch) |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down Flow Velocity | 0.33 ± 0.025 m/s |
| ULPA Filter | Two, 99.999 % efficient at 0.12 um, filter life indicator |
| Front Window | Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV |
| Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB |
| UV Lamp | 30 W×1 UV timer, UV life indicator, emission of 253.7 nanometres for most efficient decontamination |
| Illuminating Lamp | 12 W×2 LED Lamp |
| Illumination | ≥ 1000 Lux |
| Consumption | 760 W |
| Waterproof Sockets | Two, total load of two sockets: 500 W |
| Display | LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc. |
| Control System | Microprocessor |
| Airflow System | 70 % air recirculation, 30 % air exhaust |
| Visual and audio alarm | Filter replacement, front window at unsafe height, abnormal airflow velocity |
| Material | Work Zone: 304 stainless steel;Main Body: Cold-rolled steel with anti-vvbacteria powder coating |
| Work Surface Height | 750 mm |
| Caster | Foot master caster |
| Power Supply | AC 220 V ± 10 %, 50/60 hz; 110 V ± 10 %, 60 hz |
| Internal Size (W×D×H) | 940×600×660 mm |
| External Size (W×D×H) | 1100×750×2250 mm |
| Package Size (W×D×H) | 1220×1000×1840 mm |
| Gross Weight | 243 kg |
Biosafety Cabinet Class II A2 is widely used in pathology, research laboratories, universities, colleges and hospitals. It is suitable to use for microbiology research in absence of volatile, toxic chemicals and radionuclide.
| Sr. No | Name of the Accessory | Unit |
| 1. | Illumination LED Lamp | 2 |
| 2. | UV Lamp | 1 |
| 3. | Base Stand | 1 |
| 4. | Remote Control | 1 |
| 5. | Foot Switch | 1 |
| 6. | Drain Valve | 1 |
| 7. | Waterproof Sockets | 2 |
Electric Height Adjustable Base Stand
Download catalog for
Biosafety Cabinet Class II A2 LBS2-A20 Catalog
Download manual for
Biosafety Cabinet Class II A2 LBS2-A20 Manual
Available Range :
Biosafety Cabinet Class II A2 LBS2-A50 : 180 mm Biosafety Cabinet Class II A2 LBS2-A41 : Safety Height 200 mm Biosafety Cabinet Class II B2 LBS2-B21 : Safety Height 200 mm（8 inch） Biosafety Cabinet Class II B2 LBS2-B20 : Safety Height 200mm (8 inch) Biosafety Cabinet Class II B2 LBS2-B24 : Safety height 200mm (8'') Biosafety Cabinet Class II A2 LBS2-A20 : Safety height of 200 mm (8 inch)
Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
