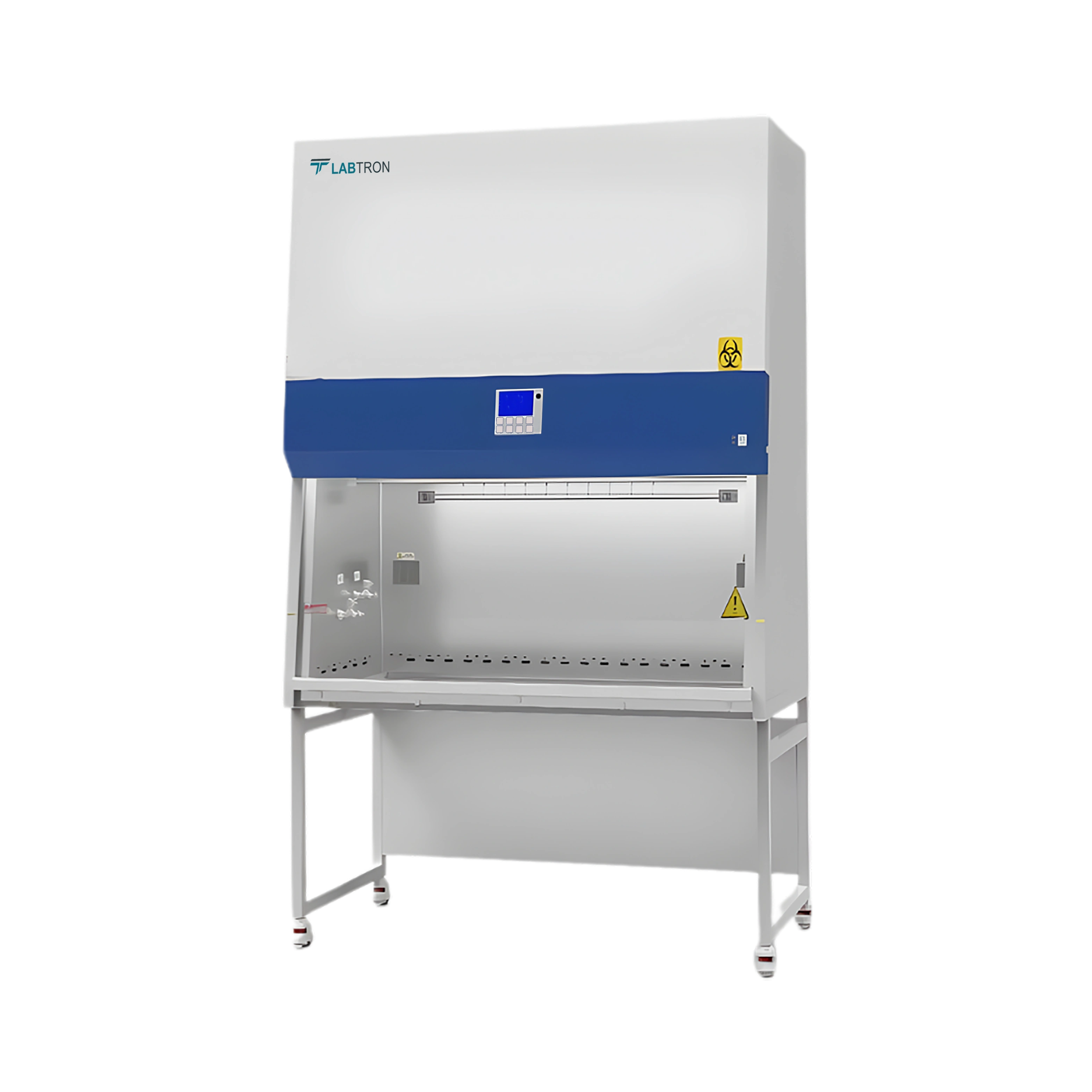

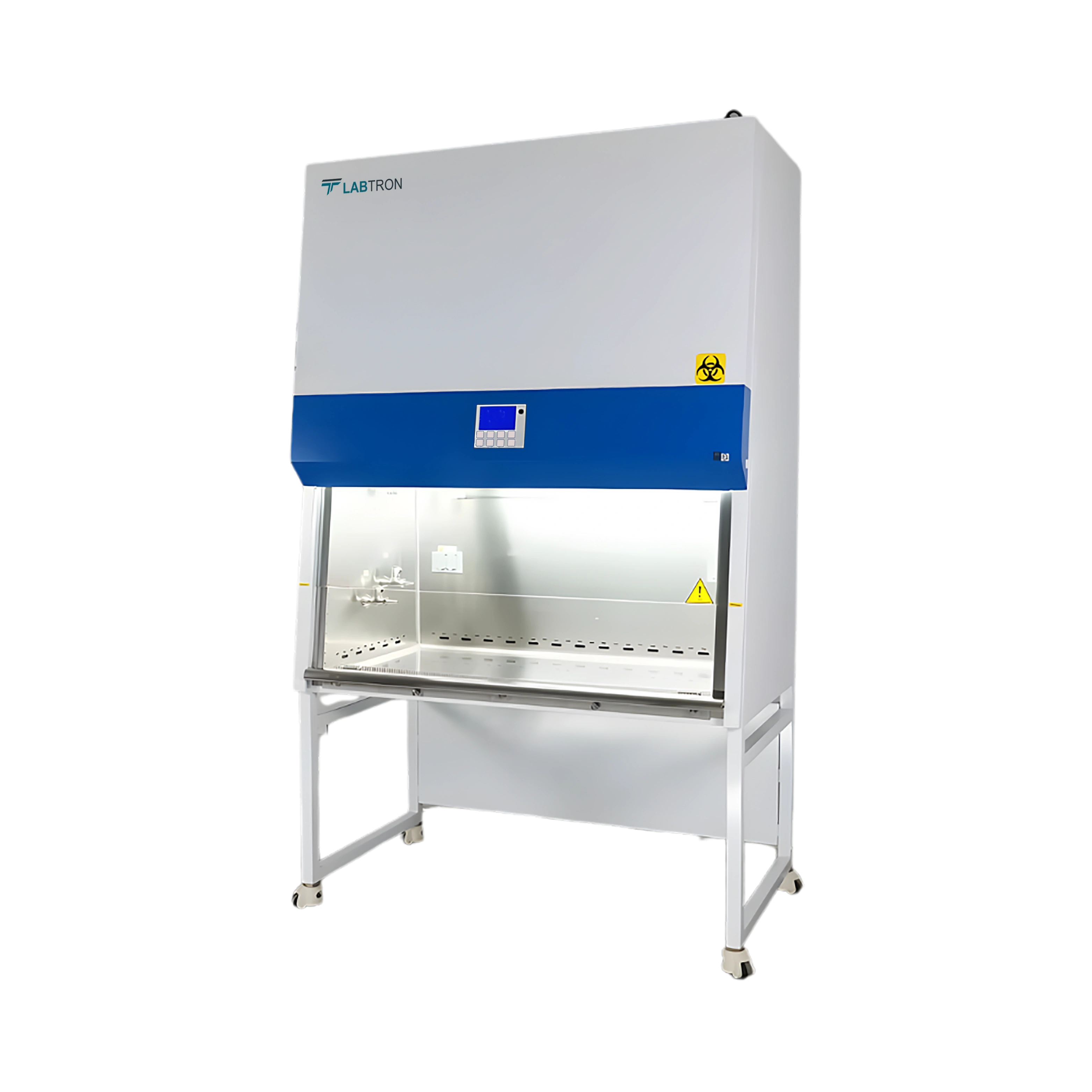

Biosafety Cabinet Class II A2 LBS2-A33

Name: Biosafety Cabinet Class II A2 LBS2-A33
Brand: Labtron
SKU: LBS2-A33
Rating: 4.9 (620 reviews)

Biosafety Cabinet Class II A2 LBS2-A33 is a floor-standing unit with a spacious internal workspace, providing efficient airflow with 824 m³/h inflow and 1212 m³/h downflow. It features a tough glass front window, water and gas taps, a universal caster, a waterproof socket, an LCD display, an I.V. bar with hooks, etc., to carry out the experiments in a contaminant-free environment and protect operators. The 750 mm work surface height offers a maximum opening of 550 mm (22 inches) and a testing safety height of 254 mm (10 inches).

Request Quote

External Dimension (W×D×H)	1873×775×2240 mm
Internal Dimension (W×D×H)	1700×600×660 mm
Work Surface Height	782 mm
Max Opening	470 mm (22 inch)
Tested Opening	Safety height 254 mm (10 inch)
Air flow Volume	In flow: 824 m³/h (485 cfm)Down flow: 60%: 1212 m³/h (713 cfm)Exhaust: 40%: 824 m³/h (485 cfm)
Front Window	Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter	Two, 99.999% efficiency at 0.3 µm, filter life indicator
Filter Guard Type	Aluminium alloy frame
Noise	NSF 49 ≤ 67 dB/EN 12469 ≤ 65 dB
UV Lamp	40 W ×1 Emission of 253.7 nm
Illumination LED Lamp	22 W×2
Illumination	≥ 1000 Lux
Display	LCD Display
Waterproof Socket	Two, Total consumption: ≤ 500 W
Tap	Water tap × 1, Gas tap × 1
Ground Resistance	≤ 0.10 Ω
Power Supply	AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption	500 W
DC Motor	One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material	Working area: 304 stainless steel, Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating.
Packaging Dimension (W×D×H)	2020×1080×1900 mm
Gross Weight	370 kg

Motorized front window
Large LCD Display to view all operation information
Two layered laminated toughened anti UV glass >5 mm thickness
Automatically adjusted (use of filter block) air speed

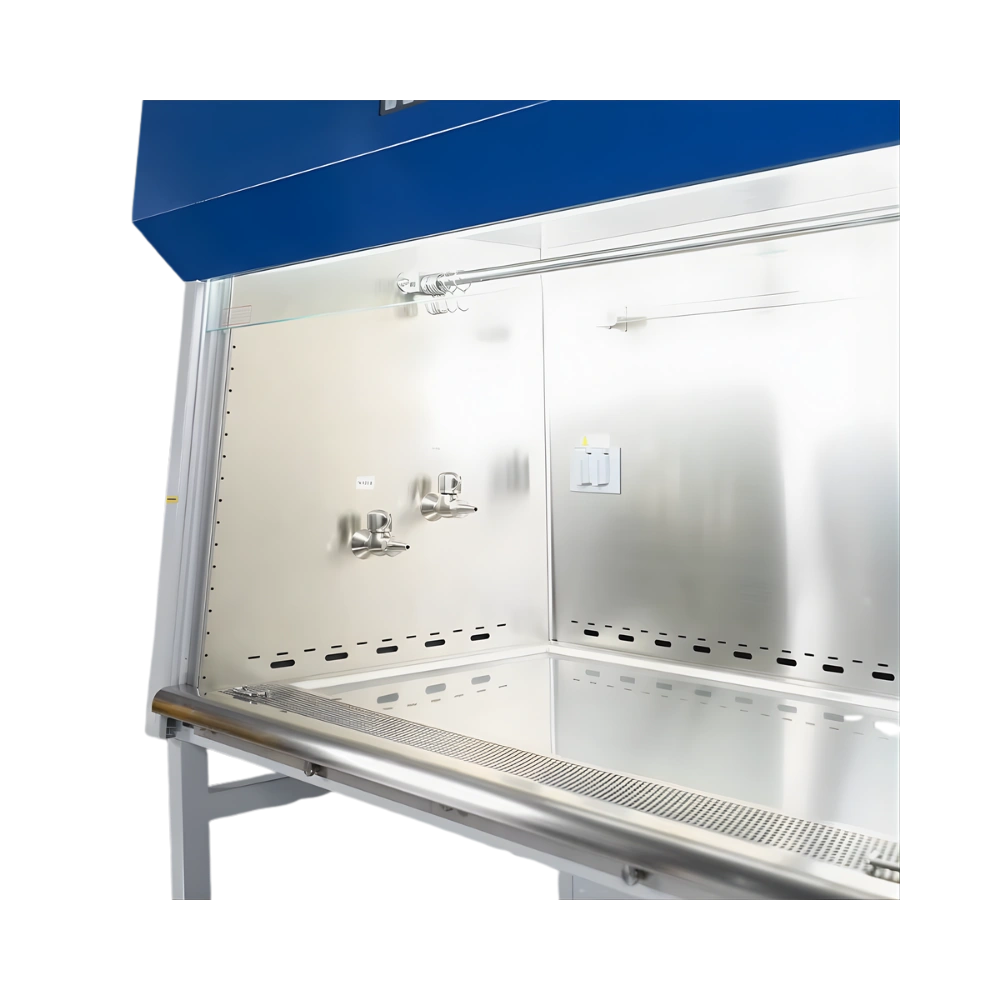

Single piece of stainless steel used to make side and back wall
10° slanted front door to have comfort during long working hours
Universal caster with brakes and levelling feet

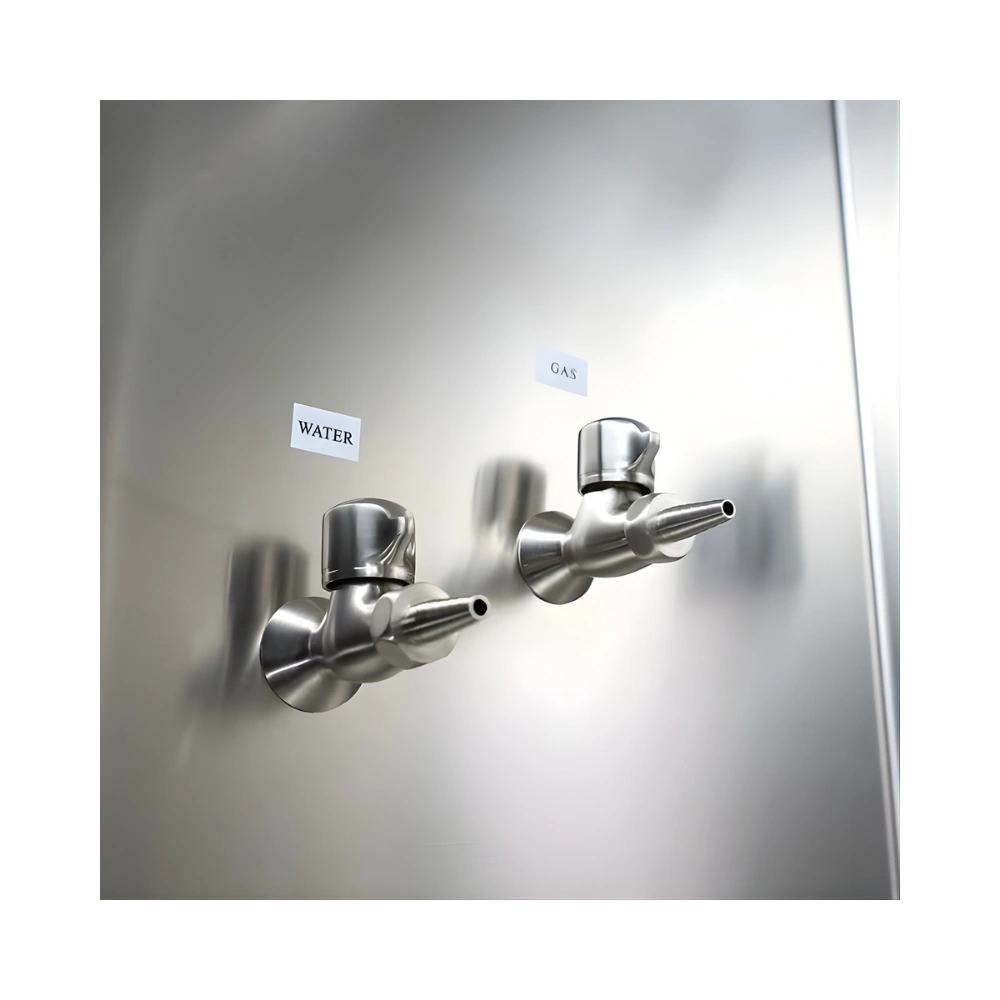

Stainless steel water tap and gas tap
Waterproof socket to avoid short-circuits
Can be attached with Exhaust thimble canopy
Stainless steel I.V. bar with 10 hooks

It finds application to carry out various experiments across microbiology, biotechnology, pharmacy, clinical research industry in a ventilated and de-contaminated environment.

Illuminating lamp ×2
UV lamp ×1
Base stand
SS water & gas taps
Drain valve
Waterproof sockets
Stainless Steel I.V. Bar with 10 hooks

Download catalog for
Biosafety Cabinet Class II A2 LBS2-A33 Catalog

Download manual for
Biosafety Cabinet Class II A2 LBS2-A33 Manual

Available Range :

Biosafety Cabinet Class II A2 LBS2-A31 : 1087×775×2265 mm Biosafety Cabinet Class II A2 LBS2-A30 : 1300mm × 750mm × 2250 mm Biosafety Cabinet Class II A2 LBS2-A32 : 1383×775×2295 mm Biosafety Cabinet Class II A2 LBS2-A33 : 1873×775×2240 mm

Models of Biosafety Cabinet

Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
