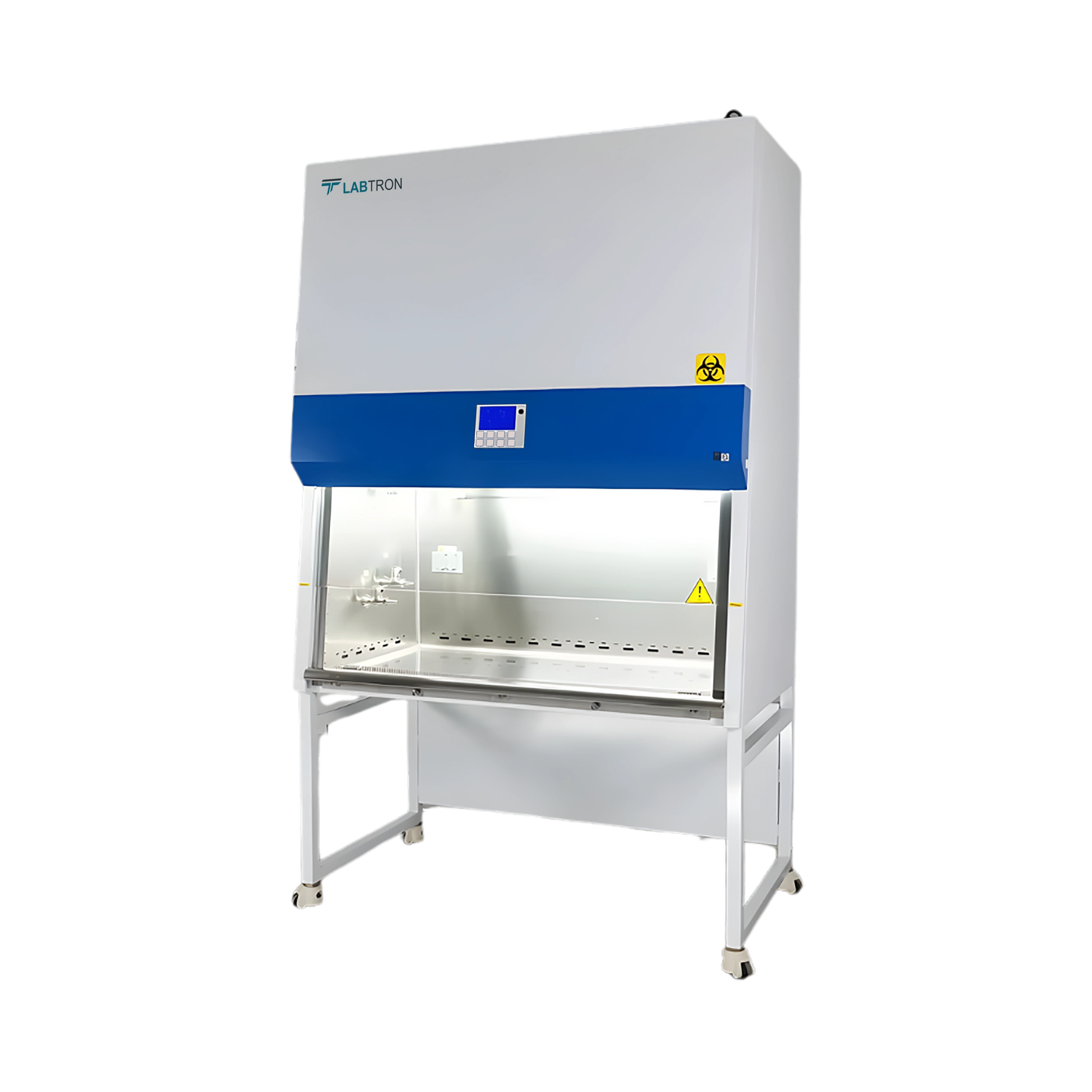

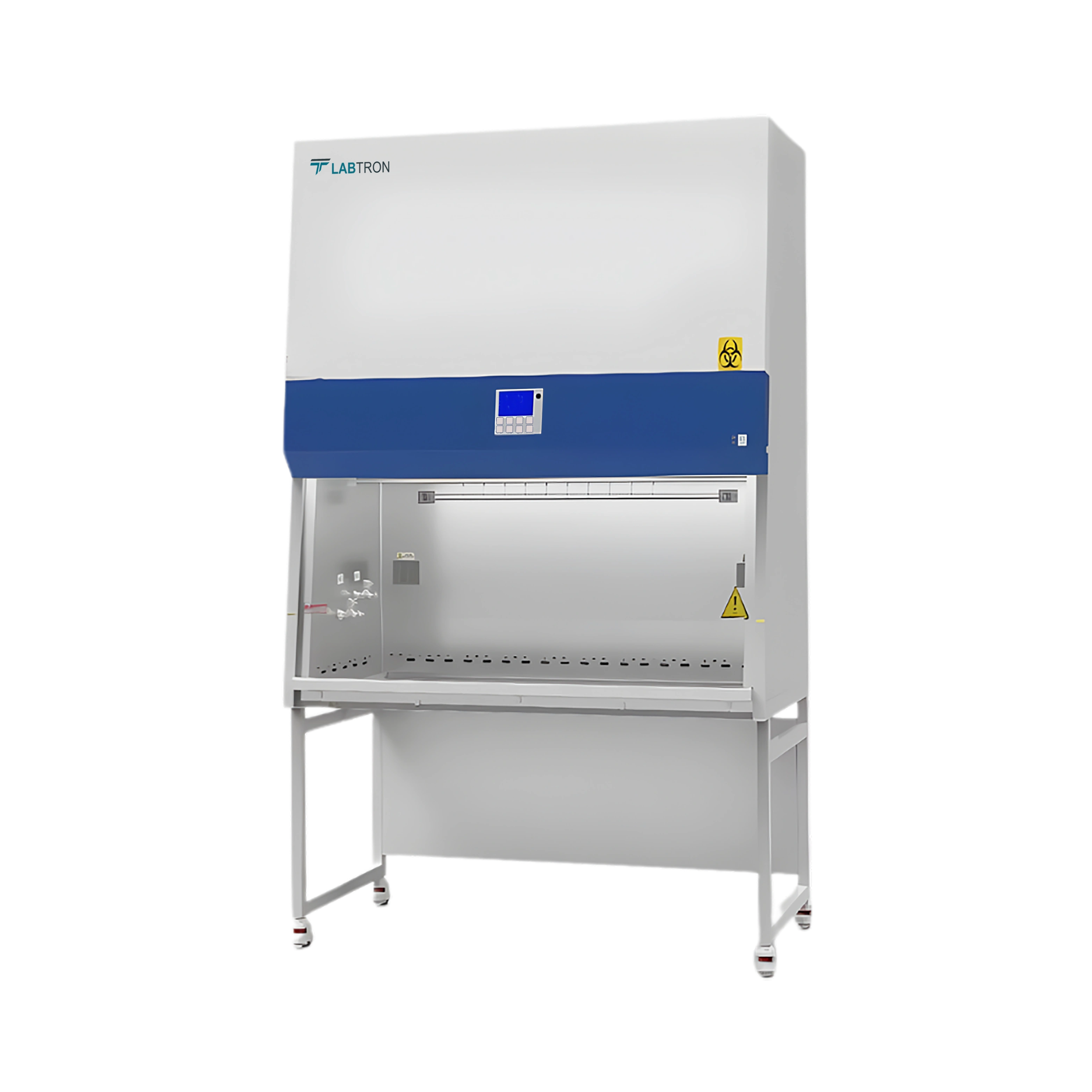

Biosafety Cabinet LBS2-A31 (Class II A2)

Name: Biosafety Cabinet LBS2-A31 (Class II A2)
Brand: Labtron
SKU: LBS2-A31
Rating: 4.7 (601 reviews)

Biosafety Cabinet LBS2-A31 (Class ll A2) is designed for superior filtration and operator protection, featuring dual HEPA filters with 99.999% efficiency at 0.3 µm. It features a tough glass front window, water and gas taps, a universal caster, a waterproof socket, an LCD display, an I.V. bar with hooks, etc. to carry out the experiments in a contaminant-free environment. With a 750 mm work surface height, the maximum opening is 520 mm (22.5 inches), and the testing safety height is 254 mm (10 inches).

Request Quote

External Dimension (W×D×H)	1087×775×2265 mm
Internal Dimension (W×D×H)	910×600×660 mm
Work Surface Height	750 mm
Max Opening	520 mm (22.5 inch)
Tested Opening	Safety height 254 mm (10 inch)
Air flow Volume	In flow: 441 m³h (259 cfm)Down flow: 60%: 649 m³/h (382 cfm)Exhaust: 40%: 441 m³/h (259 cfm)
Front Window	Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter	Two, 99.999% efficiency at 0.3 µm, filter life indicator
Filter Guard Type	Aluminium alloy frame
Noise	NSF 49 ≤ 67 dB/EN 12469 ≤ 65 dB
UV Lamp	18 W ×1 Emission of 253.7 nm
Illumination LED Lamp	10 W×2
Illumination	≥ 1000 Lux
Display	LCD Display
Waterproof Socket	Two, Total consumption: ≤ 500 W
Tap	Water tap × 1, Gas tap × 1
Ground Resistance	≤ 0.10 Ω
Power Supply	AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption	300 W
DC Motor	One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material	Working area: 304 stainless steel, Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating.
Packaging Dimension (W×D×H)	1250×1080×1840 mm
Gross Weight	270 kg

Motorized front window
Large LCD Display to view all operation information
Two layered laminated toughened anti UV glass >5 mm thickness
Automatically adjusted (use of filter block) air speed

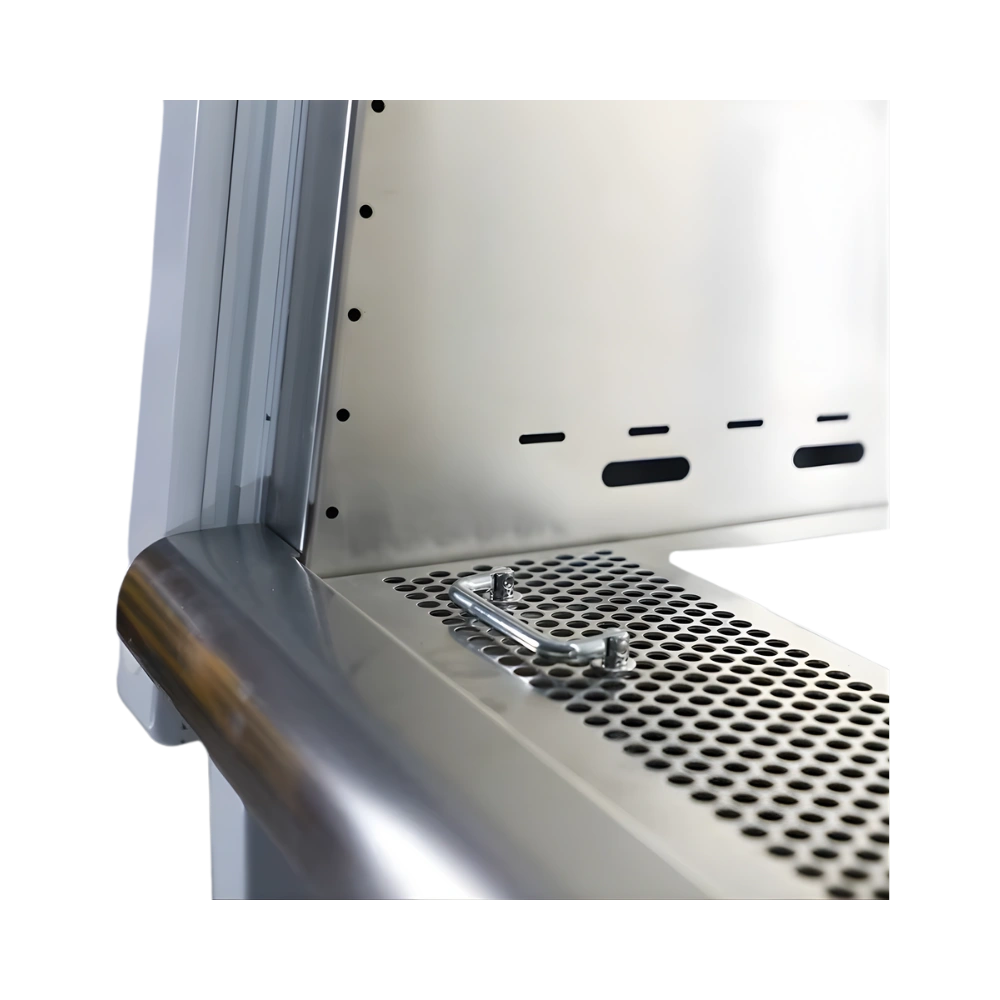

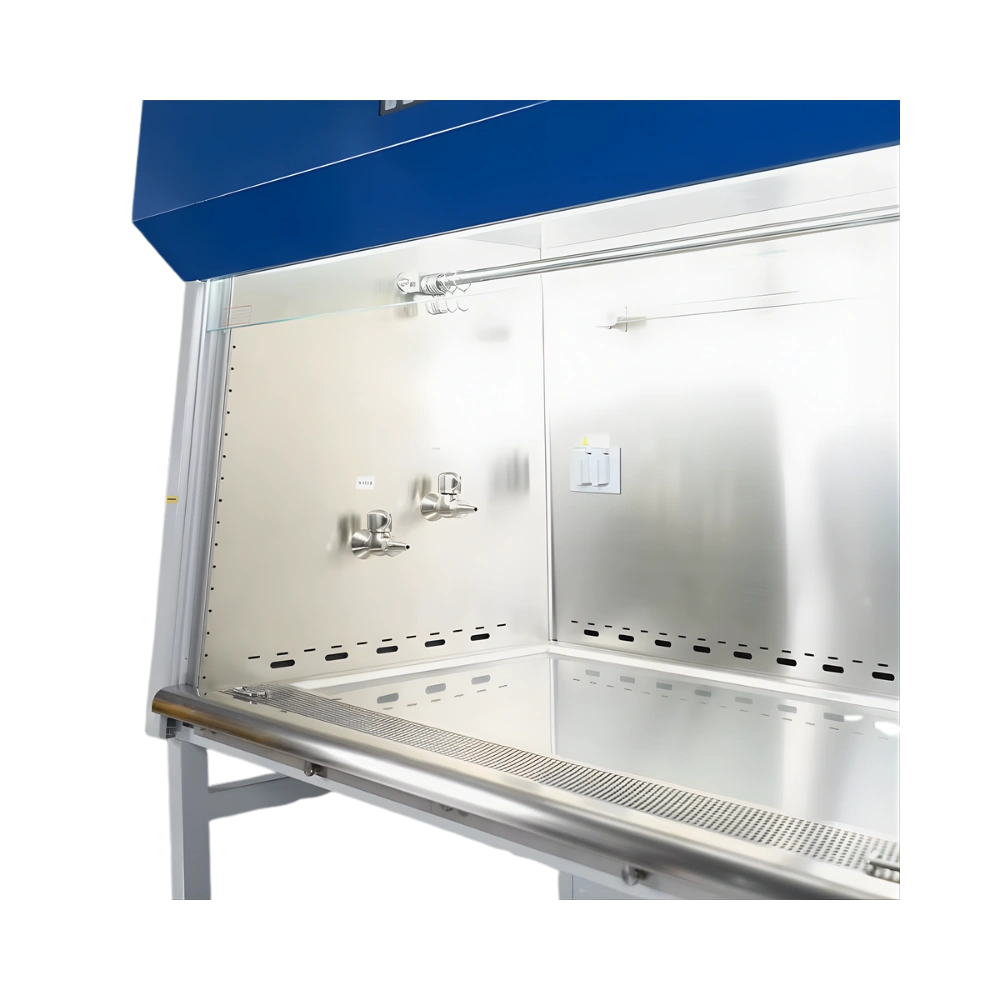

Single piece of stainless steel used to make side and back wall
10° slanted front door to have comfort during long working hours
Universal caster with brakes and levelling feet

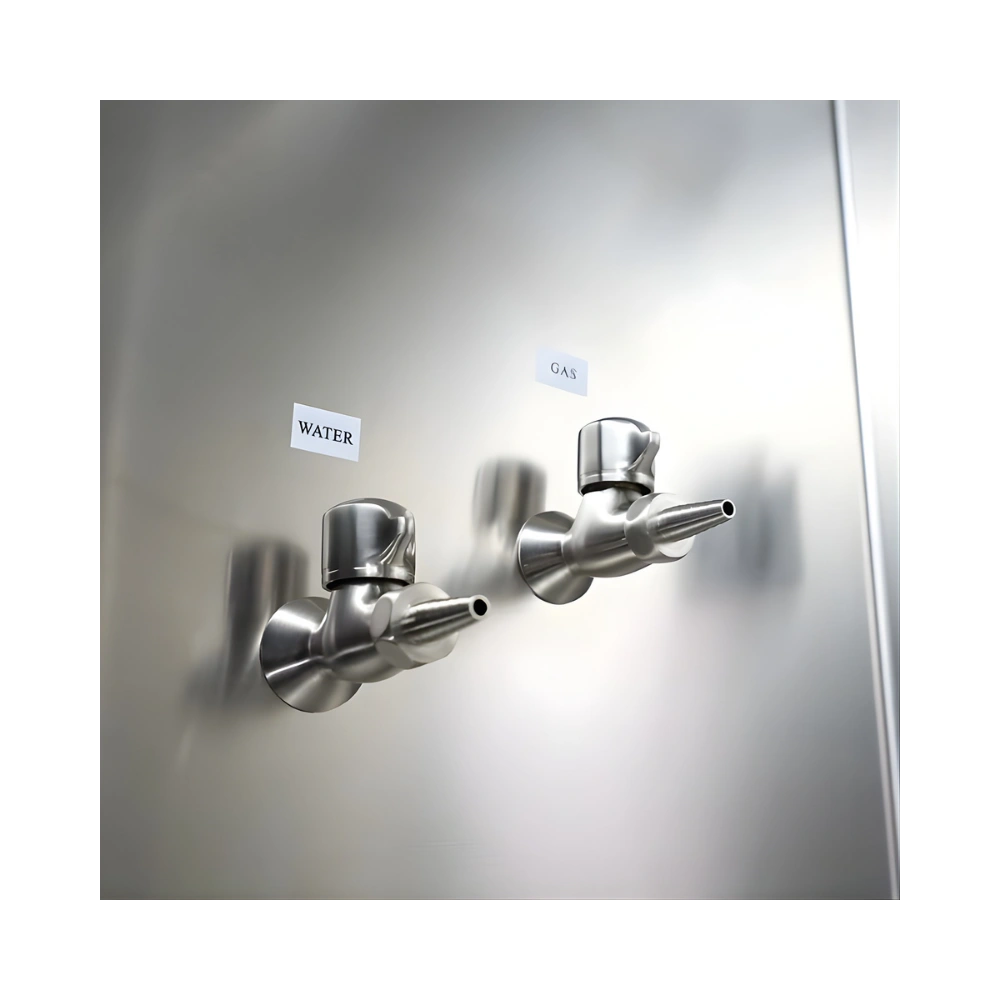

Stainless steel water tap and gas tap
Waterproof socket to avoid short-circuits
Can be attached with Exhaust thimble canopy
Stainless steel I.V. bar with 10 hooks

It finds application to carry out various experiments across microbiology, biotechnology, pharmacy, clinical research industry in a ventilated and de-contaminated environment.

Illuminating lamp ×2
UV lamp ×1
Waterproof sockets
Stainless Steel I.V. Bar with 10 hooks

Serial no.	Accessory
1	UV lamp
2	LED lamp
3	HEPA filter (H14)
4	Exhaust duct
5	Stainless steel hook rack
6	Motorized sash and footswitch

Download catalog for
Biosafety Cabinet LBS2-A31 (Class II A2) Catalog

Download manual for
Biosafety Cabinet LBS2-A31 (Class II A2) Manual

Available Range :

Biosafety Cabinet LBS2-A31 (Class II A2) : 1087×775×2265 mm Biosafety Cabinet LBS2-A30 (Class II A2) : 1300mm × 750mm × 2250 mm Biosafety Cabinet LBS2-A32 (Class II A2) : 1383×775×2295 mm Biosafety Cabinet LBS2-A33 (Class II A2) : 1873×775×2240 mm

Biosafety Cabinet Class II A2 LBS2-A31 Air flow Volume In flow: 441 m3h (259 cfm)Down flow: 60%: 649 m3/h (382 cfm)Exhaust: 40%: 441 m3/h (259 cfm)

Models of Biosafety Cabinet

Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
