Biosafety Cabinet LBS2-A32 (Class II A2)

Name: Biosafety Cabinet LBS2-A32 (Class II A2)
Brand: Labtron
SKU: LBS2-A32
Rating: 4.7 (804 reviews)

With a 587 m³/h intake and an 863 m³/h outflow, the Biosafety Cabinet Class II A2 LBS2-A32 is a floor-standing device with effective ventilation.. Tough glass front window, gas and water taps, universal caster, waterproof socket, LCD display, and I.V. bar with hooks, etc. to conduct the tests in a contaminant-free setting while providing operator safety. With 750 mm work surface height, the maximum opening is 550 mm (22 inch), and the testing safety height is 254 mm (10 inch).

Request Quote

External Dimension (W×D×H)	1383×775×2295 mm
Internal Dimension (W×D×H)	1210×600×660 mm
Work Surface Height	750 mm
Max Opening	550 mm (22 inch)
Tested Opening	Safety height 254 mm (10 inch)
Air flow Volume	In flow: 587 m³/h (346 cfm)Down flow: 60%: 863 m³/h (507 cfm)Exhaust: 40%: 587 m³/h (346 cfm)
Front Window	Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter	Two, 99.999% efficiency at 0.3 µm, filter life indicator
Filter Guard Type	Aluminium alloy frame
Noise	NSF 49 ≤ 67 dB/EN 12469 ≤ 65 dB
UV Lamp	30 W ×1 Emission of 253.7 nm
Illumination LED Lamp	18 W×2
Illumination	≥ 1000 Lux
Display	LCD Display
Waterproof Socket	Two, Total consumption: ≤ 500 W
Ground Resistance	≤ 0.10 Ω
Power Supply	AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption	400 W
DC Motor	One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material	Working area: 304 stainless steel, Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating.
Packaging Dimension (W×D×H)	1540×1080×1900 mm
Gross Weight	340 kg

Large LCD Display to view all operation information
Manual front window
Two layered laminated toughened anti UV glass >5 mm thickness
Automatically adjusted (use of filter block) air speed

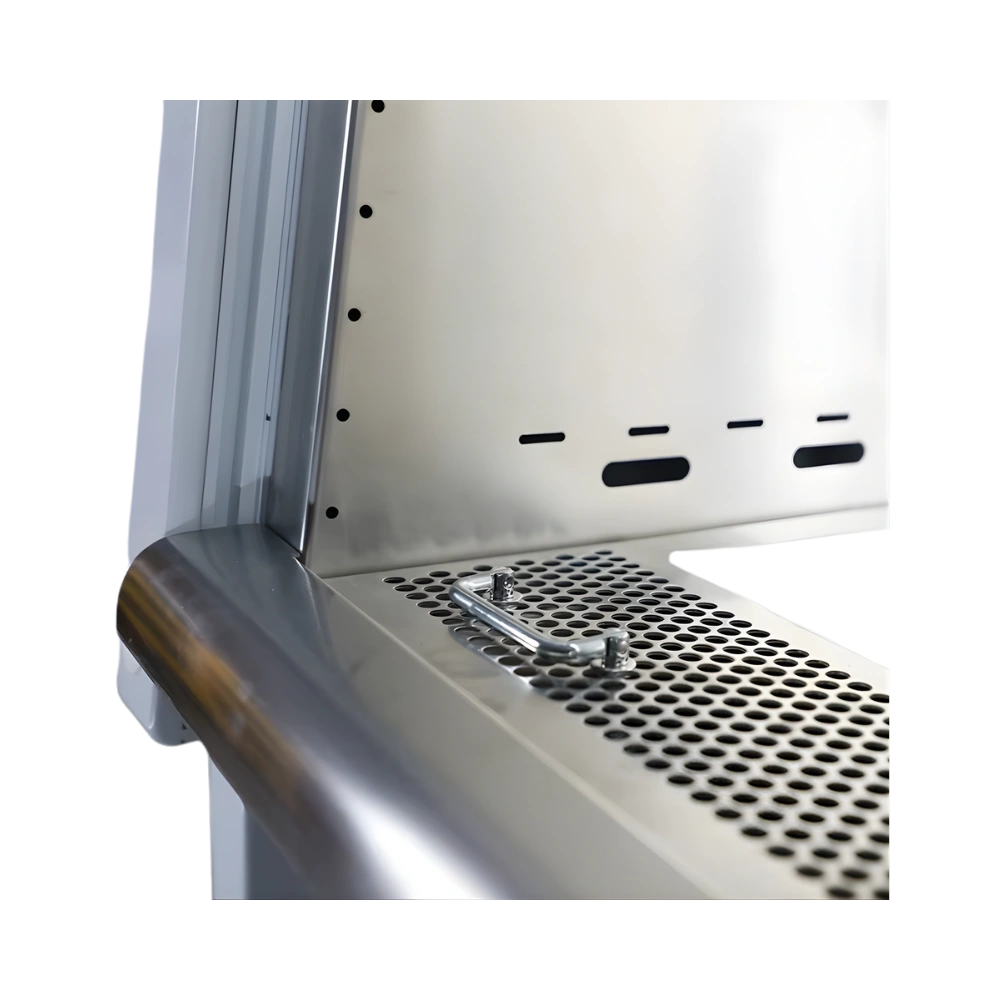

Single piece of stainless steel used to make side and back wall
10° slanted front door to have comfort during long working hours
Universal caster with brakes and levelling feet

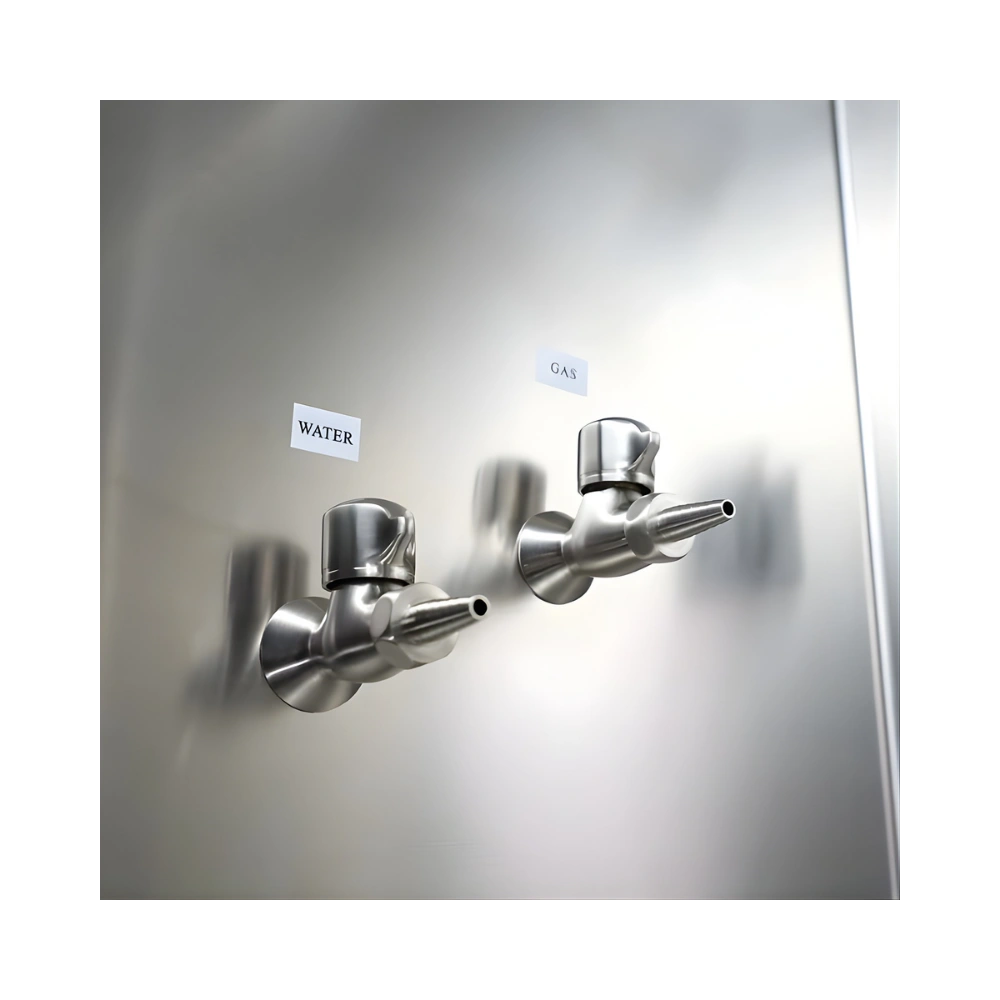

Stainless steel water tap and gas tap
Waterproof socket to avoid short-circuits
Can be attached with Exhaust thimble canopy
Stainless steel I.V. bar with 10 hooks

It finds application to carry out various experiments across microbiology, biotechnology, pharmacy, clinical research industry in a ventilated and de-contaminated environment.

Illuminating lamp ×2
UV lamp ×1
Base stand
Stainless Steel I.V. Bar

SS water tap
Water sink
Gas Tap
Drain valve
Waterproof sockets

Download catalog for
Biosafety Cabinet LBS2-A32 (Class II A2) Catalog

Download manual for
Biosafety Cabinet LBS2-A32 (Class II A2) Manual

Available Range :

Biosafety Cabinet LBS2-A31 (Class II A2) : 1087×775×2265 mm Biosafety Cabinet LBS2-A30 (Class II A2) : 1300mm × 750mm × 2250 mm Biosafety Cabinet LBS2-A32 (Class II A2) : 1383×775×2295 mm Biosafety Cabinet LBS2-A33 (Class II A2) : 1873×775×2240 mm

Biosafety Cabinet Class II A2 LBS2-A32Front Window Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

Biosafety Cabinet Class II A2 LBS2-A32Universal caster with brakes and levelling feet

Models of Biosafety Cabinet

Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
