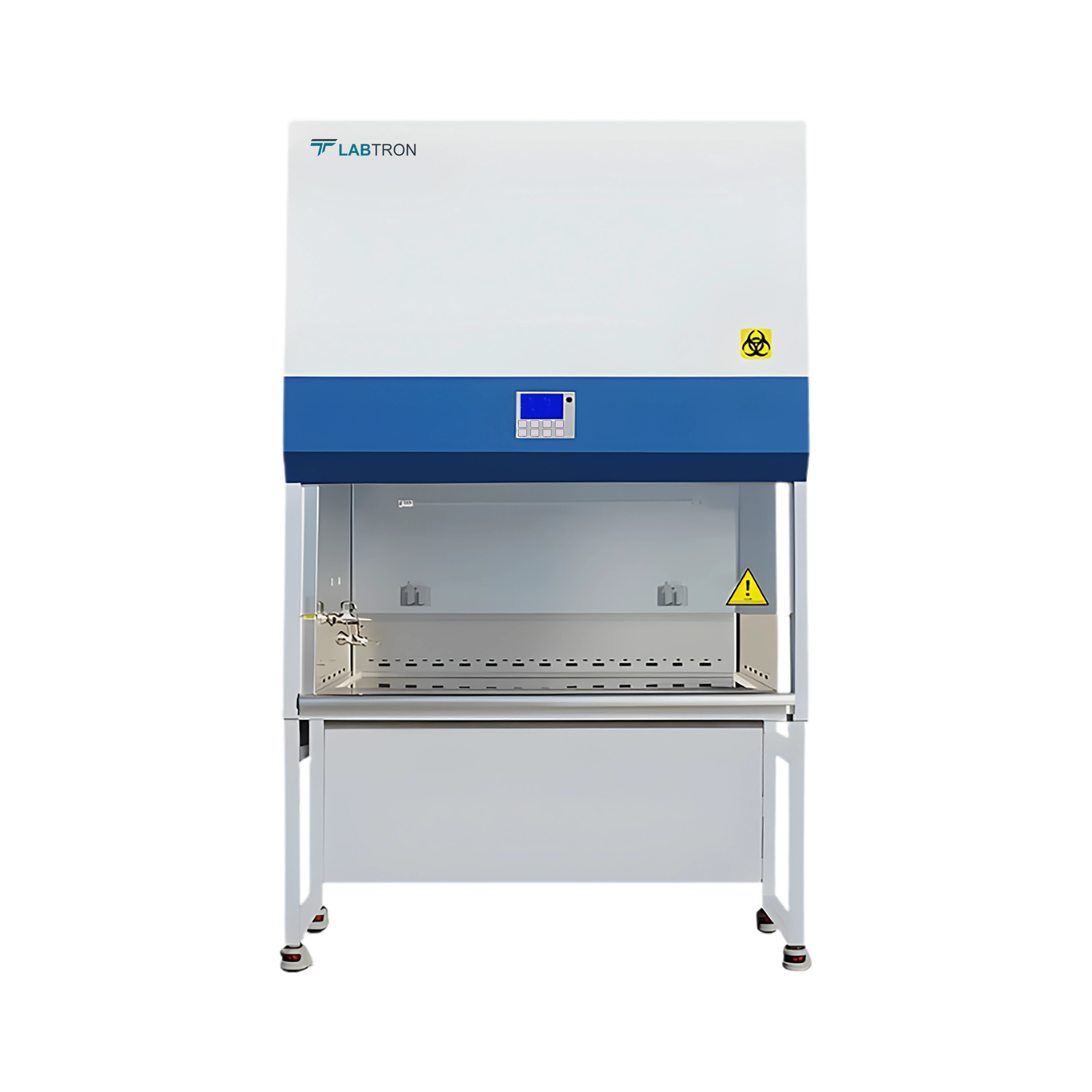

Biosafety Cabinet LBS2-A33 (Class ll A2) is a floor-standing unit with a spacious internal workspace, providing efficient airflow with 824 m³/h inflow and 1212 m³/h downflow. It features a tough glass front window, water and gas taps, a universal caster, a waterproof socket, an LCD display, an I.V. bar with hooks, etc., to carry out the experiments in a contaminant-free environment and protect operators. The 750 mm work surface height offers a maximum opening of 550 mm (22 inches) and a testing safety height of 254 mm (10 inches).
| External Dimension (W×D×H) | 1873×775×2240 mm |
| Internal Dimension (W×D×H) | 1700×600×660 mm |
| Work Surface Height | 782 mm |
| Max Opening | 470 mm (22 inch) |
| Tested Opening | Safety height 254 mm (10 inch) |
| Air flow Volume | In flow: 824 m3/h (485 cfm)Down flow: 60%: 1212 m3/h (713 cfm)Exhaust: 40%: 824 m3/h (485 cfm) |
| Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
| HEPA Filter | Two, 99.999% efficiency at 0.3 µm, filter life indicator |
| Filter Guard Type | Aluminium alloy frame |
| Noise | NSF 49 ≤ 67 dB/EN 12469 ≤ 65 dB |
| UV Lamp | 40 W ×1 Emission of 253.7 nm |
| Illumination LED Lamp | 22 W×2 |
| Illumination | ≥ 1000 Lux |
| Display | LCD Display |
| Waterproof Socket | Two, Total consumption: ≤ 500 W |
| Tap | Water tap × 1, Gas tap × 1 |
| Ground Resistance | ≤ 0.10 Ω |
| Power Supply | AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | 500 W |
| DC Motor | One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel, Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating. |
| Packaging Dimension (W×D×H) | 2020×1080×1900 mm |
| Gross Weight | 370 kg |
It finds application to carry out various experiments across microbiology, biotechnology, pharmacy, clinical research industry in a ventilated and de-contaminated environment.
Illuminating lamp ×2
UV lamp ×1
Base stand
Waterproof socket
Stainless Steel I.V. Bar with 10 hooks
| Serial no. | Accessory |
| 1 | UV lamp |
| 2 | LED lamp |
| 3 | HEPA filter (H14) |
| 4 | Exhaust duct |
| 5 | Stainless steel hook rack |
| 6 | Motorized sash and footswitch |
