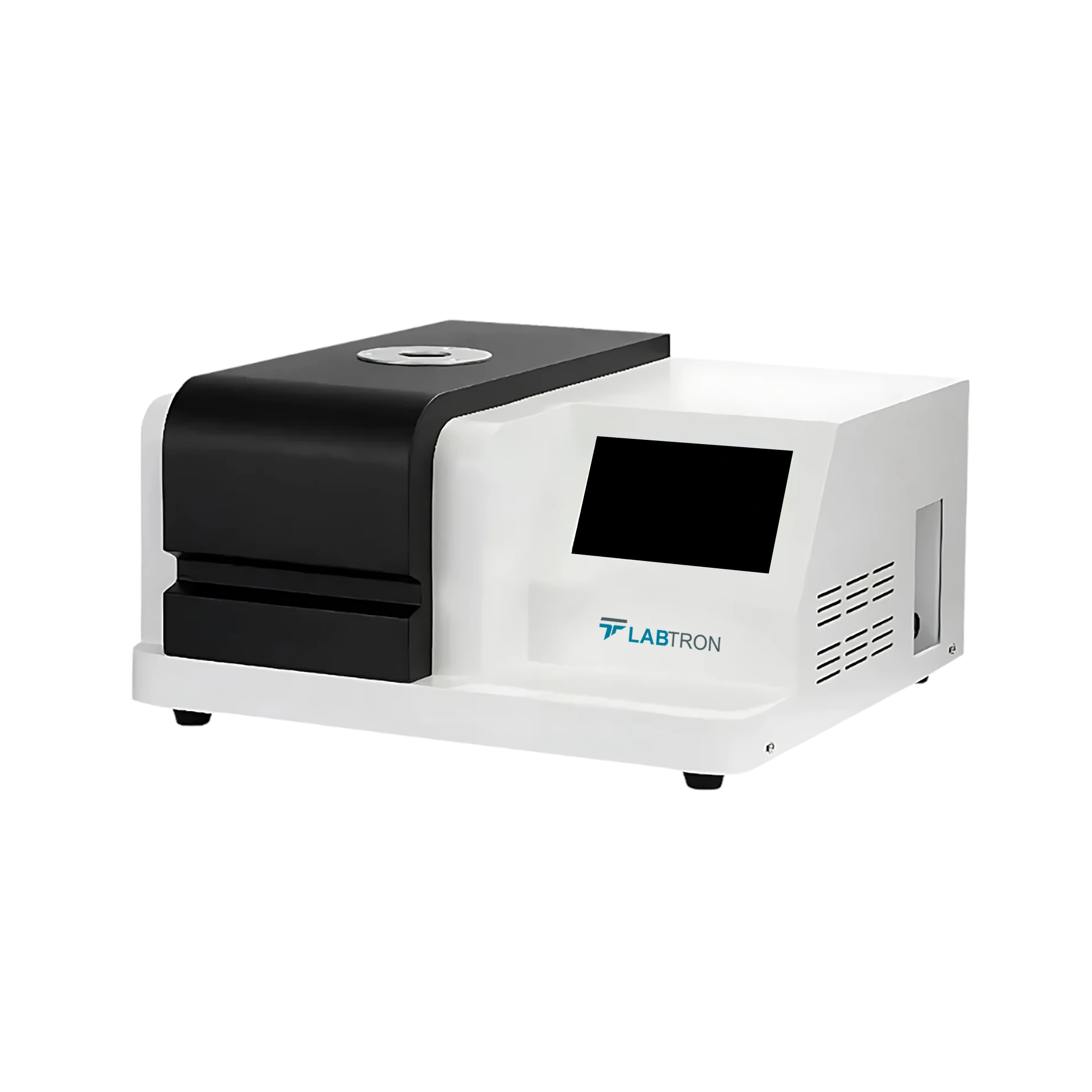

Differential Scanning Calorimeter LDSC-A10

Name: Differential Scanning Calorimeter LDSC-A10
Brand: Labtron
SKU: LDSC-A10
Rating: 5 (755 reviews)

Differential Scanning Calorimeter LDSC-A10 has heat flow ranges from 0 to ± 600mW for precise quantitative analysis of energy changes in processes. Our calorimeter utilizes multiple thermocouple sets to precisely measure temperature differences between the sample and reference materials. It is equipped with a 7-inch touchscreen that enhances the user interface and provides real-time monitoring of key parameters.

Request Quote

Dynamic Heat Flow Range (DSC Range)	0 to ± 600mW
Temperature Range	RT to 600℃
Heating Rate	0.1 to 100℃/min
Temperature Resolution	0.001℃
Temperature Fluctuation	± 0.001℃
Temperature Repeatability	± 0.01℃
Heat Flow Resolution	0.01mW
Heat Flow Sensitivity	0.001mW
Temperature Control Method	Heating, constant temperature, cooling down (Fully automatic program control）
Incubation Time	Program setting ≤ 24h
Atmosphere Control Gas	Nitrogen, Oxygen
Power Supply	AC220V/50Hz
Gas Flow	0 to 300mL/min
Gas Pressure	0.2MPa
Parameter Standard	Equipped with reference materials (indium, tin)
Cooling Device	Air cooling device Optional semiconductor (-40 to 550℃) Liquid nitrogen refrigeration (-150 to 550℃)
Display Mode	24bit color, 7-inch LCD touchscreen display
Data Interface	Standard USB
Dimension (L×W×H)	488 × 428× 237cm
Weight	28kg

Equipped with software for easy operation
Extremely sensitive and accurate
Automated switch between two atmospheric flows
Quick switch and rapid stabilization
USB communication interface
Enhanced with technical indicators

Differential Scanning Calorimeter studies the thermal properties of materials and is widely used in pharmaceuticals, food science, material science, environmental science, polymerization studies, and adhesive and coating analysis.

Host: 1 U disk: 1 Data line: 2 Power cord: 1 The Aluminum Crucible: 200 Metal cover: 2 Raw adhesive tape: 1 Pure tin grains: 1 Bag 10A Fuses: 5 Sample spoon/sample bar/ tweezers: One for each one Clean ball: 1 Air pipe: 2 Instructions: 1 Warranty form: 1 Certificate of Qualification: 1

Download catalog for
Differential Scanning Calorimeter LDSC-A10 Catalog

Available Range :

Differential Scanning Calorimeter LDSC-A12 : 0 to ± 600 mW Differential Scanning Calorimeter LDSC-A10 : 0 to ± 600mW Differential Scanning Calorimeter LDSC-A11 : 0 to ±2000mW

Models of Differential Scanning Calorimeters

Labtron Differential Scanning Colorimeters measure the properties of samples within a temperature range of -150℃ to 1150℃. Their automated sampling process enhances accuracy in biochemical analysis. They provide real-time monitoring of chemical levels, preventing interruption in testing. Their low reagent consumption reduces overall operating costs significantly. Our Differential Scanning Colorimeters provide a measurement of thermal properties in food technology, pharmaceuticals, and material science.
