| Capacity | 98 L |
| Humidity | Less than 5%RH Automatic |
| Shelves | 1 pc, Height adjustable |
| Maximum Load per Shelf | 50 Kg |
| Color | Dark Blue, ESD safe |
| Static Resistance | 106 to 108 Ω |
| Tempered Glass Thickness | 3.2 mm |
| Galvanized Steel Thickness | 1.2 mm |
| Recovery Time | Maximum 30 min after opened and closed for 30 Seconds |
| Power Consumption | 8 W |
| Interior Dimension (W × D × H) | 446 × 372 × 598 mm |
| Exterior Dimension (W × D × H) | 448 × 400 × 688 mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |

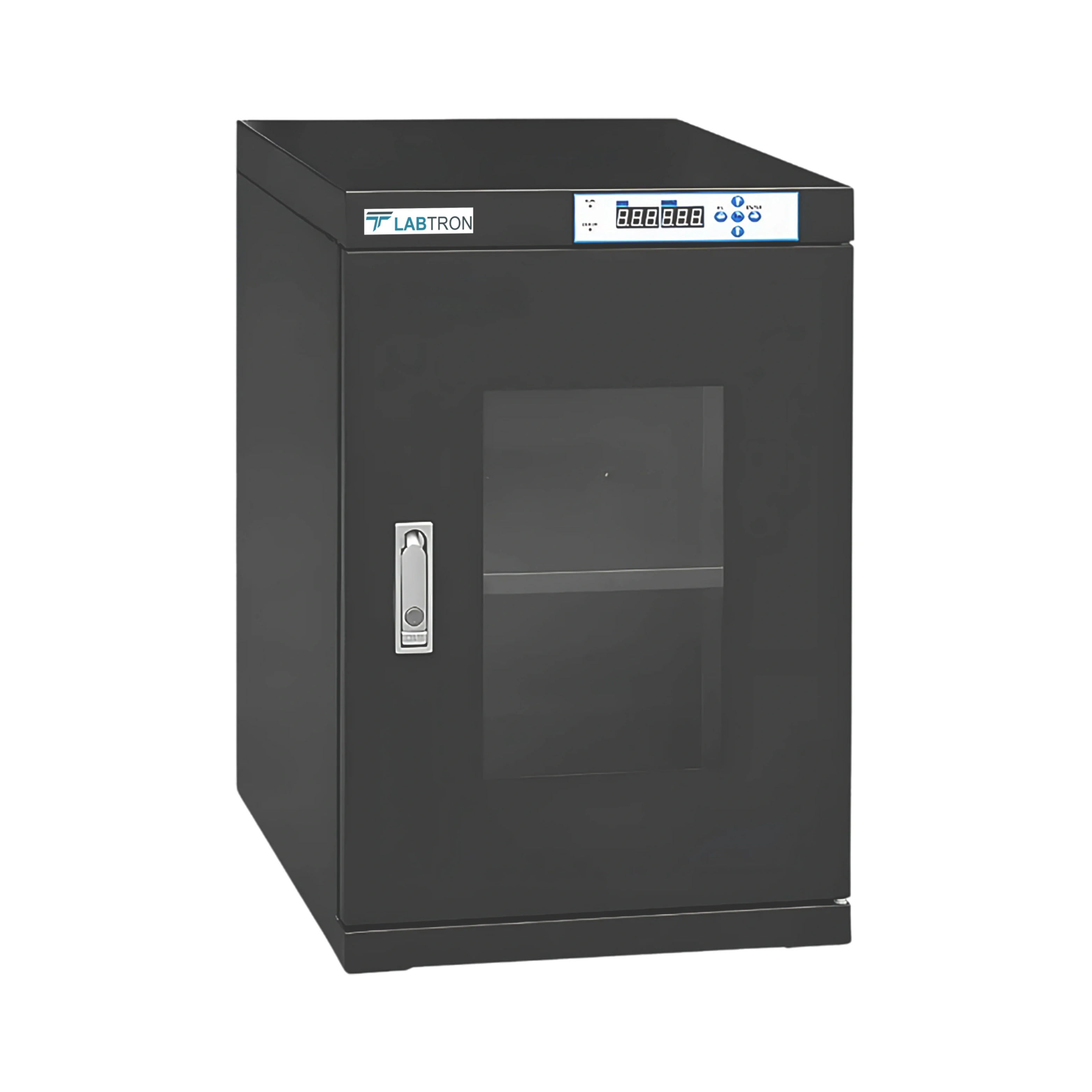

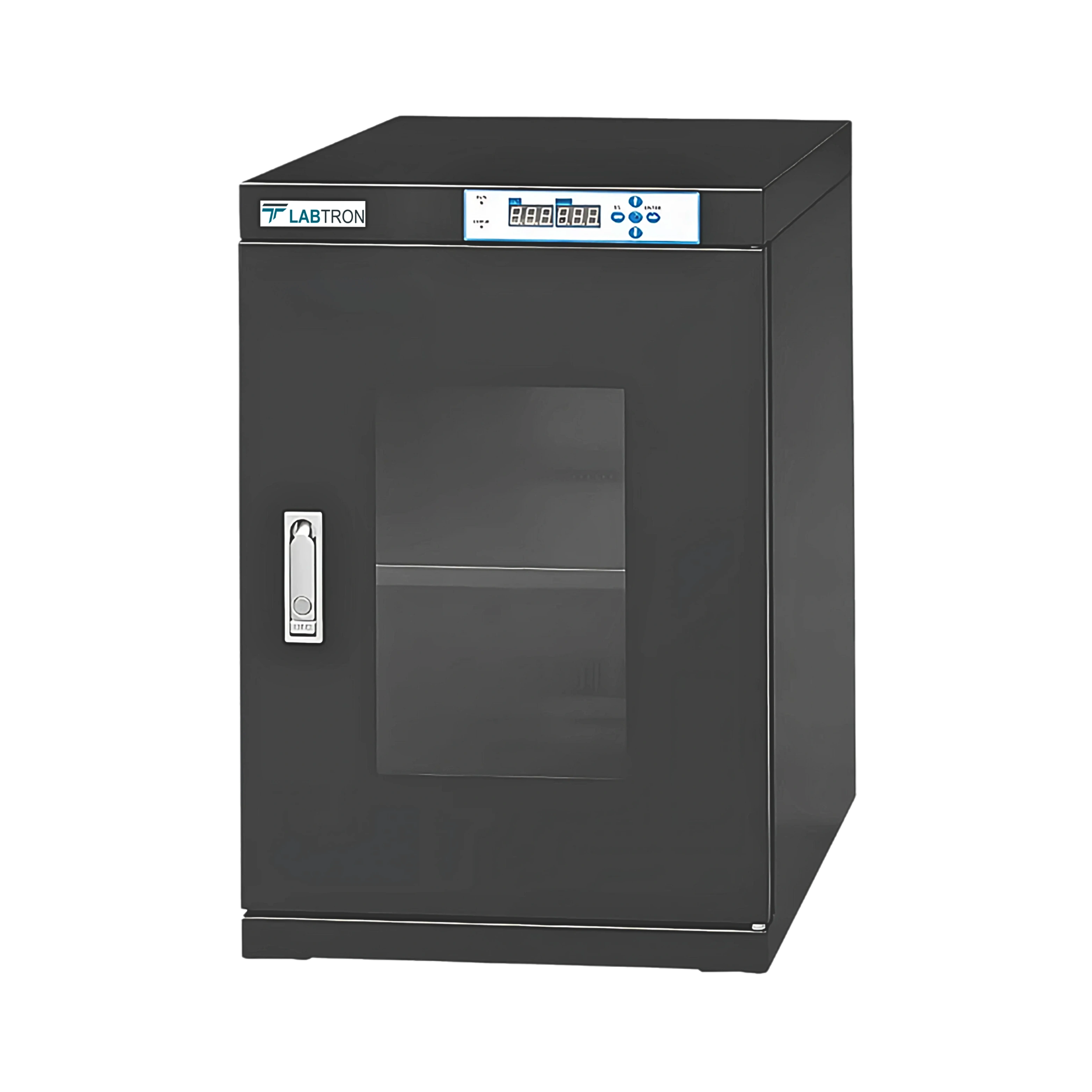

Our dry storage cabinet LDYS-A10 provides an ESD-safe, low-humidity environment ideal for MSL components, preventing moisture-related defects like micro-cracks and wiring failures during reflow soldering.
Download catalog for
Dry Storage Cabinet LDYS-A10 Catalog
Available Range :
Dry Storage Cabinet LDYS-B19 : 1436 L Dry Storage Cabinet LDYS-B11 : 160 L Dry Storage Cabinet LDYS-B12 : 240 L Dry Storage Cabinet LDYS-A20 : 300 L Dry Storage Cabinet LDYS-B13 : 320 L Dry Storage Cabinet LDYS-B14 : 435 L Dry Storage Cabinet LDYS-B15 : 540 L Dry Storage Cabinet LDYS-I16 : 718 L Dry Storage Cabinet LDYS-B16 : 718 L Dry Storage Cabinet LDYS-F14 : 840 L Dry Storage Cabinet LDYS-B17 : 870 L Dry Storage Cabinet LDYS-B10 : 98 LLabtron Dry Storage Cabinets are designed to provide optimal storage conditions. They effectively control humidity levels to protect sensitive items. Their sturdy construction ensures durability and reliability. Their advanced features include precise humidity control and ample storage space. They are built with anti-static properties for enhanced safety. Their sleek design offers both practicality and aesthetic appeal. Our dry storage cabinets ensure consistent performance across various environments.
Yes, Labtron’s LDYS-A10 is specifically designed for long-term storage of MSL (Moisture Sensitivity Level) components. Its anti-static, ESD-safe structure prevents damage from electrostatic discharge, while the automatic humidity control ensures that moisture-sensitive devices remain protected for extended periods, reducing the risk of defects during reflow soldering or PCB assembly.
Our Dry Storage Cabinet LDYS-A10 has a fast recovery time of a maximum of 30 minutes after the door is opened and closed for 30 seconds. This ensures that any humidity fluctuations caused by accessing stored items are quickly stabilized, maintaining optimal storage conditions.
Our LDYS-A10 Dry Storage Cabinet is equipped with an automatic dehumidification system that continuously monitors and adjusts humidity levels to stay below 5% RH. The built-in humidity and temperature sensors detect environmental changes, and the system activates dehumidification as needed, ensuring stable storage conditions without manual intervention.
Labtron’s Dry Storage Cabinet LDYS-A10 offers a controlled low-humidity environment, making it ideal for storing moisture-sensitive components like IC packages, semiconductors, and electronic assemblies. With automatic humidity control maintaining levels below 5% RH, it prevents moisture-induced defects such as oxidation, micro-cracks, and electrical failures. Additionally, its ESD-safe galvanized steel construction and tempered glass window provide durability and protection.
Our LDYS-A10 is compact and sturdy; however, we do not recommend stacking multiple units directly on top of each other. If more storage is needed, multiple cabinets can be placed side by side for efficient workspace utilization.
Labtron’s Dry Storage Cabinet does need power to operate the automatic dehumidification system, its efficient humidity control mechanism ensures that even in short power outages, stored items remain protected. The memory function also restores previous settings once power is back.
